51939-144LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 51939-144LF

51939-144LF: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size225KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51939-144LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51939-144LF	-	-	View	Buy Now

51939-144LF Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE

51939-144LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Board mount options	HOLE .138-.163
body width	0.574 inch
subject depth	0.93 inch
body length	3.15 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P9
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	7.62 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

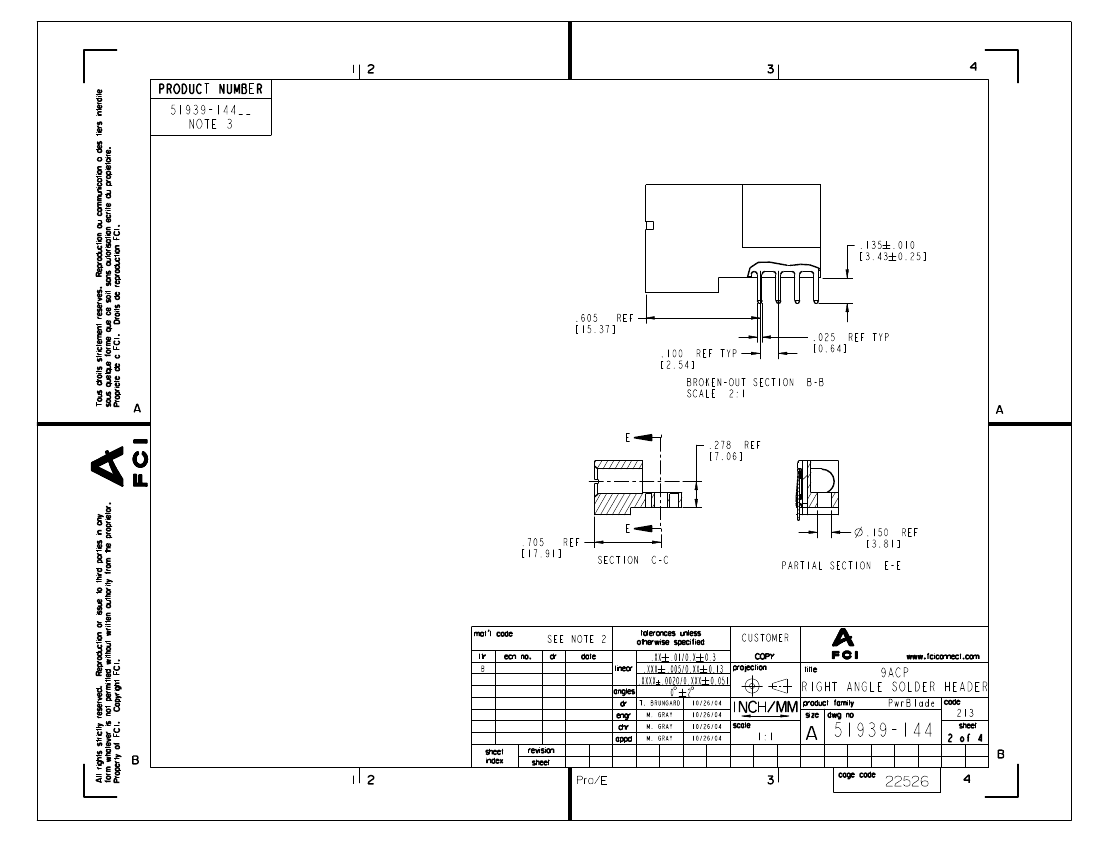

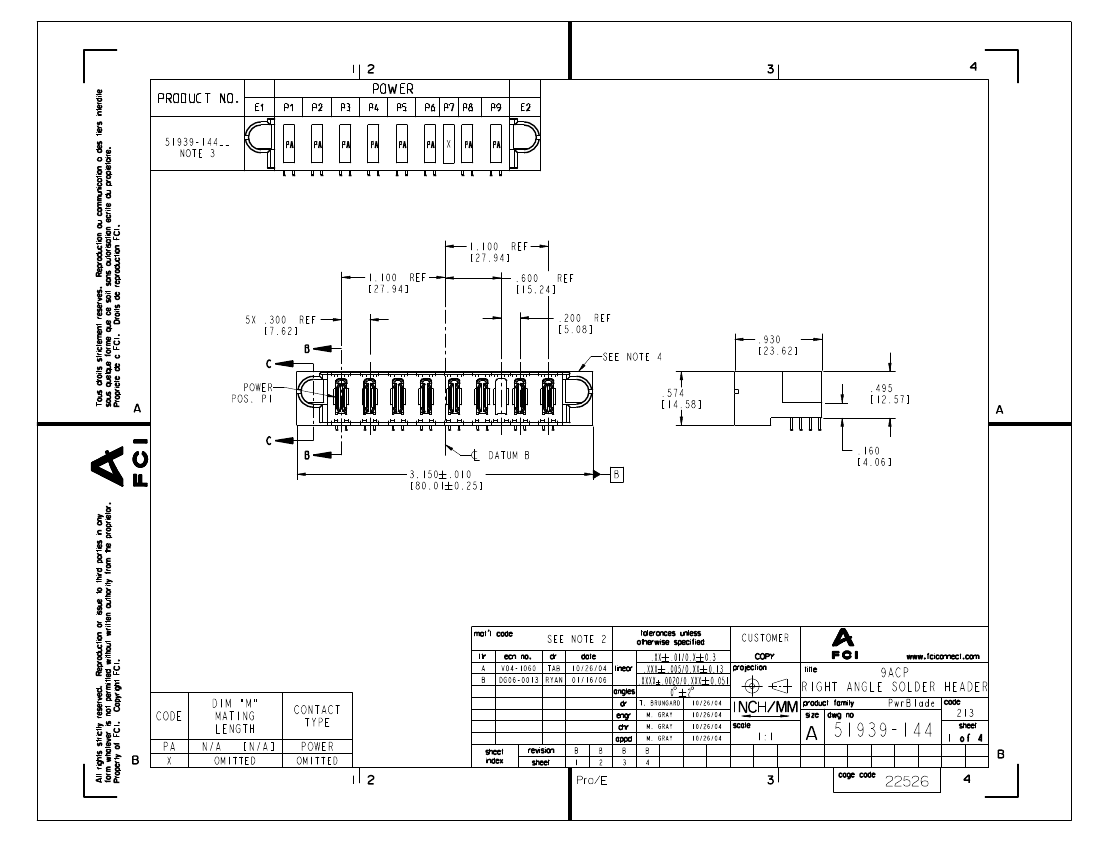

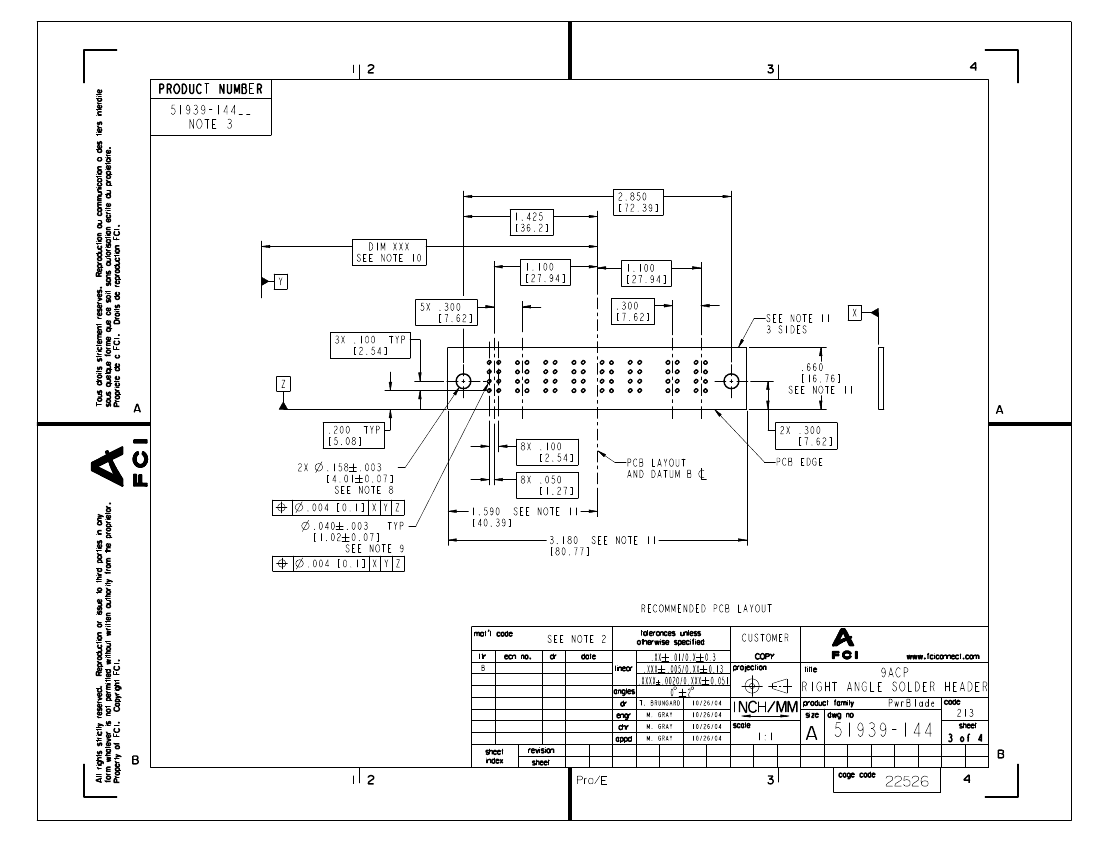

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Sep 21, 2006

51939-144LF Related Products

	51939-144LF	51939-144GLF	51939-144
Description	Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE	Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE	Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Is it Rohs certified?	conform to	conform to	incompatible
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Board mount options	HOLE .138-.163	HOLE .138-.163	HOLE .138-.163
body width	0.574 inch	0.574 inch	0.574 inch
subject depth	0.93 inch	0.93 inch	0.93 inch
body length	3.15 inch	3.15 inch	3.15 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S0P9	S0P9	S0P9
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID	HYBRID
DIN compliance	NO	NO	NO
Dielectric withstand voltage	1000VDC V	1000VDC V	1000VDC V
Durability	200 Cycles	200 Cycles	200 Cycles
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
Number of rows loaded	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch	0.135 inch
Terminal pitch	7.62 mm	7.62 mm	7.62 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	8	8	8
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
package instruction	LEAD FREE	LEAD FREE	-
