5065-101-2K datasheet, PDF - EEWORLD Datasheet

5065-101-2K: DescriptionBase Station/Broadcast Transmission Antenna, 3MHz Min, 30MHz Max, 8.5dB Gain, 360deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size338KB，2 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

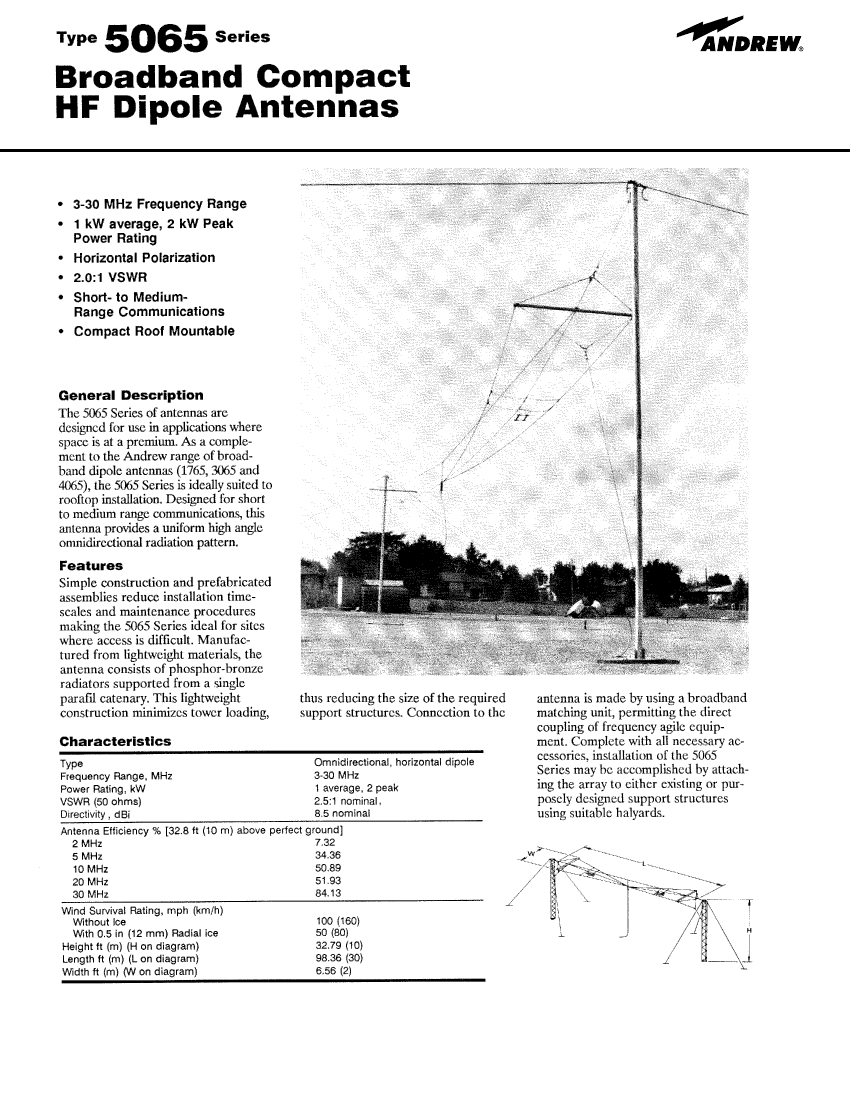

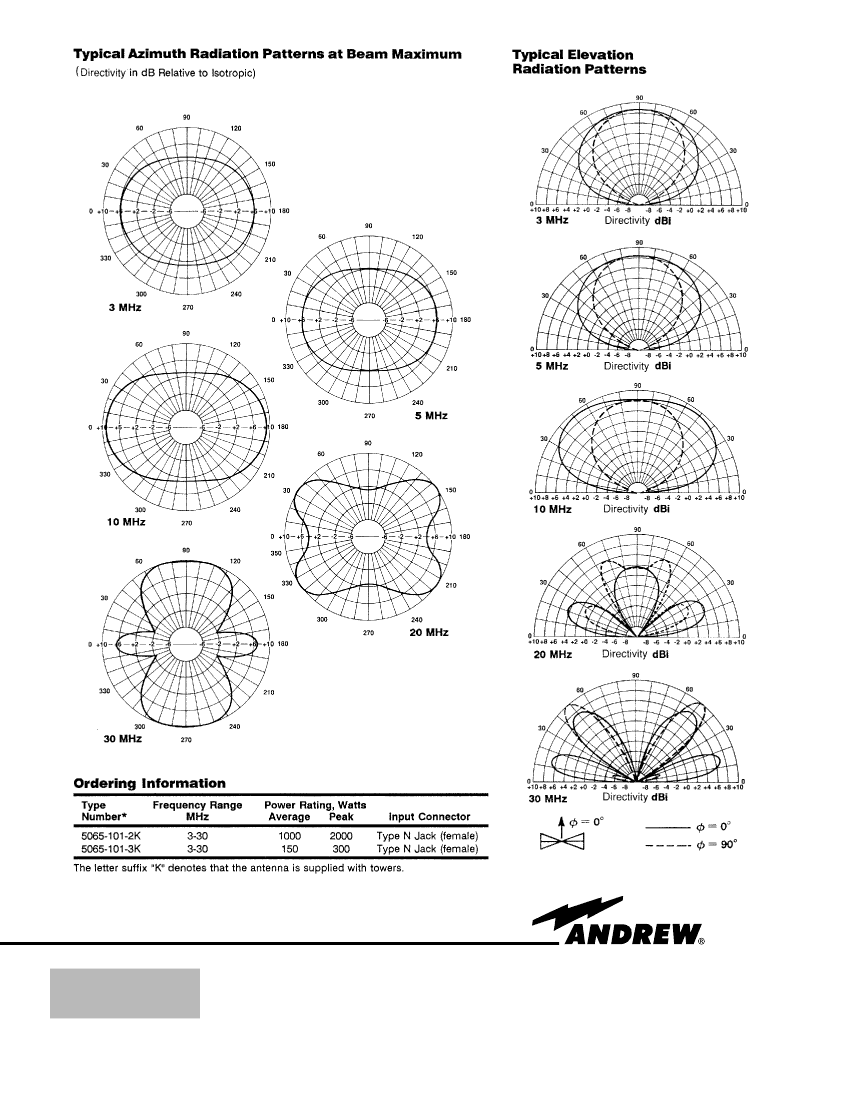

5065-101-2K Overview

Base Station/Broadcast Transmission Antenna, 3MHz Min, 30MHz Max, 8.5dB Gain, 360deg 3dB Beamwidth

Parameter Name	Attribute value
Maker	CommScope Inc
Reach Compliance Code	unknown
Beamwidth-H	360 deg
Gain	8.5 dB
Omnidirectional	YES
Maximum operating frequency	30 MHz
Minimum operating frequency	3 MHz
polarization	LINEAR HORIZONTAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	1000 W
Maximum voltage standing wave ratio	2.5
Commentary	100 mph
Base Number Matches	1

1

	5065-101-2K	5065-101-3K
Description	Base Station/Broadcast Transmission Antenna, 3MHz Min, 30MHz Max, 8.5dB Gain, 360deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 3MHz Min, 30MHz Max, 8.5dB Gain, 360deg 3dB Beamwidth
Maker	CommScope Inc	CommScope Inc
Reach Compliance Code	unknown	unknown
Beamwidth-H	360 deg	360 deg
Gain	8.5 dB	8.5 dB
Omnidirectional	YES	YES
Maximum operating frequency	30 MHz	30 MHz
Minimum operating frequency	3 MHz	3 MHz
polarization	LINEAR HORIZONTAL	LINEAR HORIZONTAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	1000 W	150 W
Maximum voltage standing wave ratio	2.5	2.5
Commentary	100 mph	100 mph
