TECHNICAL DATA SHEET
ADAPTOR
Power Insert DIN 41626 and D-SUB PLUG - PLUG
50S104-S00L

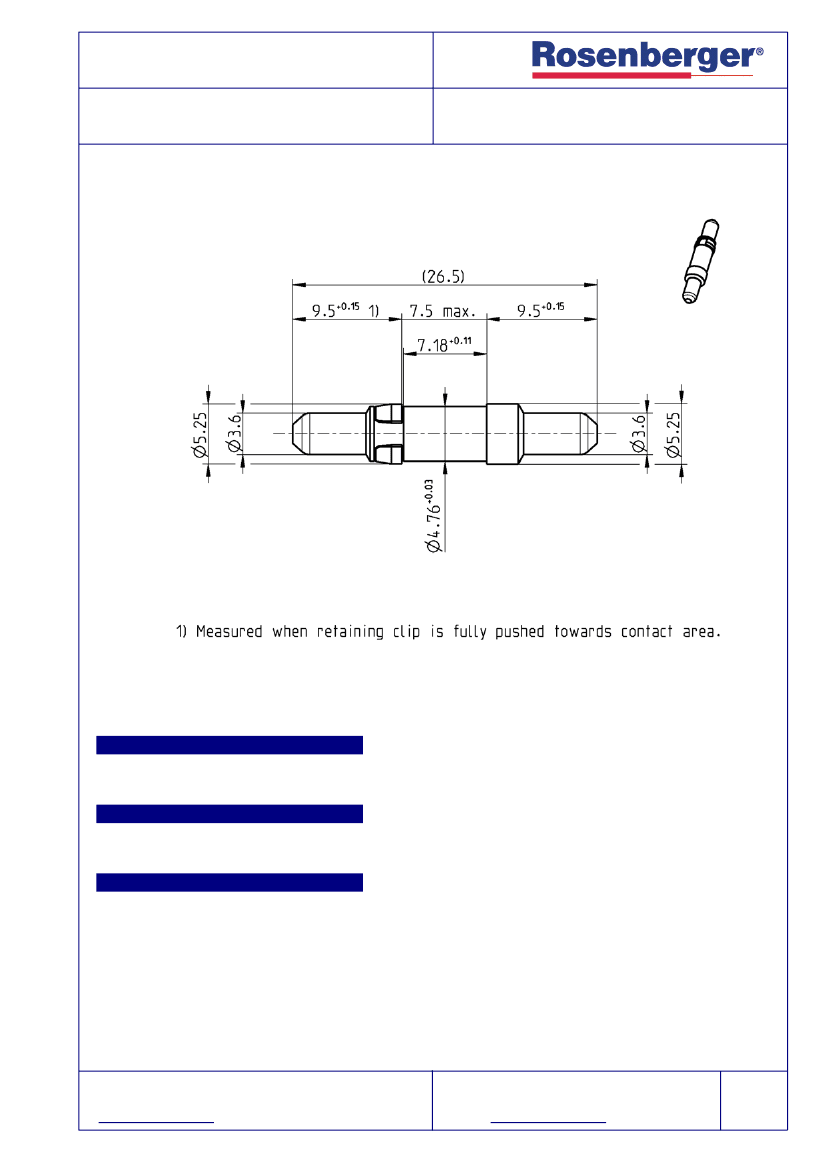

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
DIN 41626/1 and D-sub
Documents
N/A
Material and plating
Connector parts
Pin contact
Clip
Material
Brass
CuBe
Plating
AuroDur®, gold plated
Nickel, 2.5-5 µm
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
ADAPTOR
Power Insert DIN 41626 and D-SUB PLUG - PLUG
50S104-S00L
Electrical data
Contact resistance
Current
≤
1 mΩ
≤
40 A
Mechanical data
Mating cycles
Connector captivation in plastic
Engaging force
Disengaging force
≥
≥
≤
≥
500
52 N
10 N
1.6 N
Environmental data
Temperature range
Climatic class
2002/95/EC (RoHS)
-55°C to +125°C
IEC 60068-2-1 55/125/21
IEC 60068-2-2
IEC 60068-2-3
compliant
Tooling
N/A
Suitable cables
N/A
Packing
Standard
Weight
100 pcs in bag
3.1 g/pce
