WIREWOUND CHIP INDUCTORS
1. PART NO. EXPRESSION :
SCI1008S SERIES
SCI1008S-5N6KF
(a)
(b)
(c)
(d) (e) (f)
(a) Series code
(b) Dimension code
(c) Type code : S ( Standard )
(d) Inductance code : 5N6 = 5.6nH
(e) Tolerance code : G = ±2%, J = ±5%, K = ±10%
(f) F : Lead Free

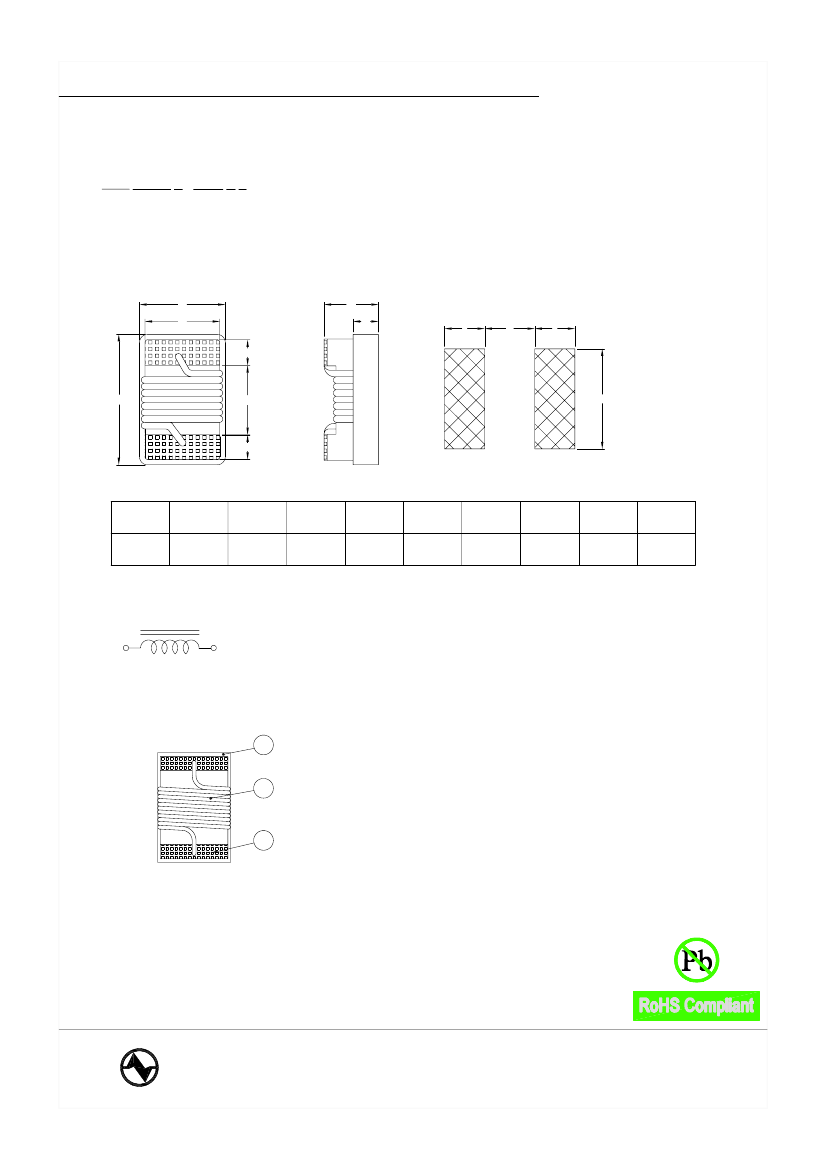

2. CONFIGURATION & DIMENSIONS :
B
E
C
D
I
J
I
F
A
F
G
PCB Pattern
Unit:m/m
A
B
C
D
0.65 Ref.
E
2.03 Ref.
F
0.51 Ref.
G
1.52 Ref.
H
2.54 Ref.
I
1.02 Ref.
J
1.27 Ref.
2.92 Max. 2.79 Max. 2.03 Max.
3. SCHEMATIC :
4. MATERIALS :
a
(a) Core : Ceramic U core
(b) Wire : Enamelled Copper Wire
b
(c) Terminal Metallization : Ag + Ni + Au
c
NOTE : Specifications subject to change without notice. Please check our website for latest information.
H
15.01.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
WIREWOUND CHIP INDUCTORS
5. GENERAL SPECIFICATION :
a) Storage temp. : -25°C to +80°C
b) Operating temp. : -40°C to +125°C
c) Temperature rise : 40°C Max.
d) Rated current : Base on temp. rise & L/L0A=10% Max.
e) Resistance to solder heat : 260°C.10sec
SCI1008S SERIES
6. ELECTRICAL CHARACTERISTICS :
Part No.
SCI1008S-5N6 F
SCI1008S-10N F
SCI1008S-12N F
SCI1008S-15N F
SCI1008S-18N F
SCI1008S-22N F
SCI1008S-24N F
SCI1008S-27N F
SCI1008S-33N F
SCI1008S-39N F
SCI1008S-47N F
SCI1008S-56N F
SCI1008S-62N F
SCI1008S-68N F
SCI1008S-75N F
SCI1008S-82N F
SCI1008S-R10 F
SCI1008S-R12 F
SCI1008S-R15 F
SCI1008S-R18 F
SCI1008S-R22 F
SCI1008S-R24 F
SCI1008S-R27 F
Tolerance
Available
K, J
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
L
( nH )
5.6
10
12
15
18
22
24
27
33
39
47
56
62
68
75
82
100
120
150
180
220
240
270
Test
Freq
( MHz )
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
25
25
25
25
25
25
25
Q
Min.
50
50
50
50
50
55
55
55
60
60
65
65
65
65
60
60
60
60
45
45
45
45
45
Q Test
Freq
( MHz )
1500
500
500
500
350
350
350
350
350
350
350
350
350
350
350
350
350
350
100
100
100
100
100
SRF
( MHz )
Min.
4000
4100
3300
2500
2400
2400
1900
1600
1600
1500
1500
1300
1250
1300
1100
1000
1000
950
850
750
700
650
600
DCR
( )
Max.
0.150
0.080
0.090
0.110
0.120
0.120
0.120
0.130
0.140
0.150
0.160
0.180
0.200
0.200
0.210
0.220
0.560
0.630
0.700
0.770
0.840
0.880
0.910
IDC
( mA )
Max.
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
650
650
580
620
500
500
500
NOTE : Specifications subject to change without notice. Please check our website for latest information.
15.01.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
WIREWOUND CHIP INDUCTORS
6. ELECTRICAL CHARACTERISTICS :
Part No.
SCI1008S-R30 F
SCI1008S-R33 F
SCI1008S-R36 F
SCI1008S-R39 F
SCI1008S-R43 F
SCI1008S-R47 F
SCI1008S-R56 F
SCI1008S-R62 F
SCI1008S-R68 F
SCI1008S-R75 F
SCI1008S-R82 F
SCI1008S-R91 F
SCI1008S-1R0 F
SCI1008S-1R2 F
SCI1008S-1R5 F
SCI1008S-1R8 F
SCI1008S-2R2 F
SCI1008S-2R7 F
SCI1008S-3R3 F
SCI1008S-3R9 F
SCI1008S-4R7 F
SCI1008S-5R6 F
SCI1008S-6R8 F
SCI1008S-8R2 F
SCI1008S-103 F
SCI1008S-123 F
SCI1008S-153 F
Inductance tolerance :
: G : ±2%
J : ±5%
K : ±10%
Tolerance
Available
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
L
( nH )
300
330
360
390
430
470
560
620
680
750
820
910
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
12000
15000
Test
Freq
( MHz )
25
25
25
25
25
25
25
25
25
25
25
25
25
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
Q
Min.
45
45
45
45
45
45
45
45
45
45
45
35
35
35
28
28
28
22
22
20
20
16
15
15
15
15
15
Q Test
Freq
( MHz )
100
100
100
100
100
100
100
100
100
100
100
50
50
50
50
50
50
25.2
25.2
25.2
25.2
7.96
7.96
7.96
7.96
7.96
7.96
SCI1008S SERIES
SRF
( MHz )
Min.
585
570
530
500
480
450
415
375
375
360
350
320
290
250
200
160
160
140
110
100
90
20
40
25
20
18
15
DCR
( )
Max.
1.00
1.05
1.10
1.12
1.15
1.19
1.33
1.40
1.47
1.54
1.61
1.68
1.75
2.00
2.30
2.60
2.80
3.20
3.40
3.60
4.00
4.00
4.90
6.00
9.00
10.5
11.5
IDC
( mA )
Max.
450
450
470
470
470
470
400
300
400
360
400
380
370
310
330
300
280
290
290
260
260
240
200
170
150
130
120
NOTE : Specifications subject to change without notice. Please check our website for latest information.
15.01.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
WIREWOUND CHIP INDUCTORS
7. ELECTRICAL CHARACTERISTICS :

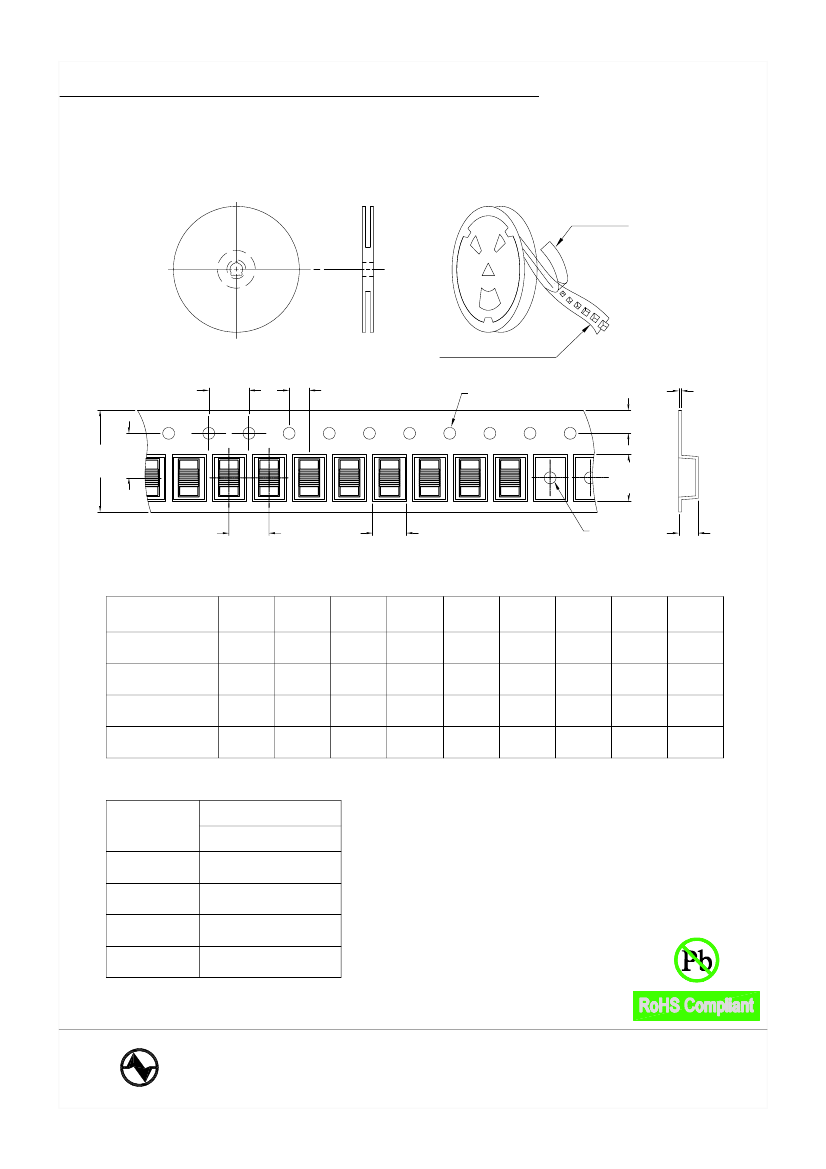

CONFIGURATTION :
SCI1008S SERIES
COVER TAPE
EMBOSSED CARRIER
F±0.1
4±0.1
G±0.05
Ø1.5
I±0.05
A±0.2
E±0.05
C±0.1
B±0.1
Ø1.5
DIMENSION (unit: mm)
SERIES
SCI0402
SCI0603
SCI0805
SCI1008
A
8.0
8.0
8.0
8.0
B
0.71
1.10
1.88
2.73
C
2.0
4.0
4.0
4.0
D
1.16
1.75
2.38
2.88
E
3.5
3.5
3.5
3.5
F
1.75
1.75
1.75
1.75
G
0
2
2
2
H
0.65
1.15
1.48
2.33
I
0.23
0.25
0.20
0.20
PACKING QUANTITY
INNER REEL
SERIES
Q'TY (PCS)
4000
4000
2000
2000
SCI0402
SCI0603
SCI0805
SCI1008
NOTE : Specifications subject to change without notice. Please check our website for latest information.
D±0.1
H±0.05
15.01.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
WIREWOUND CHIP INDUCTORS
8. ENVIRONMENTAL CHARACTERISTICS :
Electrical Performance Test :
SCI1008S SERIES
ITEM
1
Inductance
SPECIFICATION
TEST CONDITIONS / TEST METHODS
HP4291B
2
Q
Refer to Electrcal
Characteristics List
HP4291B
3
SRF
HP8753D
4
DC Resistance Rdc
Mico-Ohmmeter (GOM-801G)
5
Rated Current IDC
The device should be REFLOW soldered (230±5°C for
10 seconds) to a tinned copper subs rate. A dynamiter
6
Over Load Test
After test, inductors shall
have no evidence of
electrical and mechanical
damage
Applied 2 times of rated allowed DC current to inductor
for a period of 5 minute.
7
Withstanding
Voltage Test
After test, inductors shall
have no evidence of
electrical and mechanical
damage
AC voltage of 500VAC applied between inductors
terminal and case for 1 minute.
8
Insulation
Resistance Test
1000 MOhm min.
100VDC applied between inductor terminal and case
NOTE : Specifications subject to change without notice. Please check our website for latest information.
15.01.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 5
