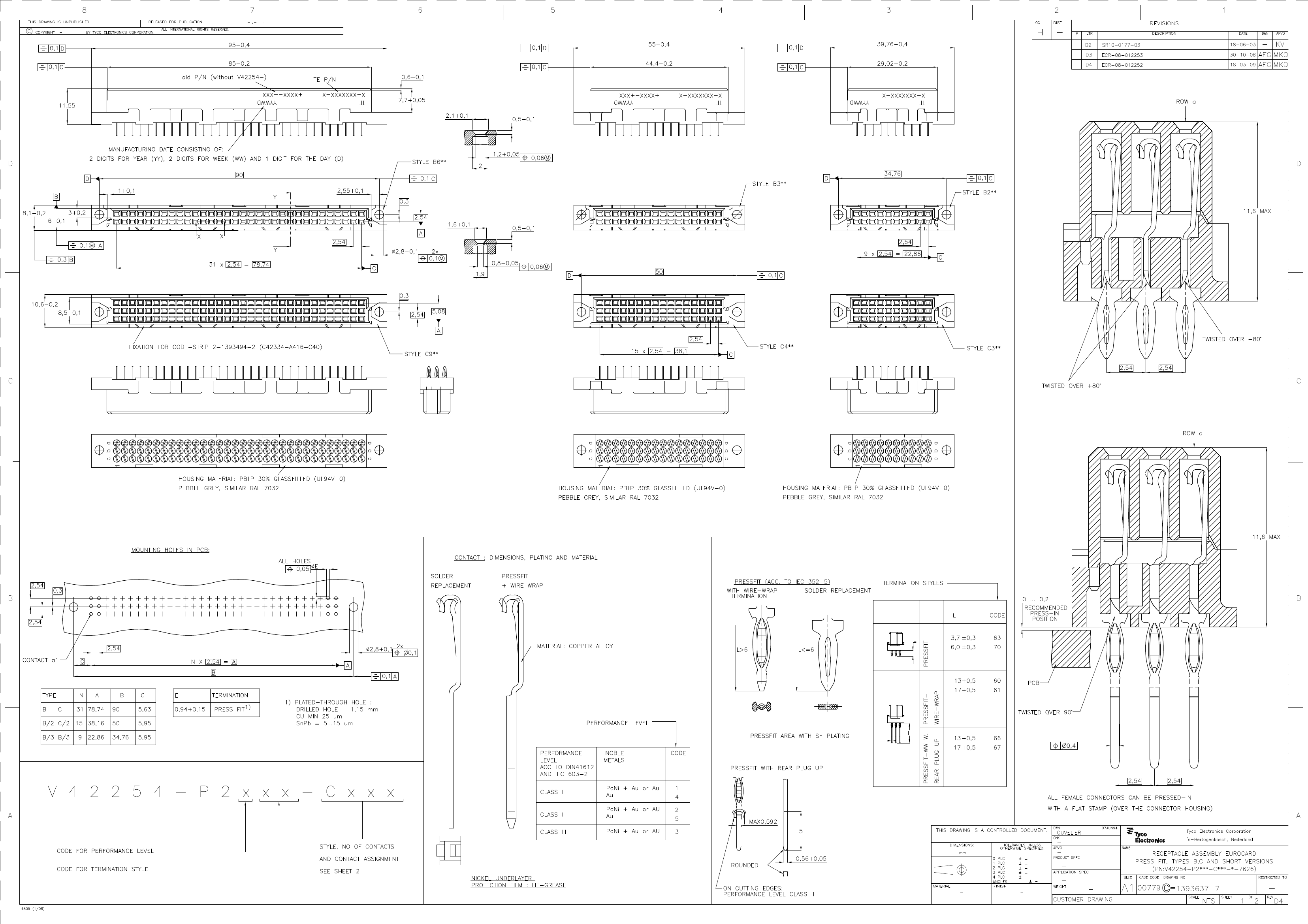

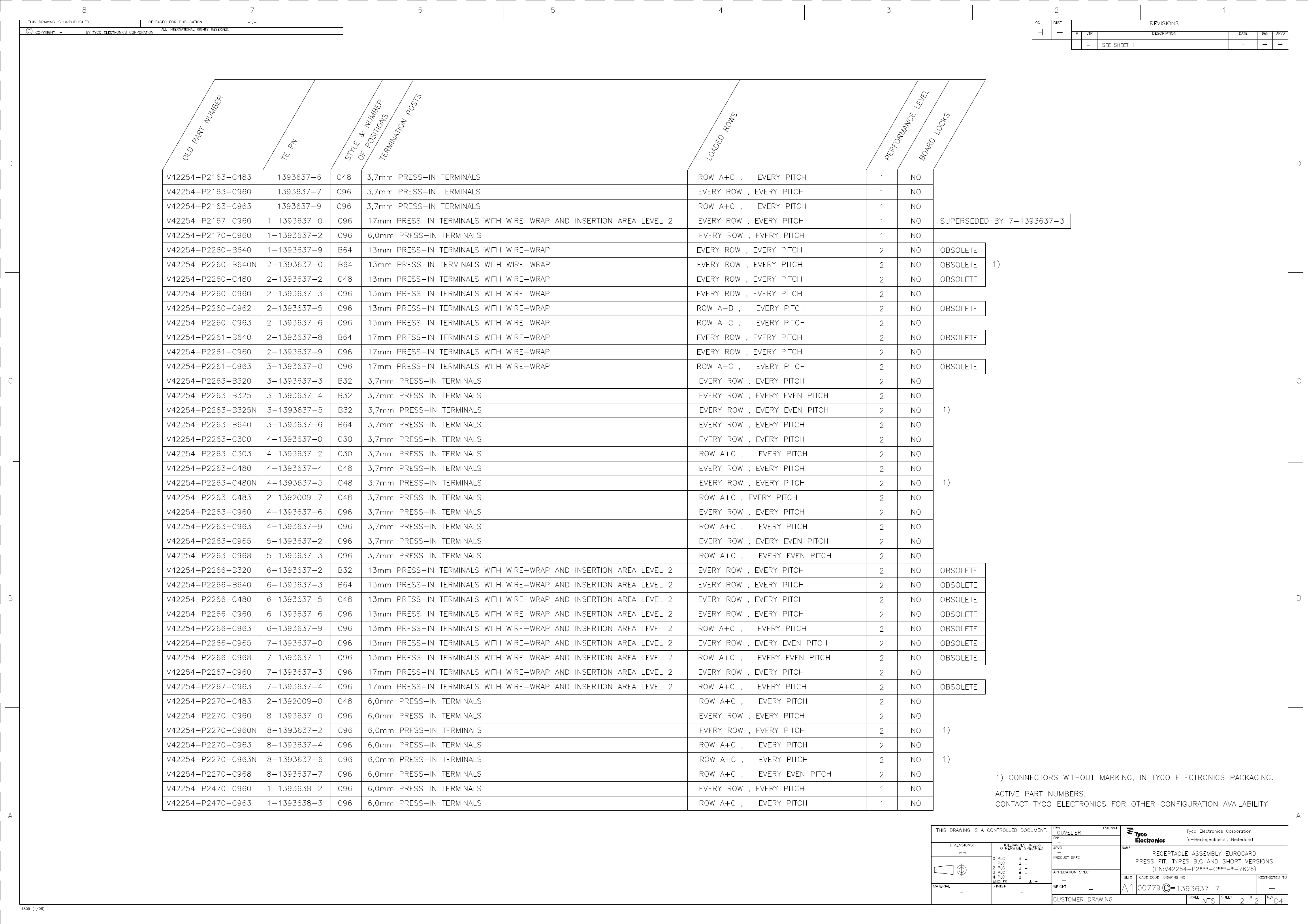

6-1393637-5: Description48 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT, RECEPTACLE; CategoryThe connector The connector; File Size461KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

6-1393637-5 Overview

48 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT, RECEPTACLE

6-1393637-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2103675793
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
Other features	STANDARD: DIN 41612
body width	0.417 inch
subject depth	0.455 inch
body length	2.165 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	15 mΩ
Contact style	BELLOWED TYPE
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	.9452 N
Insulation resistance	1000000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Guideline	UL
Terminal length	0.512 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	48
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

Preview

Download Datasheet

View All

6-1393637-5 Related Products

	6-1393637-5	6-1393637-2	LP38856_15	7-1393637-4	7-1393637-1	WCR1206-121KFI	7-1393637-0	12084976	2-1393637-7
Description	48 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT, RECEPTACLE	32 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT, RECEPTACLE	3A Fast-Response High-Accuracy LDO Linear Regulator With Enable	96 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT, RECEPTACLE	96 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT, RECEPTACLE	RESISTOR, 0.25W, 1%, 100ppm, 121000ohm, SURFACE MOUNT, 1206, CHIP	96 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT, RECEPTACLE	Combination Line Connector	48 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT, RECEPTACLE
Is it Rohs certified?	conform to	conform to	-	conform to	conform to	conform to	conform to	-	-
Reach Compliance Code	unknown	unknown	-	unknown	unknown	compliant	unknown	unknown	unknown
ECCN code	EAR99	-	-	EAR99	-	EAR99	EAR99	EAR99	-
Other features	STANDARD: DIN 41612	STANDARD: DIN 41612	-	STANDARD: DIN 41612	STANDARD: DIN 41612	-	STANDARD: DIN 41612	-	STANDARD: DIN 41612
Body/casing type	RECEPTACLE	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	-	RECEPTACLE	-	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	-	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	-	BOARD EURO CONNECTOR	COMBINATION LINE CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	GOLD/GOLD OVER PALLADIUM NICKEL
Contact point gender	FEMALE	FEMALE	-	FEMALE	FEMALE	-	FEMALE	-	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	-	COPPER ALLOY	COPPER ALLOY	-	COPPER ALLOY	-	-
DIN compliance	YES	YES	-	YES	YES	-	YES	-	YES
Filter function	NO	NO	-	NO	NO	-	NO	-	NO
IEC compliance	NO	NO	-	NO	NO	-	NO	-	NO
MIL compliance	NO	NO	-	NO	NO	-	NO	-	NO
Mixed contacts	NO	NO	-	NO	NO	-	NO	-	NO
Installation method	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	-	STRAIGHT	-	STRAIGHT
Installation type	BOARD	BOARD	-	BOARD	BOARD	-	BOARD	-	BOARD
Number of rows loaded	3	3	-	2	2	-	3	-	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	-	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	-	2.54 mm	-	2.54 mm
Termination type	PRESS FIT	PRESS FIT	-	PRESS FIT	PRESS FIT	-	PRESS FIT	-	PRESS FIT
Total number of contacts	48	32	-	96	96	-	96	-	48
UL Flammability Code	94V-0	94V-0	-	94V-0	94V-0	-	94V-0	-	-
Manufacturer's serial number	-	-	-	1393637	1393637	-	1393637	12084976	1393637
