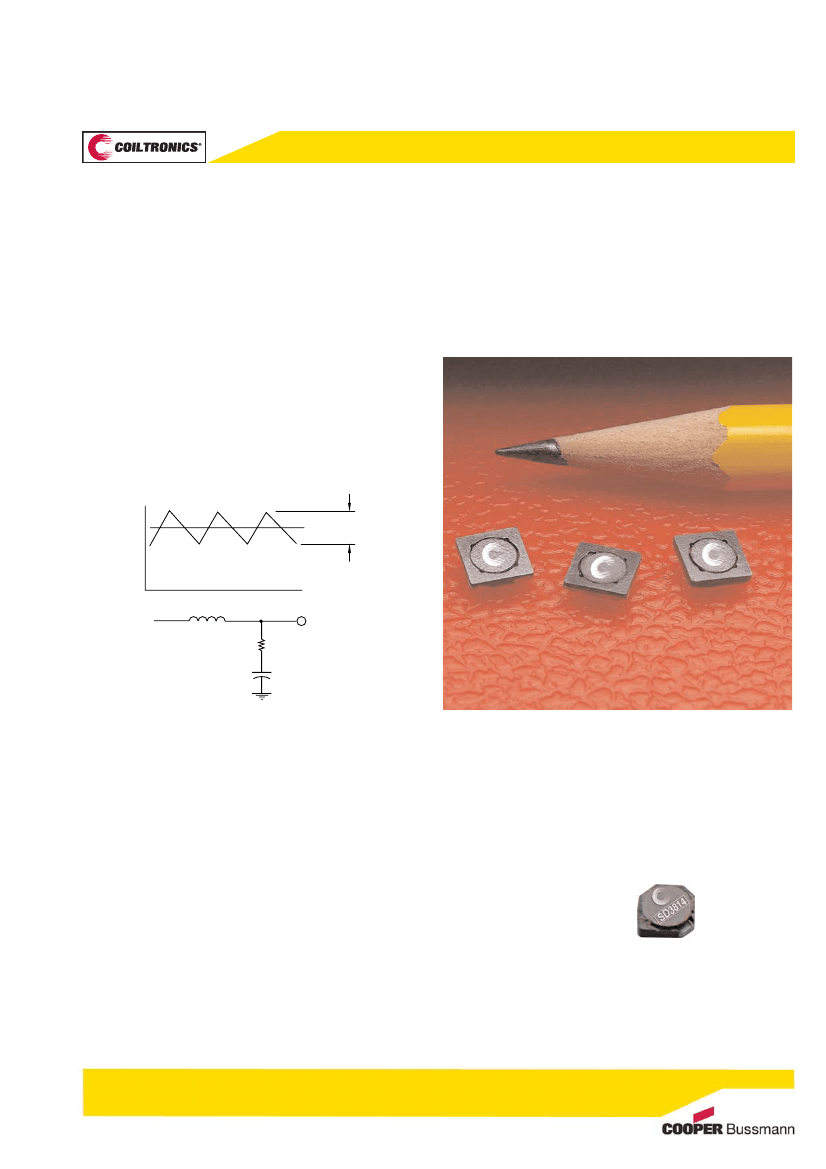

In switching regulator applications the inductor is used as an energy
storage device. When the semiconductor switch is on the current in the
inductor ramps up and energy is stored. When the switch turns off energy
is released into the load. The amount of energy stored is calculated by the
formula
Energy = ½L.I²
(Joules), where:
• L is the inductance in Henrys
• I is the peak value of inductor current
The amount by which the current changes during a switching cycle is
known as the ripple current. Ripple current is defined as Vl = L.di/dt:
• Vl is the voltage across the inductor
• di is the ripple current
• dt is the duration for which the voltage is applied
I load
dI
I inductor
0
1
2
ESR
V out
Figure 1:
Buck Inductor
Inductor current is made up of AC and DC components (Figure 1). The AC
component is high frequency and will flow through the output capacitor
because it has a low HF impedance. A ripple voltage is produced due to
the capacitor ‘equivalent series resistance’ (ESR) that will appear at the
output of the switching regulator. This ripple voltage needs to be
sufficiently low as not to effect the operation of the circuit the regulator is
supplying, normally in the order of 10-500mVpk-pk.
Selecting the correct ripple current impacts the size of the inductor and
output capacitor. The capacitor needs to have a sufficiently high ripple
current rating or it will overheat and dry out. To achieve a good
compromise between inductor and capacitor size a ripple current value of
10-30% of maximum inductor current should be chosen. The current in
the inductor will be continuous for output currents greater that 5-15% of
full load.
The following parameters need to be defined or calculated to select an
inductor:
• Maximum input voltage
• Output voltage
• Switching frequency
• Maximum ripple current
SD3814
• Duty cycle

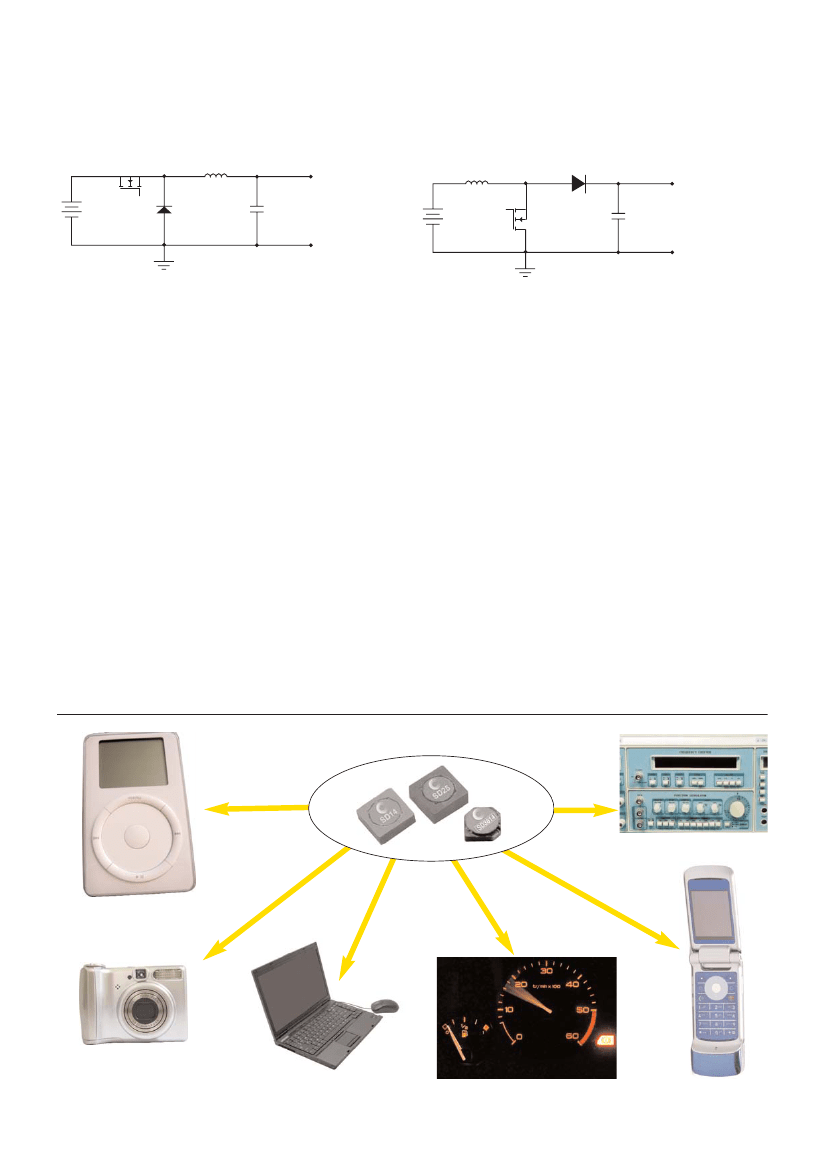

Inductor Selection: Buck Converters
Switch
Buck
Inductor
Inductor Selection: Boost Converters
Boost
Inductor
Diode
12V
Input
Voltage
Freewheeling
Diode
Output
Cap
5V
Output
Voltage
5V
Input
Voltage
Switch
Output
Cap
12V
Output
Voltage
Figure 2:
Buck Inductor Example
Figure 3:
Boost Inductor Example
Figure 2 Application Parameters:
• Switching frequency= 250kHz
• Input voltage range= 12V±10%
• Max ripple current = 220mA
• Output Voltage= 5.0V
Step 1. Calculate the Duty Cycle
• Vo = output voltage
• Vi = Max input voltage
• D = Vo / Vi
• D = 5/13.2 = 0.379
Step 2. Calculate the Voltage Across the Inductance
• V1 = Vi-Vo (Switch on)
• V1 = 13.2 - 5 = 8.2V
• V1 = -Vo (Switch off)
• V1 = - Vo = - 5V
Step 3. Calculate the Required Inductance
• L = Vl.dt/di
• L = (8.2 x 0.379/250 x 10
3
)/0.22
• L = 56μH
Figure 3 Application Parameters:
• Switching frequency= 100kHz
• Input voltage range= 4.5-5.5V
• Max ripple current = 100mA
• Output Voltage= 12.0V
Step 1. Calculate the Duty Cycle:
• Vo= output voltage
• Vi = Max input voltage
• D = 1 - (Vi / Vo)
• D = 1 – (5.5/12.0) = 0.542
Step 2. Calculating the voltage across the inductance
• V1 = Vi (Switch on)
• V1 = 5.5V
• V1 = Vo – Vi (Switch off)
• V1 = 12 – 5.5 = 6.5V
Step 3. Calculating the required inductance
• L = Vl.dt/di
• L= (5.5 x 0.542/100 x 10
3
)/0.1
• L= 298μH
Typical Applications Using Inductors for Switching Regulators
Industrial Test Equipment
Media Players
Digital Cameras
Laptop Computers
Backlight Displays
Mobile Phones
SDH3812
Part Number
Rated
OCL
Part
SDH3812-1R0-R
SDH3812-1R5-R
SDH3812-2R2-R
SDH3812-3R3-R
SDH3812-4R7-R
SDH3812-100-R
SDH3812-220-R
SDH3812-330-R
SDH3812-470-R
SDH3812-101-R
SDH3812-221-R
Inductance
μ
H ± 20% Marking
(
μ
H)
Designator
1.0
0.89
B
1.5
1.49
D
2.2
2.23
E
3.3
3.17
F
4.7
4.96
G
10.0
9.67
J
22.0
22.00
L
33.0
32.90
M
47.0
46.20
N
100.0
97.50
Q
220.0
218.50
S
Irms
Amps
2.07
1.67
1.37
1.14
0.94
0.69
0.50
0.41
0.34
0.25
0.16
Isat
Amps
3.00
2.30
1.90
1.60
1.25
0.88
0.61
0.49
0.41
0.28
0.19
DCR
DCR
Ω
@20°C
Ω
@20°C
(Typical) (Maximum)
0.045
0.054
0.069
0.083
0.104
0.124
0.148
0.177
0.220
0.264
0.398
0.478
0.750
0.900
1.132
1.358
1.583
1.900
3.042
3.650
7.017
8.420

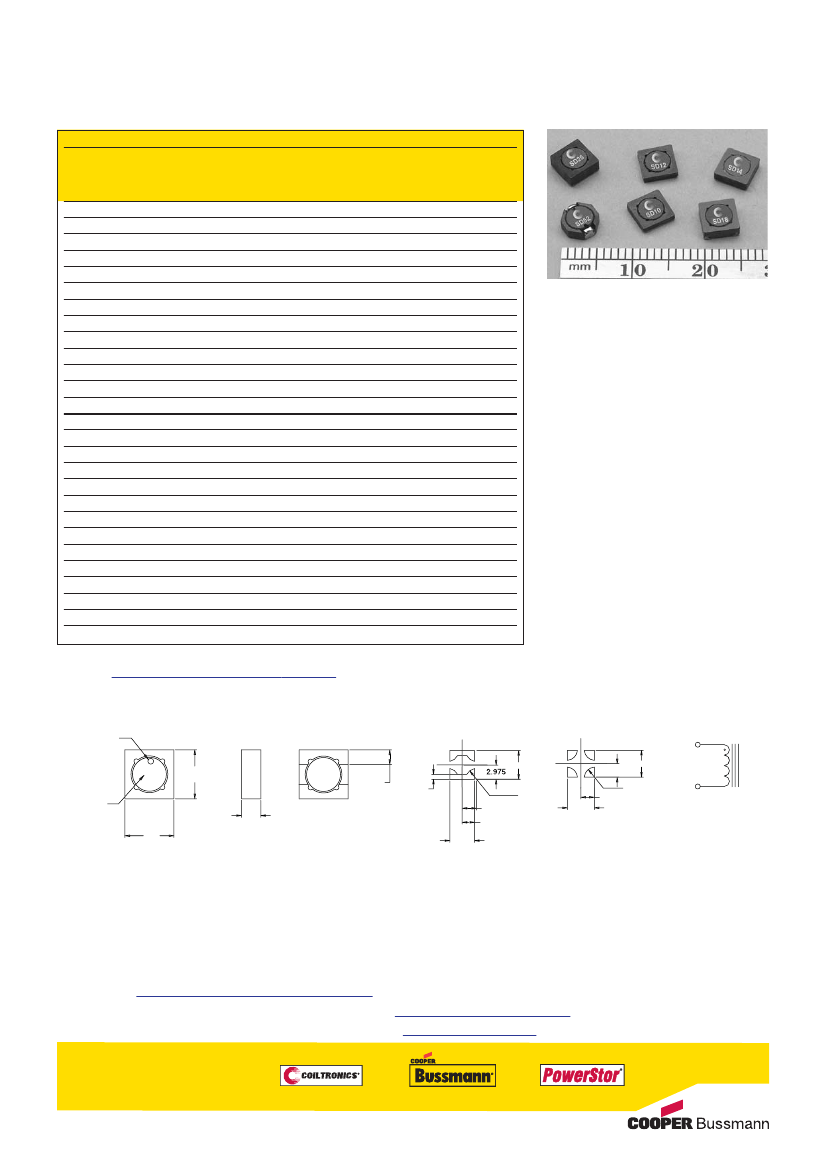

SDH3812
Note:
For full product information and a listing of all available inductor values, see
http://www.cooperbussmann.com/datasheets/elx,
Data Sheet number SDH3812 Series.
SDH3812 Dimensions - mm
Top View
Marking
Pin #1 indicator
1.25 Typ.
2.5
2 plcs
5.0
2.03 +/-0.1
Side View
1.2 Max.
Bottom View
4.8 Max.
3.65 Typ.
Recommended Pad Layout
1.0
2 plcs
Schematic
3.8 +.02/-0.1
3.8 +.02/-0.1
0.415 Min.
0.90 Max.
no plating

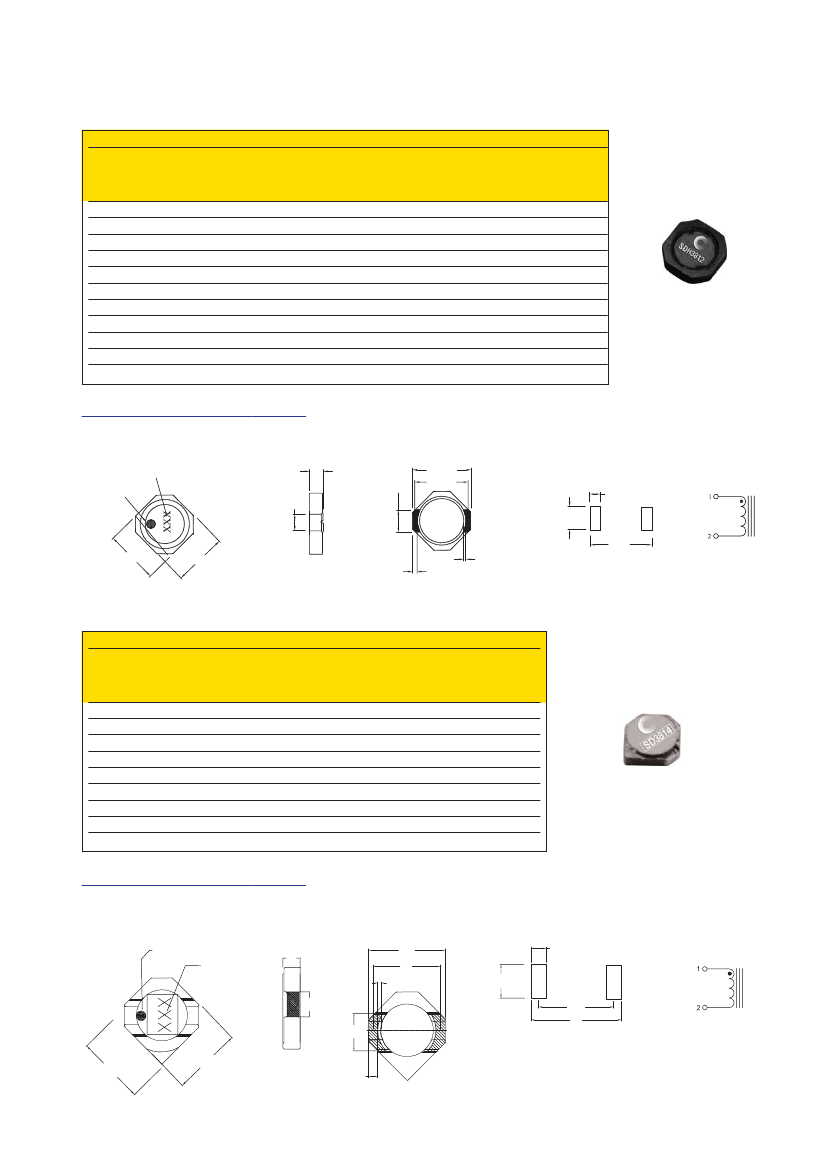

SD3814
Part Number
Rated
OCL
Part
SD3814-1R2-R
SD3814-1R5-R
SD3814-2R2-R
SD3814-3R3-R
SD3814-4R7-R
SD3814-100-R
SD3814-220-R
SD3814-330-R
SD3814-470-R
Inductance
μ
H ± 15% Marking
(
μ
H)
Designator
1.2
1.001
C
1.5
1.286
D
2.2
1.962
E
3.3
2.781
F
4.7
4.276
G
10.0
9.830
J
22.0
21.186
L
33.0
32.151
M
47.0
47.210
N
Irms
Amps
1.85
1.76
1.43
1.31
1.06
0.713
0.519
0.418
0.346
Isat
Amps
2.67
2.35
1.90
1.60
1.29
0.851
0.580
0.471
0.388
DCR
Ω
Typical
0.046
0.051
0.077
0.093
0.141
0.311
0.589
0.908
1.322
SD3814
Note: For full product information and a listing of all available inductor values, see
http://www.cooperbussmann.com/datasheets/elx,
Data Sheet number SD38 Series.
SD3814 Dimensions - mm
Top View
Pin #1 indicator
Marking
(see note A)
Side View
Bottom View
4.8
Max
3.65
Typ
0.09 Max
no plating
Recommended Pad Layout
1.0
2 plcs
Schematic
1.4
Max
2.5
2 plcs
1.25
±0.12
4.0 typ
5.0
2.03
±.02
4.0
Max
4.0
Max
0.415 Min
SD14 & SD25
Part Number
Rated
Inductance
(
μ
H)
1.2
1.5
3.2
6.9
10
22
33
47
100
220
330
470
1000
1.20
1.50
2.20
3.30
4.70
10.0
22.0
33.0
47.0
100
150
220
330
470
OCL
± 20%
μ
H
1.23
1.63
3.19
6.98
9.93
21.93
32.55
47.57
99.25
222
335.1
471.4
1008
1.15
1.61
2.14
3.43
5.03
10.35
22.81
33.07
47.89
100.79
148.4
222.4
332.2
472.4
Part
Marking
C
D
G
J
L
N
O
P
S
U
V
W
Z
C
D
E
F
G
K
M
N
O
R
S
T
U
V
Irms
Amps
2.7
2.53
1.94
1.35
1.1
0.806
0.654
0.525
0.386
0.258
0.206
0.173
0.126
3.33
3.12
2.93
2.64
2.39
1.80
1.34
1.11
0.919
0.670
0.553
0.446
0.359
0.293
Isat
Amps
3.35
2.91
2.08
1.41
1.18
0.793
0.651
0.538
0.373
0.249
0.203
0.171
0.117
3.81
3.23
2.80
2.21
1.83
1.27
0.857
0.711
0.592
0.398
0.328
0.268
0.219
0.184
DCR
Ω
Typical
0.0344
0.0390
0.0663
0.1363
0.2058
0.3853
0.5852
0.9055
1.68
3.77
5.92
8.34
15.8
0.0240
0.0274
0.0311
0.0384
0.0467
0.0824
0.1478
0.2149
0.3156
0.5937
0.8723
1.34
2.07
3.10
SD14-1R2-R
SD14-1R5-R
SD14-3R2-R
SD14-6R9-R
SD14-100-R
SD14-220-R
SD14-330-R
SD14-470-R
SD14-101-R
SD14-221-R
SD14-331-R
SD14-471-R
SD14-102-R
SD25-1R2-R
SD25-1R5-R
SD25-2R2-R
SD25-3R3-R
SD25-4R7-R
SD25-100-R
SD25-220-R
SD25-330-R
SD25-470-R
SD25-101-R
SD25-151-R
SD25-221-R
SD25-331-R
SD25-471-R
SD Inductor Series
Typical SD Series Applications
• Mobile phones
• Digital cameras
• Industrial test equipment
• Computers
• Uninterruptible power supplies
• Televisions
Typical SD Series Uses
• Buck and boost converters
• LED Drivers
• EL panel drivers
• Backlighting
• Noise filtering chokes
Note
: SD10, 12, 18 and 20 not shown. For full product information and a listing of all available inductor
values, see
http://www.cooperbussmann.com/datasheets/elx,
Data sheet number SD Series
SD14 & SD25 Dimensions - mm
Top View
Pin # 1
identifier
Side View
Bottom View
Recommended Pad Layout
2 Pad Layout
4 Pad Layout
1
Schematic
1
5.2
Max
a
1
1.5 Typ.
Ref.
5.95
9
1.0
2
2.975
2
2.575
5.15
2.975
2
2.975
5.950
5.950
9
2
R2.250
R2.250
Part marking
(Note A)
2
5.2
Max
HT
SD14 = 1.45mm Max
SD25 = 2.5mm Max
2
The Cooper Bussmann Coiltronics
®
brand of magnetics specializes in standard and custom solutions, offering the latest in state-of-the-art low-profile high power
density magnetic components. We remain at the forefront of innovation and new technology to deliver the optimal mix of packaging, high efficiency and
unbeatable reliability. Our designs utilize high frequency, low core loss materials, and new and custom core shapes in combination with innovative construction and
packaging to provide designers with the highest performance parts available on the market. The Coiltronics Brand product line of power magnetics continually
expands to satisfy shifts in technology and related market needs. Standard Product Categories include:
• Shielded Drum Inductors
• Toroidal Inductors
• Unshielded Drum Inductors
• Specialty Magnetics
• High Current Inductors
• Custom Magnetics
Please visit
http://www.cooperbussmann.com/datasheets/elx
to see data sheets on the wide variety of inductor solutions we have to offer.
Hardware SPI and simulated SPI source codeandNRF24L01 data are in the 21IC blog, download it ishttp://blog.eeworld.com.cn/user1/5817/archives/2010/68269.htmlPart of the code:#define TX_PLOAD_WIDTH 20 ...
My previous development board used 512M K9K NAND FLASH. Now I changed it to K9K 1G NAND FLASH. But the problem appeared, it can't boot up. The information I get through the serial port is as follows. ...
[i=s]This post was last edited by azhiking on 2016-10-9 16:12[/i] Low power consumption is a very important indicator of MCU. For example, some wearable devices have limited power. If the power consum...
DSP/BIOS API provides a scalable real-time kernel and prioritized multithreading. It is designed for applications that need to implement real-time scheduling, synchronization, and communication. In an...
1. Introduction
RFID (radio frequency identification) is a non-contact automatic identification technology that emerged in the 1990s. It uses the characteristics of radio frequency signal prop...[Details]
At present, the traffic congestion in cities is quite serious. According to relevant news reports: In China, the traffic congestion has expanded from megacities such as Beijing, Shanghai, and Guang...[Details]
Google's driverless technology is not only an eye-catching technology, but also a subversion of the car usage model.
Those who have watched anti-terrorism films and TV dramas must have been im...[Details]
China's new energy vehicles are in a transition period from research and development to real industrial development. In 2012, with the intensive launch of new energy vehicle policy planning, the de...[Details]
In recent years, the market for mobile/portable devices such as smartphones and laptops has continued to grow rapidly. While these products continue to integrate more new features to enhance the ...[Details]
1. Introduction
Light control circuit plays a vital role in urban street lamps or corridor lighting. With light control circuit, the lights can be automatically turned on and off according to ...[Details]
Electronic systems are located at different points on the automotive power bus and therefore often need to operate under very stringent power requirements. These include load dump, cold crank, very lo...[Details]
Editor's note: In order to help technicians or engineers who have knowledge of PIC microcontroller assembly language quickly master the method of using C language to program PIC microcontrollers, t...[Details]
Overview
As a remote network communication control method with advanced technology, high reliability, complete functions and reasonable cost, CAN-bus has been widely used in various automa...[Details]
1. Introduction
Testing the temperature of steel billets before rolling is an important measure to ensure the quality of steel. Traditional manual testing is difficult to ensure product qu...[Details]
LED lighting: Basic circuit design can be completed in as little as one day
Semiconductor manufacturers are also getting involved in the LED lighting business. The power circuit of LED req...[Details]
1. Proposal of
reconfigurable
measurement and control system
The measurement and control system generally refers to a system based on
computers
to realize data acquisition a...[Details]
The ARINC429 bus is one of the most commonly used communication buses between various subsystems of avionics. As the "skeleton" of modern avionics systems, once the bus system or the attached airbo...[Details]
A stepper motor is an electromagnetic mechanical device that converts an electrical pulse signal into an angular displacement or a linear displacement. The stability and reliability of a stepper mo...[Details]
Leakage current is generated by parasitic resistance paths between the measurement circuit and a nearby voltage source. This current can significantly reduce the accuracy of low current measurement...[Details]
stm32/stm8
京公网安备 11010802033920号
EEWORLD
