Current Regulator Diode Chips
CD5283 thru CD5314 & CD7048 thru CD7055
Features
•
•
•
•
•
Available in JANHC and JANKC per MIL-PRF-19500/463
All junctions completely protected with silicon dioxide
Electrically equivalent to 1N5283 thru 1N5314 &
1N7048 thru 1N7055
Constant current over wide voltage range
Compatible with all wire bonding and die attach techniques,
with the exception of solder flow
Maximum Ratings
Operating Temperature: -55 °C to +175 °C
Storage Temperature:
-55 °C to +175 °C
Electrical Specifications @ +25 ºC (Unless Otherwise Specified)
Type
Number
Regulator Current
lP (mA)@ VS = 25 V
Nominal
CD5283
CD5284
CD5285
CD5286
CD5287
CD5288
CD5289
CD5290
CD5291
CD5292
CD5293
CD5294
CD5295
CD5296
CD5297
CD5298
CD5299
CD5300
CD5301
CD5302
CD5303
CD5304
CD5305
CD5306
CD5307
CD5308
CD5309
CD5310
CD5311
CD5312
CD5313
CD5314
0.22
0.24
0.27
0.30
0.33
0.39
0.43
0.47
0.56
0.62
0.68
0.75
0.82
0.91
1.00
1.10
1.20
1.30
1.40
1.50
1.60
1.80
2.00
2.20
2.40
2.70
3.00
3.30
3.60
3.90
4.30
4.70
Minimum
0.198
0.216
0.243
0.270
0.297
0.351
0.387
0.423
0.504
0.558
0.612
0.675
0.738
0.819
0.900
0.99
1.08
1.17
1.26
1.35
1.44
1.62
1.80
1.98
2.16
2.43
2.70
2.97
3.24
3.51
3.87
4.23
Maximum
0.242
0.264
0.297
0.330
0.363
0.429
0.473
0.517
0.616
0.682
0.748
0.825
0.902
1.001
1.100
1.21
1.32
1.43
1.54
1.65
1.76
1.98
2.20
2.42
2.54
2.97
3.30
3.63
3.96
4.29
4.73
5.17
Minimum
Dynamic
Impedance
@ VS = 25 V
ZS (M)
(Note 1)
25.0
19.0
14.0
9.0
8.0
4.10
3.30
2.70
1.90
1.55
1.35
1.15
1.00
0.88
0.80
0.70
0.64
0.58
0.54
0.51
0.475
0.420
0.395
0.370
0.345
0.320
0.300
0.280
0.265
0.255
0.245
0.235
Minimum
Knee
Inpedance
@ VK = 6.0 V
ZK (M)
(Note 2)
2.75
2.35
1.95
1.60
1.35
1.000
0.870
0.750
0.560
0.470
0.400
0.335
0.290
0240
0.205
0.180
0.155
0.135
0.115
0.105
0.092
0.074
0.061
0.052
0.044
0.035
0.029
0.024
0.020
0.017
0.014
0.012
Maximum
Limiting
Voltage
@ IL = 0.8 lp (min)
VL (volts)
1.00
1.00
1.00
1.00
1.00
1.05
1.05
1.05
1.10
1.13
1.15
1.20
1.25
1.29
1.35
1.40
1.45
1.50
1.55
1.60
1.65
1.75
1.85
1.95
2.00
2.15
2.25
2.35
2.50
2.60
2.75
2.90
Peak
Operating
Voltage
Volts
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
(Continued next page)
NOTE 1: ZS is derived by superimposing A 90 Hz RMS signal equal to 10% of VT on VT
NOTE 2: ZK is derived by superimposing A 90Hz RMS signal equal to 10% of VK on VK
Revision Date: 11/12/2013
1
CD5283 thru CD5314 &
CD7048 thru CD7055
Electrical Specifications @ +25 ºC (Unless Otherwise Specified)
Regulator Current
lP (mA)@ VS = 25 V
Nominal
CD7048
CD7049
CD7050
CD7051
CD7052
CD7053
CD7054
CD7055
5.10
5.60
6.20
6.80
7.50
8.20
9.10
10.00
Minimum
4.59
5.04
5.58
6.12
6.75
7.38
8.19
9.00
Maximum
5.61
6.16
6.82
7.48
8.25
9.02
10.01
11.10
Minimum
Dynamic
Impedance
@ VS = 25 V
ZS (M)
(Note 1)
100
90
80
70
50
30
20
10
Minimum
Knee
Inpedance
@ VK = 6.0 V
ZK (M)
(Note 2)
4.0
4.0
3.0
2.0
1,5
1.5
1.0
1.0
Maximum
Limiting
Voltage
@ IL = 0.8 lp (min)
VL (volts)
3.67
4.03
4.46
4.90
5.40
5.90
6.55
7.20
Peak
Operating
Voltage
Volts
Type
Number
80
80
70
70
60
60
50
50
NOTE 1: ZS is derived by superimposing A 90 Hz RMS signal equal to 10% of VT on VT
NOTE 2: ZK is derived by superimposing A 90Hz RMS signal equal to 10% of VK on VK
Outline Drawing
.024 ±.002
0.61±0.05
DESIGN DATA
METALLIZATION:
AL THICKNESS:
GOLD THICKNESS:
CHIP THICKNESS:
Top:
Back:
(Anode) Al
(Cathode) Au
25,000 Å Minimum
4,000 Å Minimum
10 Mils
.024±.002
0.4610.05
±
.0065 ± .0005
0.165 ± 0.0127
CIRCUIT LAYOUT DATA: For Zener operation, cathode
must be operated positive with respect to anode.
.010±.002
0.25±0.05
2
TEL: 603-641-SEMI (7364) • metelics-sales@aeroflex.com • www.aeroflex.com/metelics
Revision Date: 11/12/2013
CD5283 thru CD5314 &
CD7048 thru CD7055

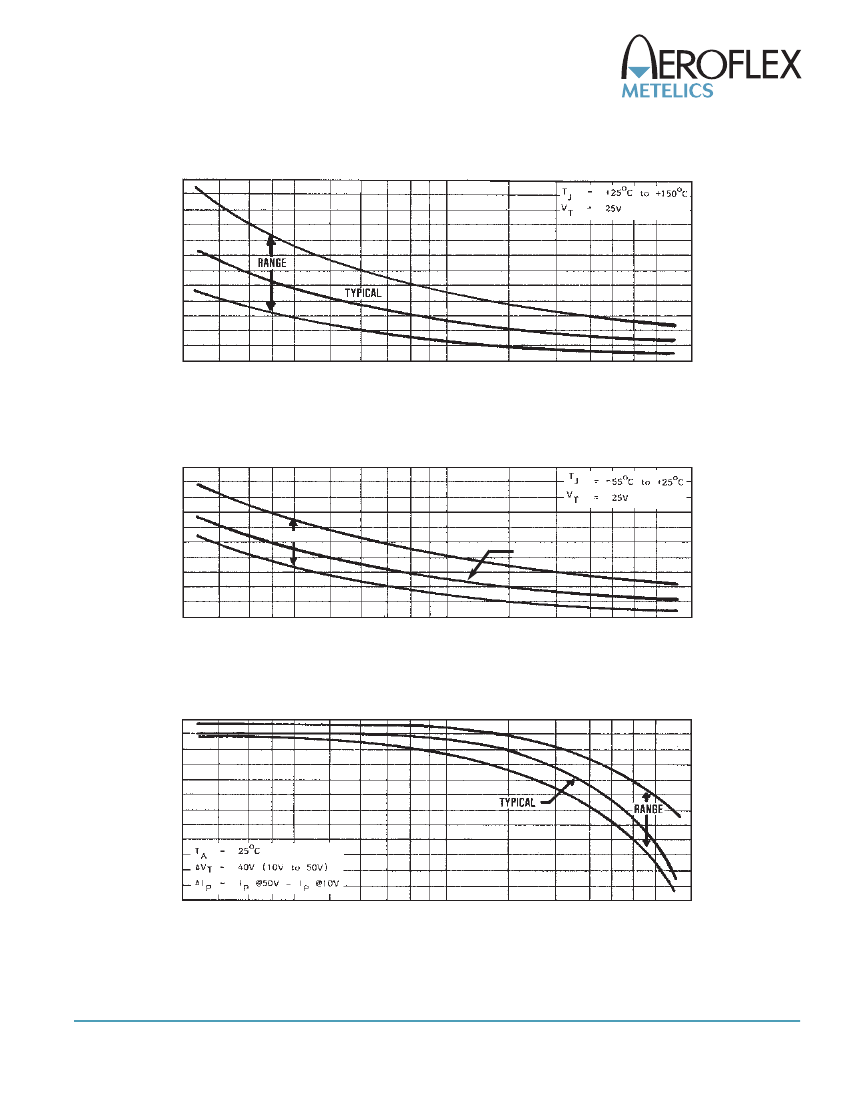

Graphs
TC,TEMPERATURE COEFFICIENT (% / °C)
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
-0.1
-0.2
-0.3
-0.4
-0.5
0.2
0.3
0.4
0.5
0.6
0.7
0.8 0.9 1.0
2.0
3.0
4.0
5.0
lp. NOMINAL PINCH-OFF CURRENT (mA)
TEMPERATURE COEFFICIENT
TC,TEMPERATURE COEFFICIENT
1.0
0.8
0.6
0.4
0.2
0
-0.2
-0.4
-0.6
-0.8
-1.0
0.2
0.3
0.4
0.5
0.6
0.7
0.8 0.9 1.0
2.0
3.0
4.0
5.0
RANGE
TYPICAL
lp. NOMINAL PINCH-OFF CURRENT (mA)
TEMPERATURE COEFFICIENT
0.1
0
³lp,CURRENT CHANGE (mA)
-0.1
-0.2
-0.3
-0.4
-0.5
-0.6
-0.7
-0.8
-0.9
-1.0
-1.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8 0.9 1.0
2.0
3.0
4.0
5.0
lp NOMINAL PINCH-OFF CURRENT (mA)
TEMPERATURE COEFFICIENT
TEL: 603-641-SEMI (7364) • metelics-sales@aeroflex.com • www.aeroflex.com/metelics
Revision Date: 11/12/2013
3
CD5283 thru CD5314 &
CD7048 thru CD7055
Aeroflex / Metelics, Inc.
975 Stewart Drive,
Sunnyvale, CA 94085
Tel: (408) 737-8181
Fax: (408) 733-7645
Sales: 888-641-SEMI (7364)
Hi-Rel Components
