500X43W474MV4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 500X43W474MV4

500X43W474MV4: DescriptionData Line Filter, 1 Function(s), 50V,; CategoryAnalog mixed-signal IC filter; File Size373KB，5 Pages; ManufacturerJohanson Dielectrics; Environmental Compliance

Download Datasheet Parametric Compare View All

500X43W474MV4 Overview

Data Line Filter, 1 Function(s), 50V,

500X43W474MV4 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Johanson Dielectrics
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	940000 µF
filter type	DATA LINE FILTER
JESD-609 code	e3
Manufacturer's serial number	500X43W474MV4
Number of functions	1
Rated voltage	50 V
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

Johanson Dielectrics, Inc. • 15191 Bledsoe St. • Sylmar CA 91342 • Tel 818.364.9800

X2Y

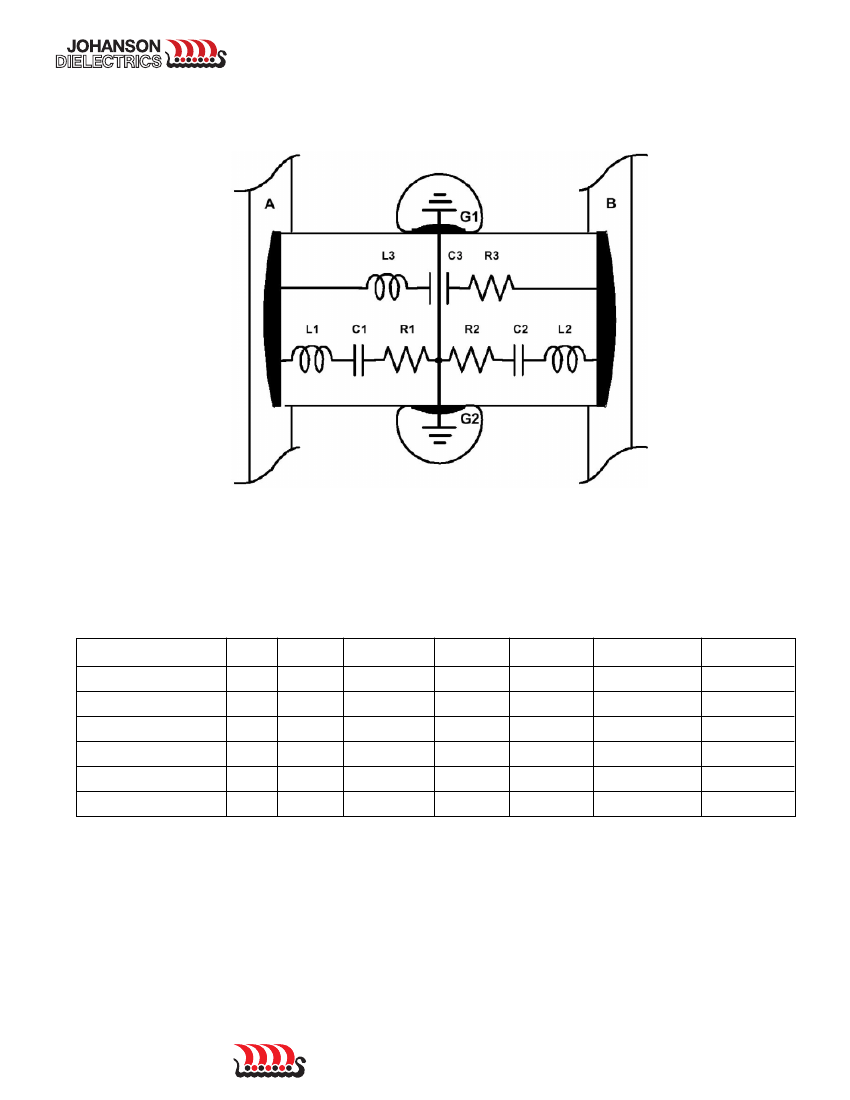

EMI FILTER CAPACITOR SPICE MODEL

Rev: 05/21/2002

Dual-Line Application

C1 = C2 = Cap, C3 = C1 /2.

L1 = L2 = ESL, L3 = 2 x L1

R1 = R2 = ESR, R3 = 2 x R1.

"A"and "B"are "through" traces.

The X2Y EMI Filter Capacitor will not

limit the current capacity of the trace.

Part Number

500X43W474MV4

250X41W334MV4

500X18W104MV4

500X15W683MV4

500X15W103MV4

500X14W272MV4

Vdc

Size

1812

1210

1206

0805

0603

Dielectric

X7R

Cap

470 nF

330 nF

100 nF

68 nF

10 nF

2.7 nF

ESL(2)

167 pH

122 pH

82 pH

100 pH

292 pH

114 pH

ESR(2)

30 mOhms

22 mOhms

90 mOhms

96 mOhms

282 mOhms

234 mOhms

SRF

18 Mhz

25 Mhz

52 Mhz

61 Mhz

93 Mhz

293 Mhz

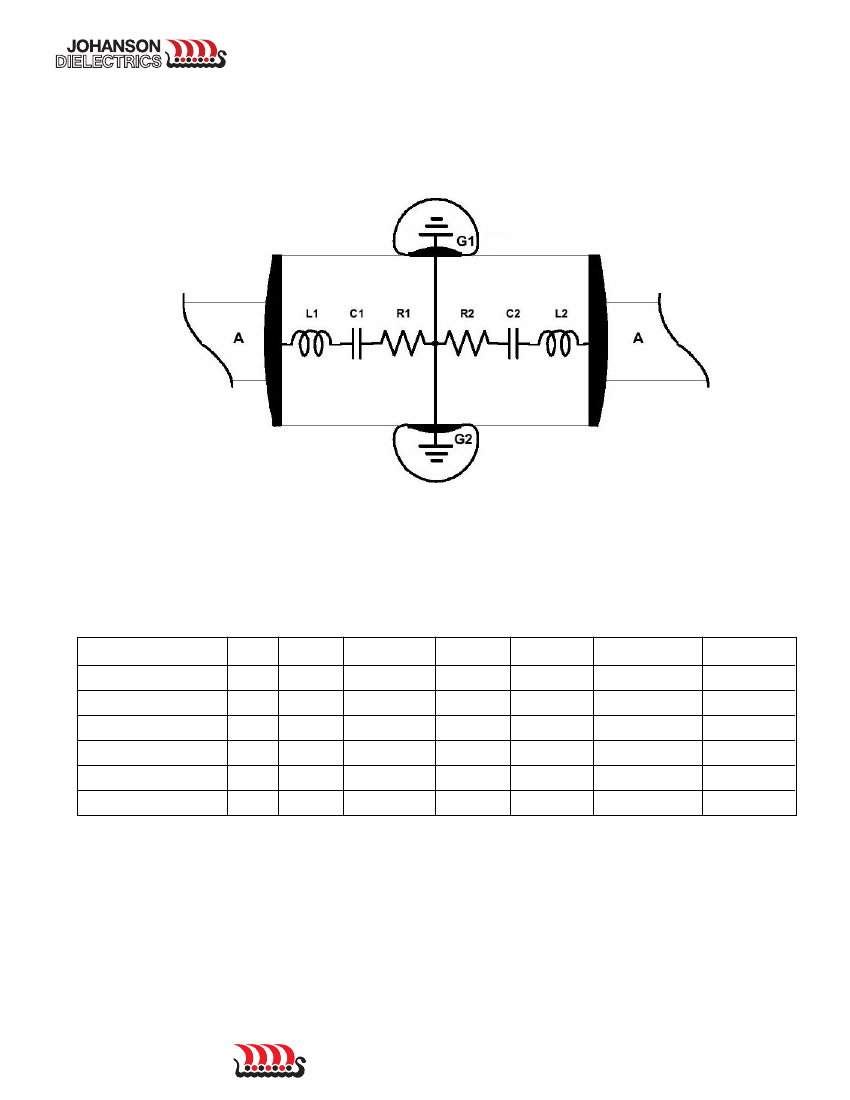

Note (1): The simple schematic represents a "worst case" Spice model. Beyond the self-resonant frequency (SRF) each

S21 plot shows 4 to 9 dB better performance compared with calculations predicted using the simple series model.

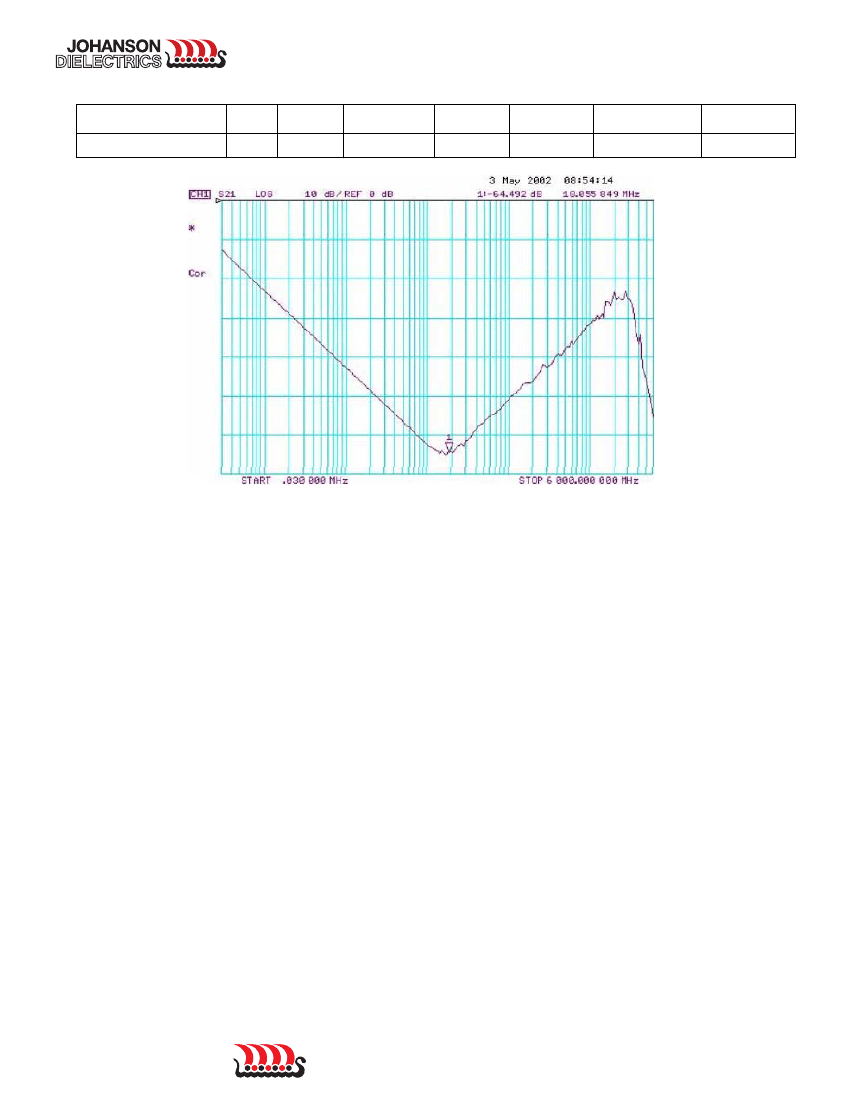

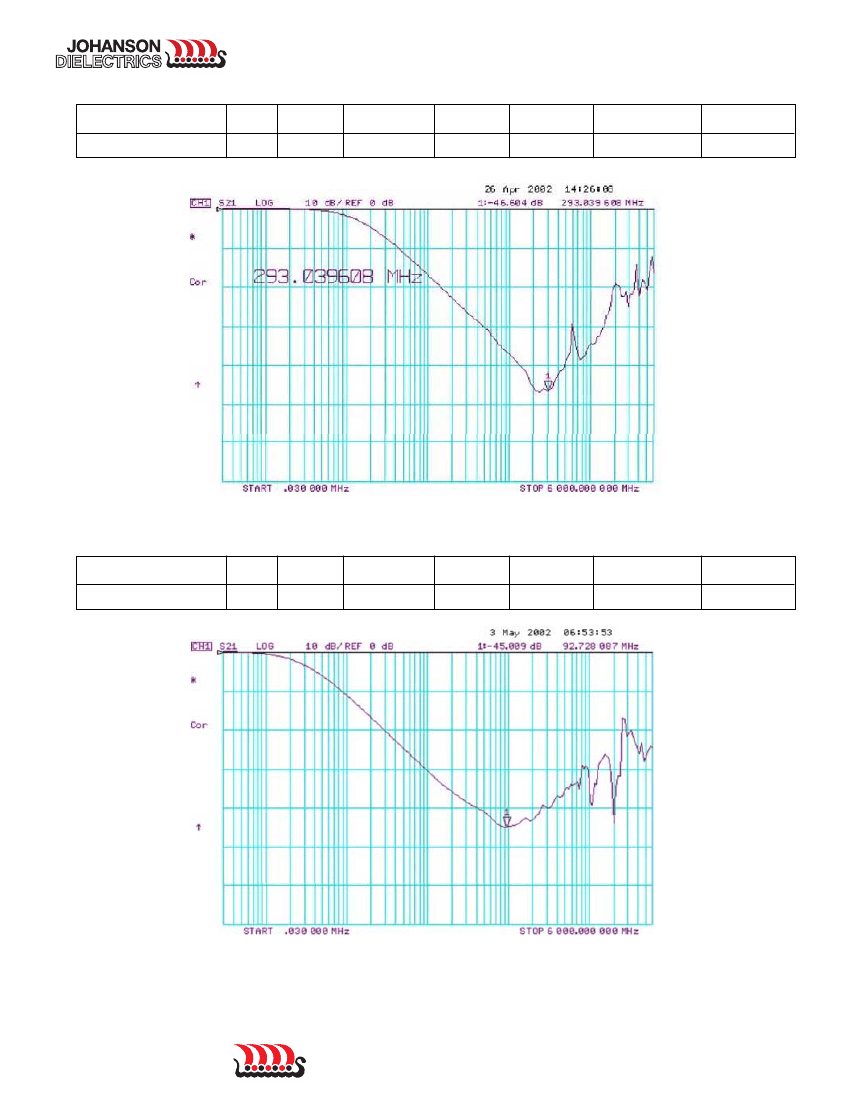

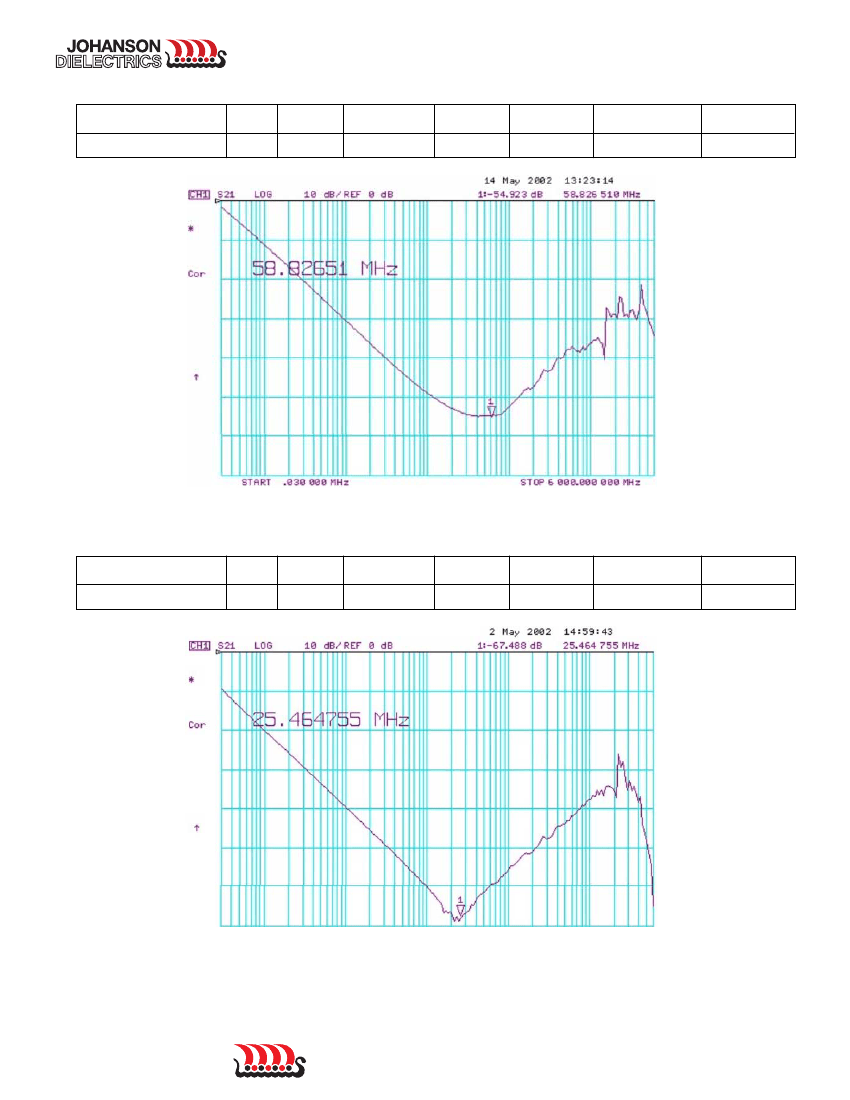

Note (2): Preliminary S21 data,obtained using an Agilent 8753E Network Analyzer and an ICM fixture,was used to calculate

ESL and ESR.

In general,when the X2Y EMI Filter Capacitor is soldered to circuit traces, both the ESL and ESR will be approximately

15%less than the values show. All S21 insertion loss data was obtained with both X2Y capacitors referenced to ground,as

shown on the next page.

www.johanson dielectrics.com

1 of 5

500X43W474MV4 Related Products

	500X43W474MV4	250X41W334MV4	500X15W103MV4	500X15W104MV4	500X41W334MV4	500X14W272MV4
Description	Data Line Filter, 1 Function(s), 50V,	Data Line Filter, 1 Function(s), 25V,	Data Line Filter, 1 Function(s), 50V,	Data Line Filter, 1 Function(s), 50V,	Data Line Filter, 1 Function(s), 25V,	Data Line Filter, 1 Function(s), 50V,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-609 code	e3	e3	e3	e3	e3	e3
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Maker	Johanson Dielectrics	-	Johanson Dielectrics	Johanson Dielectrics	Johanson Dielectrics	Johanson Dielectrics
Capacitor type	-	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	-	CERAMIC CAPACITOR
dielectric materials	-	CERAMIC	CERAMIC	CERAMIC	-	CERAMIC
Number of terminals	-	2	2	2	-	2
