DESCRIPTION
RELEASED FOR PRODUCTION
ECN 3131: UPDATE DWG FORMAT
2
REVISIONS
5/7/02
1
DATE
CHANGED BY
TJC
D.GRIFFIN
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
12/26/07
D
D
.98 [25]
C
C
5/8-24 UNEF
UHF JACK
SMA JACK
.250-36UNS-2A
B
B
NOTES:
MATERIAL:
BODY: BRASS
DIELECTRIC: ACETAL
CENTER PINS: BERYLLIUM COPPER
A
FINISH:
BODY: NICKEL PLATED
CENTER PINS: GOLD PLATED
APPROVALS
UNLESS OTHERWISE SPECIFIED,
DRAWN BY
DIMENSIONS ARE IN INCHES [mm]
TJC
TOLERANCES TO BE:
.X .1 [2.5]
ANGLES 2 CHECKED BY
.XX .01 [.25]
DFP
.XXX .005 [.13]
OVERALL CABLE LENGTH TOL:
≤
60 [1524] +3 [76.2] / - 0
> 60 [1524] +5% / -0%
PROJ
APPROVED BY
CM
DATE
CATEGORY
4/19/02
4/19/02
4/19/02

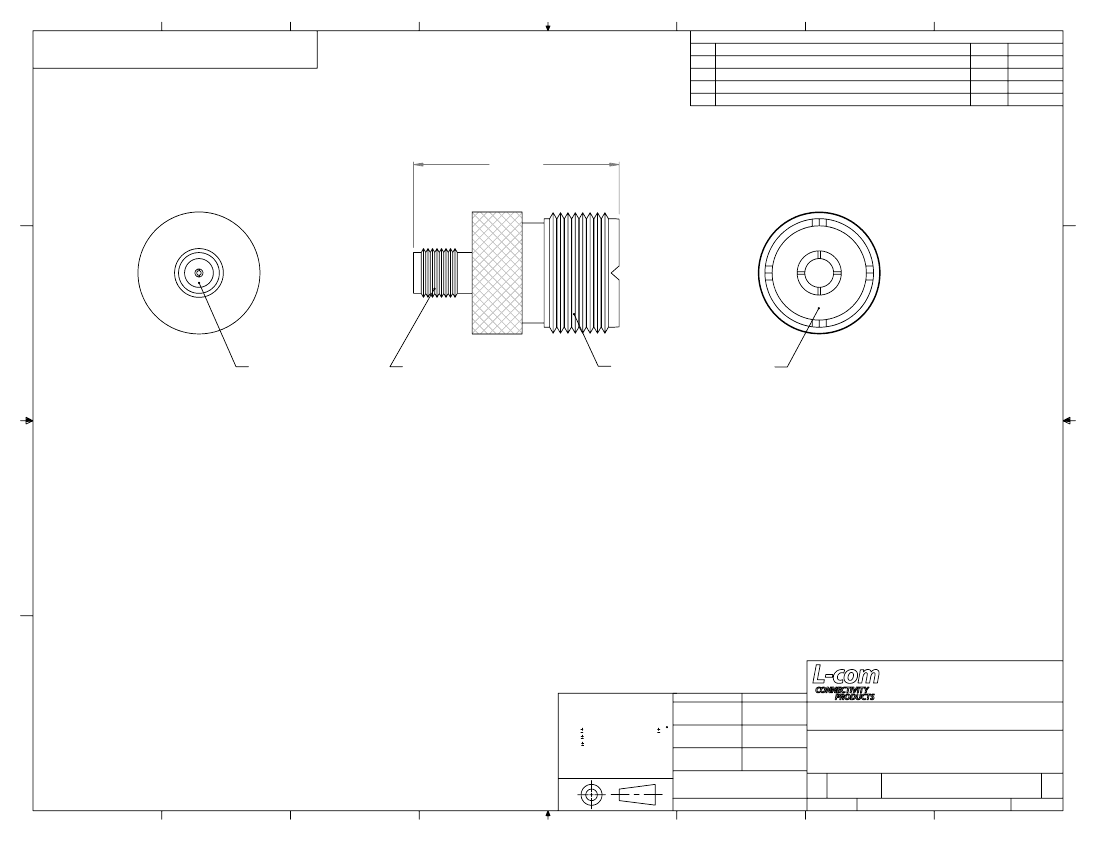

PRODUCT DESCRIPTION
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
COAXIAL
SMA JACK TO UHF JACK
A
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
SIZE
SCALE: NONE CAD FILE:
A
43321
FSCM NO.
DWG. NO.
BA586
1
REV.
SHEET 1 OF 1
BA586.SLDDRW
B
8
7
6
5
4
3
2
