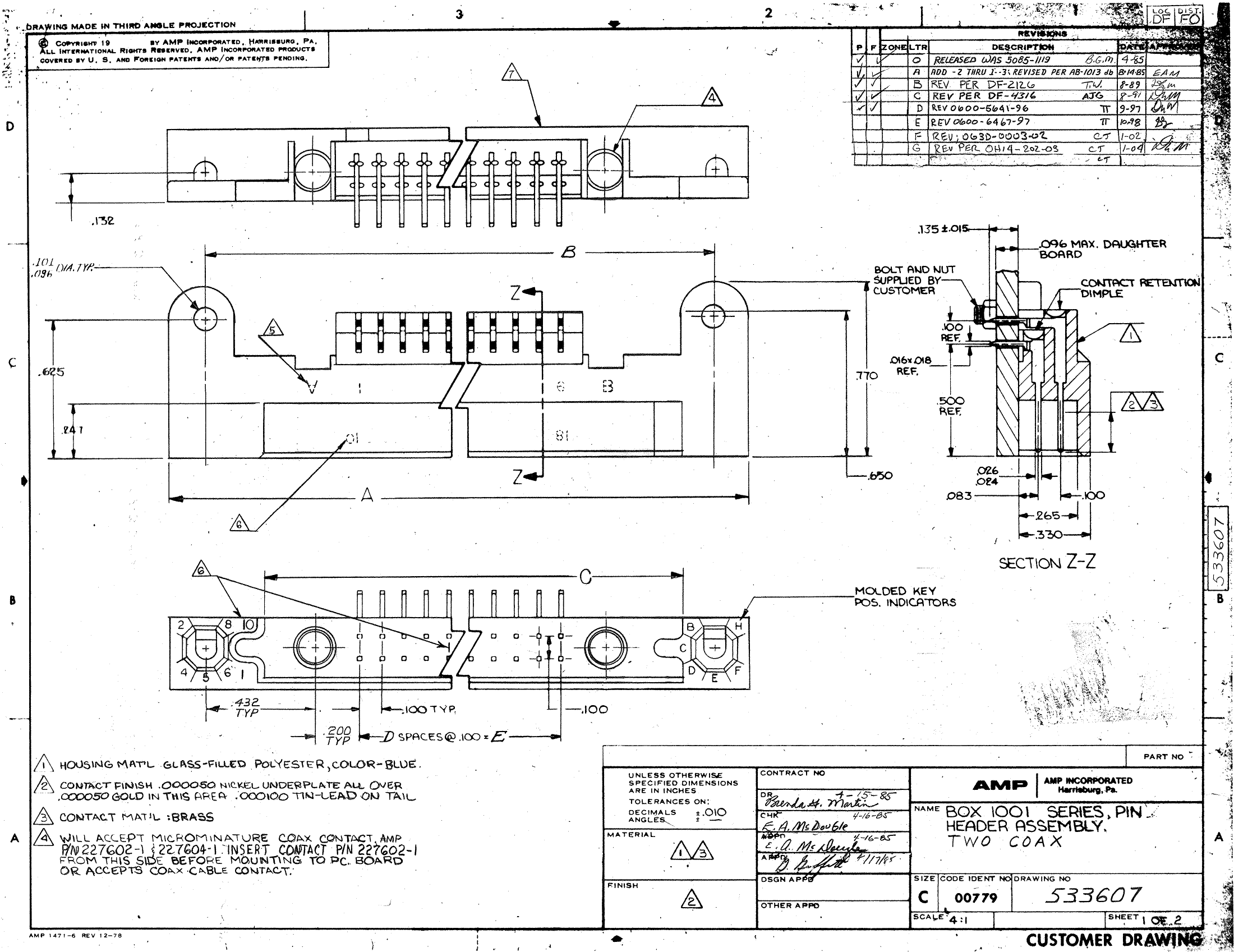

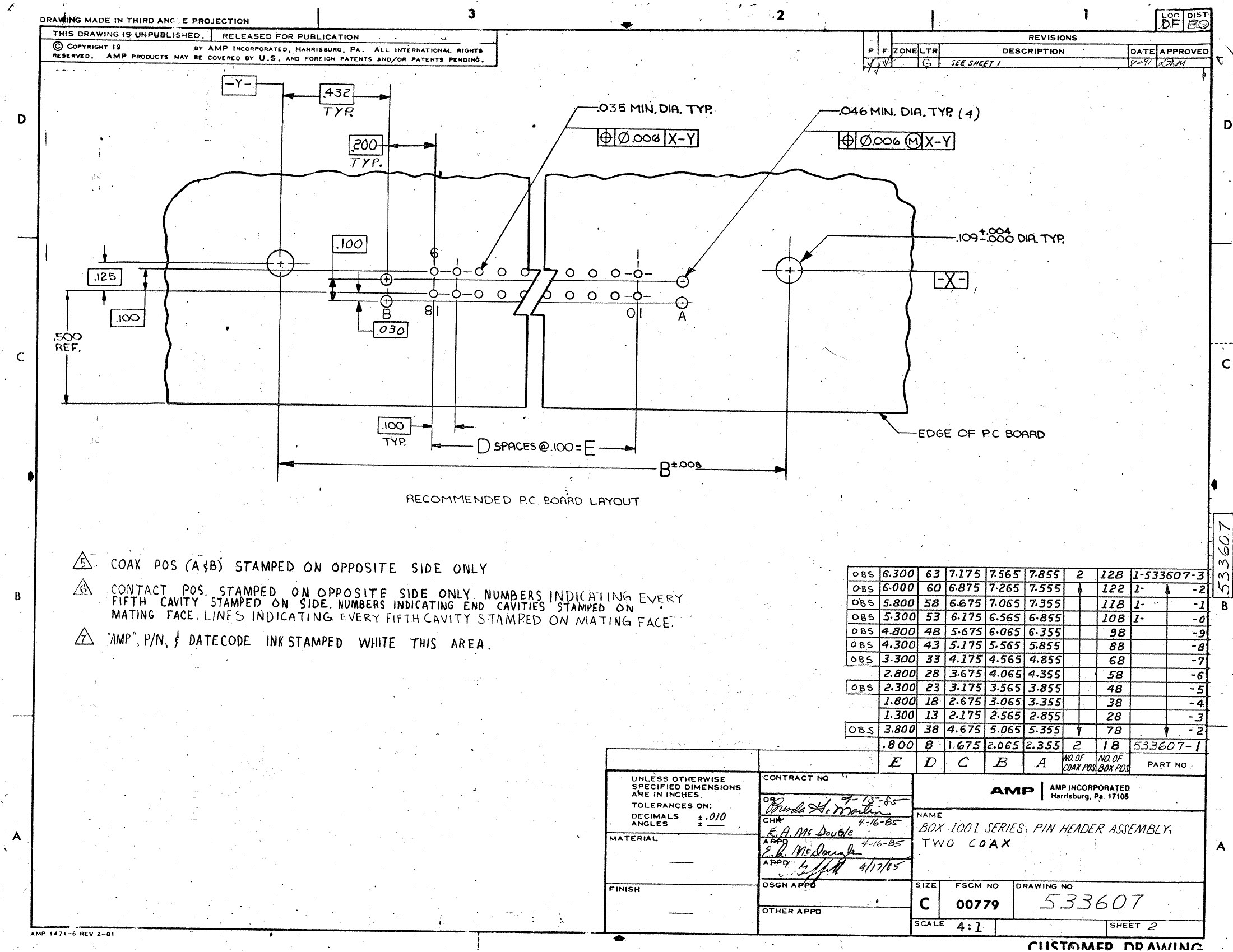

533607-1

Description
CONNECTOR, 18 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size314KB，2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

533607-1 Online Shopping

Suppliers Part Number Price MOQ In stock
533607-1 - - View Buy Now

533607-1 Overview

CONNECTOR, 18 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

533607-1 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codeunknown
Other featuresCOMPATIBLE CONTACT: 227602-1, POLARIZED
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (50)
Contact completed and terminatedTIN LEAD OVER NICKEL
Contact point genderMALE
Contact materialBRASS
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number533607
Plug information533606-1
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts18

Preview

Download Datasheet

533607-1 Related Products

533607-1 1-533607-0 1-533607-1 1-533607-2 1-533607-3 533607-5 533607-7 533607-2 533607-8 533607-9
Description CONNECTOR, 18 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER CONNECTOR, 108 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER CONNECTOR, 118 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER CONNECTOR, 122 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER CONNECTOR, 128 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER CONNECTOR, 48 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER CONNECTOR, 68 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER CONNECTOR, 78 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER CONNECTOR, 88 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER CONNECTOR, 98 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Reach Compliance Code unknown unknow unknow unknow unknow unknown unknown unknown unknown unknown
Other features COMPATIBLE CONTACT: 227602-1, POLARIZED COMPATIBLE CONTACTS: 227605-1; 227606-1; 227603-1 COMPATIBLE CONTACTS: 227605-1; 227606-1; 227603-1 COMPATIBLE CONTACTS: 227605-1; 227606-1; 227603-1 COMPATIBLE CONTACTS: 227605-1; 227606-1; 227603-1 COMPATIBLE CONTACTS: 227605-1; 227606-1; 227603-1 COMPATIBLE CONTACTS: 227605-1; 227606-1; 227603-1 COMPATIBLE CONTACTS: 227605-1; 227606-1; 227603-1 COMPATIBLE CONTACTS: 227605-1; 227606-1; 227603-1 COMPATIBLE CONTACTS: 227605-1; 227606-1; 227603-1
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact point gender MALE MALE MALE MALE MALE MALE MALE MALE MALE MALE
DIN compliance NO NO NO NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
MIL compliance NO NO NO NO NO NO NO NO NO NO
Manufacturer's serial number 533607 533607 533607 533607 533607 533607 533607 533607 533607 533607
Plug information 533606-1 1-533606-0 1-533606-1 1-533606-2 1-533606-3 533606-4 533606-6 533606-7 533606-8 533606-9
Mixed contacts NO NO NO NO NO NO NO NO NO NO
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of rows loaded 2 2 2 2 2 2 2 2 2 2
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 18 108 118 122 128 48 68 78 88 98
Maker TE Connectivity - - - - TE Connectivity TE Connectivity TE Connectivity TE Connectivity TE Connectivity
Base Number Matches - 1 1 1 1 1 1 1 1 1
