BS-CD25RE datasheet, PDF - EEWORLD Datasheet

BS-CD25RE: Description16 Seg Alphanumeric LED Display, Bright Red, 56.8mm, SD-58, 20 PIN; CategoryLED optoelectronic/LED photoelectric; File Size106KB，1 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric View All

BS-CD25RE Overview

16 Seg Alphanumeric LED Display, Bright Red, 56.8mm, SD-58, 20 PIN

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	SD-58, 20 PIN
Reach Compliance Code	unknown
color	BRIGHT RED
Configuration	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display height	56.8 mm
Maximum forward current	0.015 A
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	16 SEG ALPHANUMERIC LED DISPLAY

Single Digit LED Displays

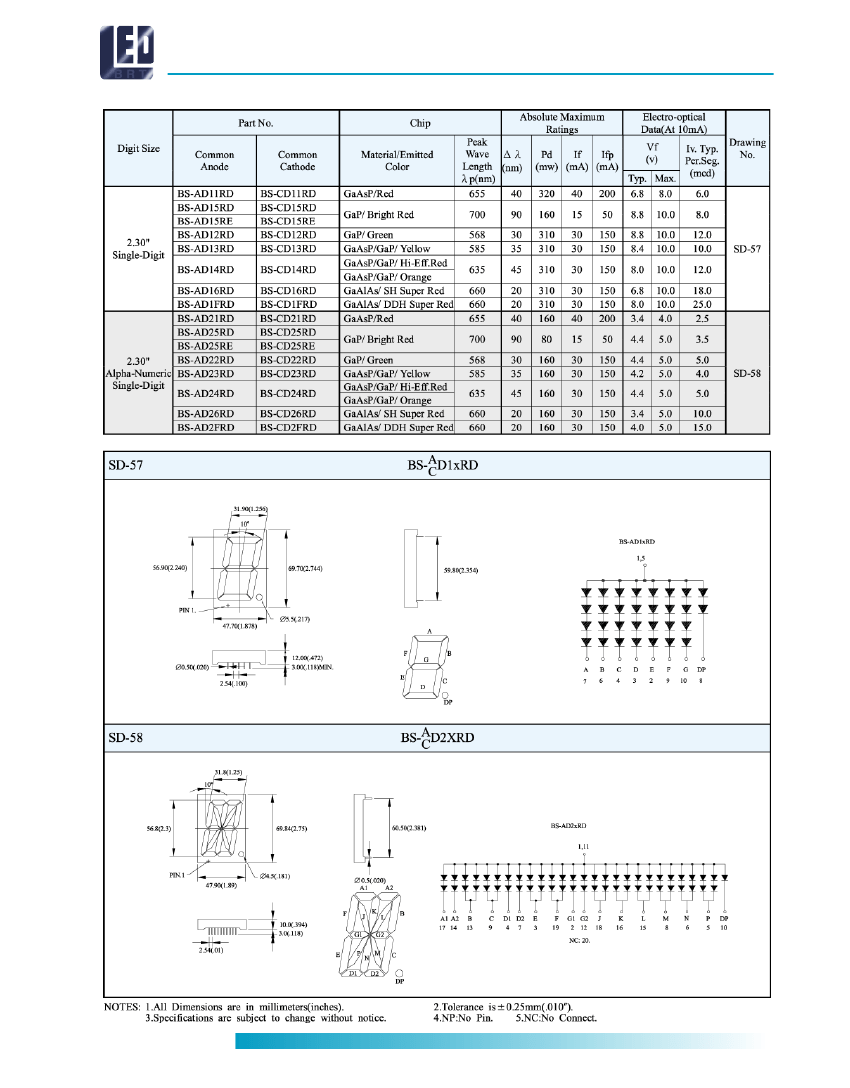

BS-A/C Series

2.3", 16-segment, 7-segment

AMERICAN BRIGHT

w w w. a m e r i c a n b r i g h t l e d . c o m
