AMPAL16R4BDE datasheet, PDF - EEWORLD Datasheet

AMPAL16R4BDE: DescriptionOT PLD, 15ns, PAL-Type, TTL, CDIP20, CERAMIC, DIP-20; CategoryProgrammable logic devices Programmable logic; File Size454KB，18 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

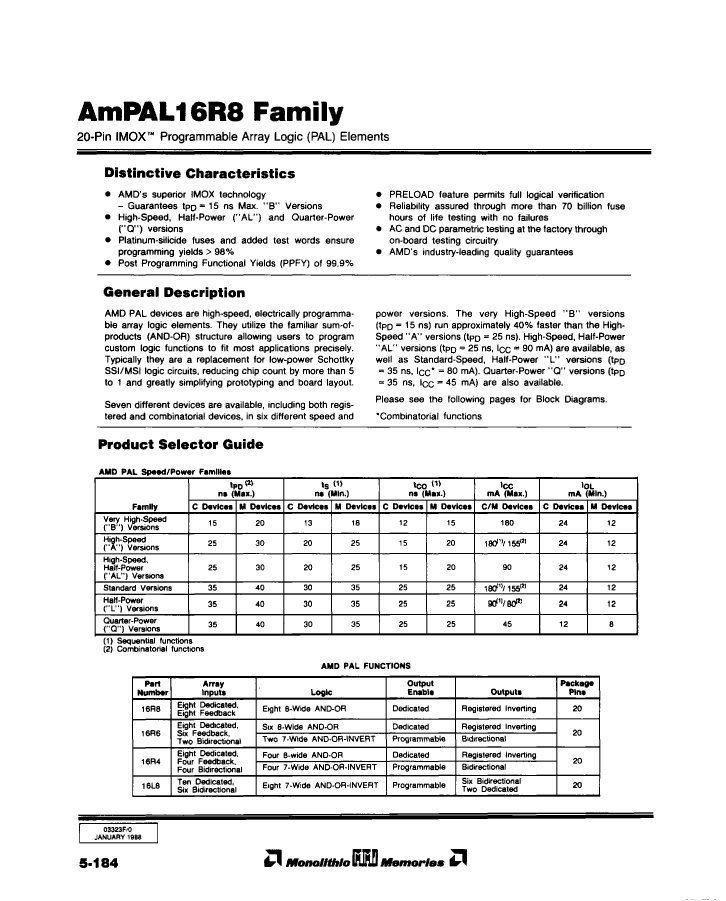

AMPAL16R4BDE Overview

OT PLD, 15ns, PAL-Type, TTL, CDIP20, CERAMIC, DIP-20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD

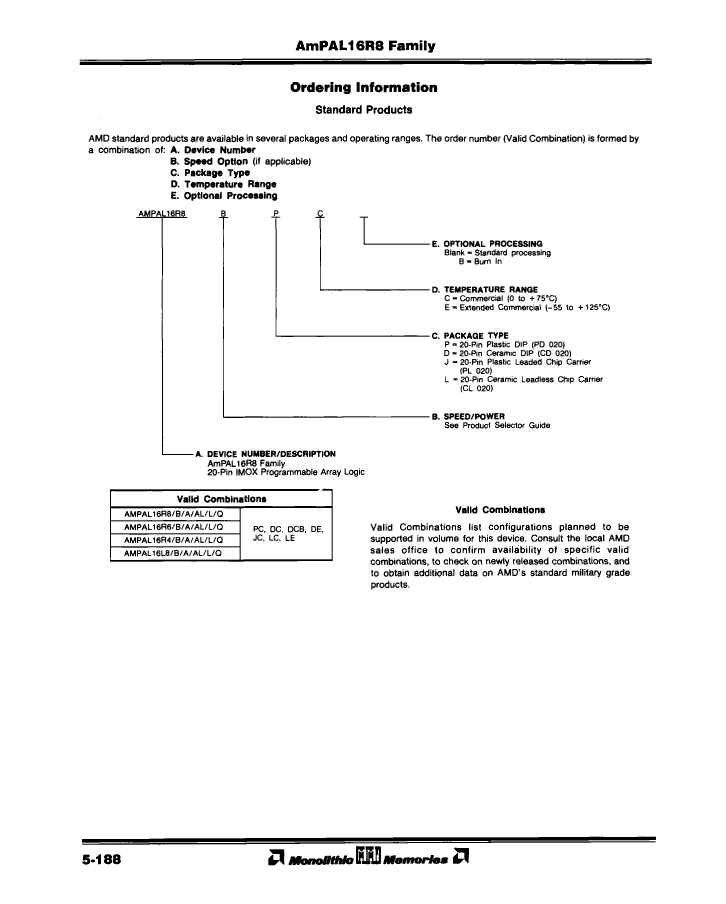

Parts packaging code	DIP
package instruction	DIP, DIP20,.3

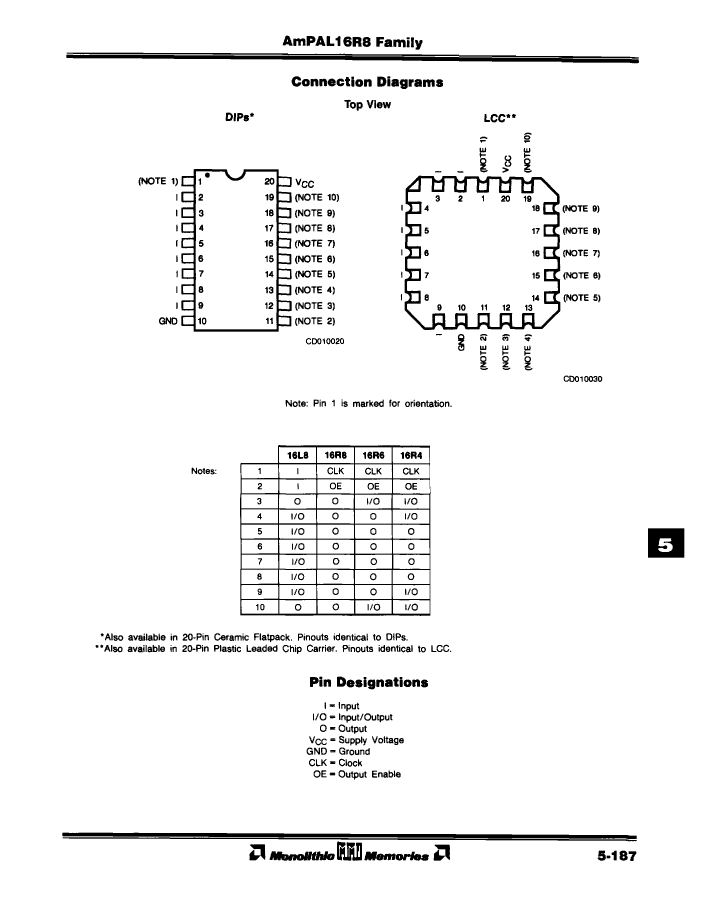

Contacts	20
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	POWER-UP RESET; REGISTER PRELOAD; 1 EXTERNAL CLOCK

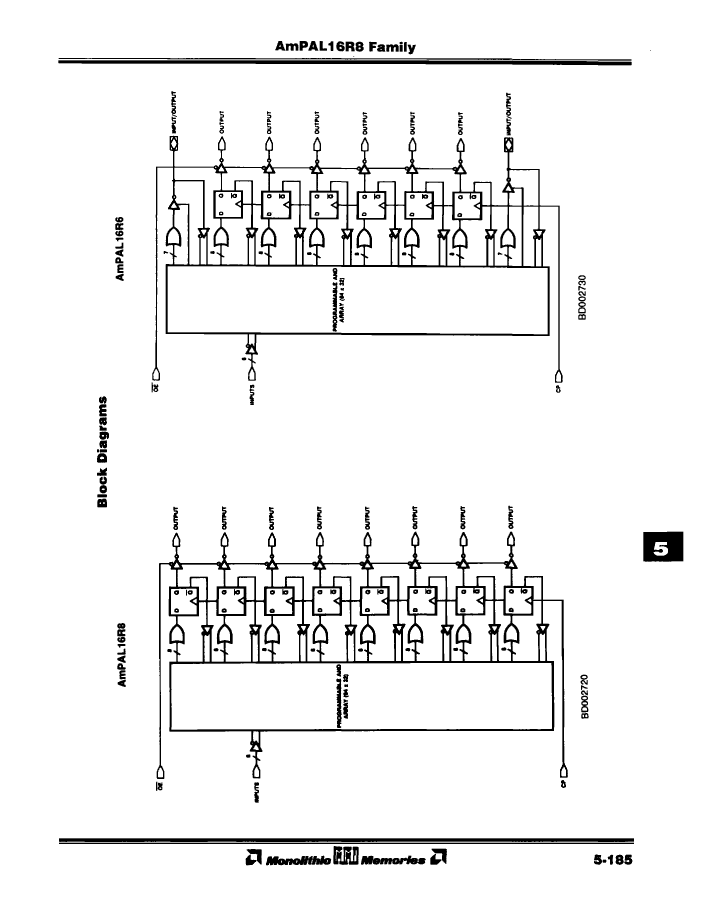

Architecture	PAL-TYPE
maximum clock frequency	40 MHz
JESD-30 code	R-CDIP-T20
JESD-609 code	e0
length	24.257 mm
Dedicated input times	8
Number of I/O lines	4
Number of entries	12
Output times	8
Number of product terms	64
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

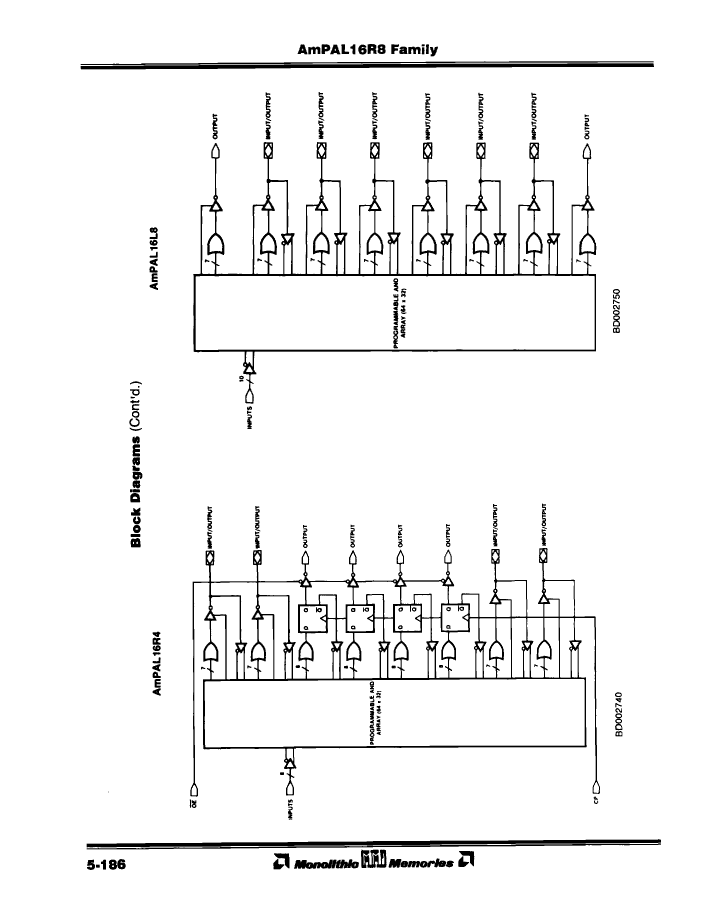

organize	8 DEDICATED INPUTS, 4 I/O
Output function	MIXED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programmable logic type	OT PLD
propagation delay	15 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
