1.46 37.1
D
D
2X FLAT AREA
.71 18
C
2X TYPE N FEMALE
CONNECTOR
.65 16.5
.54 13.8
2X 5/8-24 THREAD
.53 13.5
ACROSS FLATS
C
.62 15.7
B
INTERNAL TOOTH
LOCKWASHER
B
HEX NUT
NOTES:
MATERIAL:
BODY: BRASS
DIELECTRIC: PTFE
CENTER CONTACT: BRASS
HEX NUT: BRASS
LOCK WASHER: STEEL
RECOMMENDED
MOUNTING HOLE
RoHS Compliant
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES [mm]
DIMENSIONAL TOLERANCES:
.X = ±.1
.XX = ±.01
.XXX = ±.005
ANGULAR TOLERANCES:
ALL = ± 1°
PROJECTION
APPROVALS
DRAWN BY
DATE
01/16/2002
01/17/2002
01/17/2002
PRODUCT DESCRIPTION
CATEGORY
A
FINISH:
BODY: NICKEL PLATE
CENTER CONTACT: GOLD PLATE
HEX NUT: NICKEL PLATE
LOCK WASHER: NICKEL PLATE
PACKAGING:
INDIVIDUALLY PACKAGE IN A POLYBAG
C.MCCORMICK
CHECKED BY
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
D.PARHAM
APPROVED BY
R.CARRICK
COAXIAL

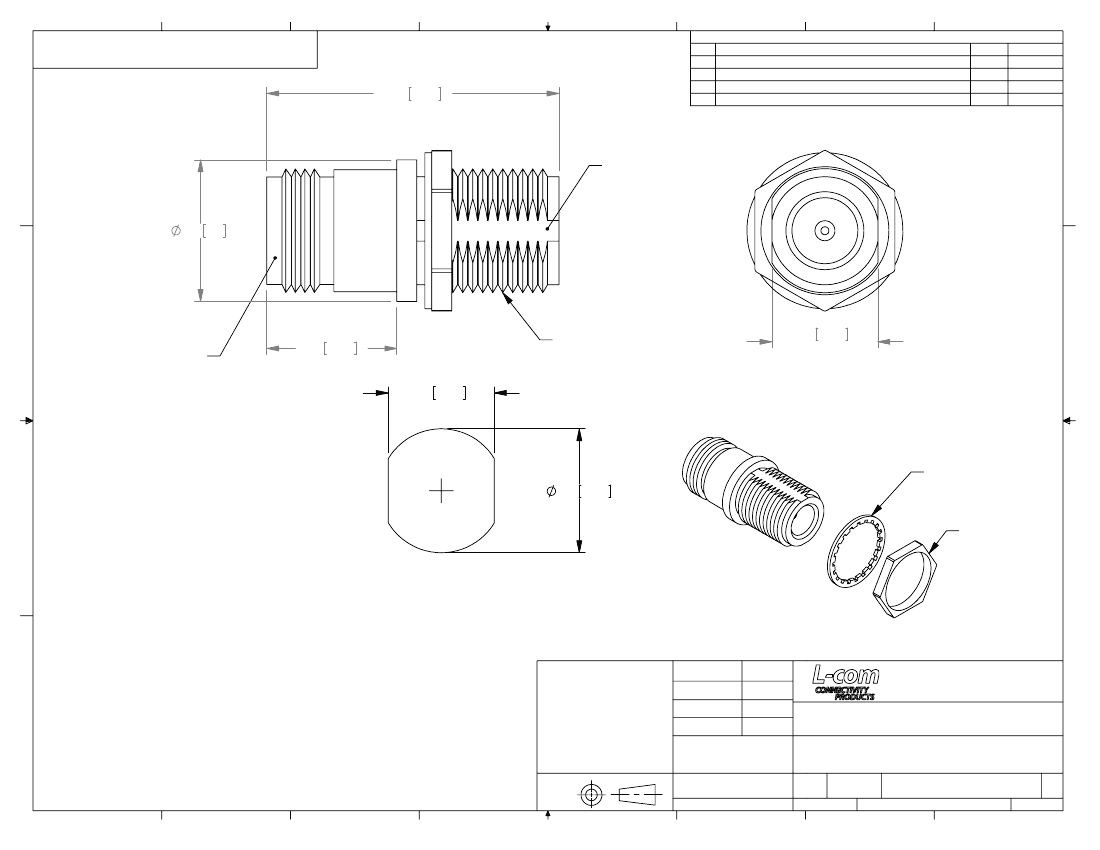

TYPE N BULKHEAD 50 OHM FEEDTHRU
SIZE
A
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
COLOR VARIATIONS
MAY OCCUR
REF
A
43321
2
FSCM NO.
DWG. NO.
BN620
1
REV.
SHEET 1 OF 1
SCALE: NONE
CAD FILE:
BN620.SLDDRW
