BA7607FE2 datasheet, PDF - EEWORLD Datasheet

BA7607FE2: DescriptionTRIPLE 2-CHANNEL, AUDIO/VIDEO SWITCH, PDSO16, SOP-16; CategoryAnalog mixed-signal IC The signal circuit; File Size181KB，7 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA7607FE2 Overview

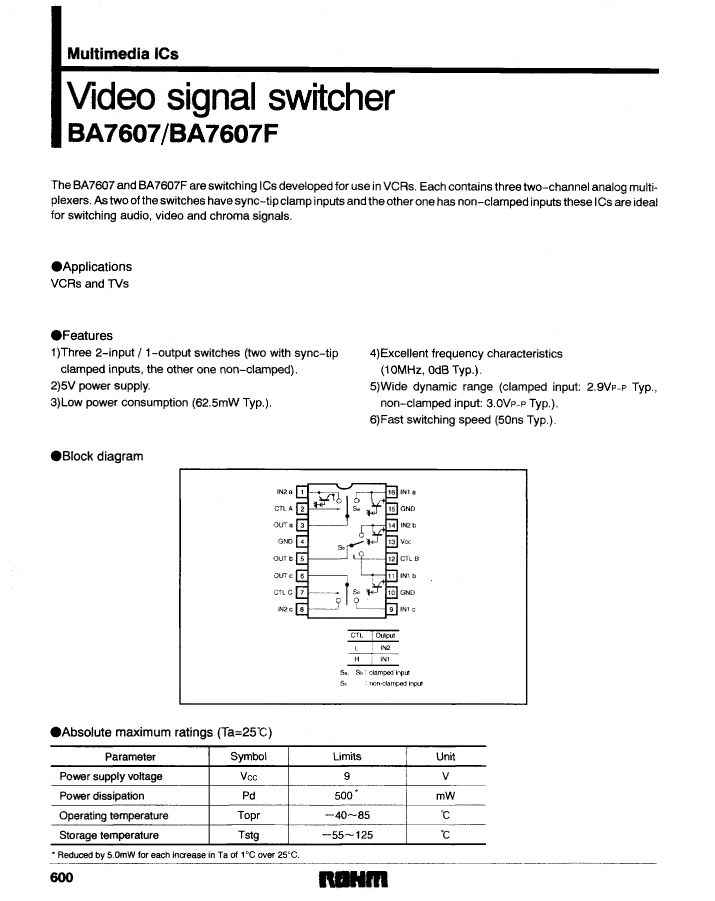

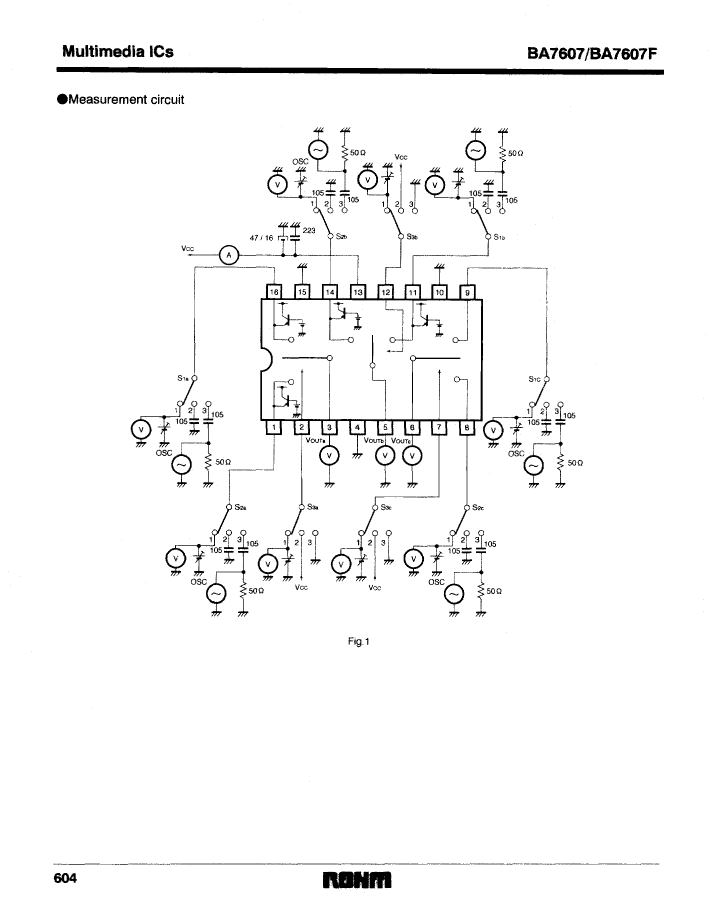

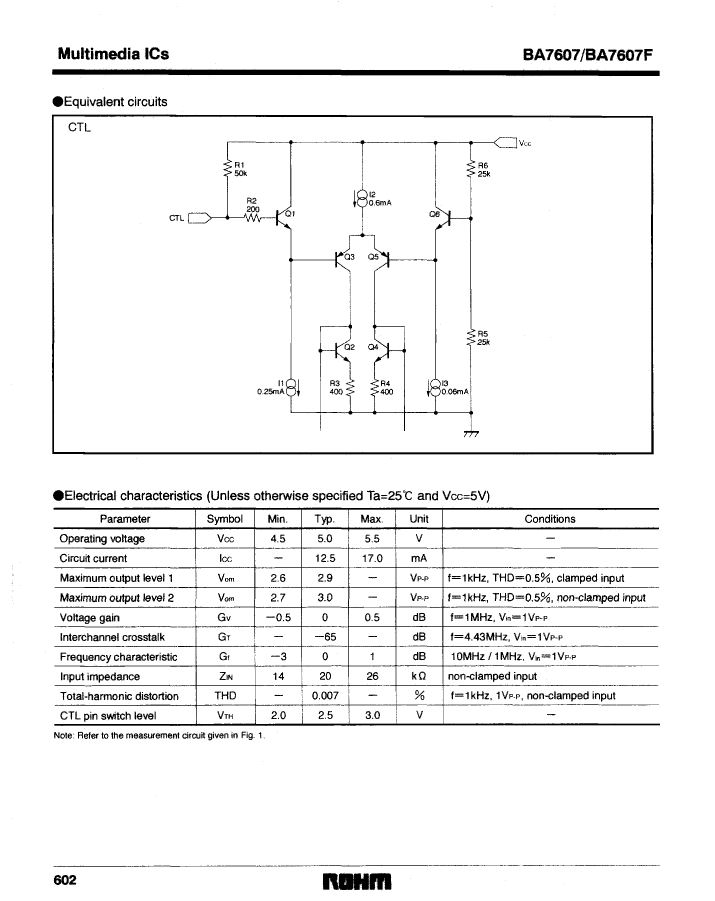

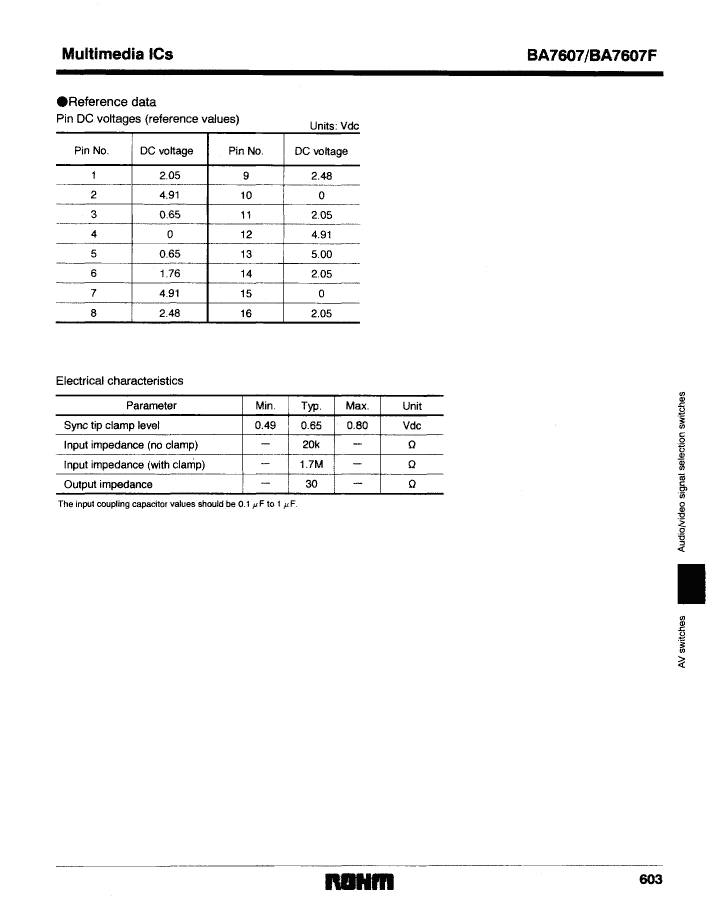

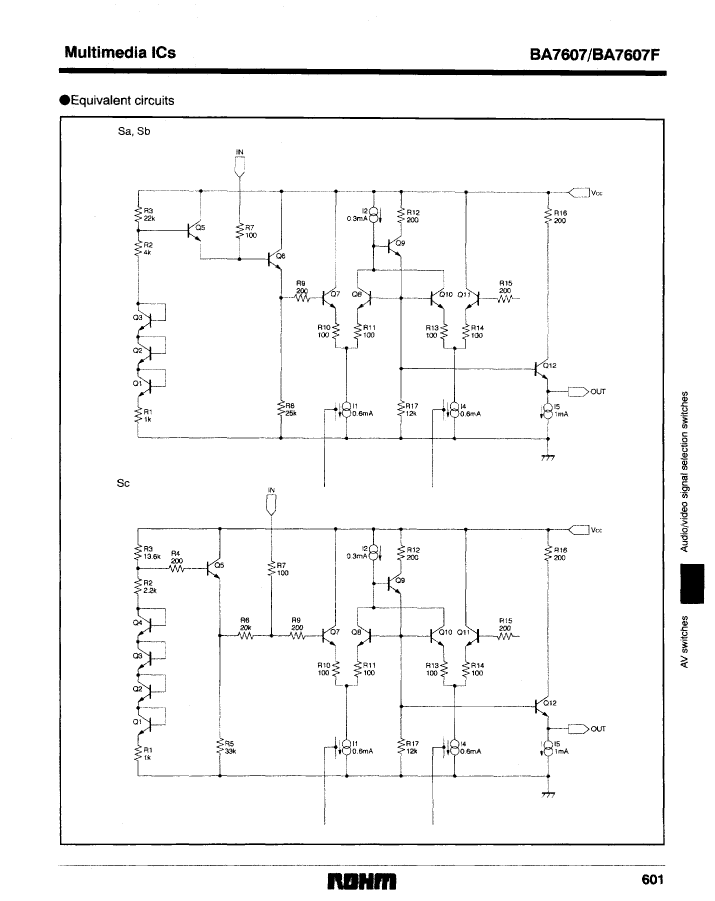

TRIPLE 2-CHANNEL, AUDIO/VIDEO SWITCH, PDSO16, SOP-16

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	LSOP,
Contacts	16
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	AUDIO/VIDEO SWITCH
JESD-30 code	R-PDSO-G16
JESD-609 code	e2
length	10 mm
Number of channels	2
Number of functions	3
Number of terminals	16
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.7 mm
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Terminal surface	TIN COPPER
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	4.4 mm

	BA7607FE2	BA7607FT1	BA7607F-T1
Description	TRIPLE 2-CHANNEL, AUDIO/VIDEO SWITCH, PDSO16, SOP-16	TRIPLE 2-CHANNEL, AUDIO/VIDEO SWITCH, PDSO16, SOP-16	Video Multiplexer, 3 Func, 2 Channel, BIPolar, PDSO16, SOP-16
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SOIC	SOIC	SOIC
package instruction	LSOP,	LSOP,	SOP-16
Contacts	16	16	16
Reach Compliance Code	unknown	unknown	compliant
Analog Integrated Circuits - Other Types	AUDIO/VIDEO SWITCH	AUDIO/VIDEO SWITCH	VIDEO MULTIPLEXER
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e2	e2	e2
length	10 mm	10 mm	10 mm
Number of channels	2	2	2
Number of functions	3	3	3
Number of terminals	16	16	16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	LSOP	LSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	1.7 mm	1.7 mm
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
Terminal surface	TIN COPPER	TIN COPPER	TIN COPPER
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	10
width	4.4 mm	4.4 mm	4.4 mm
