Description
The SE5169 series of fixed output low dropout
linear regulators are designed for portable battery
powered applications, which require low power
consumption and low dropout voltage.
Each
device contains a bandgap voltage reference, an
error amplifier, a PMOS power transistor, and
resistors for setting output voltage, and current limit
and temperature limit protection circuits.
The SE5169 has been designed to be used
with low cost capacitors and requires a minimum
output capacitor of 1.0μF. The output voltages
range from 1.3V to 4.4V in 100mV increments.
Standard voltage versions are 1.5, 1.8, 2.5, 2.8, 3.0,
and 3.3V.
Features
Typical 110mV Dropout Voltage at 150mA.
Excellent Line and Load Regulation.
High Accuracy Output Voltage of 2%.
Ultra-Low Ground Current at 35μA (Typ.)
Over Current and thermal Protection.
No Reverse Current.
Available in SOT-23-3L and TO-92 Packages
100% Lead (Pb)-Free
Application
USB removable devices
MPEG4 devices
Wireless LAN’s
Hand-Held Instrumentation.
Portable DVD players
Digital camera

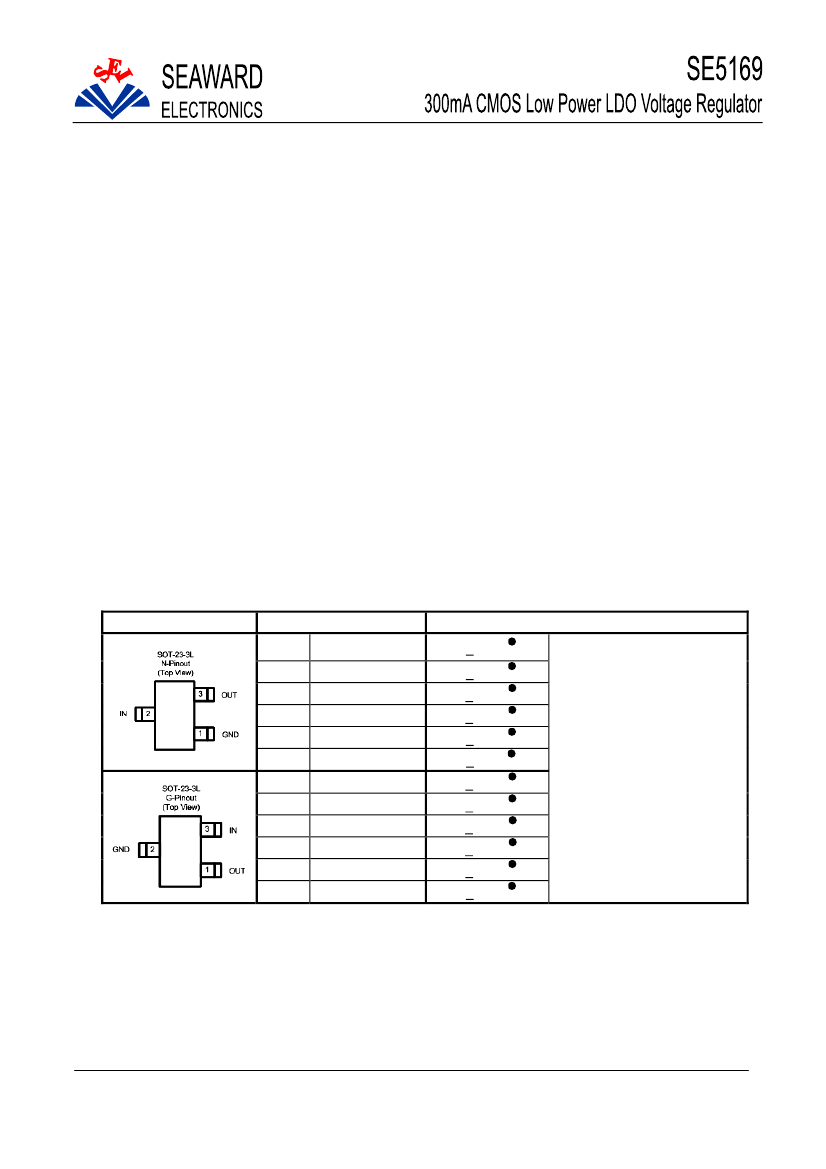

Ordering/Marking Information
Package
Ordering Information
3.3V
2.8V
2.5V
1.8V
1.5V
3.0V
3.3V
2.8V
2.5V
1.8V
1.5V
3.0V
SE5169ALN-LF
SE5169BLN-LF
SE5169CLN-LF
SE5169DLN-LF
SE5169ELN-LF
SE5169FLN-LF
SE5169ALG-LF
SE5169BLG-LF
SE5169CLG-LF
SE5169DLG-LF
SE5169ELG-LF
SE5169FLG-LF
169AN_
169BN_
169CN_
169DN_
169EN_
169FN_
169AG_
169BG_
169CG_
169DG_
169EG_
169FG_
Marking Information
Starting with 1, a bar on top of 1 is
for production year 2001, and
underlined 1 is for year 2002.
The
next character is marked on top for
2003, and underlined for 2004. The
naming pattern continues with
consecutive characters for later
years.
The last character is the week
code. (
A-Z:
1-26, a-z: 27-52)
A dot on top right corner is for
lead-free process.
LF: lead free.
Revision
12/4/2008
Preliminary and all contents are subject to change without prior notice
© Seaward Electronics Inc., 2006. • www.seawardinc.com.cn • Page 1

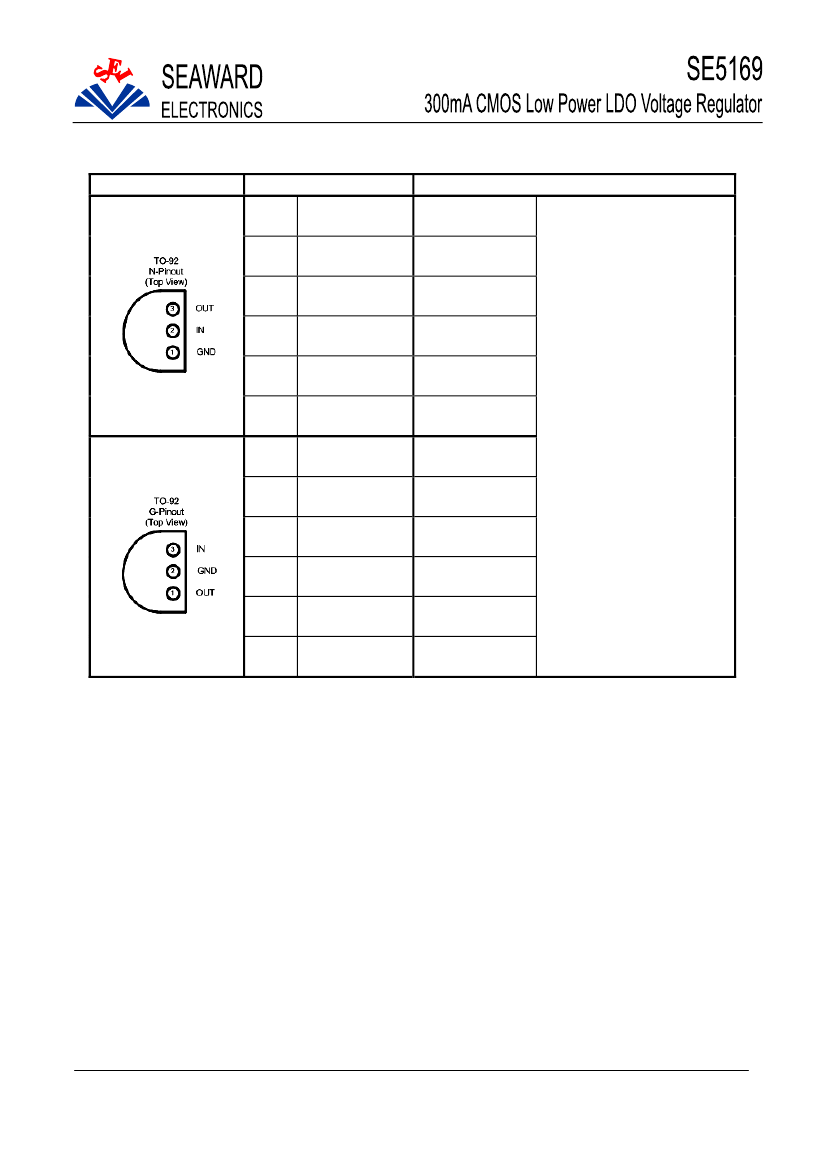

Ordering/Marking Information (Continued)
Package
Ordering Information
3.3V
2.8V
2.5V
1.8V
1.5V
3.0V
3.3V
2.8V
2.5V
1.8V
1.5V
3.0V
SE5169AHN-LF
SE5169BHN-LF
SE5169CHN-LF
SE5169DHN-LF
SE5169EHN-LF
SE5169FHN-LF
SE5169AHG-LF
SE5169BHG-LF
SE5169CHG-LF
SE5169DHG-LF
SE5169EHG-LF
SE5169FHG-LF
Marking Information
SE5169AHN
YYWW-LF
SE5169BHN
YYWW-LF
SE5169CHN
YYWW-LF
SE5169DHN
YYWW-LF
SE5169EHN
YYWW-LF
SE5169FHN
YYWW-LF
SE5169AHG
YYWW-LF
SE5169BHG
YYWW-LF
SE5169CHG
YYWW-LF
SE5169DHG
YYWW-LF
SE5169EHG
YYWW-LF
SE5169FHG
YYWW-LF
YY: year code
WW: week code.
LF: lead free.
Revision
12/4/2008
Preliminary and all contents are subject to change without prior notice
© Seaward Electronics Inc., 2006. • www.seawardinc.com.cn • Page 2
Absolute Maximum Ratings
(1)
Supply Input Voltage (VIN) ..…….……………… +6V
Power Dissipation (PD) ……….. Internally Limited
(3)
Operating Ratings
(2)
Supply Input Voltage (VIN) …...……... +2.0V to +5.5V
Junction Temperature (TJ) ……….….. 0°C to +125°C
Package Thermal Resistance
160°C/W (TO-92)
250°C/W (SOT-23-3L)
Junction Temperature (TJ) …….…………...... 150°C
Lead Temperature (soldering, 5 sec.) …....…. 260°C
Storage Temperature (TS) ……….. -40°C to +150°C
Electrical Characteristics
V
IN
= 5.0V; C
IN
= 2.2μF; C
OUT
= 2.2μF; I
OUT
= 10mA; T
J
= 25°C, unless otherwise specified.
Symbol
Parameter
Conditions
SE5169-1.5V (V
IN
=1.8V)
SE5169-1.8V (V
IN
=3.3V)
V
OUT
Output Voltage
Accuracy
SE5169-2.5V
SE5169-2.8V
SE5169-3.0V
SE5169-3.3V
ΔV
OUT
/ΔT
ΔV
OUT
/ V
OUT
ΔV
OUT
/ V
OUT
Output Voltage
Temperature Coefficient
Line Regulation
Load Regulation
(5)
Note 4
V
IN
=
（V
OUT
+0.8）V to 5.5V
V
IN
= (V
OUT
+0.8V) or 2.5V
I
OUT
=10mA to 300mA
I
OUT
=10mA
V
IN
- V
OUT
Dropout Voltage
(6)
I
OUT
=150mA
I
OUT
=300mA
T
PROTECTION
PSRR
I
GROUND
I
LIMIT
Thermal Protection
Ripple Rejection
Ground Current
Current Limit
Thermal Protection Temperature
Protection Hysterisys
f =120Hz
I
OUT
=10mA
V
OUT
=0V
Min
1.470
1.764
2.450
2.744
2.940
3.234
--
--
--
--
--
--
--
--
--
--
--
Typ
1.5
1.8
2.5
2.8
3.0
3.3
0.1
0.2
1.0
8
110
250
150
20
61
35
500
Max
1.530
1.836
2.550
2.856
3.060
3.366
--
--
--
--
--
--
--
--
--
--
--
℃
℃
Units
V
mV/
℃
%/V
%
mV
dB
μA
mA
Revision
12/4/2008
Preliminary and all contents are subject to change without prior notice
© Seaward Electronics Inc., 2006. • www.seawardinc.com.cn • Page 3
Note 1:
Exceeding the absolute maximum rating may damage the device.
Note 2:
The device is not guaranteed to function outside its operating rating.
Note 3:
The maximum allowable power dissipation at any TA (ambient temperature) is calculated using: P
D(MAX)
= (T
J(MAX)
- T
A
)/θ
JA
. Exceeding the maximum allowable power dissipation will result in excessive die temperature, and the
regulator will go into thermal shutdown. See Table 1 and the “Thermal Considerations” section for details.
Note 4:
Output voltage temperature coefficient is the worst-case voltage change divided by the total temperature range.
Note 5:
Regulation is measured at constant junction temperature using low duty cycle pulse testing. Parts are tested for
load regulation in the load range from 100μA to 300mA. Changes in output voltage due to heating effects are
covered by the thermal regulation specification.
Note 6:
Dropout voltage is defined as the input to output differential at which the output voltage drops 2% below its
nominal value measured at 1V differential.

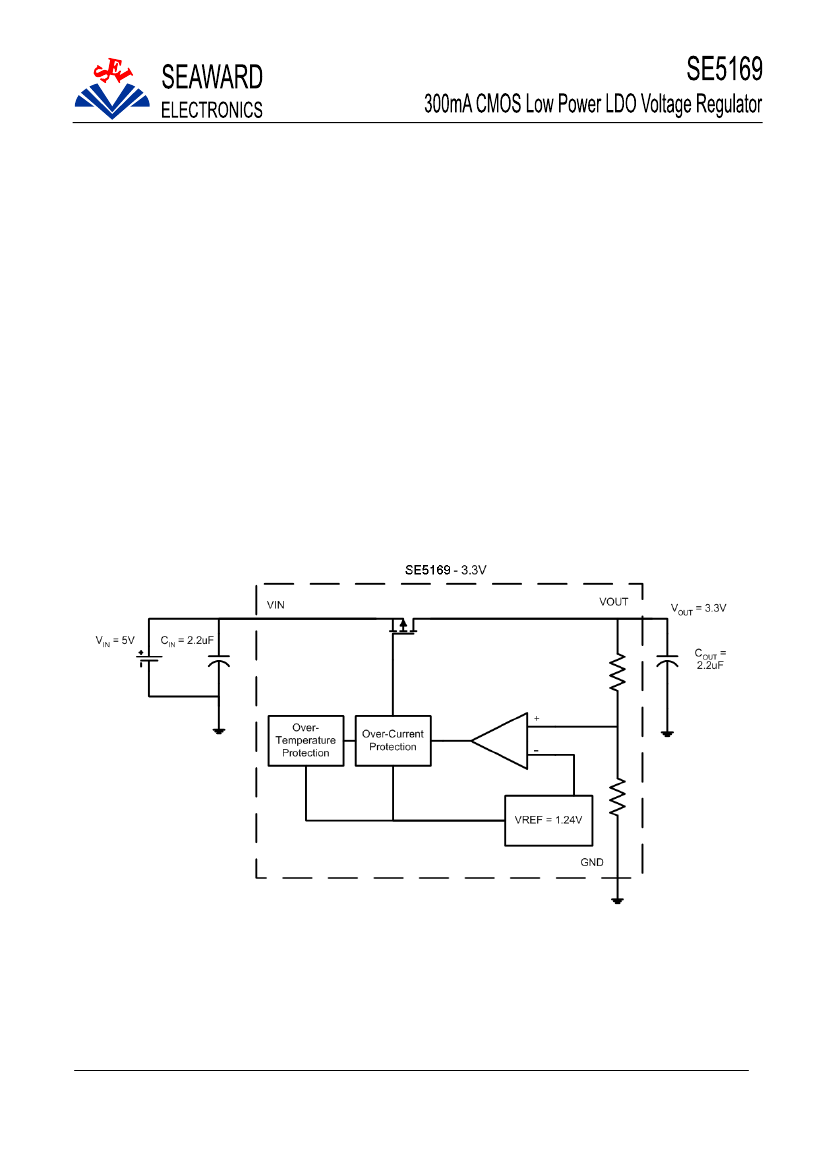

Typical Application
Revision
12/4/2008
Preliminary and all contents are subject to change without prior notice
© Seaward Electronics Inc., 2006. • www.seawardinc.com.cn • Page 4

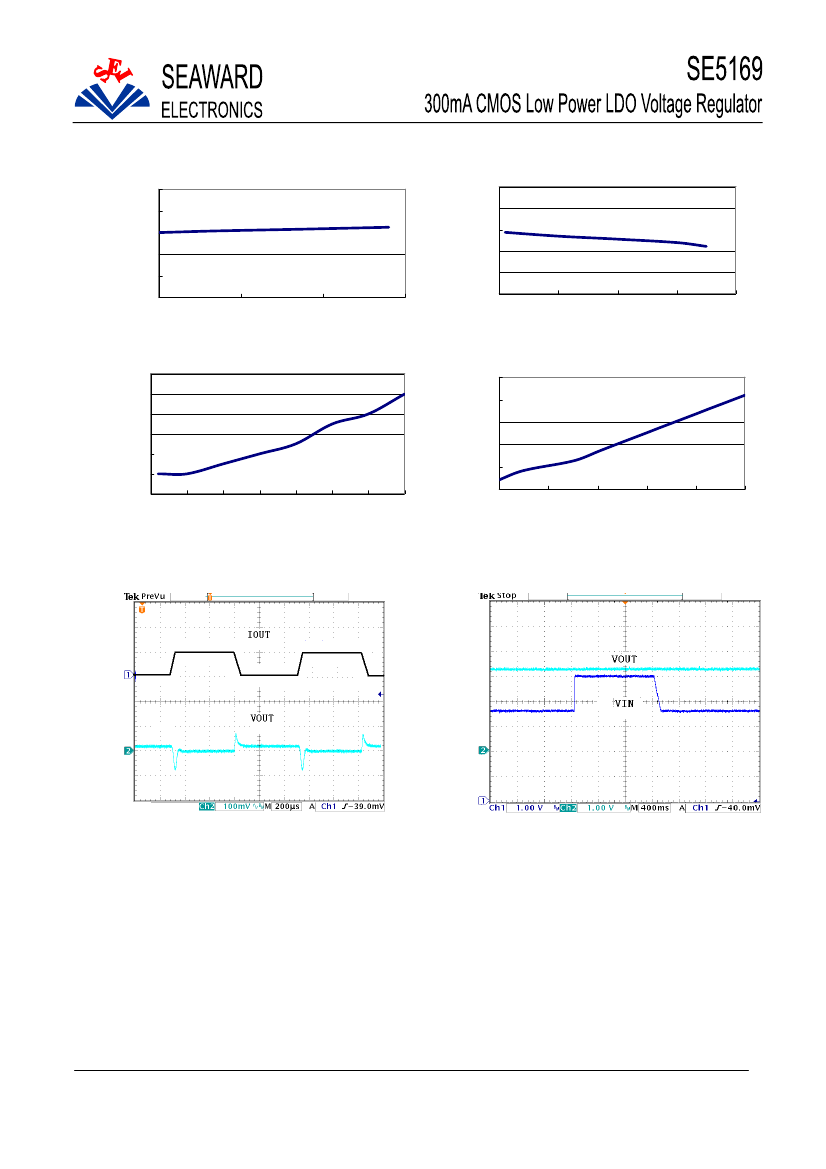

Line Regulation
(IOUT=10mA)
Load Regulation
(VIN=4.3V)
3.40
3.35
VOUT (V)
3.30
3.25
3.20
3.15
0
100
200
IOUT (mA)
300
400
3.40
3.35
VOUT (V)
3.30
3.25
3.20
3.15
3.60
4.10
4.60
5.10
VIN (V)
IQ VS. IOUT(VOUT=3.3V)
32
30
IQ (μA)
IQ (μA)
28
26
24
22
20
0
50
100
150
200
IOUT (mA)
250
300
350
27.5
27.0
26.5
26.0
25.5
25.0
3.6
IQ VS. VIN(VOUT=3.3V)
4.0
4.4
4.8
VIN (V)
5.2
5.6
Load Transient Response (VOUT = 3.3V)
(IOUT=10mA to 300mA)
Input Transient Response (VOUT = 3.3V)
(VIN=3.6V to 5.0V)
Revision
12/4/2008
Preliminary and all contents are subject to change without prior notice
© Seaward Electronics Inc., 2006. • www.seawardinc.com.cn • Page 5
