BA3714F-E2 datasheet, PDF - EEWORLD Datasheet

BA3714F-E2: DescriptionAnalog Circuit, 1 Func, PDSO8, SOP-8; CategoryAnalog mixed-signal IC The signal circuit; File Size76KB，4 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

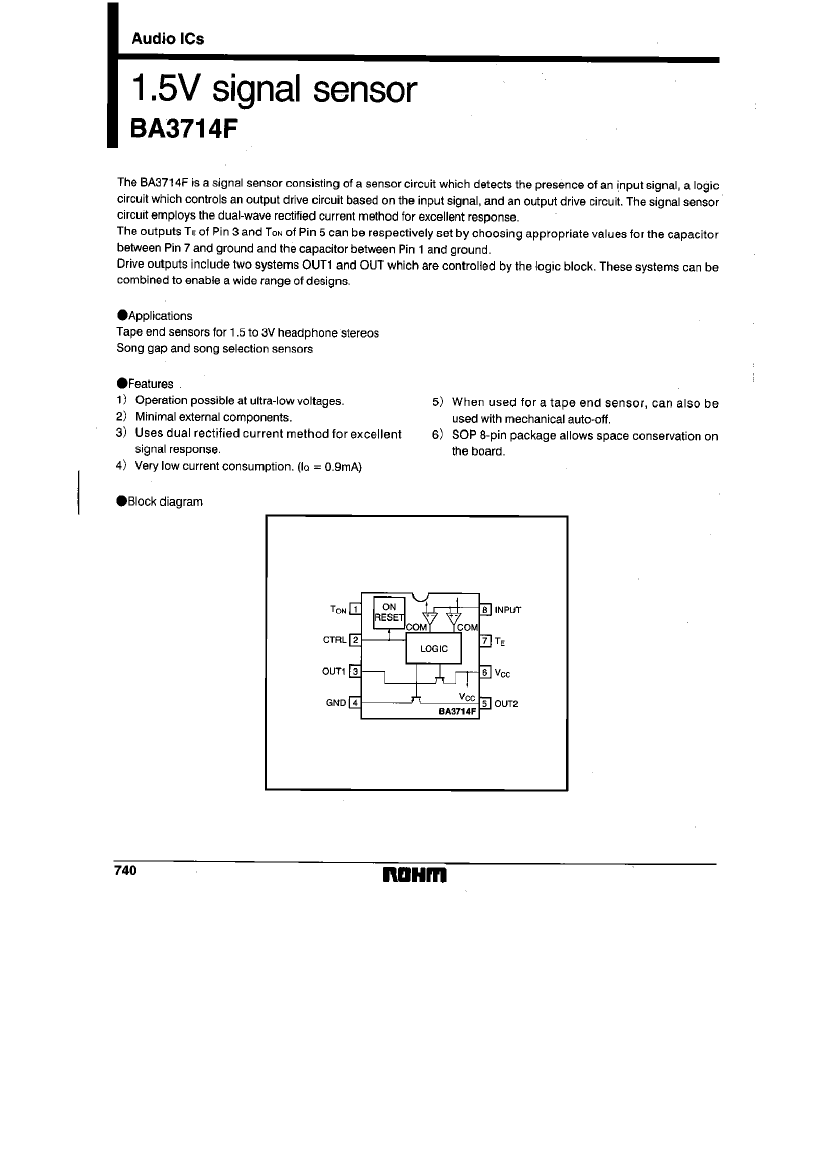

BA3714F-E2 Overview

Analog Circuit, 1 Func, PDSO8, SOP-8

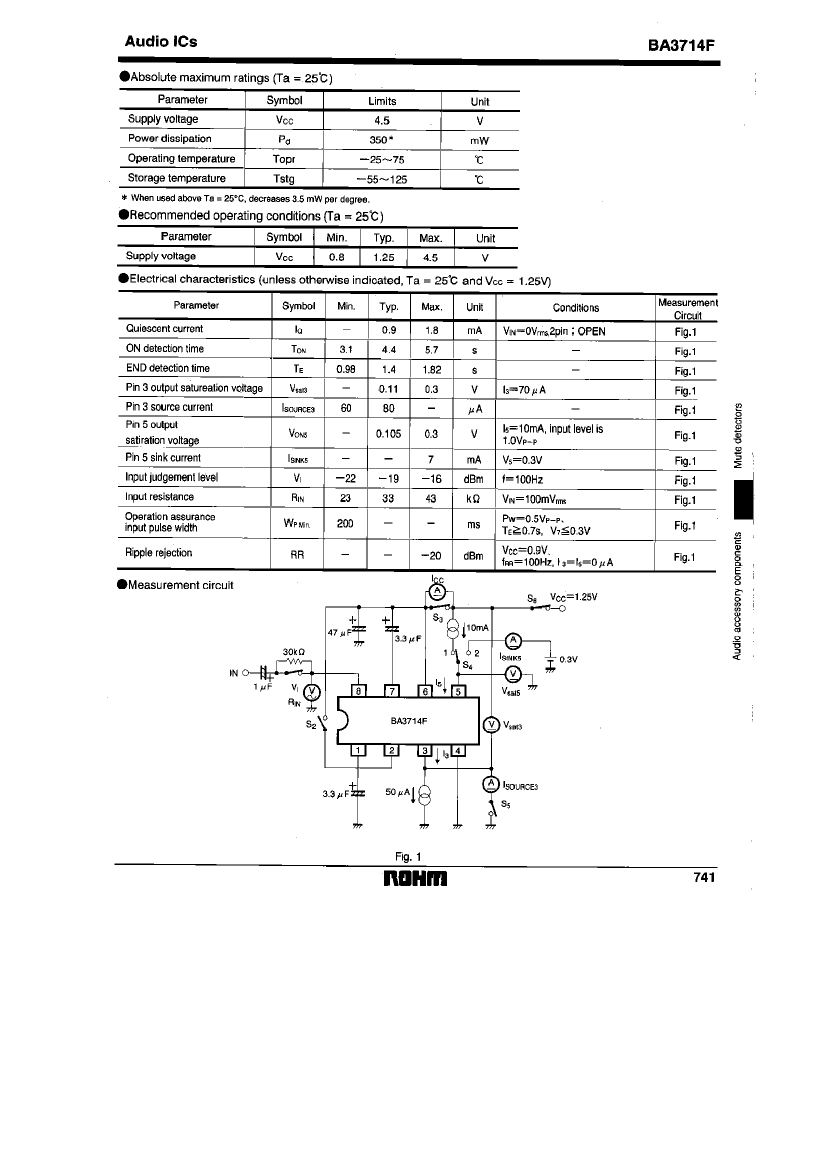

Parameter Name	Attribute value
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	SOP-8
Contacts	8
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G8
length	5 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	4.5 V
Minimum supply voltage (Vsup)	0.8 V
Nominal supply voltage (Vsup)	1.25 V
surface mount	YES
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	4.4 mm

	BA3714F-E2	BA3714F-T1	BA3714FT1	BA3714FE2
Description	Analog Circuit, 1 Func, PDSO8, SOP-8	Analog Circuit, 1 Func, PDSO8, SOP-8	SPECIALTY ANALOG CIRCUIT, PDSO8, SOP-8	SPECIALTY ANALOG CIRCUIT, PDSO8, SOP-8
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SOIC	SOIC	SOIC	SOIC
package instruction	SOP-8	SOP-8	LSOP,	LSOP,
Contacts	8	8	8	8
Reach Compliance Code	compliant	compliant	unknown	unknown
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
length	5 mm	5 mm	5 mm	5 mm
Number of terminals	8	8	8	8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	LSOP	LSOP	LSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm	1.7 mm	1.6 mm
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	4.4 mm	4.4 mm	4.4 mm	4.4 mm
Number of functions	1	1	1	-
Maximum operating temperature	75 °C	75 °C	-	75 °C
Minimum operating temperature	-25 °C	-25 °C	-	-25 °C
Maximum supply voltage (Vsup)	4.5 V	4.5 V	-	4.5 V
Minimum supply voltage (Vsup)	0.8 V	0.8 V	-	0.8 V
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	-	COMMERCIAL EXTENDED
