LM308DT datasheet, PDF - EEWORLD Datasheet

LM308DT: DescriptionOP-AMP, 10000uV OFFSET-MAX, 0.8MHz BAND WIDTH, PDSO8, MICRO, PLASTIC, SO-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size177KB，7 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

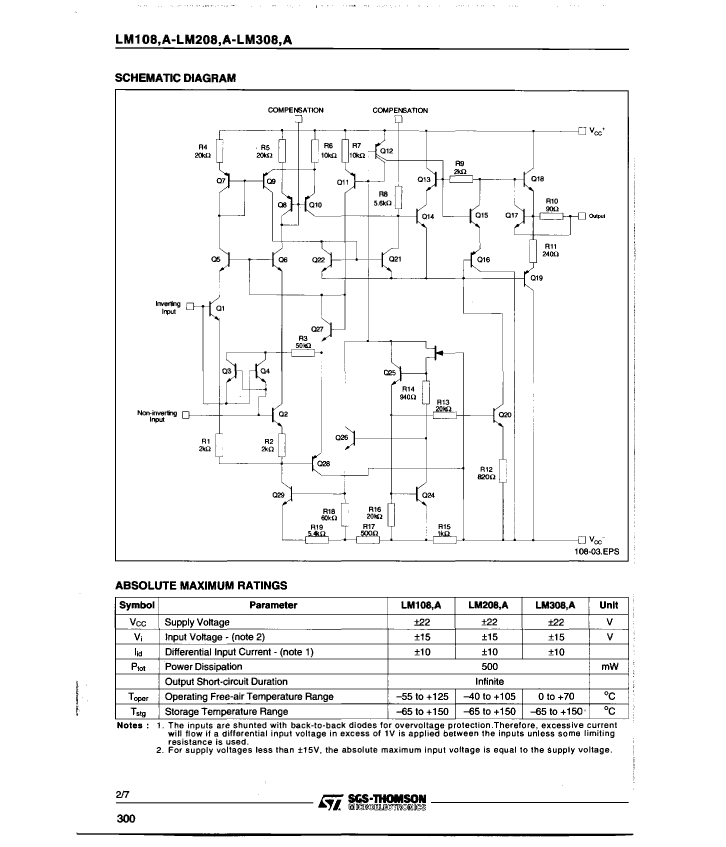

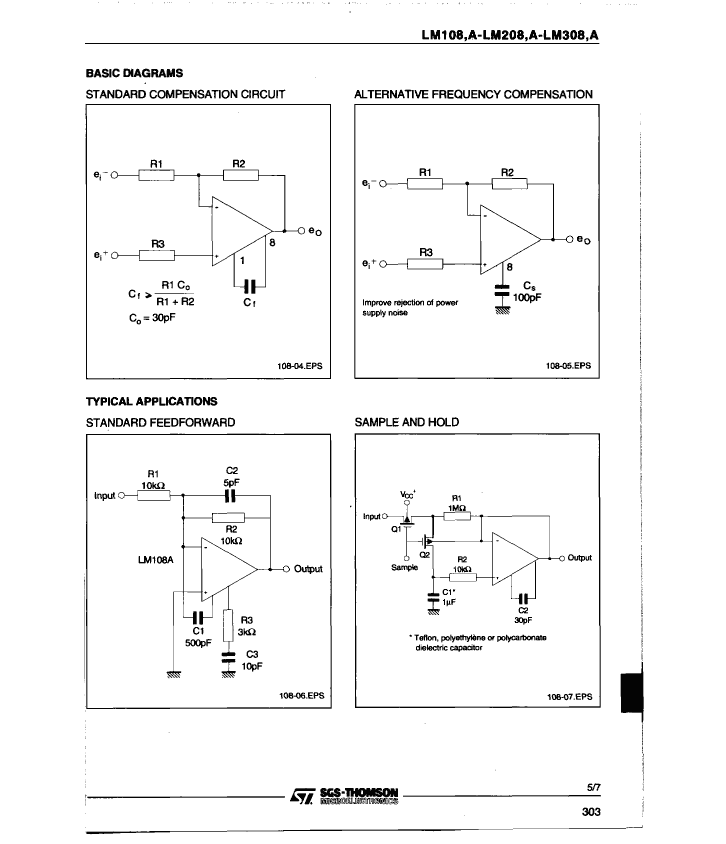

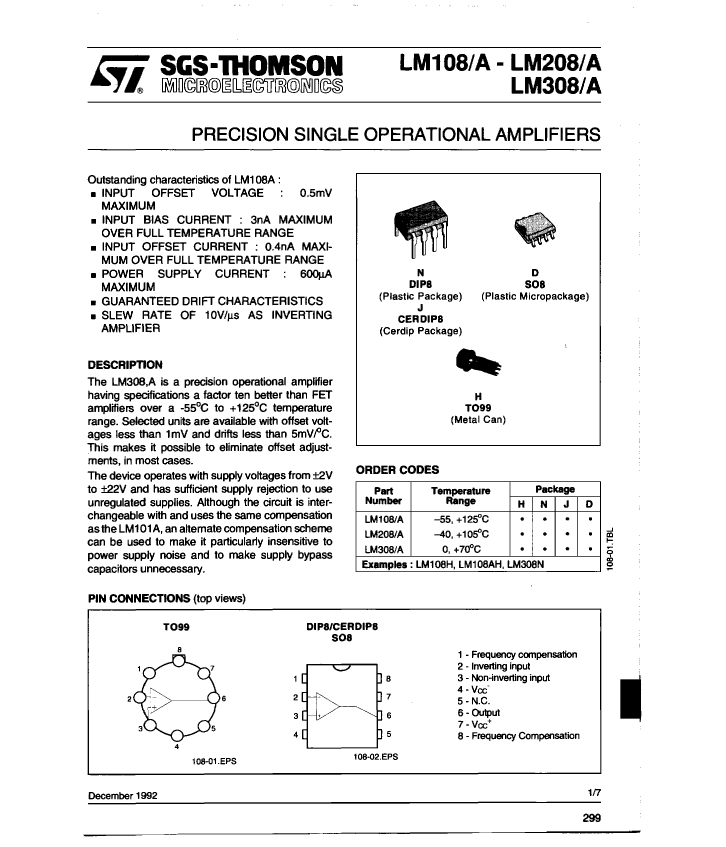

LM308DT Overview

OP-AMP, 10000uV OFFSET-MAX, 0.8MHz BAND WIDTH, PDSO8, MICRO, PLASTIC, SO-8

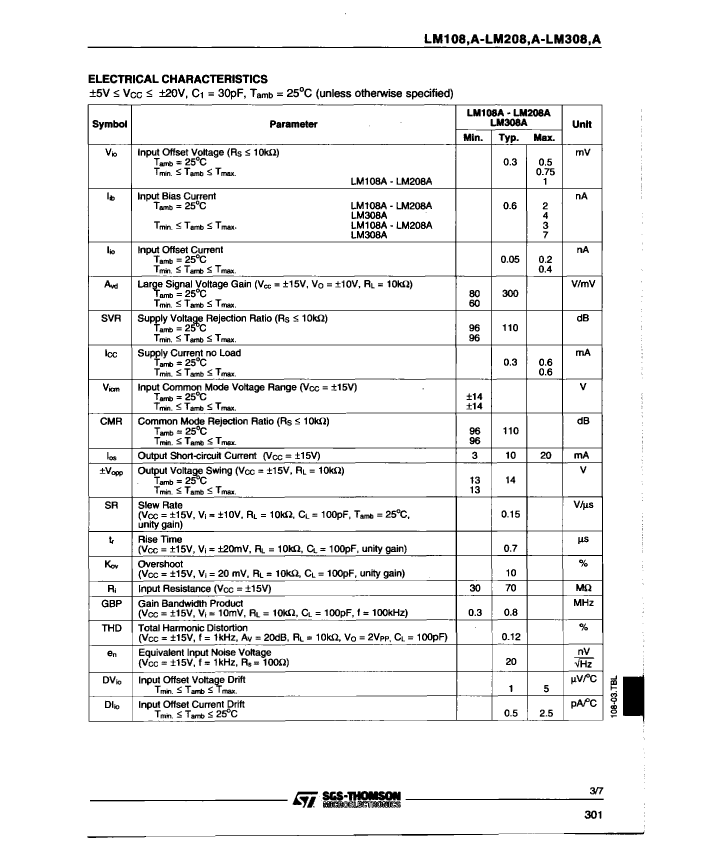

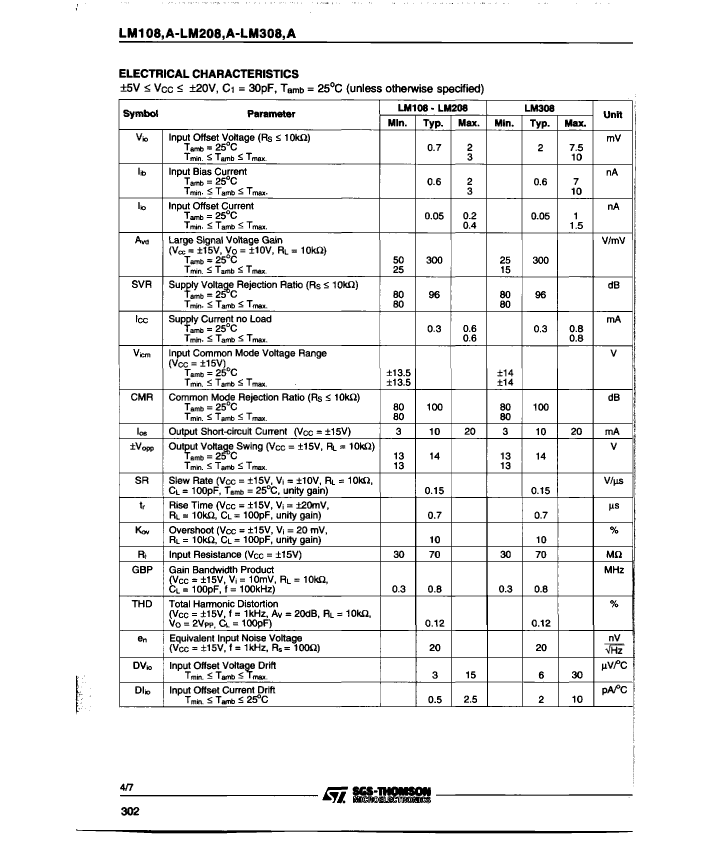

Parameter Name	Attribute value
Maker	STMicroelectronics
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.01 µA
Nominal Common Mode Rejection Ratio	80 dB
Maximum input offset voltage	10000 µV
JESD-30 code	R-PDSO-G8
length	4.9 mm
Negative supply voltage upper limit	-22 V
Nominal Negative Supply Voltage (Vsup)	-20 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.75 mm
Nominal slew rate	0.15 V/us
Maximum slew rate	0.8 mA
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	20 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	800 kHz
width	3.9 mm
