MGDS-150-O-I/S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> MGDS-150-O-I/S

MGDS-150-O-I/S: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 150W, Hybrid, MODULE-10; CategoryPower/power management The power supply circuit; File Size871KB，17 Pages; ManufacturerGAIA Converter Inc; Websitehttps://gaia-converter.com

Download Datasheet Parametric View All

MGDS-150-O-I/S Overview

DC-DC Regulated Power Supply Module, 1 Output, 150W, Hybrid, MODULE-10

MGDS-150-O-I/S Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	GAIA Converter Inc
Parts packaging code	MODULE
package instruction	MODULE-10
Contacts	10
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	80 V
Minimum input voltage	16 V
Nominal input voltage	28 V
JESD-30 code	R-XDMA-P10
JESD-609 code	e3
Number of functions	1
Output times	1
Number of terminals	10
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Maximum output current	6.25 A
Maximum output voltage	50.4 V
Minimum output voltage	21.6 V
Nominal output voltage	24 V
Package body material	UNSPECIFIED
Encapsulate equivalent code	MODULE,10LEAD,1.9
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Filter level	MIL-STD-883 Class C
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN OVER NICKEL
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	150 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

Hi-Rel DC/DC CONVERTER

MGDM-150 : 150W POWER

Hi-Rel

Grade

5:1 Low Input Voltage : 9-45 & 16-80 VDC

Single Output

Metallic case - 1.500 VDC Isolation

• Ultra wide input range 16-80 Vdc, 9-45 Vdc

• 28Vdc input compliant with MIL-STD-704A/D/F

• Industry standard half brick package

• Power up to 150 W

• Wide temperature range : -40/+105°C baseplate

• High efficiency (typ. 86%-90%)

• Soft start

• Galvanic isolation 1.500 VDC

• Integrated LC EMI filter

• Synchronizable

• Load sharing, N+1 redundancy

• No load to full load operation

• Fully protected by independant security

• Under & overvoltage lock-out

• Overvoltage protection

• Current limitation protection

• Over temperature protection

• No optocoupler for high reliability

• Leaded process

The MGDM-150 low input voltage series is a

complete line of high density wide input range

DC/DC power modules designed for aerospace,

military and high-end industrial applications. These

modules use a patented fixed switching topology

at 420 KHz providing ultra wide input range, low

noise characteristics and high power density. Stan-

dard models are available with ultra wide input

voltage range of 9-45, 16-80 volts. The series

include single output voltage choices of 3,3, 5,

12, 15, 24, 28 volts.

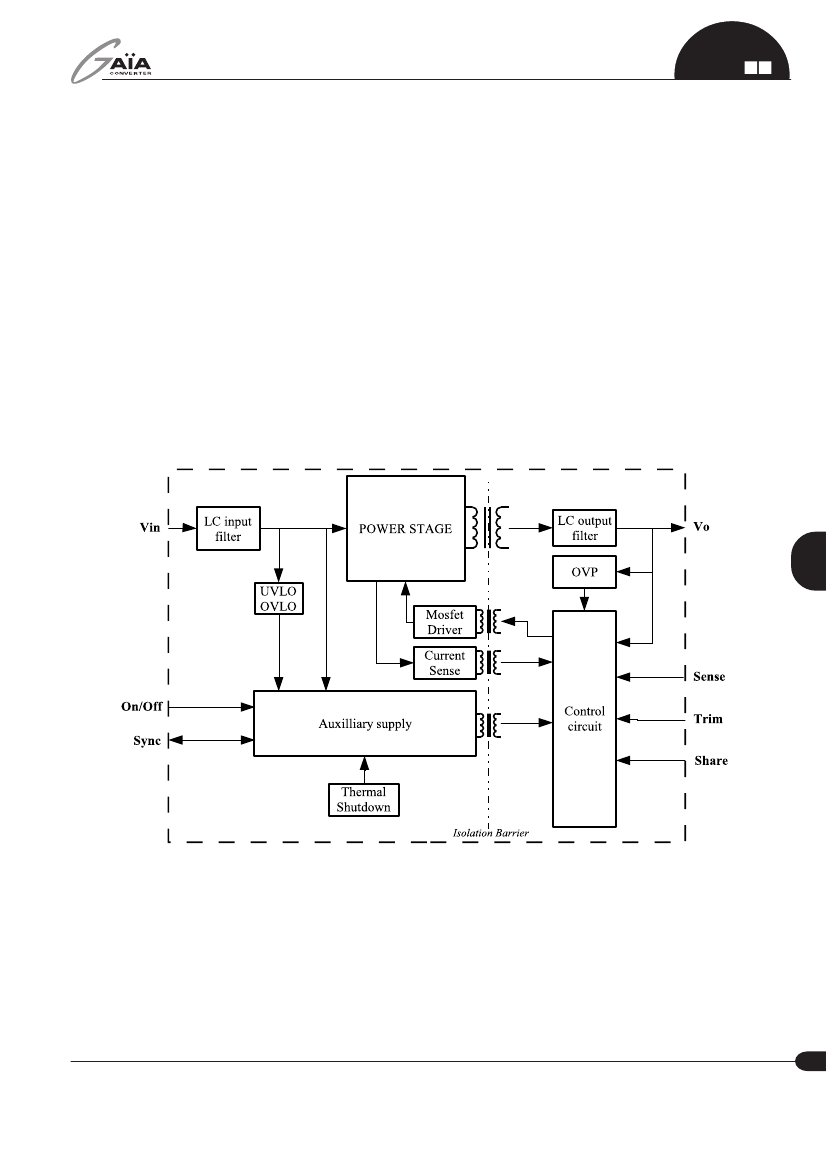

The MGDM-150 low input voltage series include

synchronization load sharing, trim and sense

functions.

The synchronization function allows to synchronize

more than one converter to one frequency or an

external source frequency. The load sharing allows

parallel operation to increase power with a true

N+1.

All the modules are designed with LC network

filters to minimize reflected input current ripple

and output voltage ripple.

The modules have totally independant security

functions including input undervoltage and

overvoltage lock-out, output overvoltage protec-

tion, output current limitation protection, and

temperature protection. Additionnally a soft-start

function allows current limitation and eliminates

inrush current during start-up.

The design has been carried out with surface

mount components, planar transformer and is

manufactured in a fully automated process to

guarantee high quality. The modules are potted

with a bi-component thermal conductive

compound and used an insulated metallic

substrate to ensure optimum power dissipation

under harsh environmental conditions.

1-General

2-Product Selection

MGDS - 150 -

input

output

option

Input Voltage Range

Permanent

H : 9-45 VDC

O : 16-80 VDC

Output

3.3 VDC

5 VDC

12 VDC

15 VDC

24 VDC

28 VDC

Options :

/T : option for -55°C start up operating temperature

/S : option for screening and serialization

REDEFINING THE SOURCE OF POWER

Gaia Converter FC02-009.01/10 Revision O

For locations, phone, fax, E-Mail see back cover
