LW1F-2C30V-W

Description
Rotary Switch, 2 Positions, 3PDT, Maintained, 0.1A, 30VDC, Solder Terminal, Rotary Shaft Actuator, Through Hole-straight,
CategoryMechanical and electronic products    switch
File Size543KB，18 Pages
ManufacturerIDEC
Download Datasheet Parametric Compare View All

LW1F-2C30V-W Online Shopping

Suppliers Part Number Price MOQ In stock
LW1F-2C30V-W - - View Buy Now

LW1F-2C30V-W Overview

Rotary Switch, 2 Positions, 3PDT, Maintained, 0.1A, 30VDC, Solder Terminal, Rotary Shaft Actuator, Through Hole-straight,

LW1F-2C30V-W Parametric

Parameter NameAttribute value
MakerIDEC
Reach Compliance Codecompliant
ECCN codeEAR99
Actuator colorWHITE
Actuator length0.335 inch
Actuator typeROTARY SHAFT
body width16.2052 mm
body height35.9918 mm
Body length or diameter24.9936 mm
Center contact platingGOLD
Contact (AC) maximum rated R load0.1A@125VAC
Maximum contact current (AC)0.1 A
Maximum contact current (DC)0.1 A
Contact (DC) maximum rated R load0.1A@30VDC
Contact resistance0.05 mΩ
Maximum contact voltage (AC)125 V
Maximum contact voltage (DC)30 V
Dielectric withstand voltage2500VAC V
Electrical life100000 Cycle(s)
End contact platingGOLD
Graduation angle90 deg
Insulation resistance100000000 Ω
Manufacturer's serial numberLW1F
Installation featuresTHROUGH HOLE-STRAIGHT
Number of positions2
Maximum operating temperature60 °C
Minimum operating temperature-25 °C
surface mountNO
Switch actionMAINTAINED
switch function3PDT
Switch typeROTARY SWITCH
Terminal length0.213 inch
Termination typeSOLDER

Preview

Download Datasheet

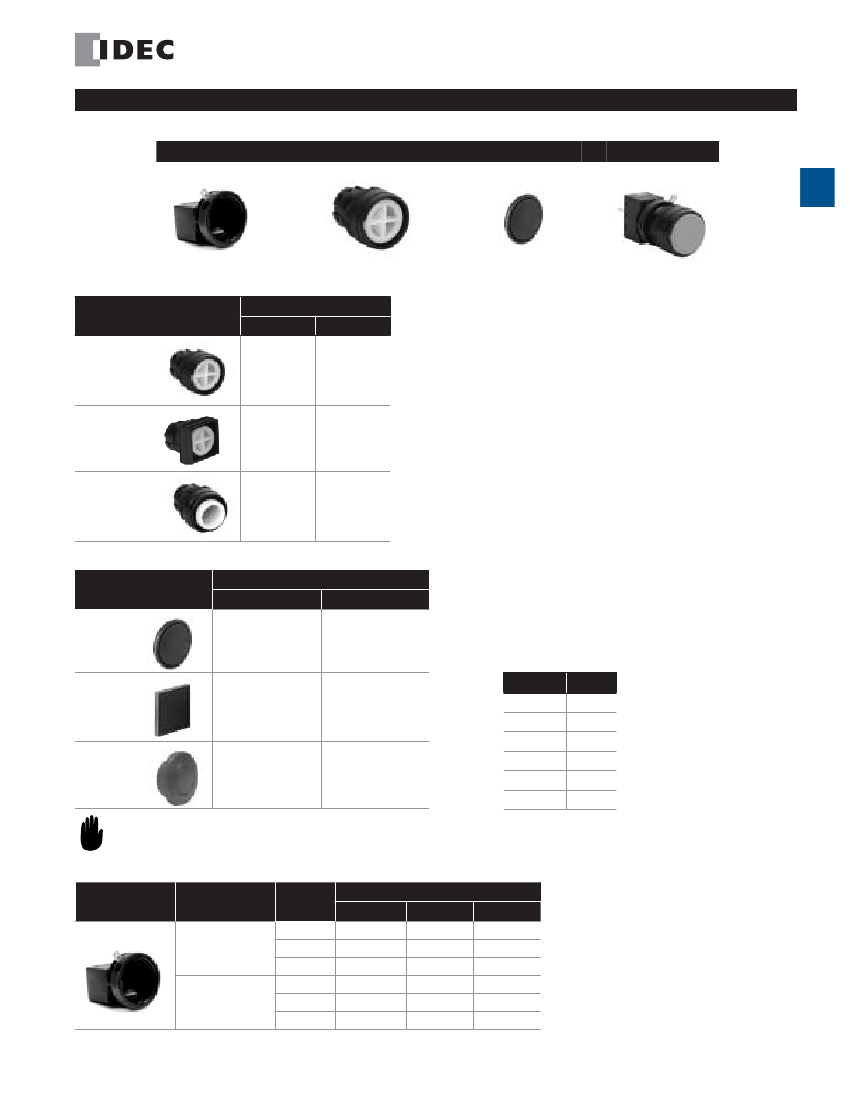

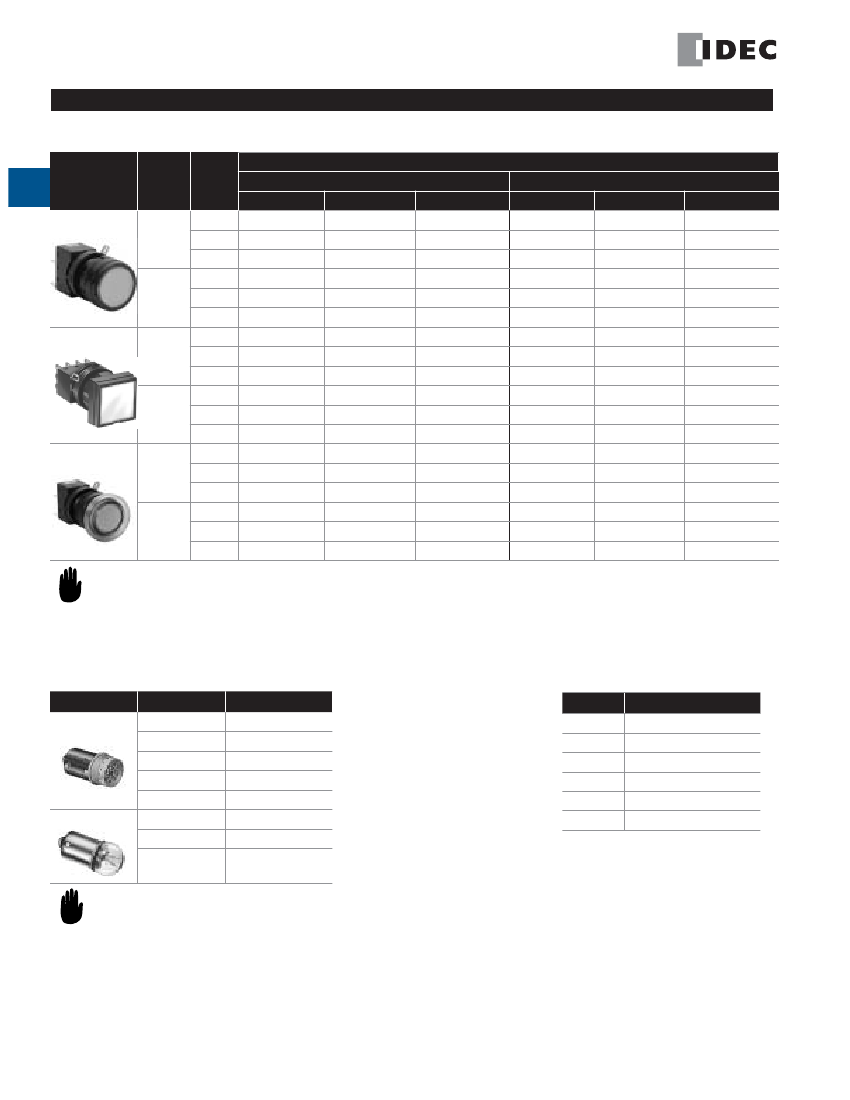

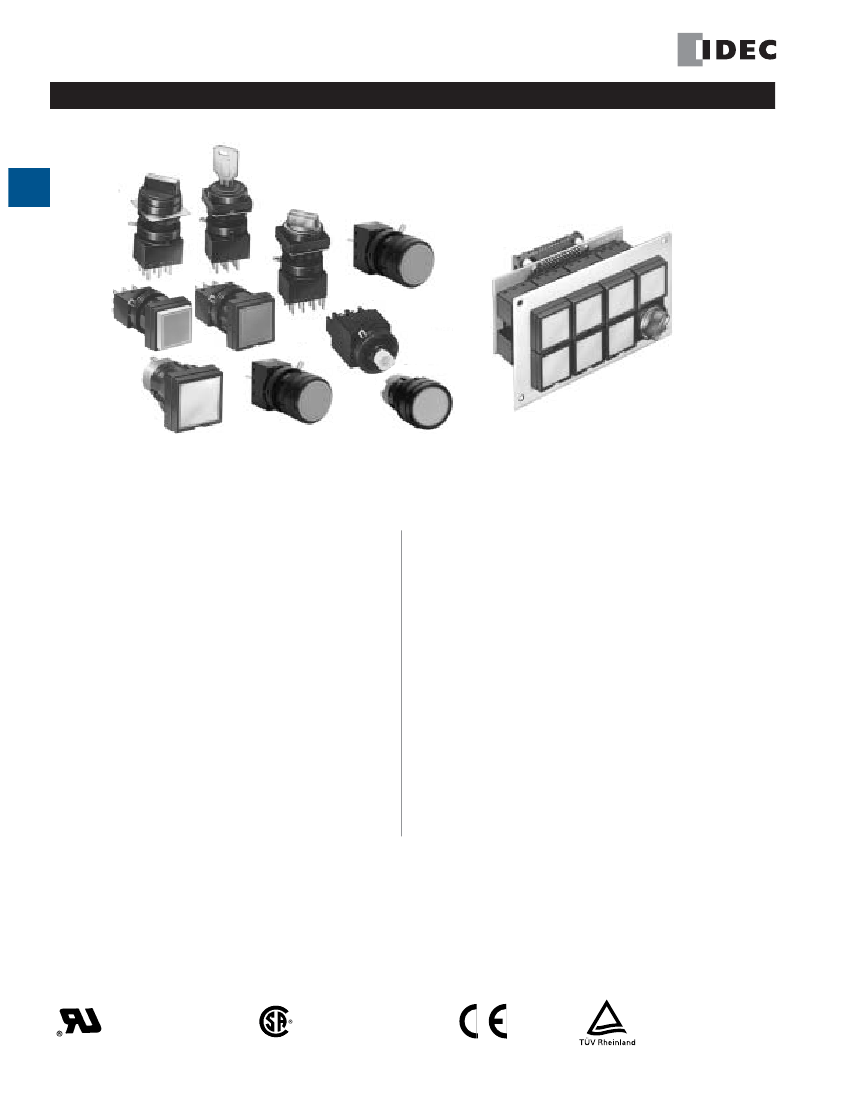

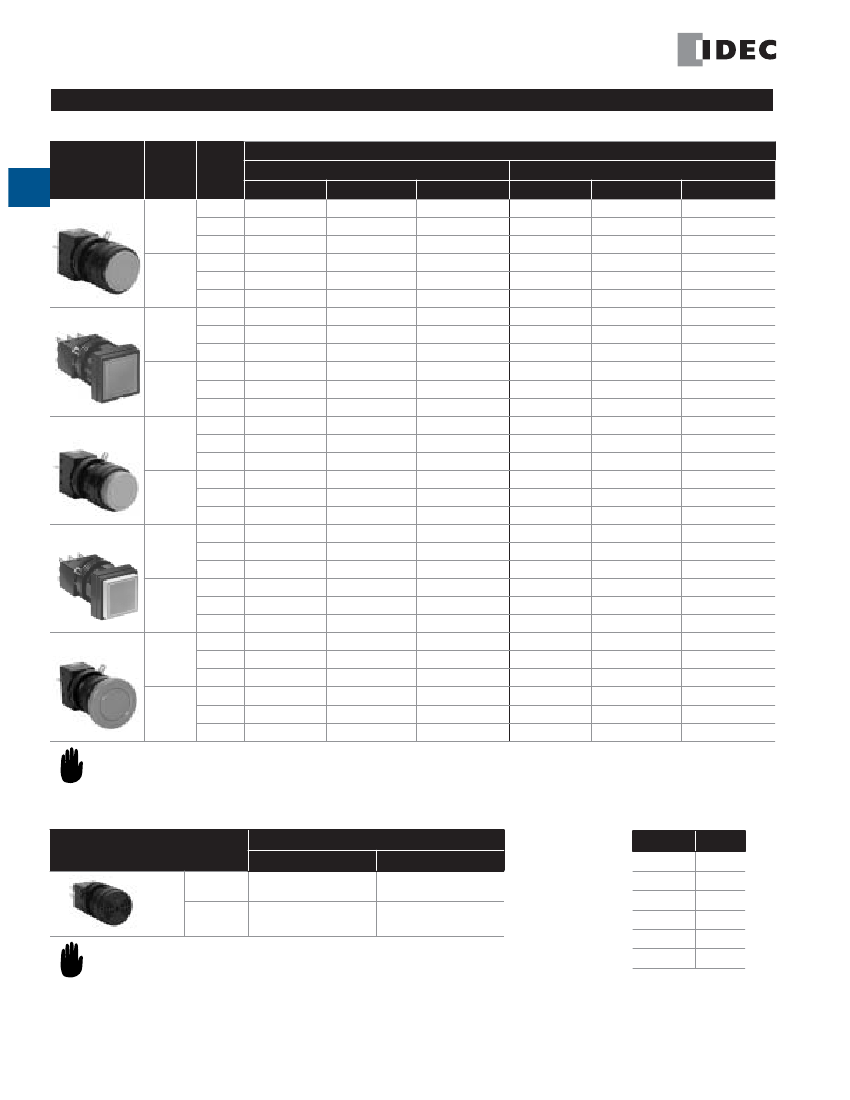

ø22mm - LW Series
Oiltight Switches & Pilot Devices
LW Series — Switches and Pilot Devices: 22mm
A3
Switches & Pilot Devices
LW Series offer flexibility in space-saving package
Key features include:
• PC board mount, solder or screw terminal
• Collective mounting saves space
• Non-reflective lens
• Highly visible marking plate
• Tamper proof construction
• Light touch reduces strain
• Gold or silver contacts
• Removable contacts simplify wiring
and facilitate PCB applications
LW Series switches and pilot lights can be mounted collectively on 1.0"
centers. Combined with pcb terminals and locking lever removable
contacts, this eases manufacture of pre-fab pushbutton arrays (as
pictured). PC Board tracing/soldering of contacts can be done in tandem
with panel cutting/operator installation.
All LW series units mount by means of a locking ring that comes on from
the rear of the panel, as such they can not be removed from outside the
panel and are relatively tamperproof.
Combining the snap action and tactile feel of miniature commercial
pushbuttons with the size and ruggedness of industrial pushbuttons,
LW pushbuttons are a unique solution to many applications.
Choose from standard silver contacts or low-level gold plated contacts.
Terminals available in .110" solder tab, M3 screw, or pcb pins.
UL Recognized
File # E55996
CSA Certified
File No. LR21451
Registration
No. J9551801
A3-108
www.idec.com
USA: (800) 262-IDEC or (408) 747-0550, Canada: (888) 317-IDEC
