LM2904JG datasheet, PDF - EEWORLD Datasheet

LM2904JG: DescriptionOperational Amplifier, 2 Func, CDIP8, LEAD FREE, CERAMIC, DIP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size187KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

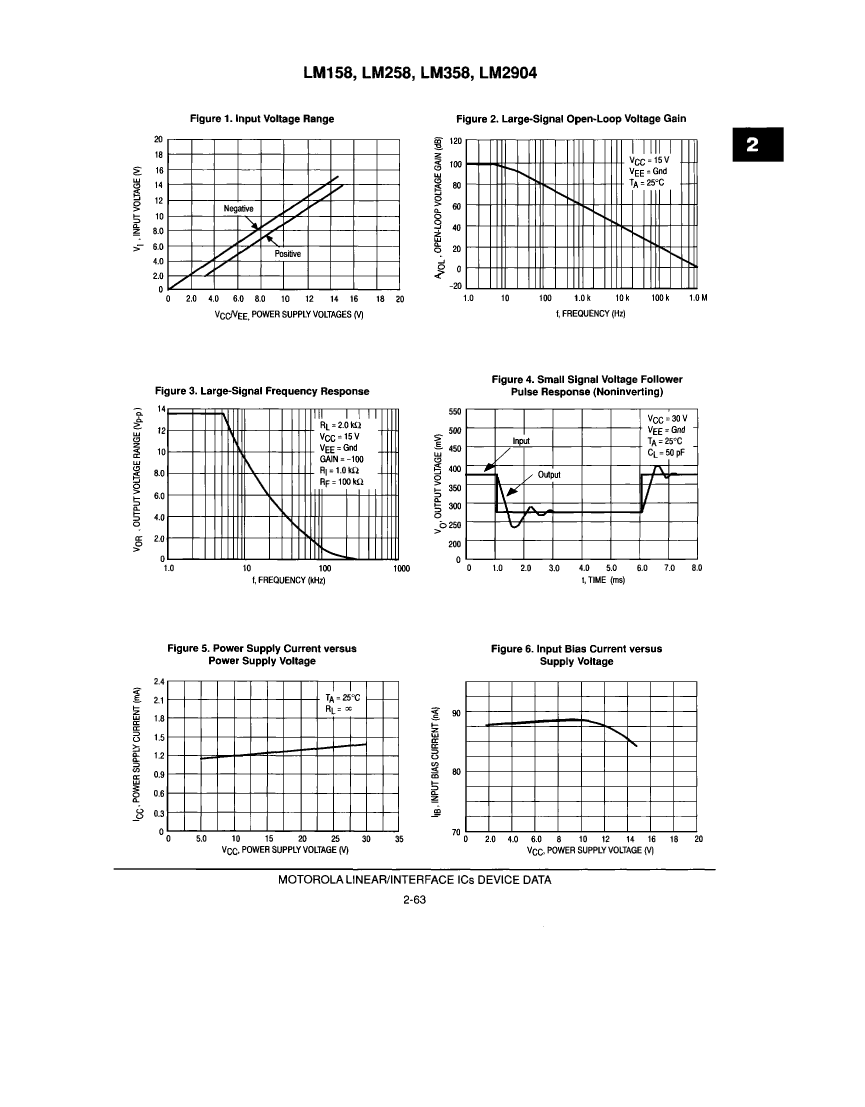

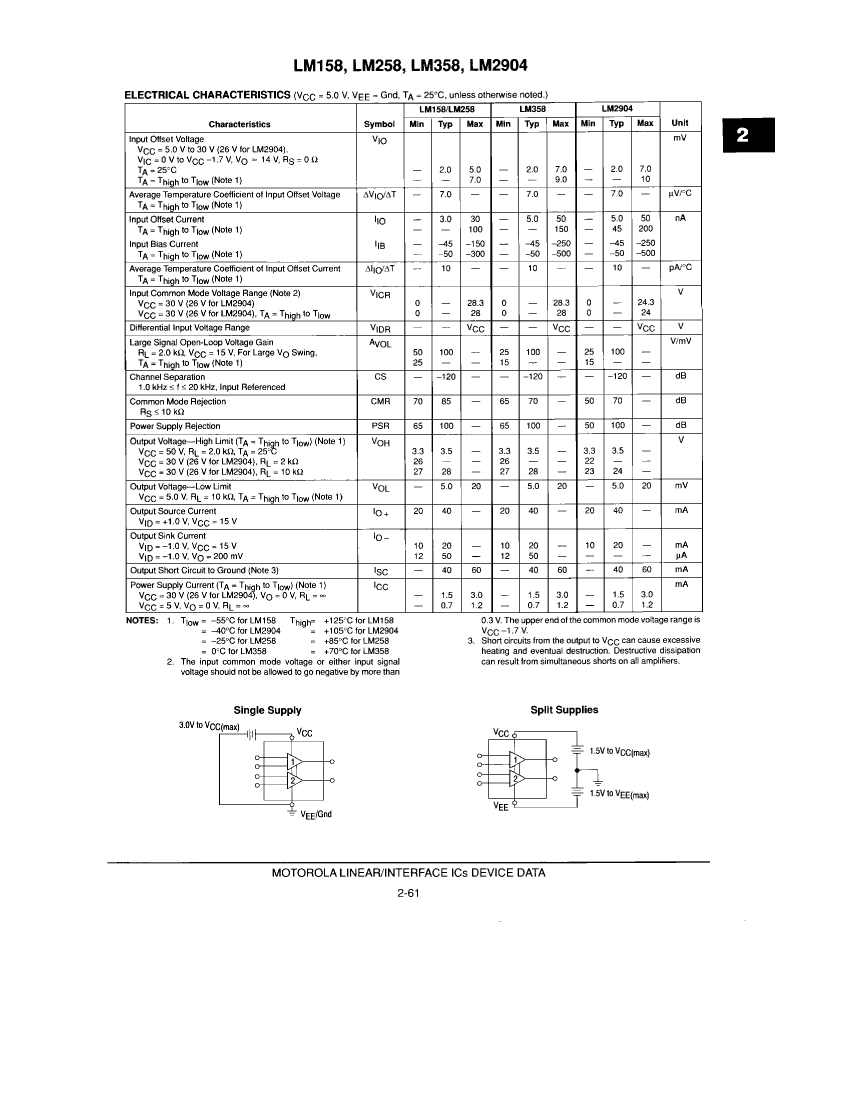

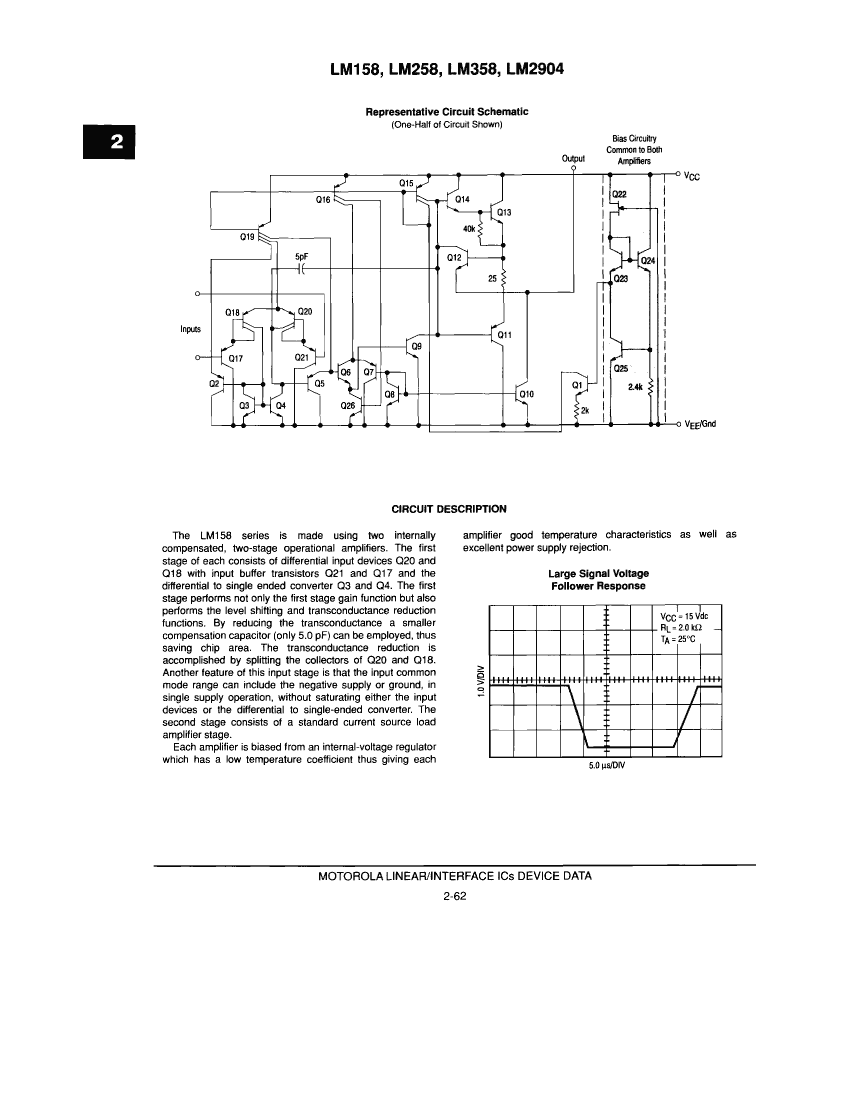

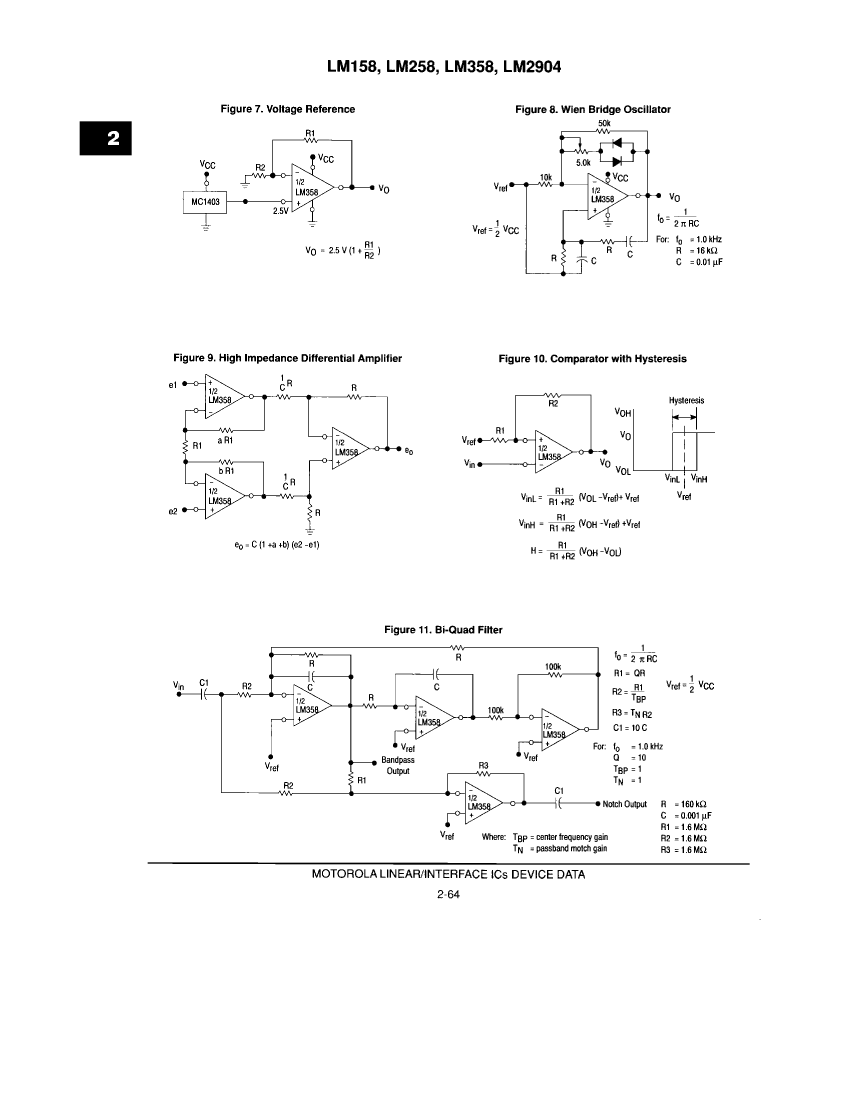

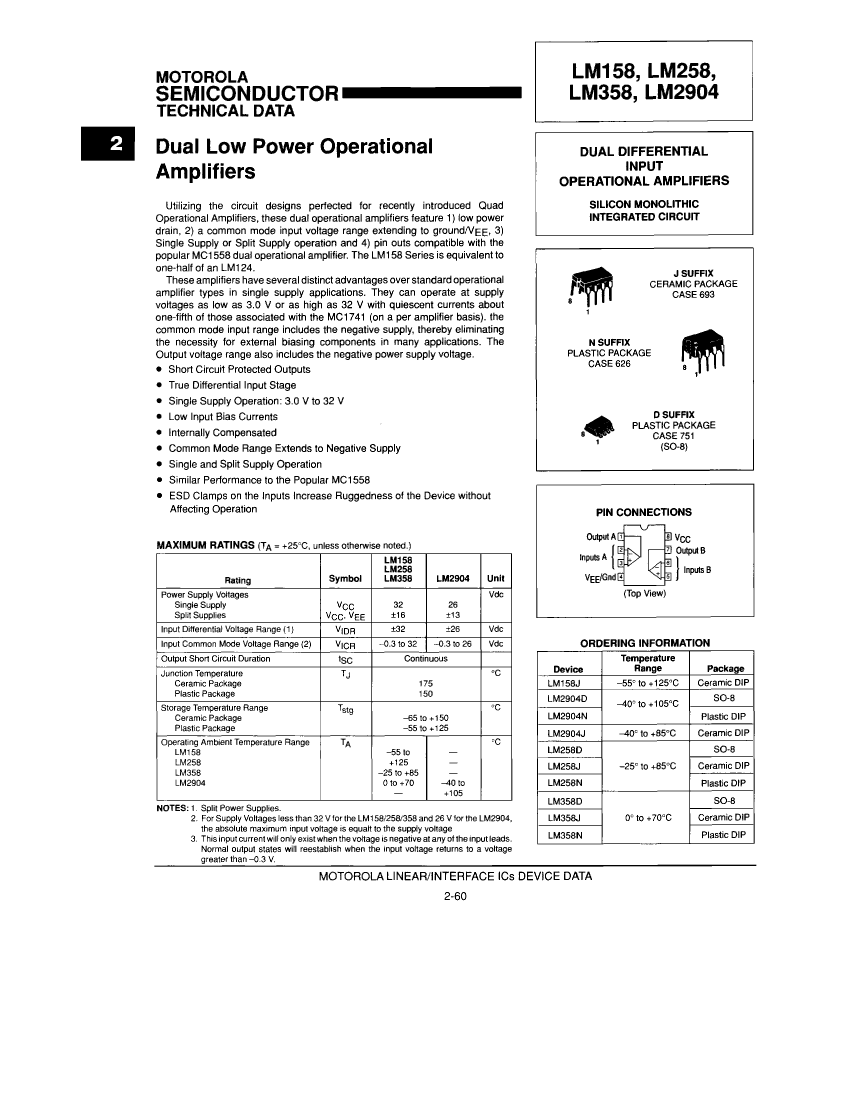

LM2904JG Overview

Operational Amplifier, 2 Func, CDIP8, LEAD FREE, CERAMIC, DIP-8

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Nominal Common Mode Rejection Ratio	70 dB
JESD-30 code	R-GDIP-T8
length	10.415 mm
Negative supply voltage upper limit	-13 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
Supply voltage upper limit	13 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

	LM2904JG	LM158J
Description	Operational Amplifier, 2 Func, CDIP8, LEAD FREE, CERAMIC, DIP-8	DUAL OP-AMP, 5000uV OFFSET-MAX, CDIP8, CERAMIC, DIP-8
Maker	Motorola ( NXP )	Motorola ( NXP )
package instruction	DIP,	DIP, DIP8,.3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Nominal Common Mode Rejection Ratio	70 dB	85 dB
JESD-30 code	R-GDIP-T8	R-GDIP-T8
length	10.415 mm	10.415 mm
Negative supply voltage upper limit	-13 V	-16 V
Number of functions	2	2
Number of terminals	8	8
Maximum operating temperature	85 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm
Supply voltage upper limit	13 V	16 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
Temperature level	INDUSTRIAL	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
