Product Brief
Supermapper™
155/51 Mbits/s SONET/SDH x
DS3/DS2/DS1/E1/DS0
F e at u r e s
n
Overview
— The DS1/E1 test patterns can be transmitted
either unframed or as the payload of a framed
signal.
— Provisionable test patterns include QRSS,
PRBS15, PRBS20, PRBS23, alternating 1 and 0,
all ones, and a 16-bit repeating user pattern.
— Single bit or framing (DS1/E1) errors can be
injected into any test pattern.
n
Signal interfaces:
— One STS-3/STM-1 port (MSP 1 + 1 switch
capability).
— One DS3 interface or STS-1 Interface.
— DS2 Interface available.
— Up to x28/21DS1/E1 interfaces.
— DS0 interfaces include 2, 4, or 8 MHz
serial concentration highway (CHI),
51.84 MHz Network Serial Multiplexed
Interfaces (NSMI) and a 19.44 MHz Parallel
System Bus (PSB)
— Telecom bus interface to mate to other
Supermapper devices.
The SONET/SDH Supermapper device family
integrates the SONET/SDH section, line, path,
and tributary termination functions with
M13 multiplex function and the primary rate
framing function. The devices interface to an
STS-1/STM-0 electrical signal or to an STS-3/
STM-1 to allow for modular growth in terminal
or add/drop applications.
The Supermapper family of devices provides
a versatile interface for all STS-3/STM-1 and
STS-1 termination applications for point-to-
point scenarios and ring applications. Used
in tributary shelf applications, these chips
enable up to 28 DS1/J1 or 21 E1 interfaces to
provide an array of possible mappings to/from
SONET/SDH.
A single Supermapper is capable of processing
the aggregate bandwidth of one STS-1 or DS3.
By connecting to two other Supermapper
devices via the telecom bus interface, it is
capable of terminating a full STS-3/STM-1
signal (i.e., 84/84/63 T1/JT1/E1).
Virtual tributary mapping:
— Maps DS1/J1/E1 into VT/TU structures,
DS1 into VT1.5/TU-11/TU-12, J1 into
VT1.5/TU-11/TU-12, and E1 into VT2/TU-12.
— Supports asynchronous, byte synchronous,
and bit synchronous mappings.
— Full monitoring/generation of low-order path
overhead
n
SONET/SDH functionality:
— Multiplexes/demultiplexes any one of
the following:
• Three STS-1 signals to/from a SONET
STS-3 signal.
• Three STM-0 signals to/from an STM-1
signal.
— Provides STS-3/STM-1/STS-1 pointer
interpretation and detection and full
SONET/SDH alarm reporting.
• Three VC-3 signals to/from an SDH
STM-1 (3xAU-3) signal.
• Three VC-3 signals to/from an SDH STM-1
(AU-4) signal via a TUG-3 construction.
— Provides separate protection input for
support of 1:1 and 1 + 1.
n
M13 MUX:
— A configurable multiplexer/demultiplexer for
28 DS1 signals, 21 E1 signals, or seven DS2
signals to/from a DS3 signal.
— Operates in either M23 or C-bit parity mode.
— Full DS3 level alarm monitoring and generation.
DS1/J1/E1 framers:
— 28/21 total DS1/J1/E1 channels. DS1/J1
framing modes include ESF, D4, SF (Ft only),
and J-ESF.
— E1 framing modes include, G.704 basic and
CRC-4 multiframe consistent with G.706.
— Support for DS1 and E1 signaling as well as
FDL and HDLC.
— Full alarm reporting and performance
monitoring per AT&T®, ANSI®, ITU-T™, and ETSI
standards.
n
n
Synchronous payload envelope mapping:
— Maps/demaps TUG-2 data either to/
from an AU-3/STS-1 or a TUG-3.
— Handles channelized/unchannelized DS3
at 44.736 Mbits/s rate from an external I/O.
— DS3 loopback option and limited DS3
PMON.
— Path overhead byte B3 (BIP error)
generation/detection.
n
Highly flexible interconnect (Cross connect) for
up to 28 DS1 or 21 E1 signal to/from the framer,
external I/O, M13, and VT mapper.
DS1/E1 digital jitter attenuators (DJA) with
programmable PLL bandwidth, damping factor,
and sampling rates; configurable to meet jitter
and MTIE requirements.
20-bit address/16-bit data bus microprocessor
interface supporting synchronous and asynchro-
nous modes of operation from 16 MHz to 60 MHz.
n
n
Test pattern generator/monitor:
— A configurable test-pattern generator,
DS1, E1, DS2, and DS3 formats.
n

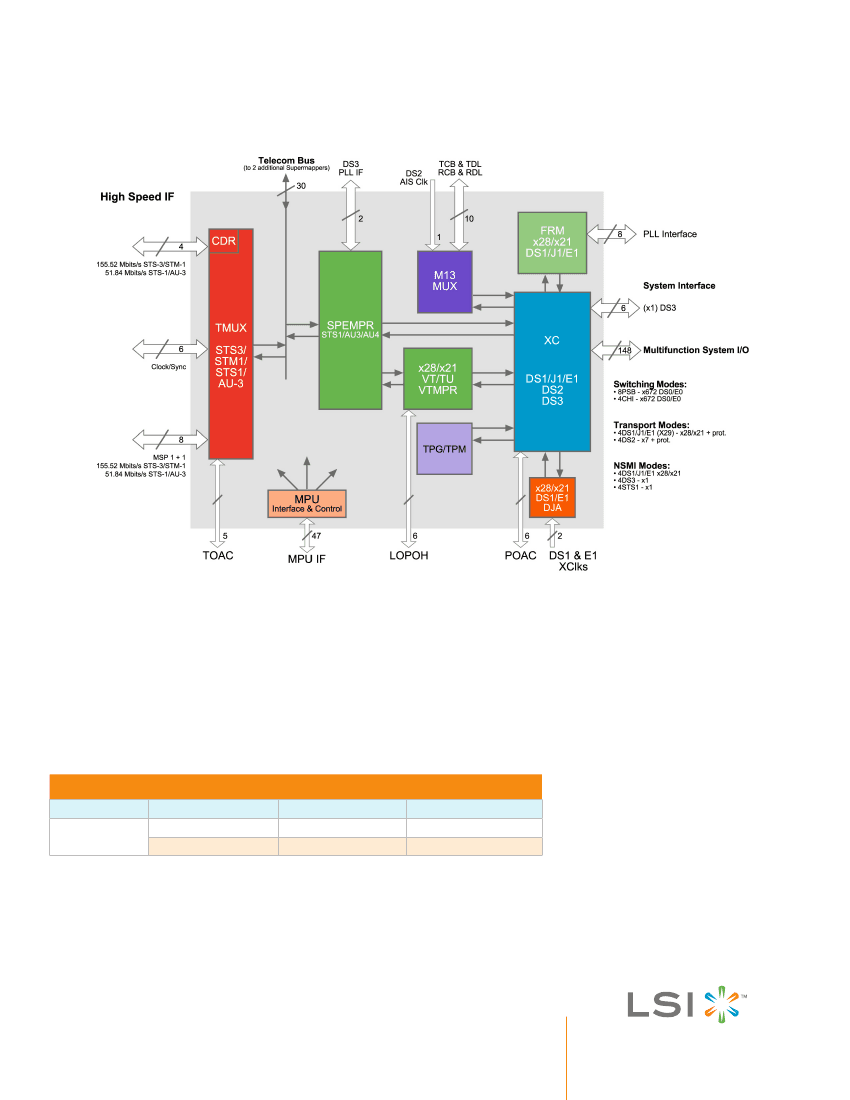

Supermapper Block Diagram
Applications
Point-to-Point, SONET/SDH ring, TDM and PDH aggregation/deaggregation, and switching applications.
Ordering Information
Below is the ordering information for one product in the family. Please refer to the Supermapper
Family Selection Guide
O r d e r i n g i n F O r m at i O n :
Device
Supermapper V3.2
Part Number
TMXF28155BAL-C2-DB
L-TMXF28155BAL-C2-DB
Comcode
700067626
711011774
Package
456-pin PBGA
456-pin PBGA
Note: Part numbers beginning with L- are RoHS compliant.
For more information and sales office locations, please visit the LSI web sites at:
lsi.com lsi.com/contacts
LSI Corporation and, LSI logo design The Communications Company, are trademarks or registered trademarks of LSI Corporation.
All other brand and product names may be trademarks of their respective companies. LSI Corporation reserves the right to make changes to any
products and services herein at any time without notice. LSI does not assume any responsibility or liability arising out of the application or use
of any product or service described herein, except as expressly agreed to in writing by LSI; nor does the purchase, lease, or use of a product or
service from LSI convey a license under any patent rights, copyrights, trademark rights, or any other of the intellectual property rights of LSI or
of third parties.
Copyright ©2006 by LSI Corporation. All rights reserved.
October 4, 2006
PB06-045MPIC
