ZUP20-10 Overview

Circular Connector; Body Material:Aluminum; Series:PT00; No. of Contacts:5; Connector Shell Size:10; Connecting Termination:Solder; Circular Shell Style:Wall Mount Receptacle; Circular Contact Gender:Socket; Insert Arrangement:10-5

Preview

Download Datasheet

View All

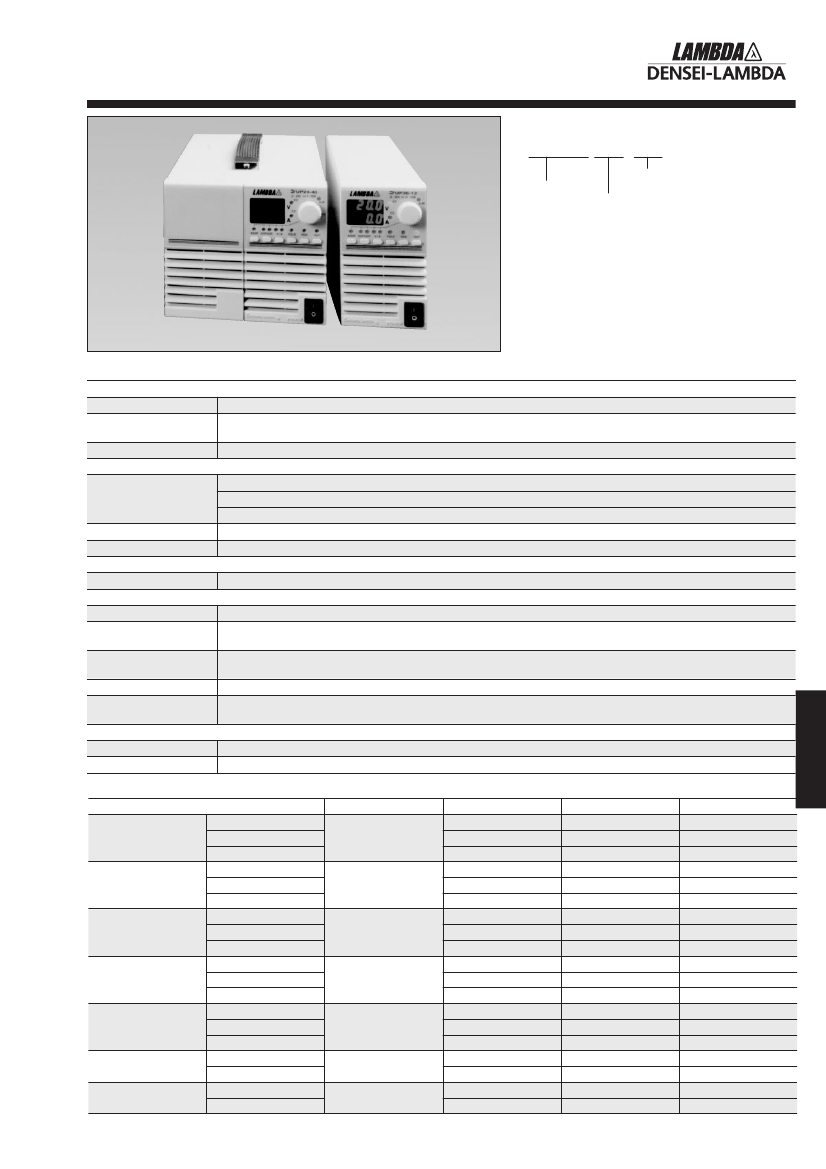

ZUP

-SERIES

Zero-up CV/CC 200 ~ 800W

Model name

ZUP 10-20

Series

Output

voltage

(0 ~ 10V)

Output

current

(0 ~ 20A)

Features

Programmable power supply

Constant voltage/Constant current

Built-in RS232 & RS485 interface

GP-IB interface: Option

External voltage or resistor programming

Last setting memory with safe restart or automatic restart

modes

Input current harmonics: EN61000-3-2 Class A

(Low Voltage Directive)

Specifications

Input

1. Input voltage range

2. Input current

harmonics

3. Power factor (typ)

Output

1. Constant voltage

85 ~ 265VAC (47 ~ 63Hz) universal input voltage

Complies with EN61000-3-2 Class A.

0.99 at 100VAC, 100% load

Load Regulation: 0.005% +2mV, Line Regulation: 0.005% +1mV

RMS ripple: 5mV (5Hz ~ 1MHz bandwidth)

Ripple :50mV(pk to pk) (20MHz bandwidth)

Load Regulation: 0.01% +5mA, Line Regulation: 0.01% +2mA

Over voltage, Over temperature, Over current

0 ~ +50°C: 100% load

By TTL signal or Dry contact

By voltage (0 ~ 4V) or by Resistance (0 ~ 4kΩ)

Maximum 0.5V drop on each load wires

RS232 and RS485 built-in, IEEE488 option

2. Constant current

3. Output protections

Environment

1. Operating temperature

External functions

1. Output ON/OFF

2. Output voltage

programming

3. Output current

programming

4. Remote sensing

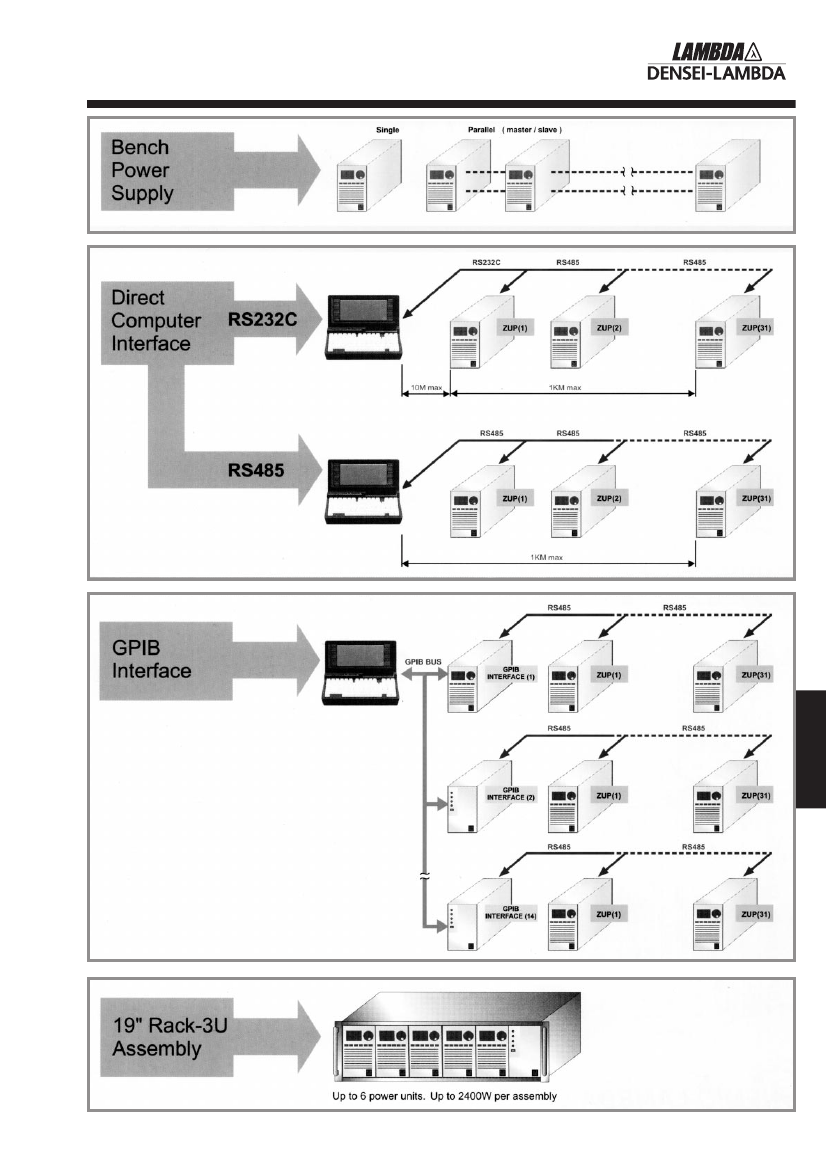

5. Communication

interface

Approval

1. Safety standard

2. EMC standard

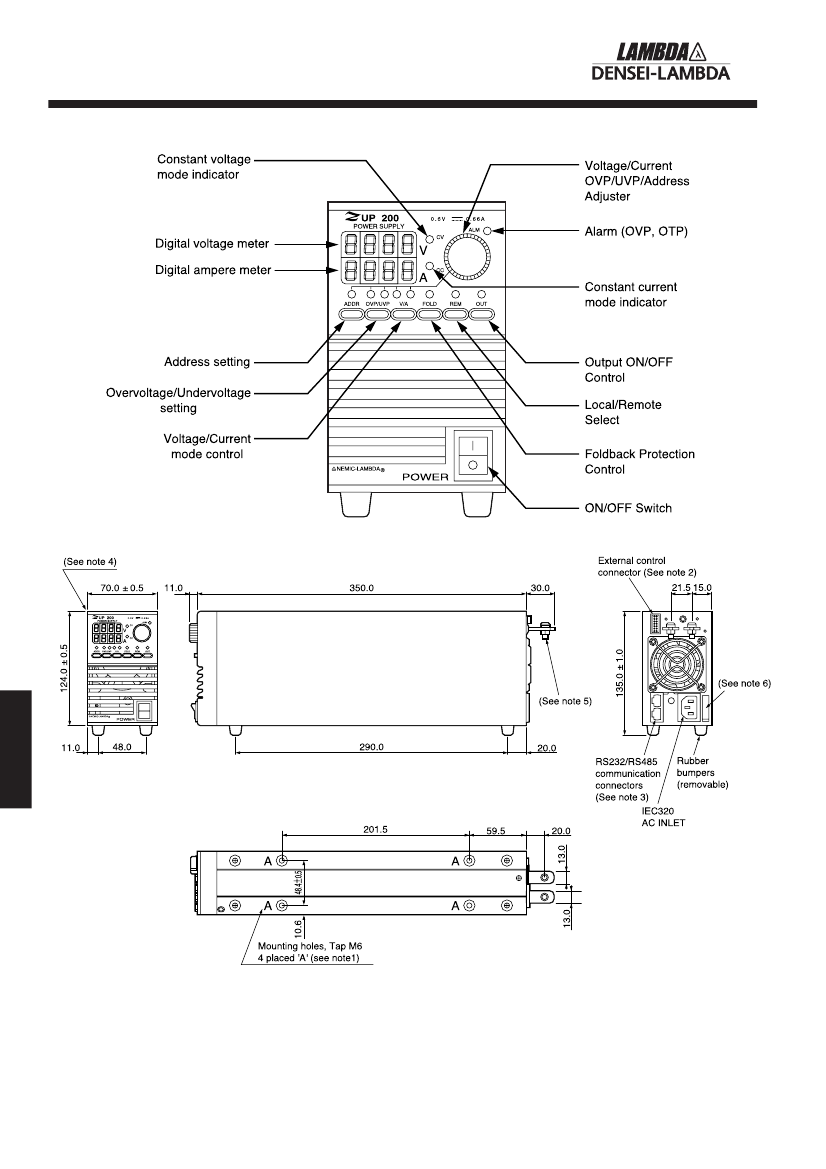

System Power Supply

UL3111-1, EN61010-1

EN61326-1, IEC61326-1 FCC part 15 class A

Product lineup

Model name

ZUP6-33

ZUP6

ZUP6-66

ZUP6-132 (*)

ZUP10-20

ZUP10

ZUP10-40

ZUP10-80 (*)

ZUP20-10

ZUP20

ZUP20-20

ZUP20-40 (*)

ZUP36-6

ZUP36

ZUP36-12

ZUP36-24 (*)

ZUP60-3.5

ZUP60

ZUP60-7

ZUP60-14 (*)

ZUP80

ZUP120

ZUP80-2.5

ZUP80-5

ZUP120-1.8

ZUP120-3.6

0 ~ 80VDC

0 ~ 120VDC

0 ~ 60VDC

0 ~ 36VDC

0 ~ 20VDC

0 ~ 10VDC

0 ~ 6VDC

Output voltage

Output current

0 ~ 33A

0 ~ 66A

0 ~ 132A

0 ~ 20A

0 ~ 40A

0 ~ 80A

0 ~ 10A

0 ~ 20A

0 ~ 40A

0 ~ 6A

0 ~ 12A

0 ~ 24A

0 ~ 3.5A

0 ~ 7A

0 ~ 14A

0 ~ 2.5A

0 ~ 5A

0 ~ 1.8A

0 ~ 3.6A

Output power

198W

396W

792W

200W

400W

800W

200W

400W

800W

216W

432W

864W

210W

420W

840W

200W

400W

216W

432W

Weight

2.9kg

3.2kg

5.8kg

2.9kg

3.2kg

5.8kg

2.9kg

3.2kg

5.8kg

2.9kg

3.2kg

5.8kg

2.9kg

3.2kg

5.8kg

2.9kg

3.2kg

2.9kg

3.2kg

193

(*) Contact us about delivery before ordering.
