BT148W600RT/R datasheet, PDF - EEWORLD Datasheet

BT148W600RT/R: DescriptionSilicon Controlled Rectifier, 600mA I(T), 600V V(DRM); CategoryAnalog mixed-signal IC Trigger device; File Size287KB，6 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

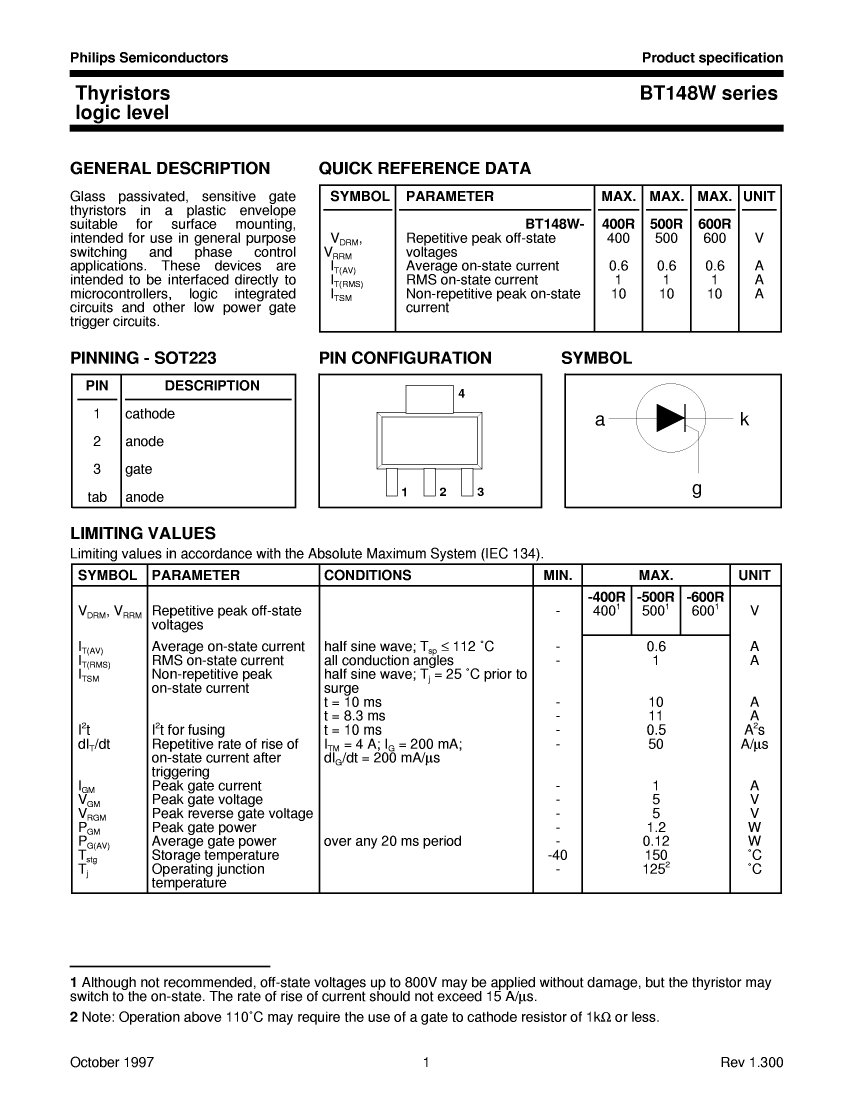

BT148W600RT/R Overview

Silicon Controlled Rectifier, 600mA I(T), 600V V(DRM)

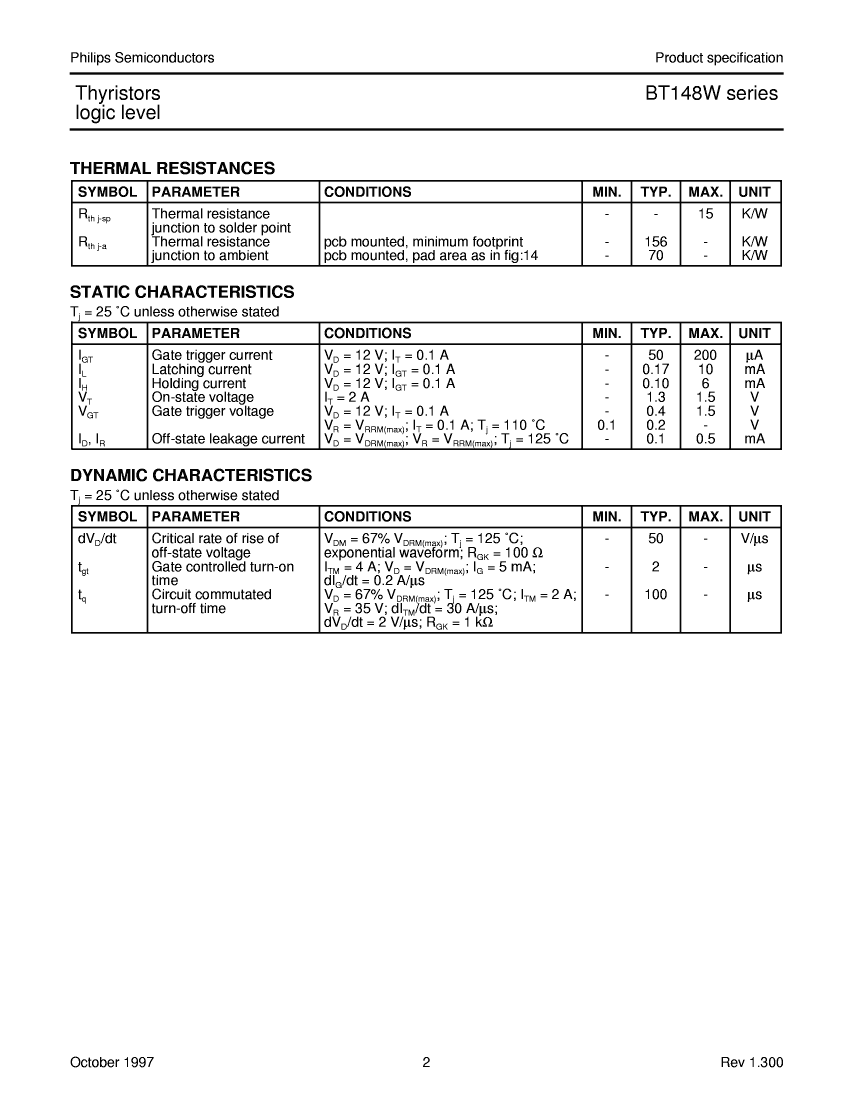

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown

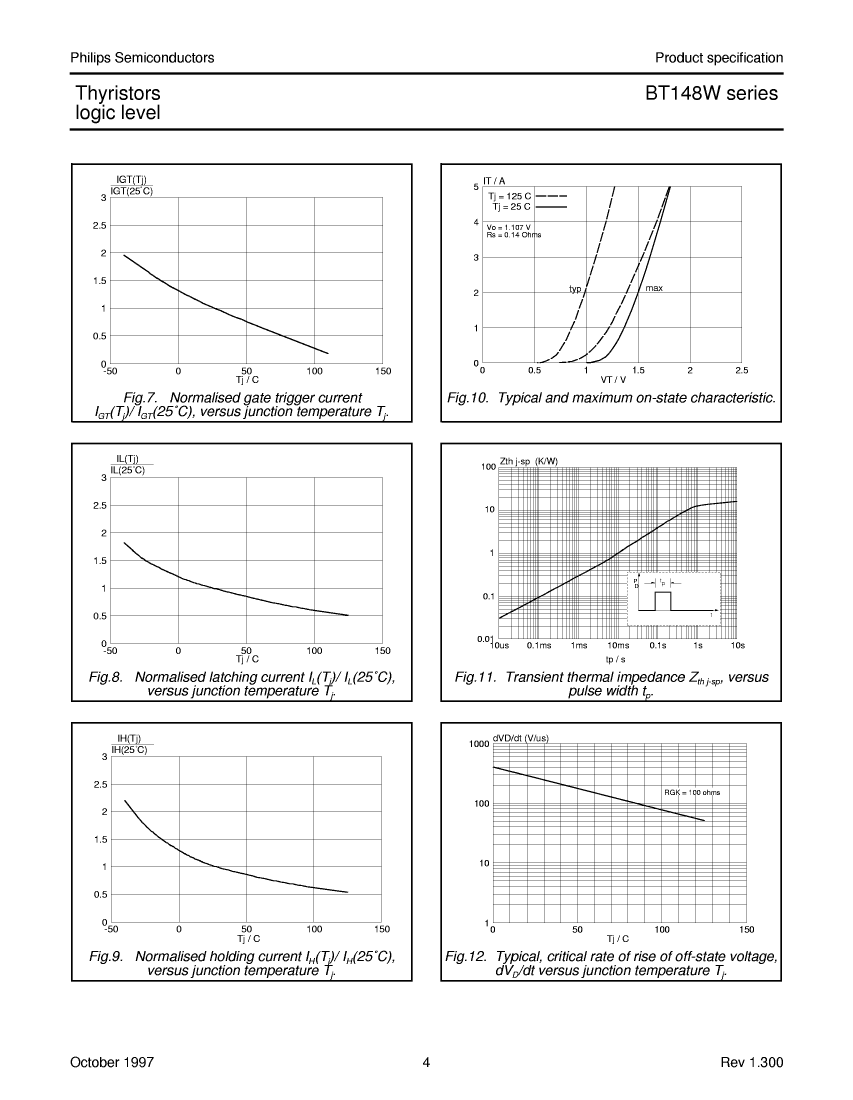

Critical rise rate of minimum off-state voltage	5 V/us
Maximum DC gate trigger current	0.2 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	6 mA
JESD-609 code	e3
Maximum leakage current	0.5 mA

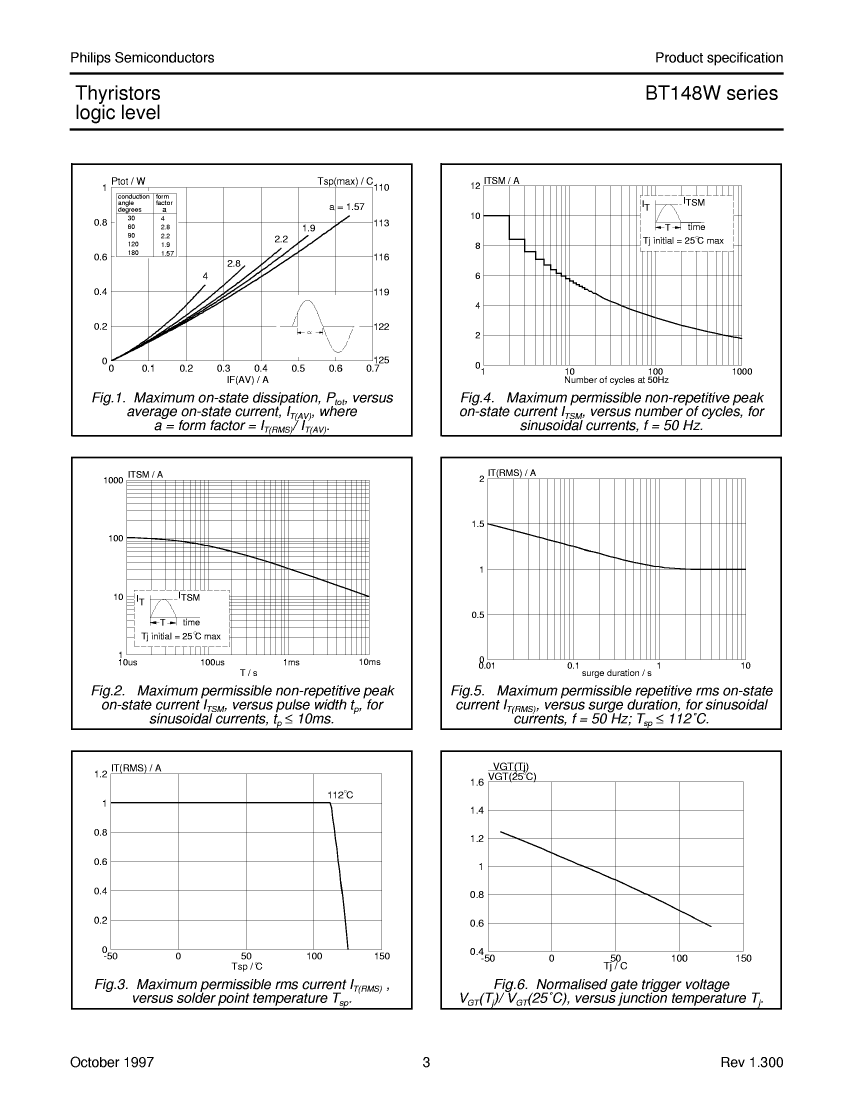

On-state non-repetitive peak current	10 A
Maximum on-state voltage	1.8 V
Maximum on-state current	600 A
Maximum operating temperature	110 °C
Off-state repetitive peak voltage	600 V

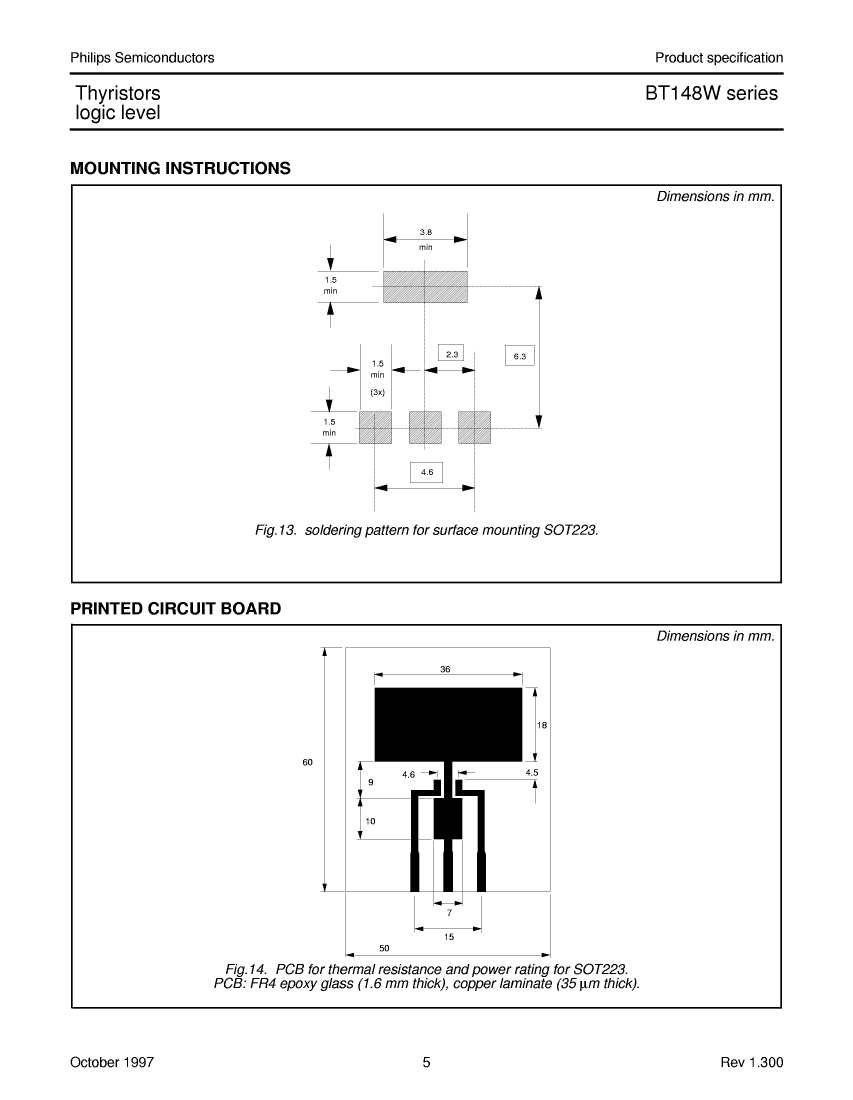

surface mount	YES
Terminal surface	Matte Tin (Sn)
Trigger device type	SCR

	BT148W600RT/R	BT148W500RT/R	BT148W400RT/R
Description	Silicon Controlled Rectifier, 600mA I(T), 600V V(DRM)	Silicon Controlled Rectifier, 600mA I(T), 500V V(DRM)	Silicon Controlled Rectifier, 600mA I(T), 400V V(DRM)
Is it Rohs certified?	conform to	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown	unknown	unknown
Critical rise rate of minimum off-state voltage	5 V/us	5 V/us	5 V/us
Maximum DC gate trigger current	0.2 mA	0.2 mA	0.2 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V
Maximum holding current	6 mA	6 mA	6 mA
JESD-609 code	e3	e0	e0
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA
On-state non-repetitive peak current	10 A	10 A	10 A
Maximum on-state voltage	1.8 V	1.8 V	1.8 V
Maximum on-state current	600 A	600 A	600 A
Maximum operating temperature	110 °C	110 °C	110 °C
Off-state repetitive peak voltage	600 V	500 V	400 V
surface mount	YES	YES	YES
Terminal surface	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	SCR	SCR	SCR
