BCR16HM8 datasheet, PDF - EEWORLD Datasheet

BCR16HM8: DescriptionTRIAC; CategoryAnalog mixed-signal IC Trigger device; File Size244KB，5 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

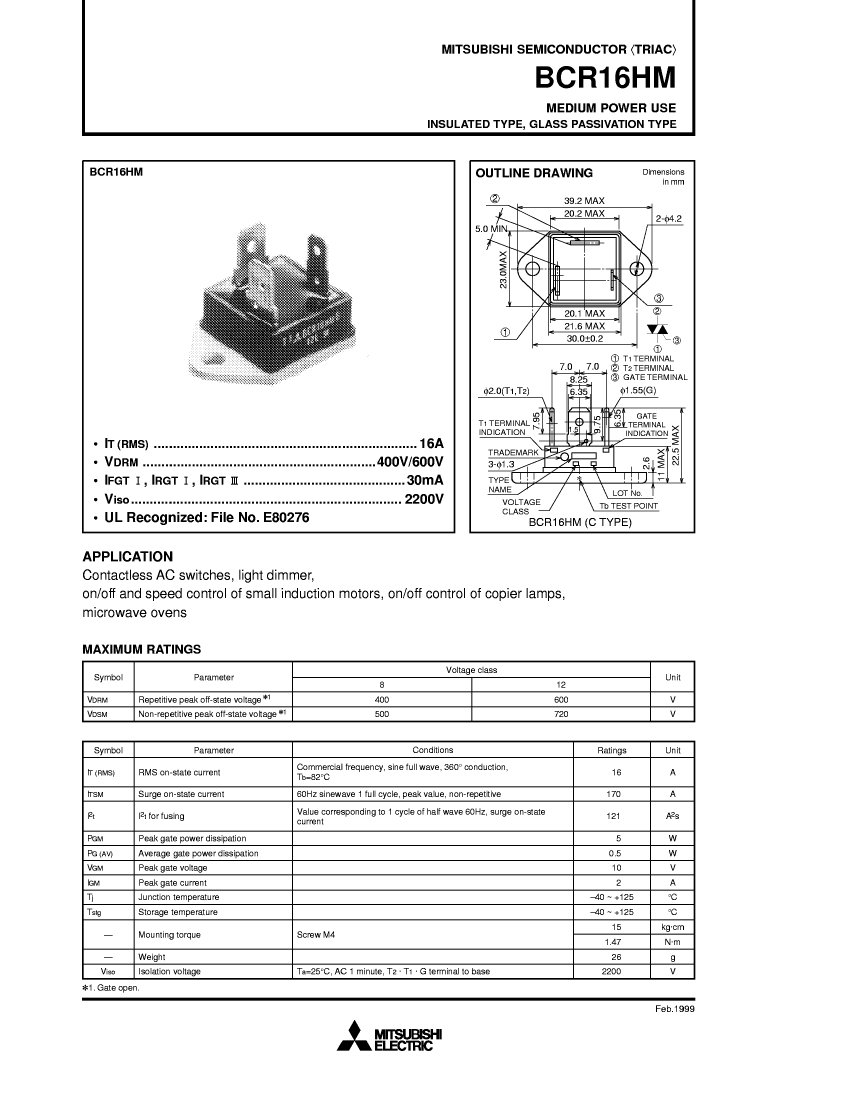

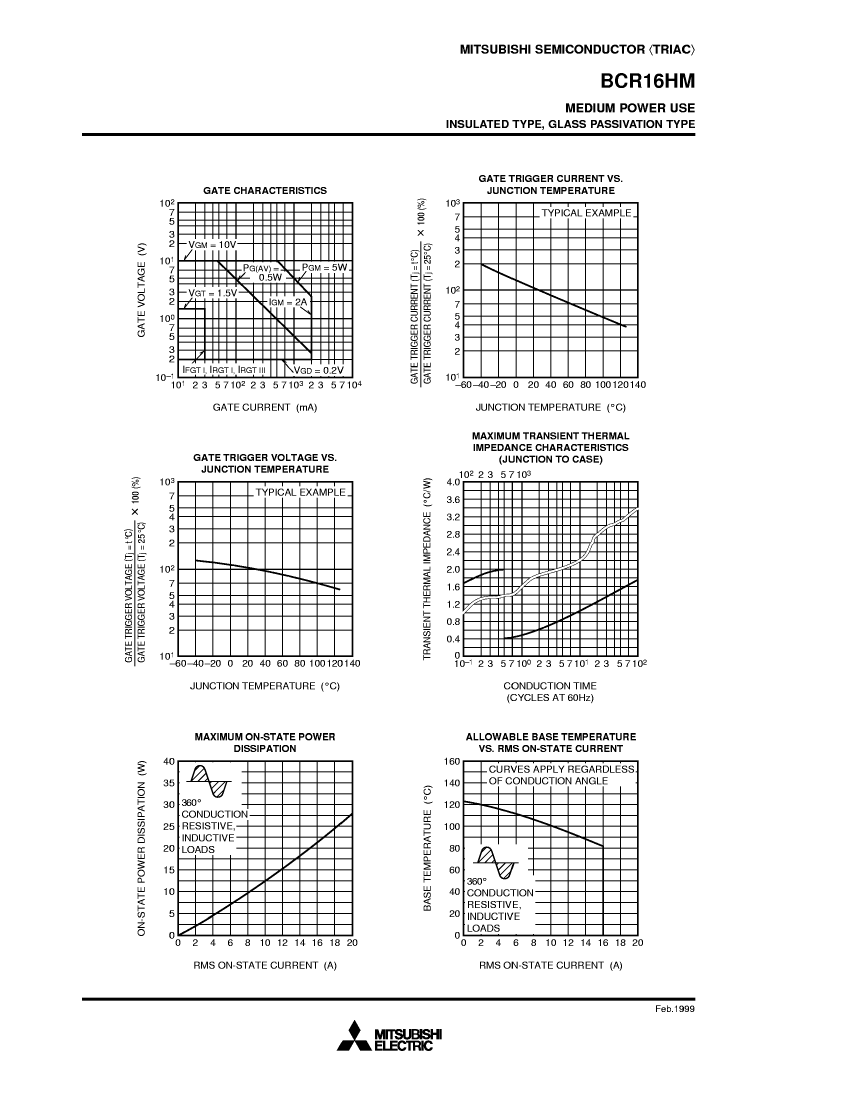

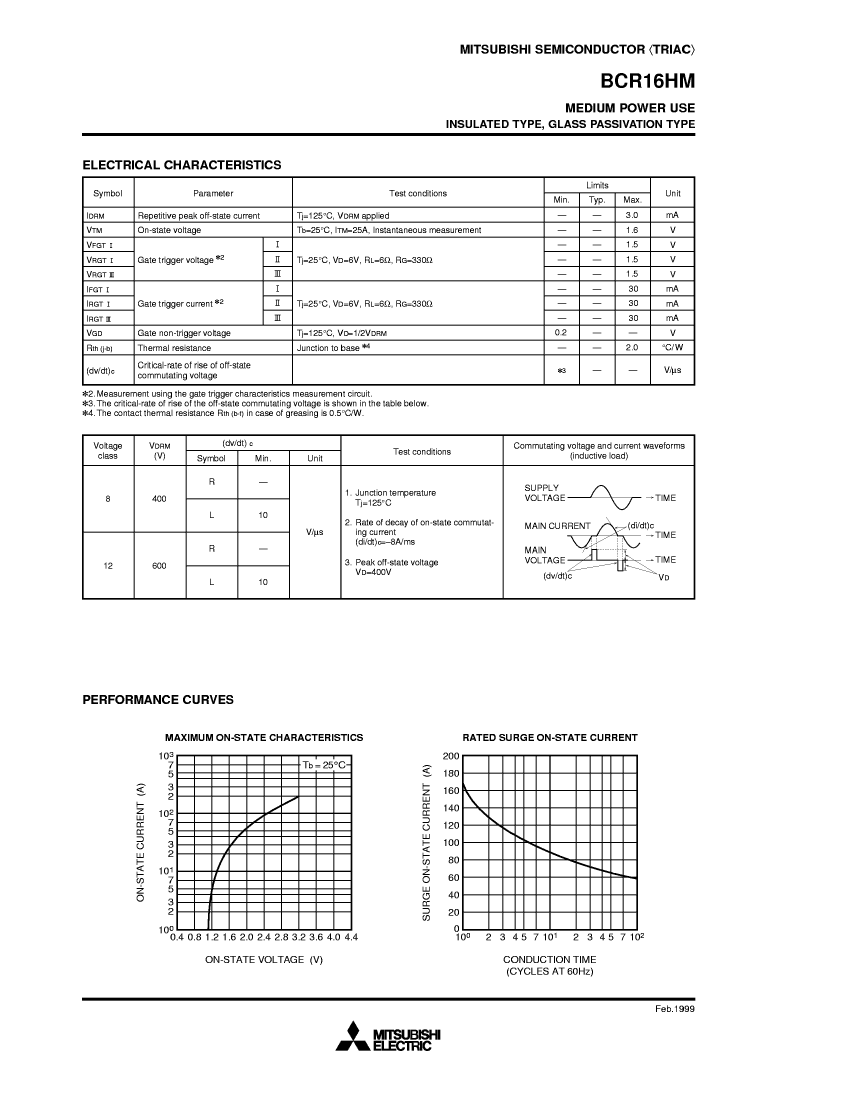

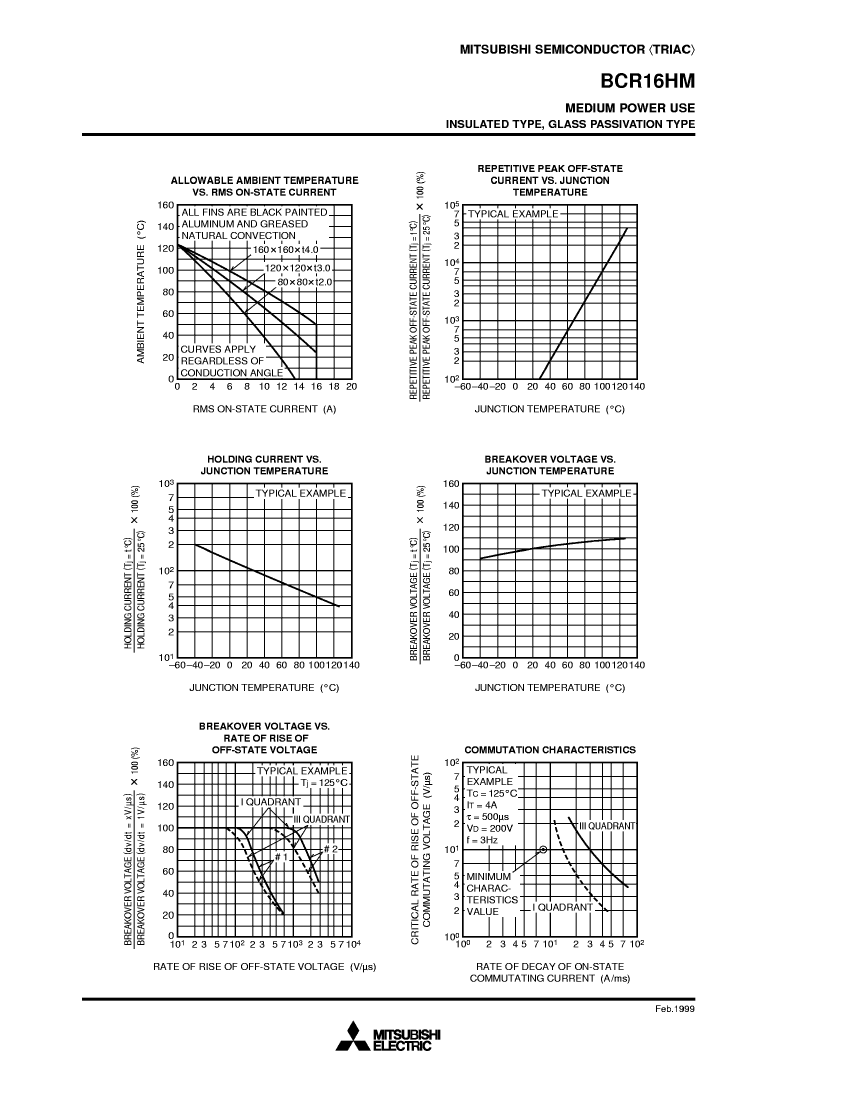

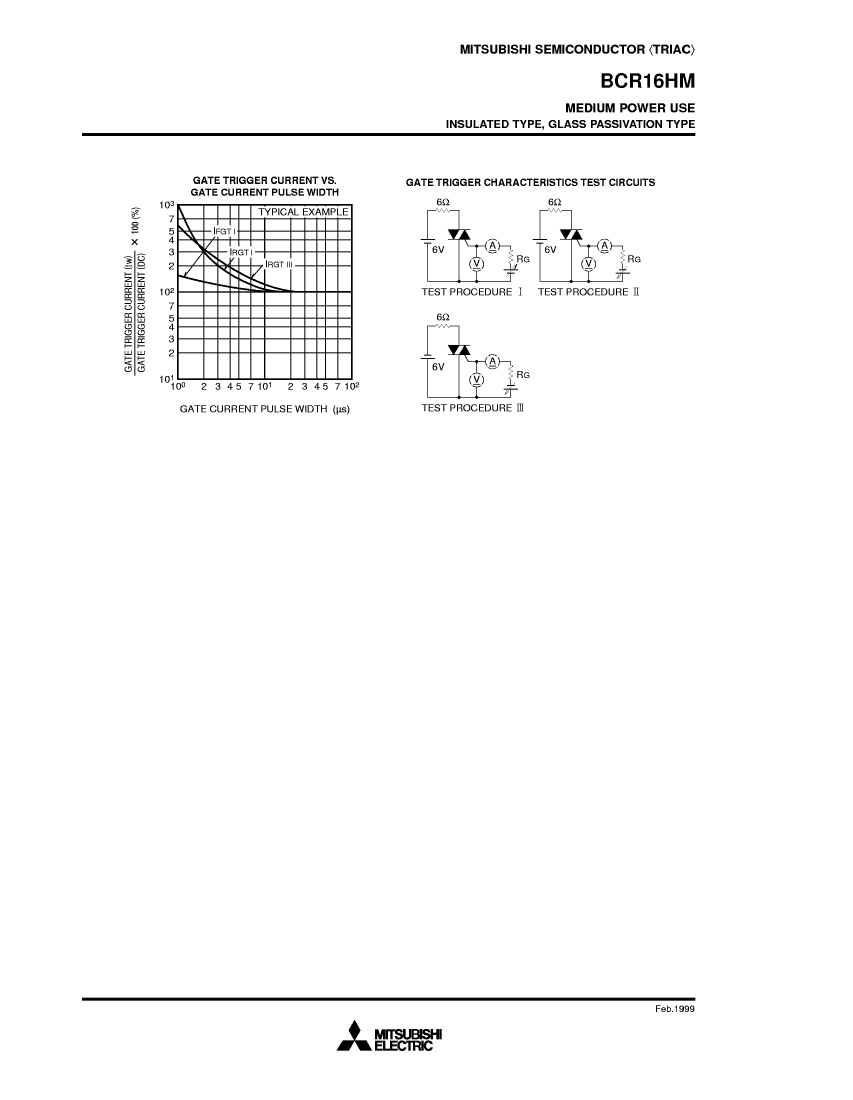

BCR16HM8 Overview

TRIAC

Parameter Name	Attribute value
Maker	Mitsubishi
package instruction	,
Reach Compliance Code	unknown
Maximum DC gate trigger current	30 mA
Maximum DC gate trigger voltage	1.5 V
Quick connection description	G-MT1-MT2
Description of screw terminals	0
Maximum leakage current	3 mA
On-state non-repetitive peak current	170 A
Number of components	1
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Trigger device type	TRIAC

	BCR16HM8	BCR16HM8R	BCR16HM12R	BCR16HM12
Description	TRIAC	TRIAC	TRIAC	TRIAC
Maker	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum DC gate trigger current	30 mA	30 mA	30 mA	30 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V
Quick connection description	G-MT1-MT2	G-MT1-MT2	G-MT1-MT2	G-MT1-MT2
Maximum leakage current	3 mA	3 mA	3 mA	3 mA
On-state non-repetitive peak current	170 A	170 A	170 A	170 A
Number of components	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-45 °C	-40 °C	-40 °C
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC
