BTW43-1200G datasheet, PDF - EEWORLD Datasheet

BTW43-1200G: DescriptionTRIAC, 1200V V(DRM), 12A I(T)RMS; CategoryAnalog mixed-signal IC Trigger device; File Size423KB，7 Pages; ManufacturerNorth American Philips Discrete Products Div

Download Datasheet Parametric Compare View All

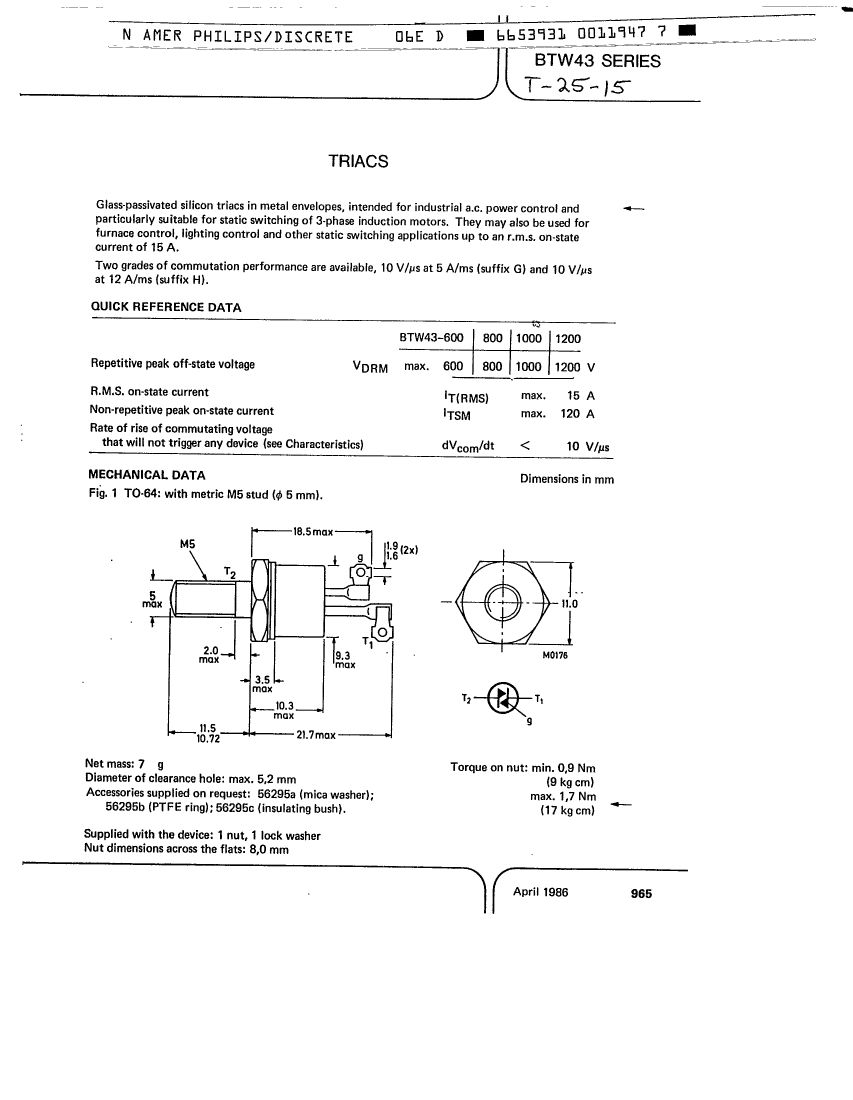

BTW43-1200G Overview

TRIAC, 1200V V(DRM), 12A I(T)RMS

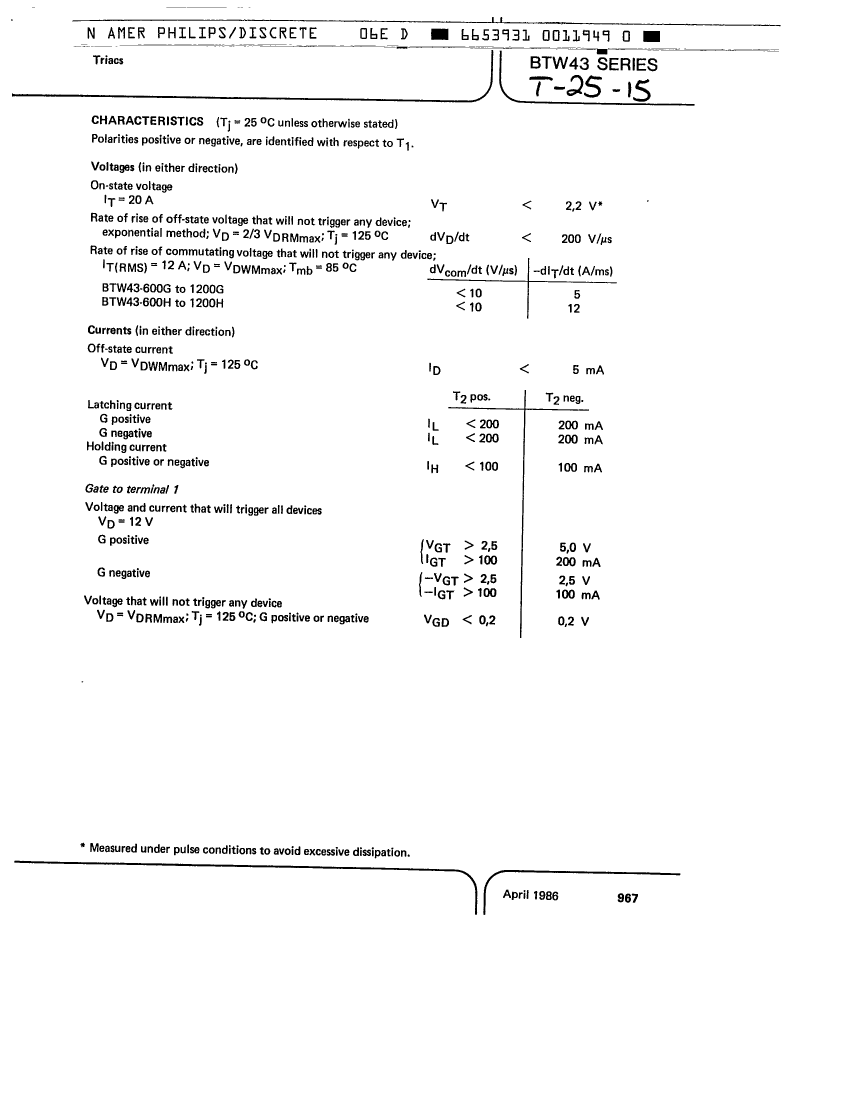

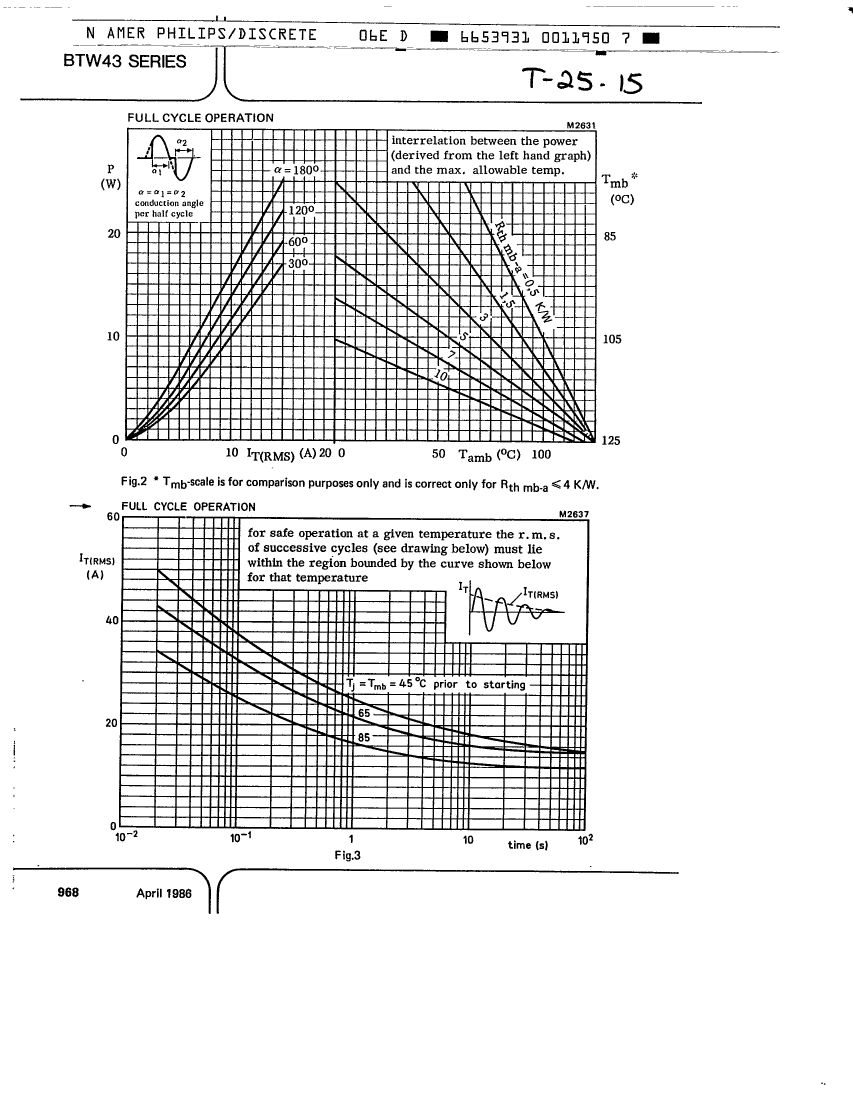

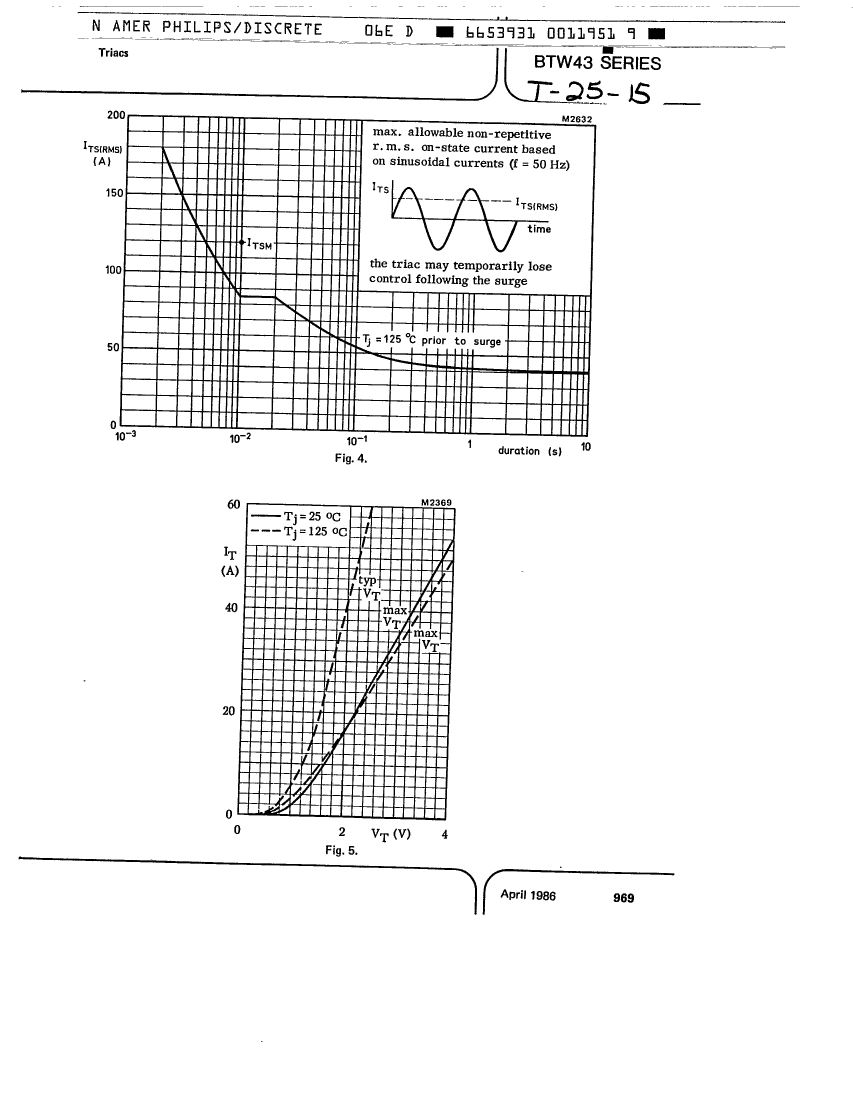

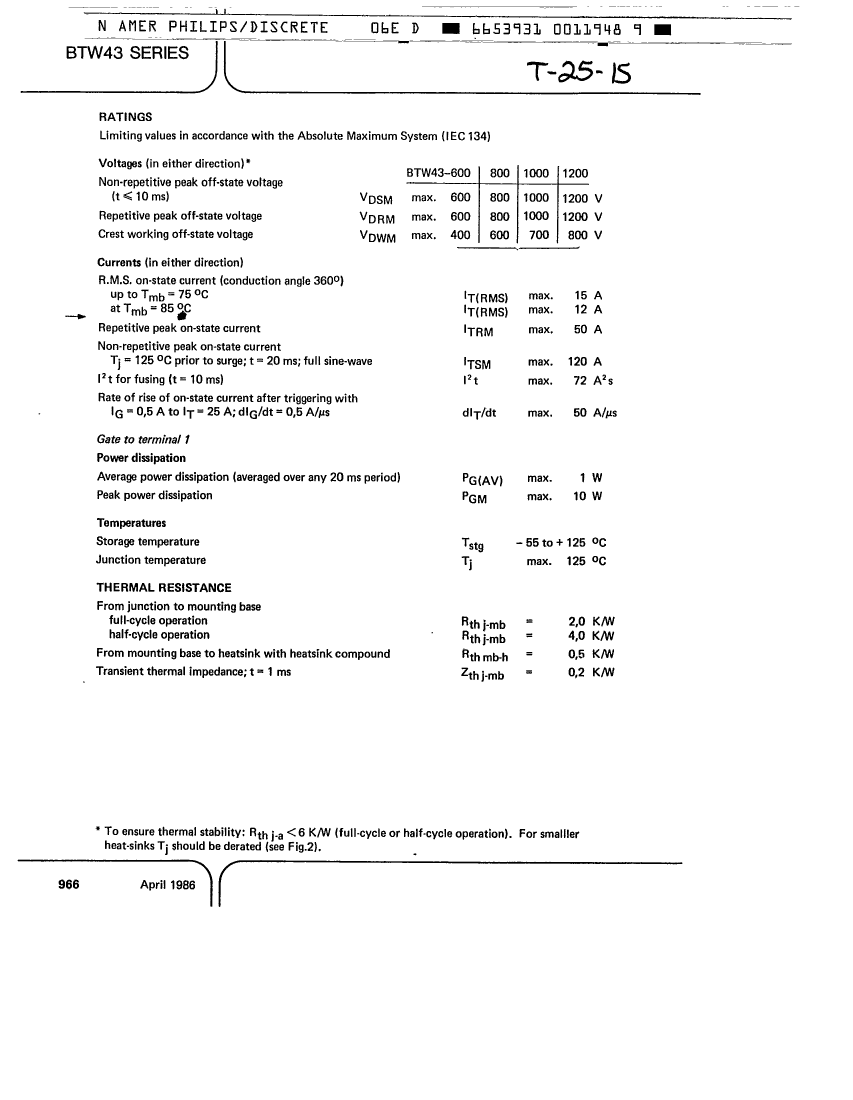

Parameter Name	Attribute value
Maker	North American Philips Discrete Products Div
package instruction	,
Reach Compliance Code	unknown
Critical rise rate of commutation voltage - minimum value	10 V/us
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	100 mA
Maximum DC gate trigger voltage	5 V
Maximum holding current	100 mA
Maximum leakage current	5 mA
Maximum on-state voltage	2.2 V
Maximum operating temperature	125 °C
Maximum rms on-state current	12 A
Off-state repetitive peak voltage	1200 V
surface mount	NO
Trigger device type	TRIAC

	BTW43-1200G	BTW43-1200H
Description	TRIAC, 1200V V(DRM), 12A I(T)RMS	TRIAC, 1200V V(DRM), 12A I(T)RMS
Maker	North American Philips Discrete Products Div	North American Philips Discrete Products Div
Reach Compliance Code	unknown	unknown
Critical rise rate of commutation voltage - minimum value	10 V/us	10 V/us
Critical rise rate of minimum off-state voltage	200 V/us	200 V/us
Maximum DC gate trigger current	100 mA	100 mA
Maximum DC gate trigger voltage	5 V	2.5 V
Maximum holding current	100 mA	100 mA
Maximum leakage current	5 mA	5 mA
Maximum on-state voltage	2.2 V	2.2 V
Maximum operating temperature	125 °C	125 °C
Maximum rms on-state current	12 A	12 A
Off-state repetitive peak voltage	1200 V	1200 V
surface mount	NO	NO
Trigger device type	TRIAC	TRIAC
