BRY55-30-18 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> BRY55-30-18

BRY55-30-18: DescriptionSilicon Controlled Rectifier, 0.8A I(T)RMS, 30V V(DRM), 30V V(RRM), 1 Element, TO-226AA; CategoryAnalog mixed-signal IC Trigger device; File Size68KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BRY55-30-18 Overview

Silicon Controlled Rectifier, 0.8A I(T)RMS, 30V V(DRM), 30V V(RRM), 1 Element, TO-226AA

BRY55-30-18 Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	CYLINDRICAL, O-PBCY-W3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SENSITIVE GATE
Configuration	SINGLE
Maximum DC gate trigger current	0.2 mA
Maximum DC gate trigger voltage	0.8 V
Maximum holding current	5 mA
JEDEC-95 code	TO-226AA
JESD-30 code	O-PBCY-W3
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Maximum rms on-state current	0.8 A
Maximum repetitive peak off-state leakage current	100 µA
Off-state repetitive peak voltage	30 V
Repeated peak reverse voltage	30 V
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
Trigger device type	SCR

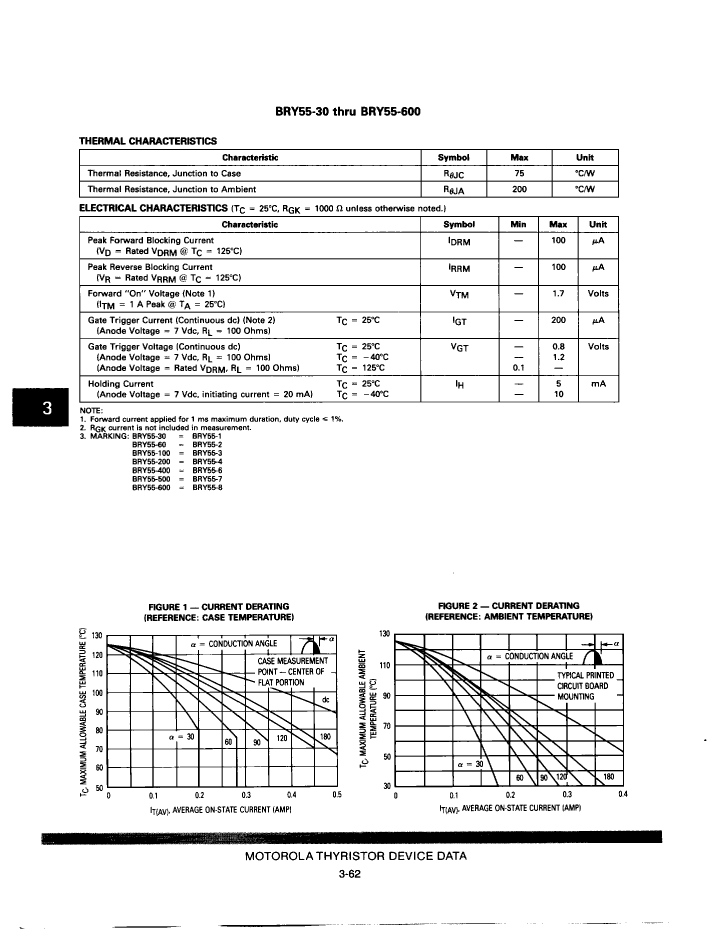

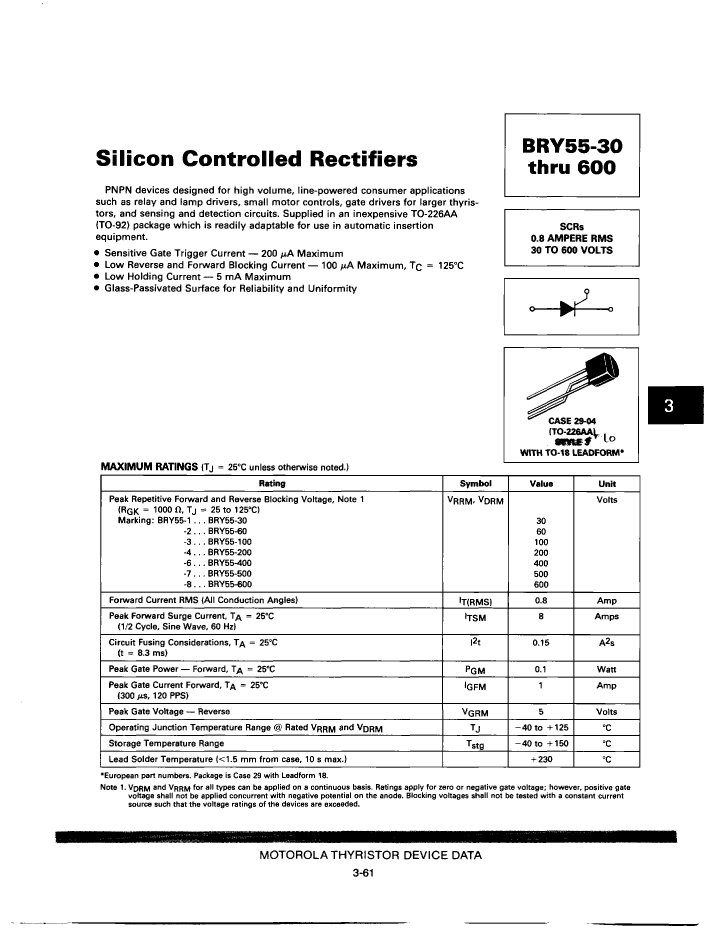

Preview

Download Datasheet

View All

BRY55-30-18 Related Products

	BRY55-30-18	BRY55-100-18	BRY55-200-18	BRY55-400-18	BRY55-500-18	BRY55-60-18	BRY55-600-18
Description	Silicon Controlled Rectifier, 0.8A I(T)RMS, 30V V(DRM), 30V V(RRM), 1 Element, TO-226AA	Silicon Controlled Rectifier, 0.8A I(T)RMS, 100V V(DRM), 100V V(RRM), 1 Element, TO-226AA	Silicon Controlled Rectifier, 0.8A I(T)RMS, 200V V(DRM), 200V V(RRM), 1 Element, TO-226AA	Silicon Controlled Rectifier, 0.8A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, TO-226AA	Silicon Controlled Rectifier, 0.8A I(T)RMS, 500V V(DRM), 500V V(RRM), 1 Element, TO-226AA	Silicon Controlled Rectifier, 0.8A I(T)RMS, 60V V(DRM), 60V V(RRM), 1 Element, TO-226AA	0.8A, 600V, SCR, TO-226AA
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	SENSITIVE GATE	SENSITIVE GATE	SENSITIVE GATE	SENSITIVE GATE	SENSITIVE GATE	SENSITIVE GATE	SENSITIVE GATE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum DC gate trigger current	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA
Maximum DC gate trigger voltage	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V
Maximum holding current	5 mA	5 mA	5 mA	5 mA	5 mA	5 mA	5 mA
JEDEC-95 code	TO-226AA	TO-226AA	TO-226AA	TO-226AA	TO-226AA	TO-226AA	TO-226AA
JESD-30 code	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3
Number of components	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	0.8 A	0.8 A	0.8 A	0.8 A	0.8 A	0.8 A	0.8 A
Maximum repetitive peak off-state leakage current	100 µA	100 µA	100 µA	100 µA	100 µA	100 µA	100 µA
Off-state repetitive peak voltage	30 V	100 V	200 V	400 V	500 V	60 V	600 V
Repeated peak reverse voltage	30 V	100 V	200 V	400 V	500 V	60 V	600 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR
ECCN code	EAR99	EAR99	EAR99	-	-	EAR99	-
