BTA212X-500D datasheet, PDF - EEWORLD Datasheet

BTA212X-500D: Description500V, 12A, 4 QUADRANT LOGIC LEVEL TRIAC; CategoryAnalog mixed-signal IC Trigger device; File Size101KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BTA212X-500D Overview

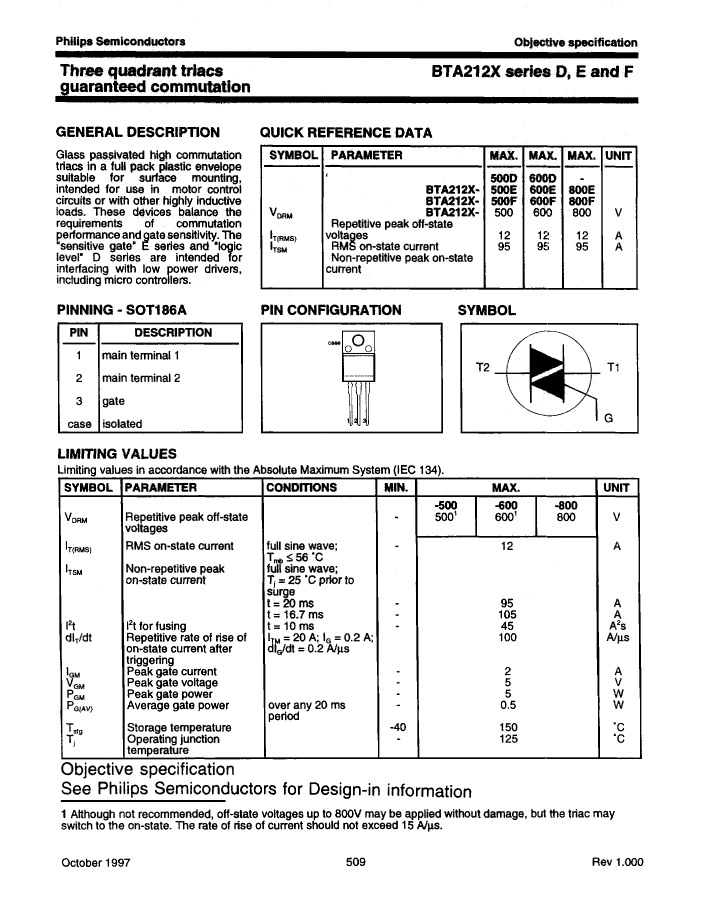

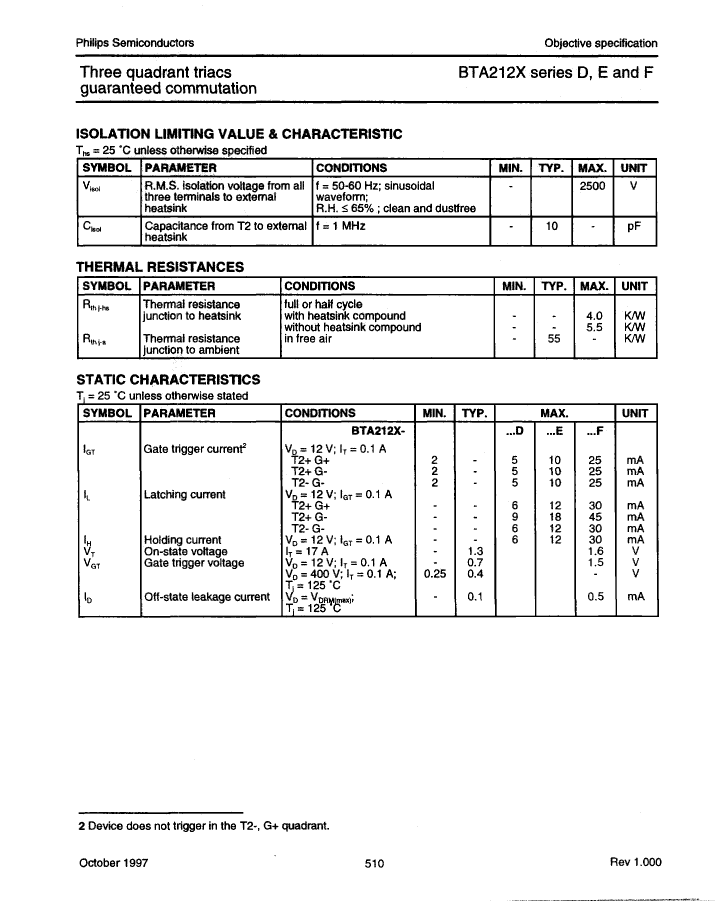

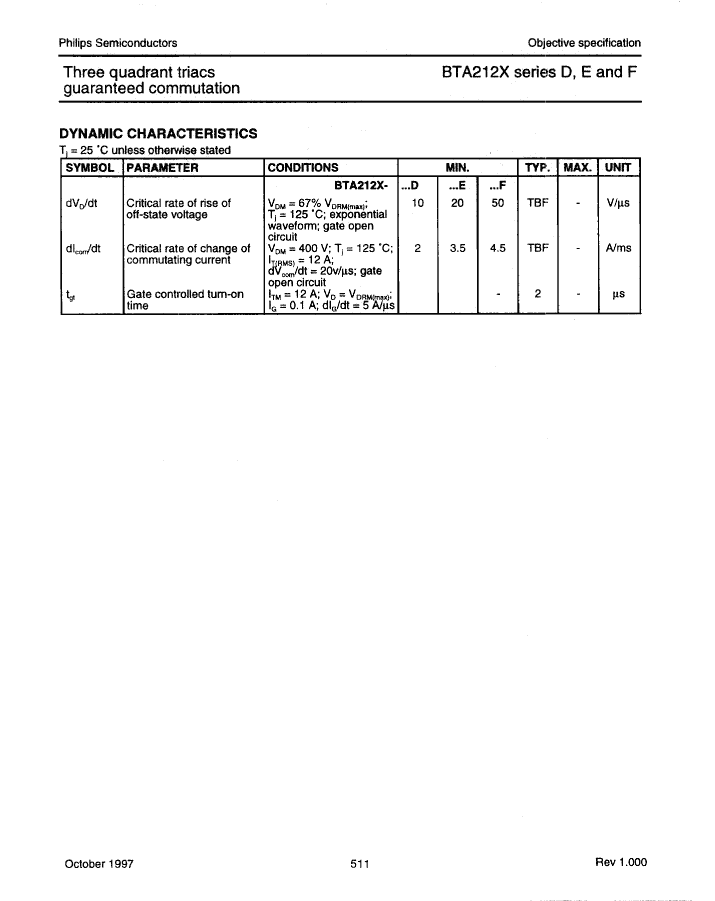

500V, 12A, 4 QUADRANT LOGIC LEVEL TRIAC

Parameter Name	Attribute value
Maker	NXP
Reach Compliance Code	compliant
Shell connection	ISOLATED
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	10 V/us
Maximum DC gate trigger current	5 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	6 mA
JESD-30 code	R-PSFM-T3
Maximum leakage current	0.5 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	12 A
Maximum repetitive peak off-state leakage current	500 µA
Off-state repetitive peak voltage	500 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC

	BTA212X-500D	BTA212X-500E	BTA212X-500F
Description	500V, 12A, 4 QUADRANT LOGIC LEVEL TRIAC	500V, 12A, TRIAC	500V, 12A, TRIAC
Maker	NXP	NXP	NXP
Reach Compliance Code	compliant	compliant	unknown
Shell connection	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	10 V/us	20 V/us	50 V/us
Maximum DC gate trigger current	5 mA	10 mA	25 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V
Maximum holding current	6 mA	12 mA	30 mA
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	12 A	12 A	12 A
Maximum repetitive peak off-state leakage current	500 µA	500 µA	500 µA
Off-state repetitive peak voltage	500 V	500 V	500 V
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC	TRIAC	TRIAC
Maximum leakage current	0.5 mA	0.5 mA	-
package instruction	-	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
