BZX384-B4V7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZX384-B4V7

BZX384-B4V7: DescriptionZener Diode, 4.7V V(Z), 2%, 0.2W, Silicon, Unidirectional, PLASTIC, SO-2; CategoryDiscrete semiconductor diode; File Size386KB，8 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

BZX384-B4V7 Overview

Zener Diode, 4.7V V(Z), 2%, 0.2W, Silicon, Unidirectional, PLASTIC, SO-2

BZX384-B4V7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	R-PDSO-G2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	80 Ω
JESD-30 code	R-PDSO-G2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.2 W
Certification status	Not Qualified
Nominal reference voltage	4.7 V
surface mount	YES
technology	ZENER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum voltage tolerance	2%
Working test current	5 mA

Preview

Download Datasheet

View All

NEW PRODUCT

BZX384-C2V4 THRU BZX384-C75

ZENER DIODES

SOD-323

.012 (0.3)

FEATURES

♦

Silicon Planar Power Zener Diodes

♦

The Zener voltages are graded according to the

international E 24 standard. Standard Zener voltage

tolerance is ±5%. Replace “C” with “B” for ±2% tolerance. Other

voltage tolerances and other Zener voltages are available upon

request.

max. .006 (0.15)

min. .010 (0.25)

.112 (2.85)

.100 (2.55)

.076 (1.95)

.065 (1.65)

Cathode Mark

Top View

max. .049 (1.25)

.059 (1.5)

.043 (1.1)

max. .004 (0.1)

MECHANICAL DATA

Case:

SOD-323 Plastic Package

Weight:

approx. 0.004 g

Dimensions are in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25°C ambient temperature unless otherwise specified.

SYMBOL

VALUE

UNIT

Zener Current

Power Dissipation at T

amb

= 25°C

Junction Temperature

Storage Temperature Range

NOTES:

(1) Device on fiberglass substrate, see layout.

tot

250

200

175

– 65 to +175

°C

SYMBOL

MIN.

TYP.

MAX.

UNIT

Thermal Resistance

Junction to Ambient Air

Forward Voltage

at I

= 10 mA

thJA

–

650

K/W

–

0.9

Volts

NOTES:

(1) Valid provided that electrodes are kept at ambient temperature

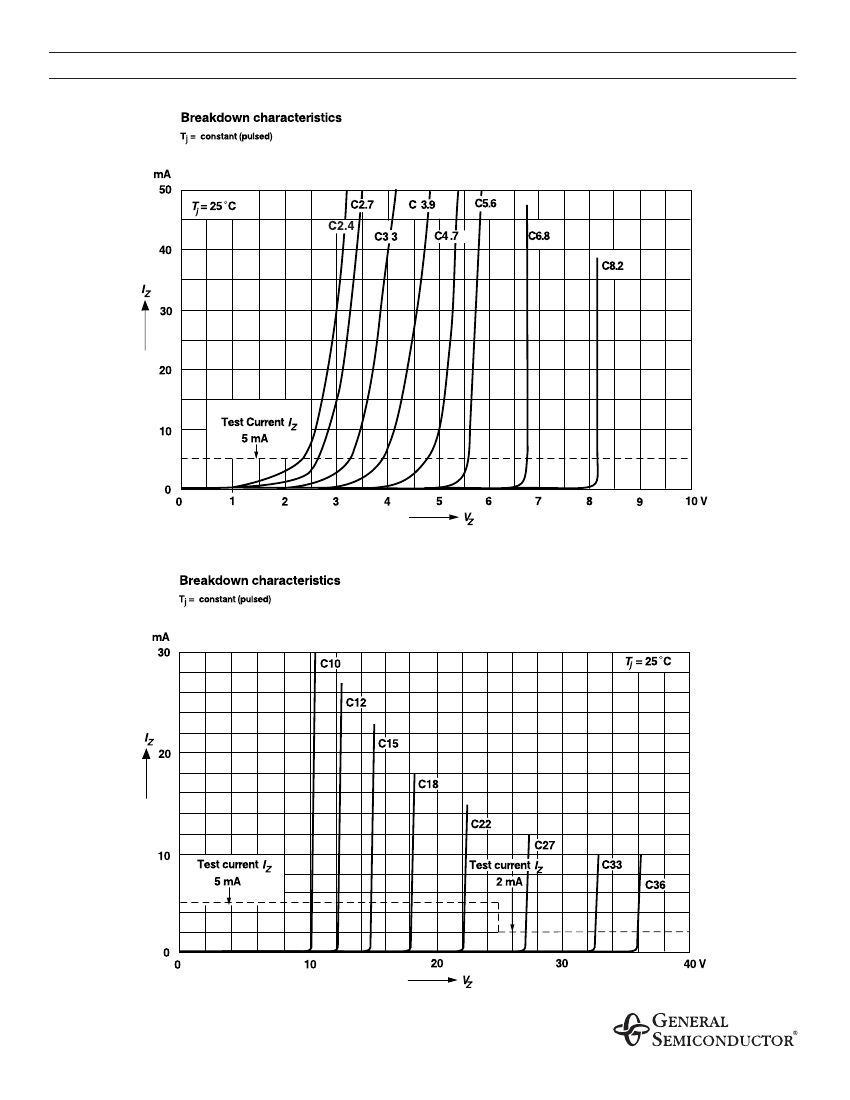

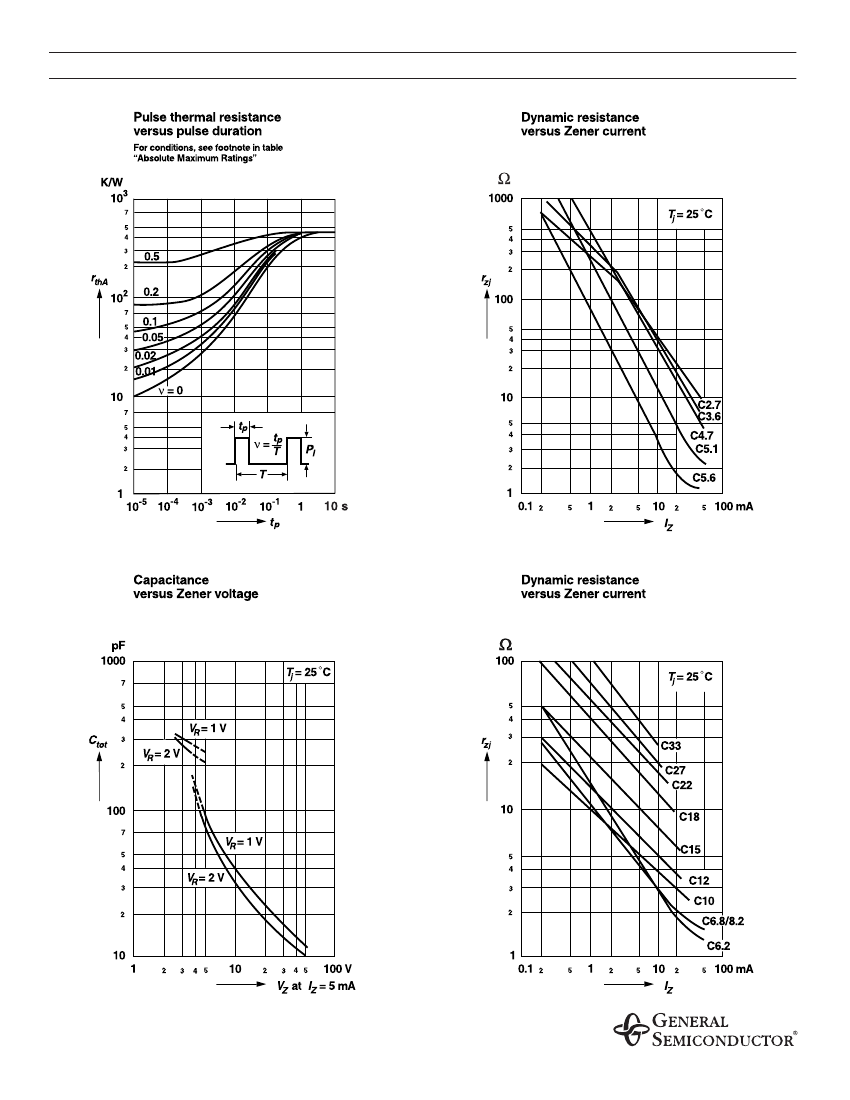

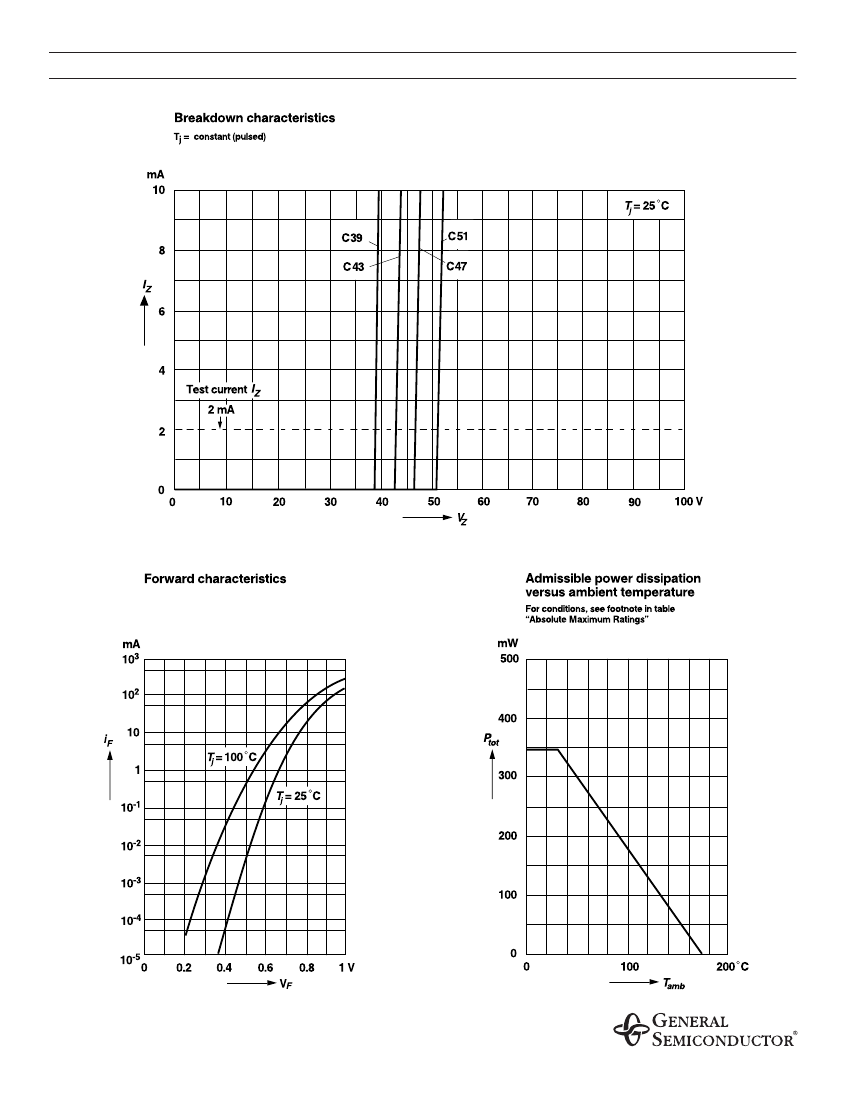

9/2/98
