BAS40-04 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS40-04

Preview

BAS40-04: DescriptionRectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor diode; File Size345KB，3 Pages; ManufacturerMicro Commercial Components (MCC)

Download Datasheet Parametric Compare View All

BAS40-04 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAS40-04	-	-	View	Buy Now

BAS40-04 Overview

Rectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, PLASTIC PACKAGE-3

BAS40-04 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Micro Commercial Components (MCC)
package instruction	PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	2
Number of terminals	3
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Maximum power dissipation	0.2 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

TM

omponents

20736 Marilla

Street Chatsworth

!"#

$ % !"#

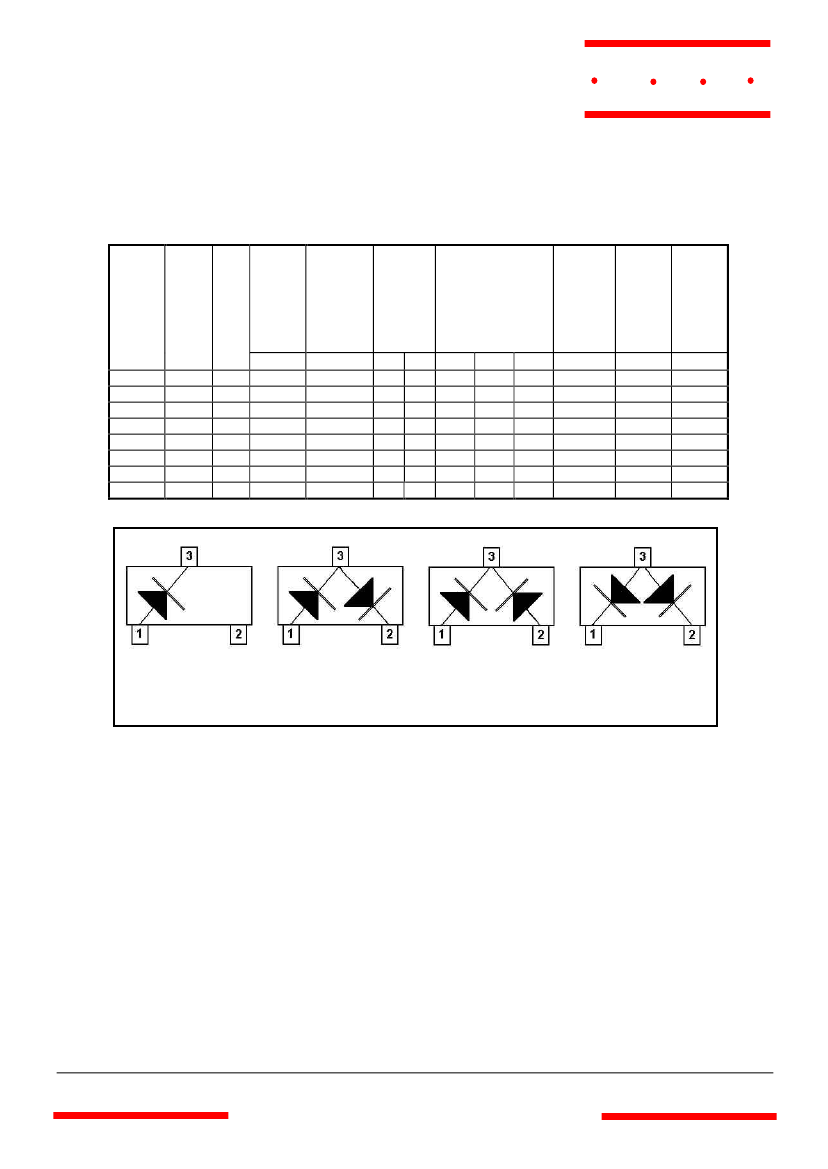

BAS40

THRU

BAS70

Surface Mount

Schottky Barrier Diode

200 mWatt

SOT-23

A

D

Features

l

SOT-23 Package For surface mount application

Protects from line to V

CC

and line to ground

Low forward voltage and reverse recovery characteristics

Bidirectional-low-forward available with “-04” suffix (Figure 2)

Tape & Reel EIA Standard 481.

Mechanical Data

l

Case Material: Molded Plastic. UL Flammability

Classification Rating 94V-0

l

Mounting Position: Any

Weight: .008 grams (approx.)

MAXIMUM RATINGS

§

Operating Temperature: -55 C to +125 C

Storage Temperature: -55 C to +150 C

Power Dissipation: 200 mWatts @ T

amb

=25 C

Forward Continuous Current: 200mA @ T

amb

=25 C

Surge Forward Current: 600mA @ t

p

<1s, T

amb

=25 C

DIM

A

B

C

D

E

F

G

H

J

K

INCHES

MIN

.110

.083

.047

.035

.070

.018

.0005

.035

.003

.015

C

B

o

F

E

o

G

H

J

o

K

DIMENSIONS

MM

MIN

2.80

2.10

1.20

.89

1.78

.45

.013

.89

.085

.37

§

o

DESCRIPTION

Various configurations of Schottky barrier’s diodes in SOT-23

package are provided for general-purpose use in high-speed

switching ,mixers and detector applications. They may also be

used for signal integrity and counteract the transmission-line

effects with (PC) board trances by clamping over/and undershoot

from signal reflections with the schottky-low-threshold voltages.

This type of termination also does not depend on matching

the transmission line characteristic impedance, making it

particularly useful where line impendance is unknown or a

variable. This methode of termination can control distortions of

clock, data, address, and control lines as well as provides a

stabilizing effect on signal jitter. It can also significantly reduce

power consumption compared to standard resistor-based

termination methods.

MAX

.120

.098

.055

.041

.081

.024

.0039

.044

.007

.020

MAX

3.04

2.64

1.40

1.03

2.05

.60

.100

1.12

.180

.51

NOTE

Suggested Solder

Pad Layout

.031

.800

.035

.900

.079

2.000

inches

mm

.037

.950

.037

.950

Revision: 4

www.mccsemi.com

1 of 3

2006/05/13

BAS40-04 Related Products

	BAS40-04	BAS70-05	BAS40-05	BAS70	BAS70-06	BAS70-04	BAS40-06
Description	Rectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, PLASTIC PACKAGE-3	Rectifier Diode, Schottky, 2 Element, 0.2A, 70V V(RRM), Silicon, PLASTIC PACKAGE-3	Rectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, PLASTIC PACKAGE-3	Rectifier Diode, Schottky, 1 Element, 0.2A, 70V V(RRM), Silicon, PLASTIC PACKAGE-3	Rectifier Diode, Schottky, 2 Element, 0.2A, 70V V(RRM), Silicon, PLASTIC PACKAGE-3	Rectifier Diode, Schottky, 2 Element, 0.2A, 70V V(RRM), Silicon, PLASTIC PACKAGE-3	Rectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, PLASTIC PACKAGE-3
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)
package instruction	PLASTIC PACKAGE-3	PLASTIC PACKAGE-3	PLASTIC PACKAGE-3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	PLASTIC PACKAGE-3
Contacts	3	3	3	3	3	3	3
Reach Compliance Code	unknown	compliant	unknown	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SINGLE	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Number of components	2	2	2	1	2	2	2
Number of terminals	3	3	3	3	3	3	3
Maximum output current	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	240	240	240	240	240	240
Maximum power dissipation	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	40 V	70 V	40 V	70 V	70 V	70 V	40 V
Maximum reverse recovery time	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	30	NOT SPECIFIED	NOT SPECIFIED
