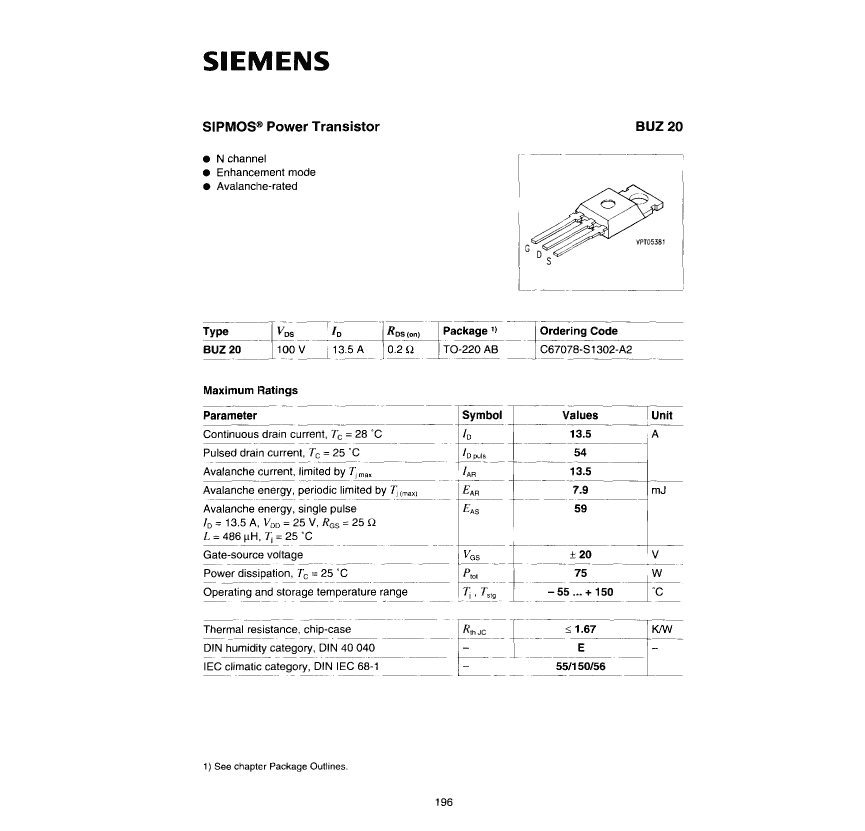

Power Field-Effect Transistor, 13.5A I(D), 100V, 0.2ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 3 PIN

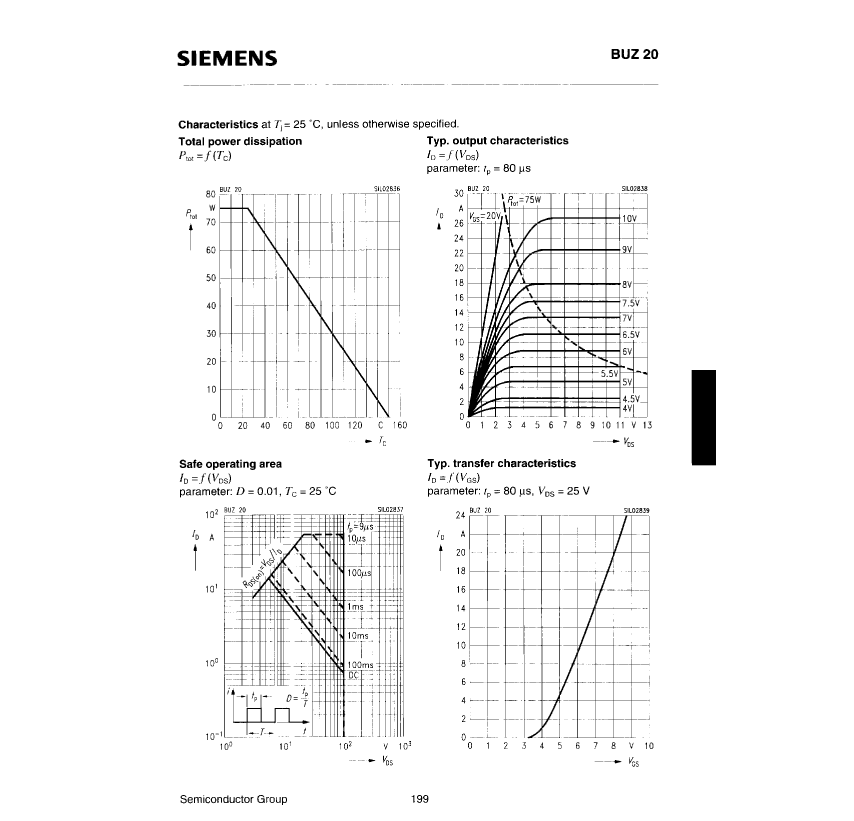

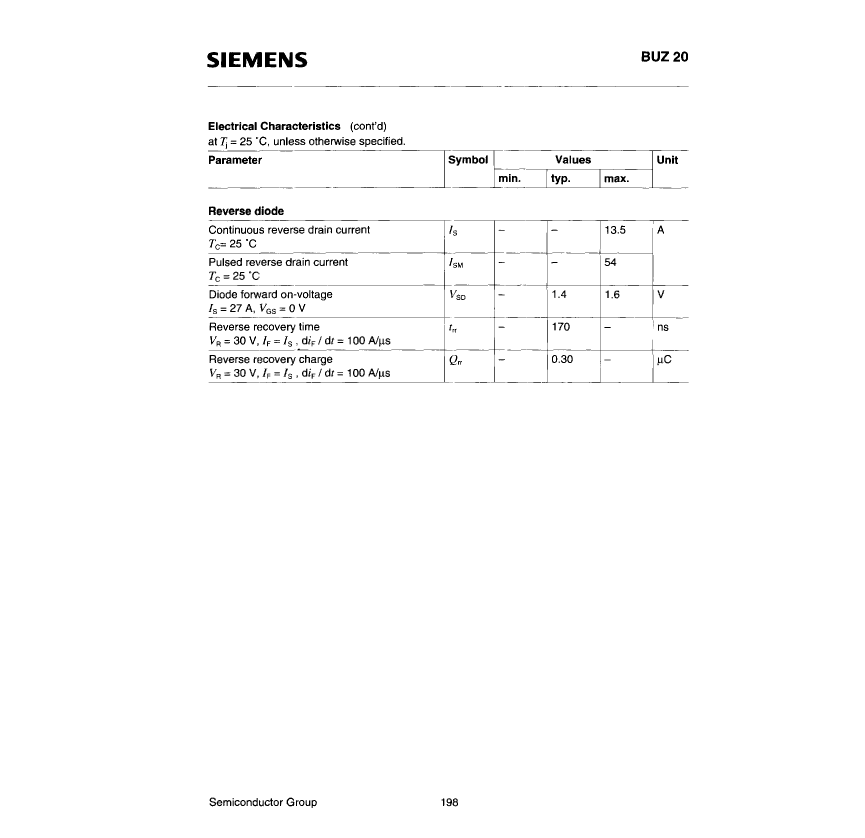

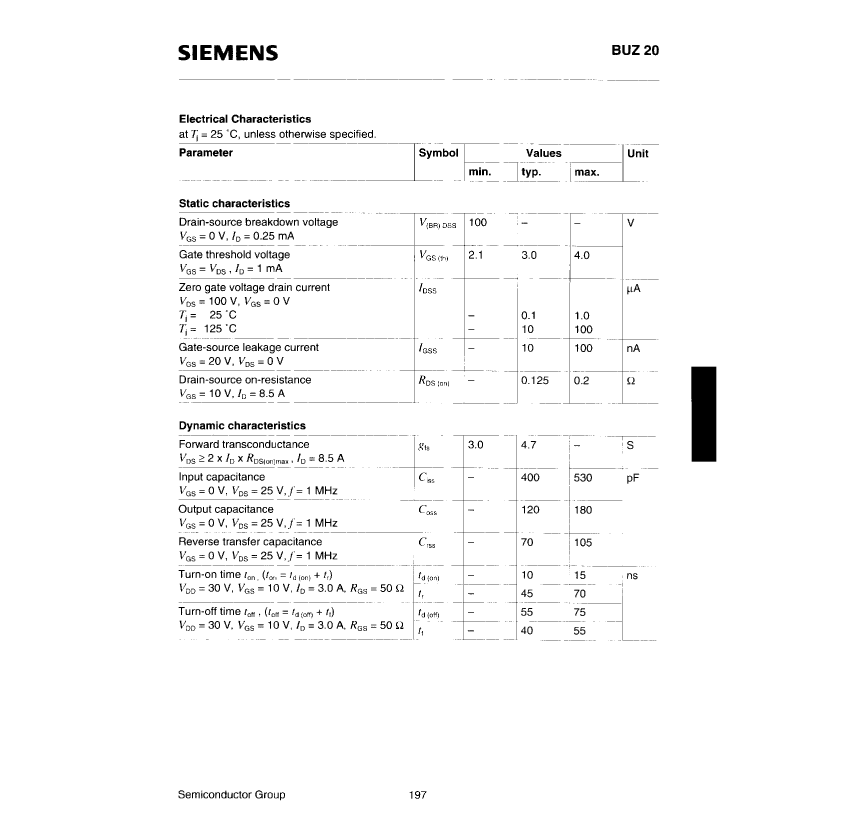

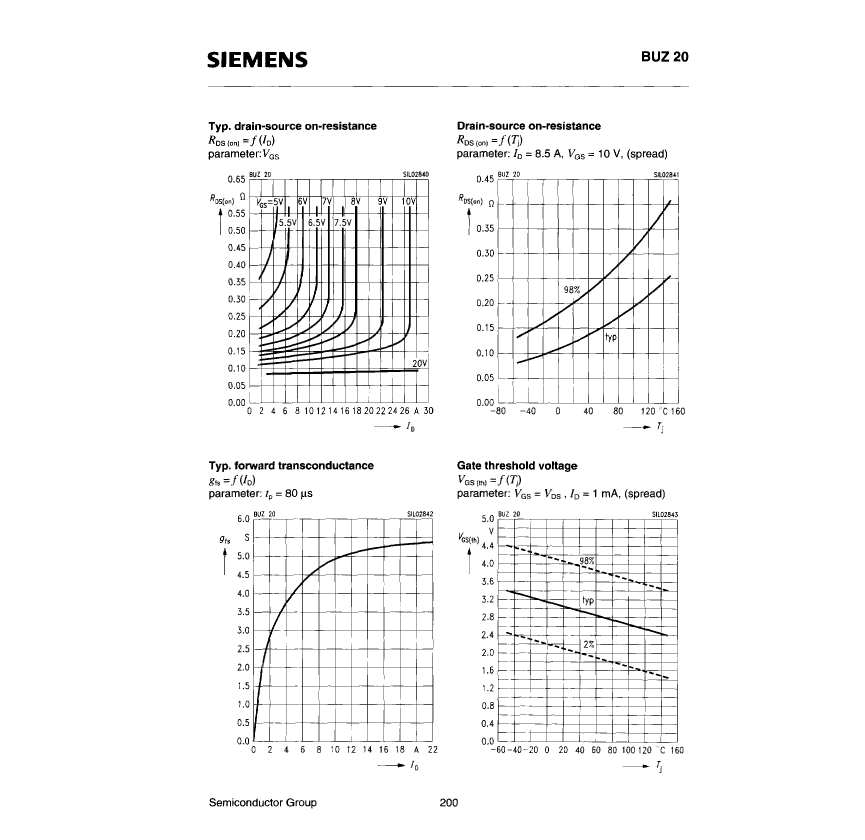

| Parameter Name | Attribute value |
| Maker | SIEMENS |
| Parts packaging code | TO-220AB |
| package instruction | IN-LINE, R-PSIP-T3 |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Avalanche Energy Efficiency Rating (Eas) | 59 mJ |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Minimum drain-source breakdown voltage | 100 V |
| Maximum drain current (ID) | 13.5 A |
| Maximum drain-source on-resistance | 0.2 Ω |
| FET technology | METAL-OXIDE SEMICONDUCTOR |
| Maximum feedback capacitance (Crss) | 105 pF |
| JESD-30 code | R-PSIP-T3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Operating mode | ENHANCEMENT MODE |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Polarity/channel type | N-CHANNEL |
| Maximum power consumption environment | 75 W |
| Maximum pulsed drain current (IDM) | 54 A |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Maximum off time (toff) | 130 ns |
| Maximum opening time (tons) | 85 ns |
| BUZ20-E3046 | BUZ20-E3045 | BUZ20-E3044 | |
|---|---|---|---|
| Description | Power Field-Effect Transistor, 13.5A I(D), 100V, 0.2ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 3 PIN | Power Field-Effect Transistor, 13.5A I(D), 100V, 0.2ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 3 PIN | Power Field-Effect Transistor, 13.5A I(D), 100V, 0.2ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 4 PIN |
| Maker | SIEMENS | SIEMENS | SIEMENS |
| Parts packaging code | TO-220AB | TO-220AB | TO-220AB |
| package instruction | IN-LINE, R-PSIP-T3 | SMALL OUTLINE, R-PSSO-G2 | SMALL OUTLINE, R-PSSO-G3 |
| Contacts | 3 | 3 | 3 |
| Reach Compliance Code | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Avalanche Energy Efficiency Rating (Eas) | 59 mJ | 59 mJ | 59 mJ |
| Configuration | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE |
| Minimum drain-source breakdown voltage | 100 V | 100 V | 100 V |
| Maximum drain current (ID) | 13.5 A | 13.5 A | 13.5 A |
| Maximum drain-source on-resistance | 0.2 Ω | 0.2 Ω | 0.2 Ω |
| FET technology | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR |
| Maximum feedback capacitance (Crss) | 105 pF | 105 pF | 105 pF |
| JESD-30 code | R-PSIP-T3 | R-PSSO-G2 | R-PSSO-G3 |
| Number of components | 1 | 1 | 1 |
| Number of terminals | 3 | 2 | 3 |
| Operating mode | ENHANCEMENT MODE | ENHANCEMENT MODE | ENHANCEMENT MODE |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | SMALL OUTLINE |
| Polarity/channel type | N-CHANNEL | N-CHANNEL | N-CHANNEL |
| Maximum power consumption environment | 75 W | 75 W | 75 W |
| Maximum pulsed drain current (IDM) | 54 A | 54 A | 54 A |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | YES | YES |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING |
| Terminal location | SINGLE | SINGLE | SINGLE |
| transistor applications | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON |
| Maximum off time (toff) | 130 ns | 130 ns | 130 ns |
| Maximum opening time (tons) | 85 ns | 85 ns | 85 ns |
