Multilayer Chip Ferrite Beads
——SHB-1005
Features
1. Effective in suppressing noise at high frequencies.
2. Suited for preventing the abnormal oscillation from high frequency amplifying circuits.
3. Excellent solder heat resistance for soldering.
4. High reliability in the circuits of high current.
5. Lead Free (RoHS Compliance)
PAGE
1/4
Applications
1. Noise suppression in digital equipments.
2. Computers and peripheral devices, VCR and camera.
3. Noise suppression in automotive electronic equipment, car stereo, car engine controller.
4. Noise suppression for OA electronic instruments.
Ordering Information
SHB -
(1)
1
M
(2)
1005
(3)
-
121
(4)
J
(5)
T
(6)
(4) Impedance (at 100MHz)
First two digits are impedance values.
Last digit is the number of zeros
(5) Termination
J : Nickel barrier
(1) Series
SHB : For Signal line
(2) Material & Design
S : For high speed
M : For high impedance type
T : For Low speed
(3) Dimension
First two digits : length (㎜)
Last two digits : width (㎜)
(6) Packaging
B : Bulk package
T : Tape & Reel (Φ178㎜ [ 7 inches ])
L : Tape & Reel (Φ254㎜ [ 10 inches ])
Shape and Dimensions
Unit : mm [inches]
Type
L
W
T
C
1.0±0.05
0.5±0.05
0.5±0.05
0.20±0.10
SHB-1□1005-
〔.039±.002〕 〔.020±.002〕 〔.020±.002〕 〔.008±.004〕
W
C₁
L
T
*All specifications are subject to change without notice.
Multilayer Chip Ferrite Beads
——SHB-1005
Electrical Parameters
Part No.
SHB-1M1005-100□□
SHB-1M1005-400□□
SHB-1M1005-600□□
SHB-1M1005-800□□
SHB-1M1005-121□□
SHB-1M1005-221□□
SHB-1M1005-301□□
SHB-1M1005-471□□
SHB-1M1005-601□□
SHB-1M1005-102□□
SHB-1T1005-100□□
SHB-1T1005-260□□
SHB-1T1005-400□□
SHB-1T1005-600□□
SHB-1T1005-700□□
SHB-1T1005-800□□
SHB-1T1005-121□□
SHB-1T1005-221□□
SHB-1T1005-241□□
SHB-1T1005-301□□
SHB-1T1005-601□□
SHB-1S1005-100□□
SHB-1S1005-300□□
SHB-1S1005-600□□
SHB-1S1005-101□□
SHB-1S1005-121□□
lZl
typ.
10
40
60
80
120
220
300
470
600
1000
10
26
40
60
70
80
120
220
240
300
600
10
30
60
100
120
at 100MHz(Ω)
min.
7.5
30
45
60
90
165
225
355
450
750
7.5
19.5
30
45
53
60
90
165
180
225
450
7.5
23
45
75
90
DC Resistance
(Ω) max.
0.05
0.15
0.20
0.20
0.30
0.35
0.45
0.55
0.60
1.30
0.05
0.10
0.10
0.20
0.20
0.25
0.25
0.35
0.40
0.45
0.60
0.10
0.20
0.30
0.35
0.40
Rated current
(mA) max.
1000
900
650
650
500
500
400
300
300
250
1000
900
900
650
650
550
500
500
400
400
400
500
400
350
300
300
PAGE
2/4
※
Parts with other electrical characteristics available upon request.
※
Test equipment : HP4291 + HP16192A

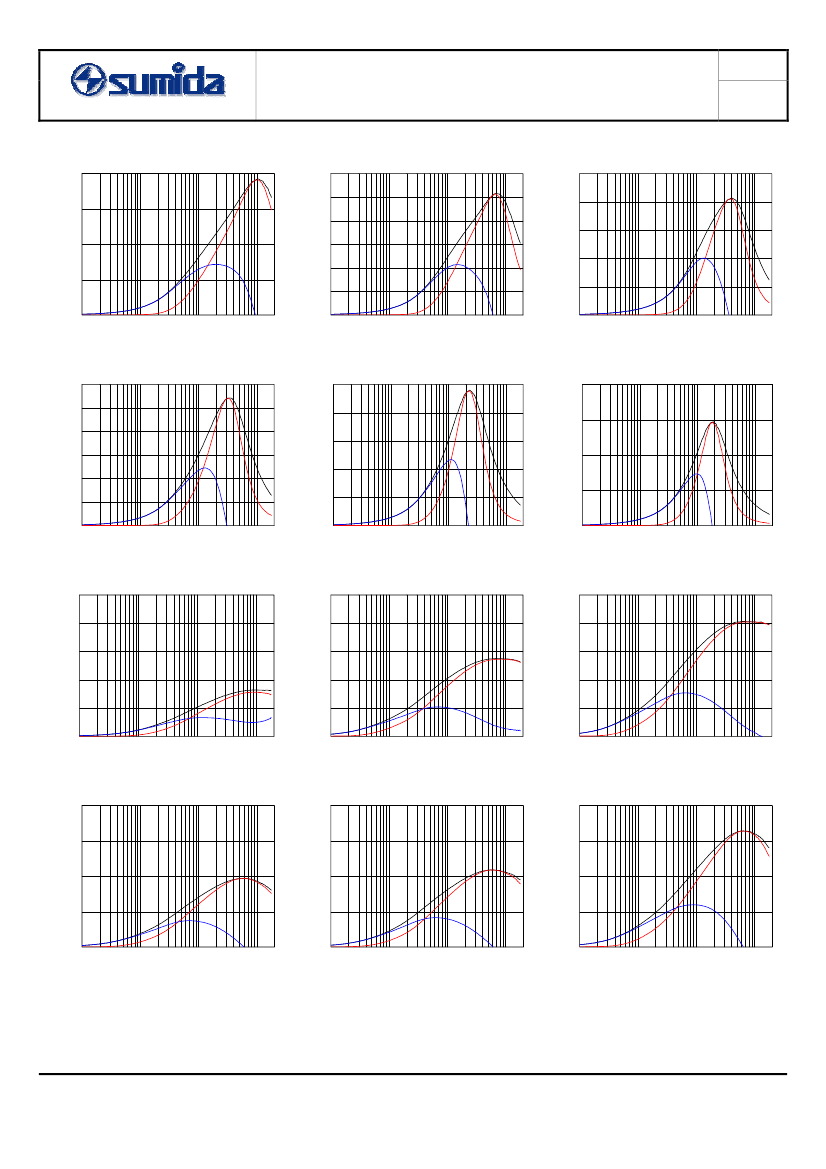

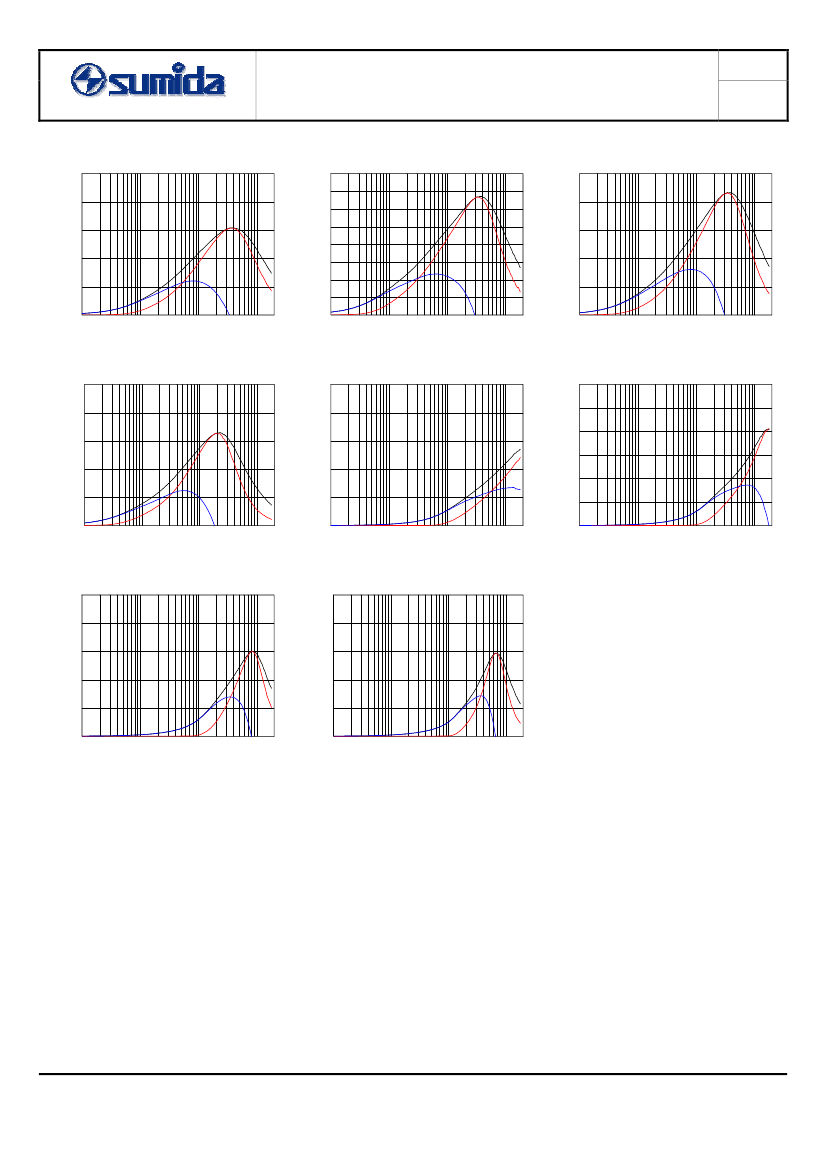

Electrical Characteristic Curves
HB-1M1005-100J
SHB-1M1005-100J
25
100
HB-1M1005-400J
SHB-1M1005-400J
200
HB-1M1005-600J
SHB-1M1005-600J
20
80
Z
Impedance [
Ω
]
150
Impedance [
Ω
]
Impedance [
Ω
]
15
Z
R
60
R
40
Z
100
10
R
50
X
5
20
X
X
0
1M
10M
100M
1G
0
1M
10M
100M
1G
0
1M
10M
100M
1G
Frequency [Hz]
Frequency [Hz]
Frequency [Hz]
*All specifications are subject to change without notice.
