REVISION BE
DO NOT
SCALE FROM
THIS PRINT
(*= SEE NOTES 12 & 17)
(*= SEE NOTES 12 & 17)
C
No OF POSITIONS
-020, -040, -060
*-080, *-100 (PER ROW)
(*= SEE NOTES 12 & 17)
LEAD STYLE
-01: .1280[3.251]
PLATING SPECIFICATION
QSE-XXX-01-XXX-D-XXX
"A" REF
.7875 20.003 (TYP)
19 EQ. SPCS
@ .0315 [0.800]
=.599[15.20]
(TYP)
.285 7.24
REF
.150 3.81
REF
02
.245 6.22
REF
01
.0975 2.477
REF
.0225 0.571
REF
.6250 15.875
REF
.0060 0.152 REF
QSE-20-01-D-XX-A
"A"
SEE NOTE 15
(SEE NOTES 8, 11 & 13)
-F: 3µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
(USE C-126-21-F, T-1G2-01-F)
(SEE NOTE 8)
-L: 10µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
(USE C-126-21-L, T-1G2-01-L)
-H: 30µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
(USE C-126-21-H, T-1G2-01-G)
-C: 50µ" ELECTRO POLISHED SELECTIVE
GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
(USE C-126-21-C, T-1G2-01-L)
-STL: 30µ" SELECTIVE GOLD IN CONTACT
AREA, TIN LEAD (90/10 ±5%) ON TAIL
(USE C-126-21-STL, T-1G2-01-STL)
-FTL: 3µ" SELECTIVE GOLD INCONTACT
AREA, TIN LEAD (90/10 ±5%) ON TAIL
(USE C-126-21-FTL, T-1G2-01-FTL)
-LTL: 10µ" SELECTIVE GOLD IN CONTACT
AREA, TIN LEAD (90/10 ±5%) ON TAIL
(USE C-126-21-LTL, T-1G2-01-LTL)
-S: 30µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
(USE C-126-21-S, T-1G2-01-L)
-A: ALIGNMENT PINS
(USE QSE-20-XX-D-XX-A)
(NOT AVAILABLE WITH -LC OPTION)
-LC: LOCKING CLIPS(SEE NOTE 14)
(USE LC-08-TM-01, SEE FIG 2, SHT 2)
(NOT AVAILABLE WITH -A OPTION)
-GP: GUIDE POSTS (SEE FIG 4, SHT 3)
(USE QSE-20-01-D-XX-X-GP)
(T & R PACKAGING: 40 POS MAX)
-K: POLYIMIDE FILM
(USE K-DOT-.325-.450-.005)
(SEE FIG 3, SHT 2)
-TR: TAPE & REEL (60 POS MAX)
(SEE FIG 8, SHT 5)
(40 POS MAX -GP OPTION)
-FL: FRICTION LOCKS
(SEE FIG 5, SHT 3)
(NOT AVAILABLE WITH -GP)
-RT1: RETENTION OPTION
(MUST USE -A OPTION)
(USE QSE-20-01-D-XX-A-RT1 &
SUB-SC-05-01-FF)
(SEE FIG 6, SHT 4)
(NOT AVAILABLE WITH -LC, -GP, OR -FL)
(NOT AVAILABLE WITH -100 POS)
-L: LATCHING OPTION (40 POS MAX)
(SEE FIG 7, SHT 4)
(MUST USE -A OPTION)
(NOT AVAILABLE WITH -LC, -GP, -FL,
OR -RT1)
OPTION
ROW SPECIFICATION
-D: DOUBLE
(USE QSE-20-XX-D-XX)
No OF BANKS
.038 0.95
REF
.725 18.42
REF
"A"
"B" REF
T-1G2-01-XXX
.120 3.05
REF
.017±.005 0.43±0.13
(SEE NOTE 16)
.0030 0.076 REF
.165
+.005
- .001
4.19
+0.13
- 0.03
C
+.0030
+0.076
C
L
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM CONTACT RETENTION: 8 OZ
3. MINIMUM GROUND PLANE RETENTION: 8 OZ
4. PARTS ARE MOLDED TO POSITION.
5. DELETED.
6. MAXIMUM VARIANCE: .002[0.51].
7. DIMENSION APPLIES TO CONTACTS & GROUND PLANE.
8. -L PLATING CAN BE SUBSTITUTED FOR -F PLATING, -G PLATED GROUND
PLANE CAN BE SUBSTITUTED FOR -F PLATED GROUND PLANE.
9. GROUND PLANE PRESS HEIGHT MUST BE .003 [0.08] LESS THAN THE MAX HEIGHT
OR .001 [0.03] GREATER THAN THE MINIMUM HEIGHT OF THE SOCKETS.
10. MINIMUM SUB-SC-05-01-XX RETENTION: 1 LB IN BODY.
11. MAY SUB C-126-01-XXX FOR C-126-21-XXX.
12. FOR NEW APPLICATIONS REQUIRING THESE POSITIONS, PLEASE CONTACT
SAMTEC INTERCONNECT PROCESSING GROUP.
13. FOR -080, -100 POSITIONS USE C-269-11-XXX. DO NOT SUB C-126.
14. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE -LC OPTION
IS NOT COMPATIBLE WITH AUTO PLACEMENT.SAMTEC RECOMMENDS
MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE -LC OPTION.
15. SIDE WALLS ARE RIBBED AS NECESSARY TO CONTROL BOW.
16. CHECK ONCE PER BANK ALTERNATING SIDES FOR MULTIPLE BANK PARTS.
17. AVAILABLE FOR EXISTING CUSTOMERS ONLY.
.105 2.67
REF
C
.1280
- .0010
3.251
- 0.025
(SEE NOTE 6 & 7)
SEE TABLE 1
.064 1.62 REF
C
.035 0.89 REF
.007 0.18 REF
.295 7.49
C-126-21-XXX
(SEE NOTE 13)
-A: ALIGNMENT PIN OPTION
(QSE-060-01-XXX-D-A SHOWN)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS

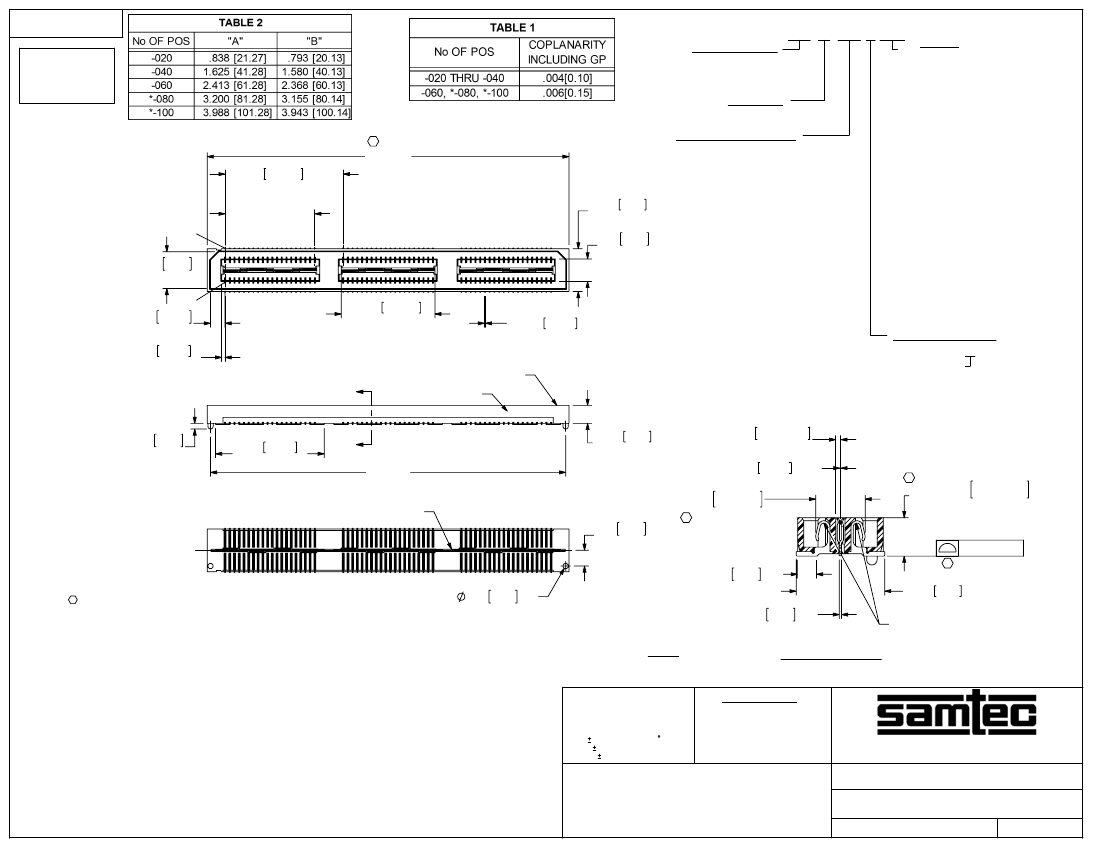

FIG 1
SECTION "A"-"A"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
INSULATOR: LCP, UL94V-0; COLOR: BLACK
CONTACT: PHOS BRONZE
GROUND PLANE: PHOS BRONZE
C:\EnterpriseVault\DWG\MISC\MKTG\QSE-XXX-01-XXX-D-XXX-MKT.SLDDRW
.8mm DOUBLE ROW HS SOCKET ASSEMBLY
BY:
ERIC M
QSE-XXX-01-XXX-D-XXX
05/20/1999
SHEET
1
OF
5

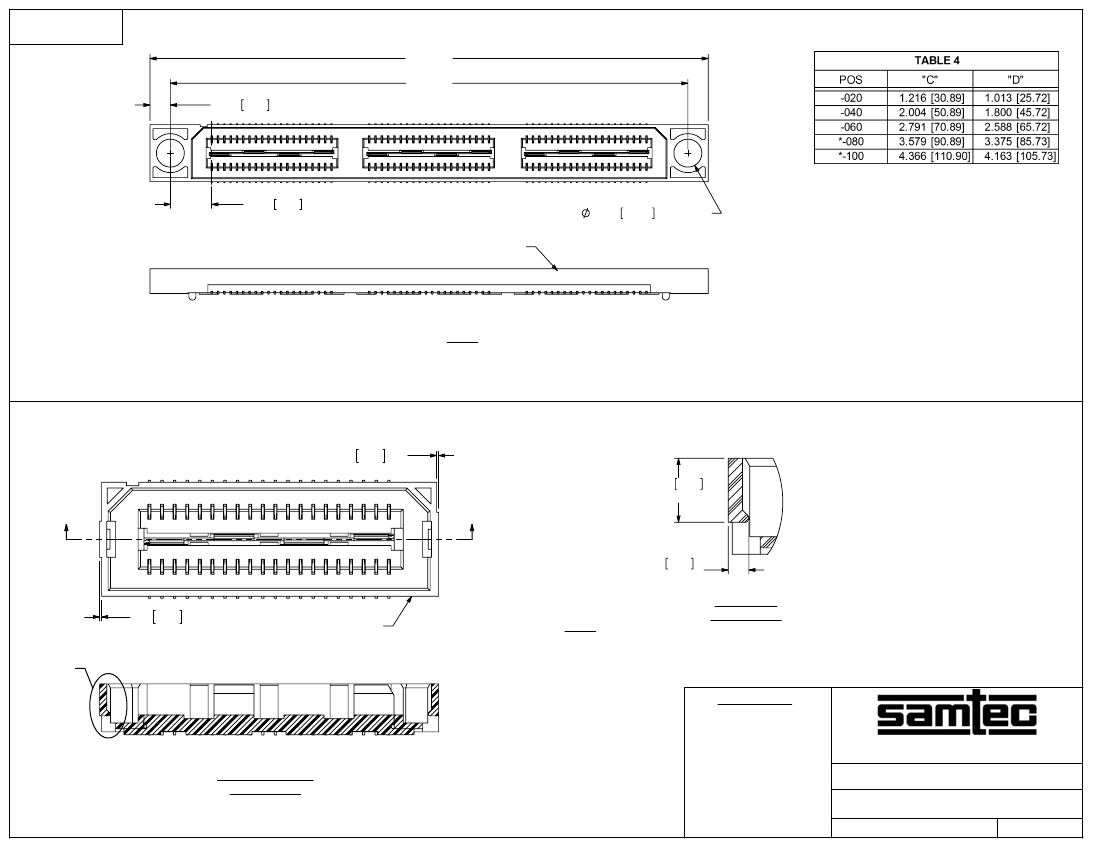

REVISION BE
"C" REF
"D" REF
.102 2.58 REF
(*= SEE NOTES 12 & 17)
.207 5.26 REF
QSE-20-01-D-XX-A-GP
.1400 3.556 THRU REF
-GP: GUIDE POST OPTION
(QSE-060-01-XXX-D-A-GP SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(40 POS MAX WITH T & R PACKAGING)
FIG 4
.005 0.13 REF
.080 2.03
REF (TYP)
"B"
"B"
.026 0.66
REF (TYP)
.005 0.13 REF
QSE-20-01-D-XX-FL
'C'
-FL: FRICTION LOCKS
(QSE-020-01-XXX-D-FL SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(NOT AVAILABLE WITH -GP OPTION)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 5
DETAIL 'C'
SCALE 8 : 1
SECTION "B"-"B"
SCALE 4 : 1
C:\EnterpriseVault\DWG\MISC\MKTG\QSE-XXX-01-XXX-D-XXX-MKT.SLDDRW
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.8mm DOUBLE ROW HS SOCKET ASSEMBLY
BY:
ERIC M
QSE-XXX-01-XXX-D-XXX
05/20/1999
SHEET
3
OF
5

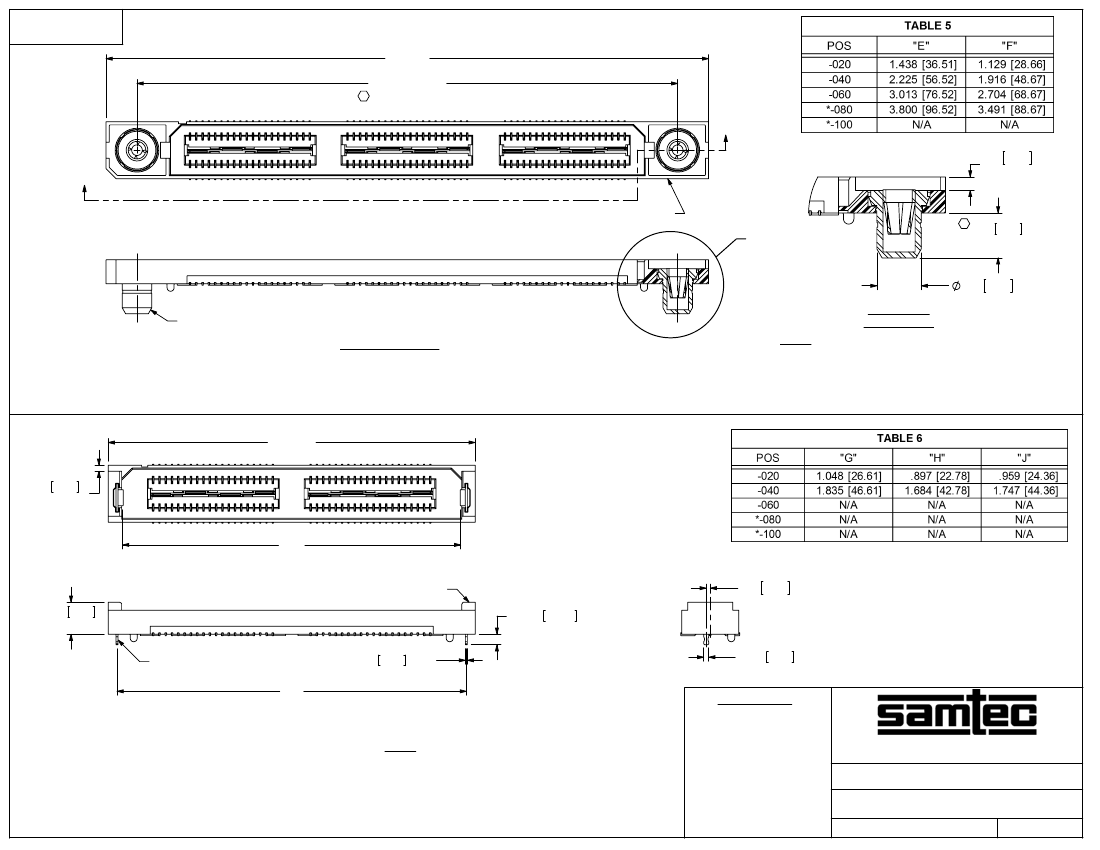

REVISION BE
"E" REF
C
"F"±.003[0.08]
"D"
"D"
QSE-20-01-D-XX-A-RT1
(*= SEE NOTES 12 & 17)
.045 1.14
REF
C
'E'
.150 3.81
(SEE NOTE 10)
.148 3.76 REF
SUB-SC-05-01-FF (2 PLCS)
SECTION "D"-"D"
-RT1: RETENTION OPTION
(QSE-060-01-XXX-D-A-RT1 SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(MUST USE -A OPTION)
(NOT AVAILABLE WITH -LC, -GP, OR -FL OPTIONS)
(NOT AVAILABLE WITH -100 POS)
FIG 6
DETAIL 'E'
SCALE 3 : 1
"G" REF
.030 0.76
REF
"H"
C
L
.0530 1.346
(*= SEE NOTES 12 & 17)
QSE-20-01-D-XX-A-L
.020 0.51 REF
.160 4.06
REF
WT-56-01-T
"J"
.010 0.25 REF
.025 0.64 REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
-L: LATCHING OPTION
(QSE-040-01-XXX-D-A-L SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(MUST USE -A OPTION) (40 POS MAX)
(NOT AVAILABLE WITH -LC, -GP, -FL, OR -RT1 OPTIONS)
C:\EnterpriseVault\DWG\MISC\MKTG\QSE-XXX-01-XXX-D-XXX-MKT.SLDDRW
FIG 7
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.8mm DOUBLE ROW HS SOCKET ASSEMBLY
QSE-XXX-01-XXX-D-XXX
05/20/1999
SHEET
4
OF
5
BY:
ERIC M
REVISION BE

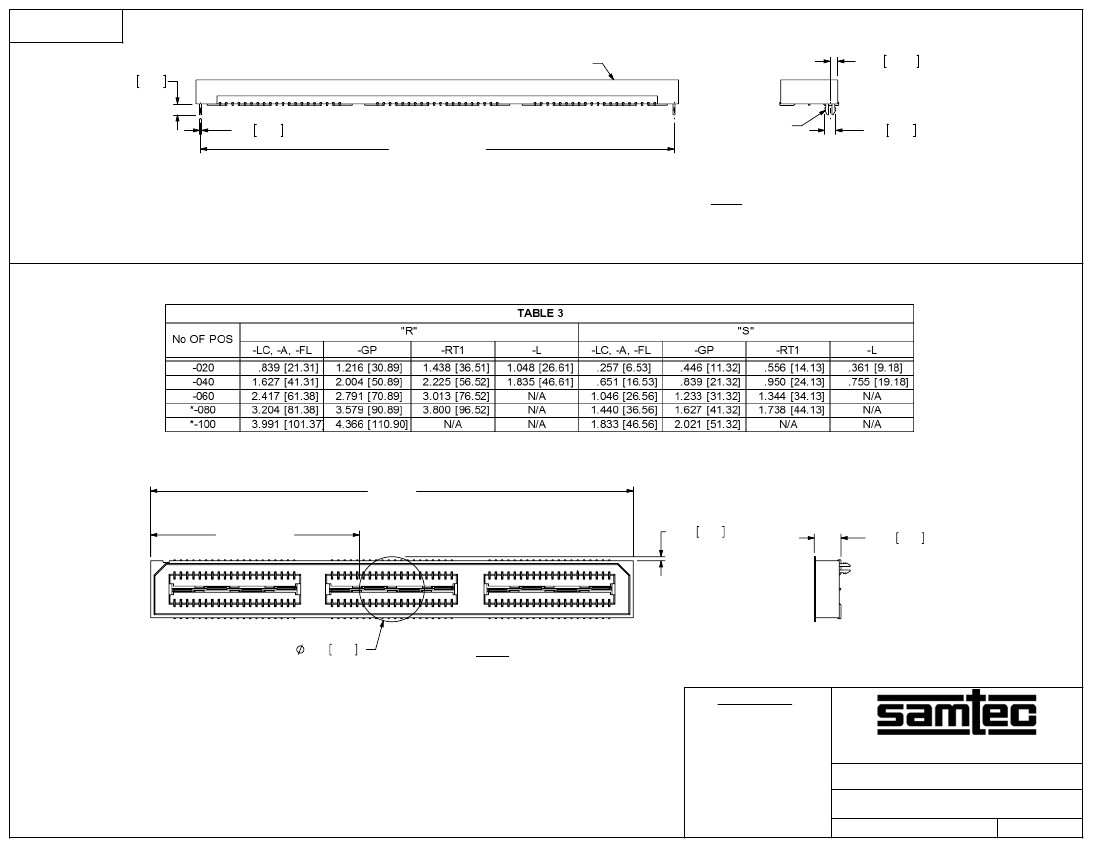

-TR: PACKAGING OPTION
(QSE-060-01-XXX-D-LC-TR SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(60 POS MAX)
(40 POS MAX WITH -GP OPTION)
FIG 8
POSITION 1 TOWARD
ROUND HOLE
USER DIRECTION OF UNREELING
POCKET NOT DETAILED
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.8mm DOUBLE ROW HS SOCKET ASSEMBLY
QSE-XXX-01-XXX-D-XXX
05/20/1999
SHEET
5
OF
5
C:\EnterpriseVault\DWG\MISC\MKTG\QSE-XXX-01-XXX-D-XXX-MKT.SLDDRW
BY:
ERIC M
