BAS56TR

Description
Rectifier Diode, 2 Element, 0.2A, 60V V(RRM), Silicon,
CategoryDiscrete semiconductor    diode
File Size33KB,2 Pages
ManufacturerCentral Semiconductor
Download Datasheet Parametric Compare View All

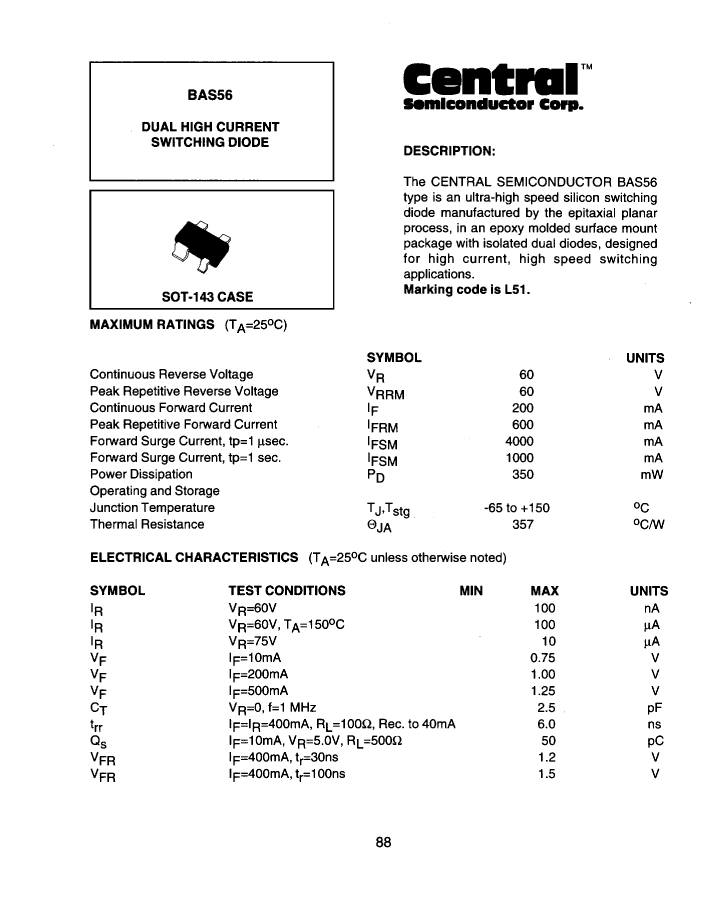

BAS56TR Overview

Rectifier Diode, 2 Element, 0.2A, 60V V(RRM), Silicon,

BAS56TR Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerCentral Semiconductor
package instructionR-PDSO-G4
Reach Compliance Codenot_compliant
ECCN codeEAR99
ConfigurationSEPARATE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.25 V
JESD-30 codeR-PDSO-G4
JESD-609 codee0
Maximum non-repetitive peak forward current4 A
Number of components2
Number of terminals4
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Maximum output current0.2 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum power dissipation0.35 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage60 V
Maximum reverse current10 µA
Maximum reverse recovery time0.006 µs
Reverse test voltage60 V
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED

BAS56TR Related Products

BAS56TR BAS56BK BAS56BKLEADFREE BAS56TR13 BAS56TR13LEADFREE BAS56TRLEADFREE
Description Rectifier Diode, 2 Element, 0.2A, 60V V(RRM), Silicon, Rectifier Diode, 2 Element, 0.2A, 60V V(RRM), Silicon, Rectifier Diode, 2 Element, 0.2A, 60V V(RRM), Silicon, Rectifier Diode, 2 Element, 0.2A, 60V V(RRM), Silicon, Rectifier Diode, 2 Element, 0.2A, 60V V(RRM), Silicon, Rectifier Diode, 2 Element, 0.2A, 60V V(RRM), Silicon,
Is it lead-free? Contains lead Contains lead Lead free Contains lead Lead free Lead free
Is it Rohs certified? incompatible incompatible conform to incompatible conform to conform to
Maker Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor
package instruction R-PDSO-G4 R-PDSO-G4 R-PDSO-G4 R-PDSO-G4 R-PDSO-G4 R-PDSO-G4
Reach Compliance Code not_compliant not_compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Configuration SEPARATE, 2 ELEMENTS SEPARATE, 2 ELEMENTS SEPARATE, 2 ELEMENTS SEPARATE, 2 ELEMENTS SEPARATE, 2 ELEMENTS SEPARATE, 2 ELEMENTS
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 1.25 V 1.25 V 1.25 V 1.25 V 1.25 V 1.25 V
JESD-30 code R-PDSO-G4 R-PDSO-G4 R-PDSO-G4 R-PDSO-G4 R-PDSO-G4 R-PDSO-G4
JESD-609 code e0 e0 e3 e0 e3 e3
Maximum non-repetitive peak forward current 4 A 4 A 4 A 4 A 4 A 4 A
Number of components 2 2 2 2 2 2
Number of terminals 4 4 4 4 4 4
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Minimum operating temperature -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C
Maximum output current 0.2 A 0.2 A 0.2 A 0.2 A 0.2 A 0.2 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED 260 NOT SPECIFIED 260 260
Maximum power dissipation 0.35 W 0.35 W 0.35 W 0.35 W 0.35 W 0.35 W
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 60 V 60 V 60 V 60 V 60 V 60 V
Maximum reverse current 10 µA 10 µA 10 µA 10 µA 10 µA 10 µA
Maximum reverse recovery time 0.006 µs 0.006 µs 0.006 µs 0.006 µs 0.006 µs 0.006 µs
surface mount YES YES YES YES YES YES
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Matte Tin (Sn) TIN LEAD Matte Tin (Sn) Matte Tin (Sn)
Terminal form GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED 10 NOT SPECIFIED 10 10
Reverse test voltage 60 V 60 V 60 V - - 60 V
