MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
High Voltage Transistors
NPN Silicon
COLLECTOR
2
3
BASE
1
EMITTER
BF420
BF422
MAXIMUM RATINGS
Rating
Collector – Emitter Voltage
Collector – Base Voltage
Emitter – Base Voltage
Collector Current — Continuous
Total Device Dissipation @ TA = 25°C
Derate above 25°C
Total Device Dissipation @ TC = 25°C
Derate above 25°C
Operating and Storage Junction
Temperature Range
Symbol
VCEO
VCBO
VEBO
IC
PD
PD
TJ, Tstg
BF420
300
300
5.0
500
625
5.0
1.5
12
– 55 to +150
BF422
250
250
Unit
Vdc
Vdc
Vdc
mAdc
mW
mW/°C
Watts
mW/°C
°C
1
2
3
CASE 29–04, STYLE 14
TO–92 (TO–226AA)
THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance, Junction to Ambient
Thermal Resistance, Junction to Case
Symbol
R
q
JA
R
q
JC
Max
200
83.3
Unit
°C/W
°C/W
ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted)
Characteristic
Symbol
Min
Max
Unit
OFF CHARACTERISTICS
Collector – Emitter Breakdown Voltage(1)
(IC = 1.0 mAdc, IB = 0)
Collector – Base Breakdown Voltage
(IC = 100
m
Adc, IE = 0)
Emitter – Base Breakdown Voltage
(IE = 100
m
Adc, IC = 0)
Collector Cutoff Current
(VCB = 200 Vdc, IE = 0)
Emitter Cutoff Current
(VEB = 5.0 Vdc, IC = 0)
1. Pulse Test: Pulse Width
V(BR)CEO
BF420
BF422
V(BR)CBO
BF420
BF422
V(BR)EBO
BF420
BF422
ICBO
BF420
BF422
IEBO
BF420
BF422
—
—
100
—
—
—
0.01
—
nAdc
5.0
5.0
—
—
µAdc
300
250
—
—
Vdc
300
250
—
—
Vdc
Vdc
v
300
m
s; Duty Cycle
v
2.0%.
Motorola Small–Signal Transistors, FETs and Diodes Device Data
2–245
BF420 BF422
ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted) (Continued)
Characteristic
Symbol
Min
Max
Unit
ON CHARACTERISTICS
DC Current Gain
(IC = 25 mAdc, VCE = 20 Vdc)
Collector – Emitter Saturation Voltage
(IC = 20 mAdc, IB = 2.0 mAdc)
Base – Emitter Saturation Voltage
(IC = 20 mAdc, IB = 2.0 mAdc)
hFE
BF420
BF422
VCE(sat)
—
VBE(sat)
—
2.0
0.5
Vdc
50
50
—
—
Vdc
—
SMALL– SIGNAL CHARACTERISTICS
Current Gain — Bandwidth Product
(IC = 10 mAdc, VCE = 10 Vdc, f = 20 MHz)
Common Emitter Feedback Capacitance
(VCB = 30 Vdc, IE = 0, f = 1.0 MHz)
fT
60
Cre
—
1.6
—
pF
MHz
2–246
Motorola Small–Signal Transistors, FETs and Diodes Device Data
BF420 BF422
200
VCE = 10 Vdc
hFE, DC CURRENT GAIN
TJ = +125°C
100
25°C
50
–55°C
30
20
1.0
2.0
3.0
5.0
7.0
10
IC, COLLECTOR CURRENT (mA)
20
30
50
70
100

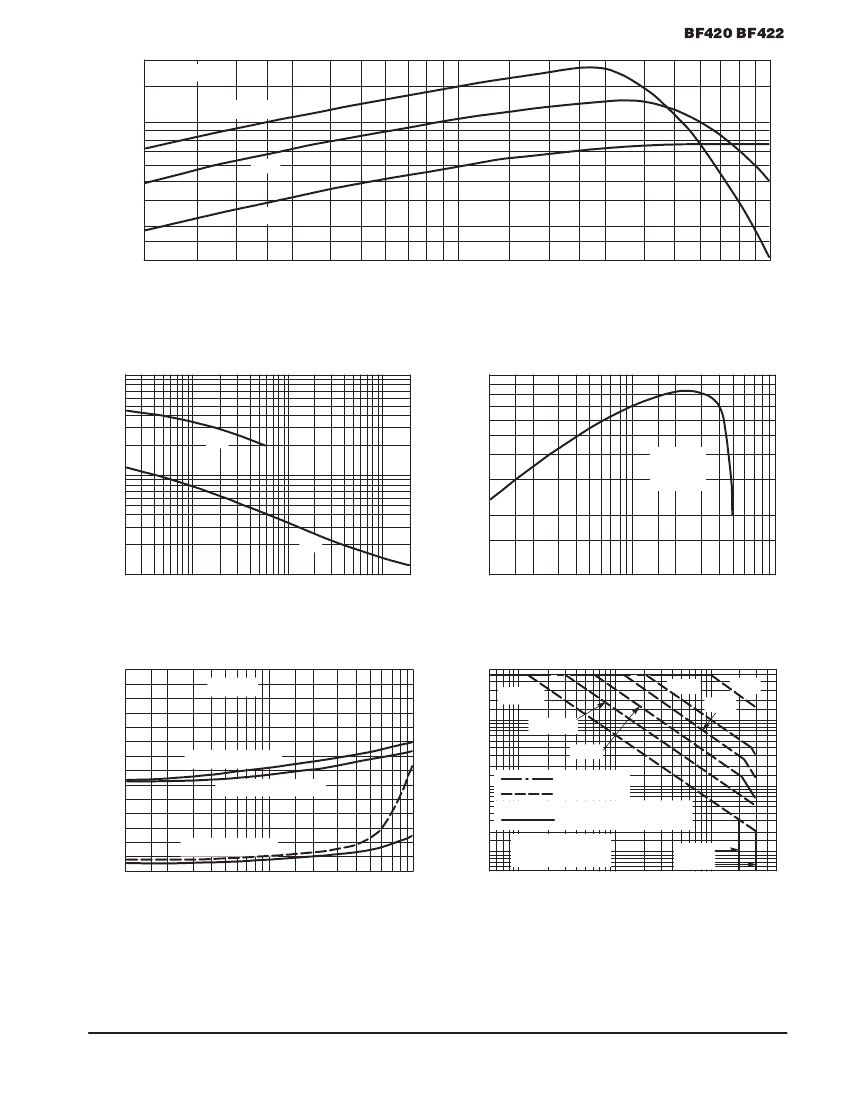

Figure 1. DC Current Gain
100
50
C, CAPACITANCE (pF)
20
10
5.0
Ccb
0.5
1.0 2.0
5.0 10
20
50
VR, REVERSE VOLTAGE (VOLTS)
Ceb
f T, CURRENT–GAIN — BANDWIDTH PRODUCT (MHz)
100
70
50
TJ = 25°C
VCE = 20 V
f = 20 MHz
30
20
2.0
1.0
0.2
100
200
10
1.0
2.0
3.0
5.0 7.0 10
20 30
IC, COLLECTOR CURRENT (mA)
50
70 100
Figure 2. Capacitances
Figure 3. Current–Gain — Bandwidth Product
1.4
IC, COLLECTOR CURRENT (mA)
1.2
V, VOLTAGE (VOLTS)
1.0
0.8
0.6
0.4
0.2
0
1.0
VCE(sat) @ IC/IB = 10
2.0
3.0
5.0 7.0 10
20 30
IC, COLLECTOR CURRENT (mA)
50
70 100
VBE(sat) @ IC/IB = 10
VBE(on) @ VCE = 10 V
TJ = 25°C
500
200
100
50
20
10
5.0
2.0
1.0
0.5
0.5
CURRENT LIMIT
THERMAL LIMIT
(PULSE CURVES @ TC = 25°C)
SECOND BREAKDOWN LIMIT
CURVES APPLY
BELOW RATED VCEO
1.0
2.0
5.0
10
20
MPSA43
MPSA42
50
100
TA = 25°C
TC = 25°C
100 ms
100
µs
10
µs
1.0 ms
200
500
VCE, COLLECTOR–EMITTER VOLTAGE (VOLTS)
Figure 4. “On” Voltages
Figure 5. Maximum Forward Bias
Safe Operating Area
Motorola Small–Signal Transistors, FETs and Diodes Device Data
2–247
