AT29C040-120TI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> AT29C040-120TI

AT29C040-120TI: DescriptionFlash, 512KX8, 120ns, PDSO40, PLASTIC, TSOP1-40; Categorystorage storage; File Size125KB，2 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

AT29C040-120TI Overview

Flash, 512KX8, 120ns, PDSO40, PLASTIC, TSOP1-40

AT29C040-120TI Parametric

Parameter Name	Attribute value
Maker	Atmel (Microchip)
Parts packaging code	TSOP1
package instruction	TSOP1,
Contacts	40
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	120 ns
Other features	HARDWARE & SOFTWARE DATA PROTECTION; AUTOMATIC WRITE; 10 YEARS DATA RETENTION; 1000 PROGRAM CYCLES
Data retention time - minimum	10
JESD-30 code	R-PDSO-G40
length	18.4 mm
memory density	4194304 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	40
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	512KX8
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Programming voltage	5 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
type	NOR TYPE
width	10 mm

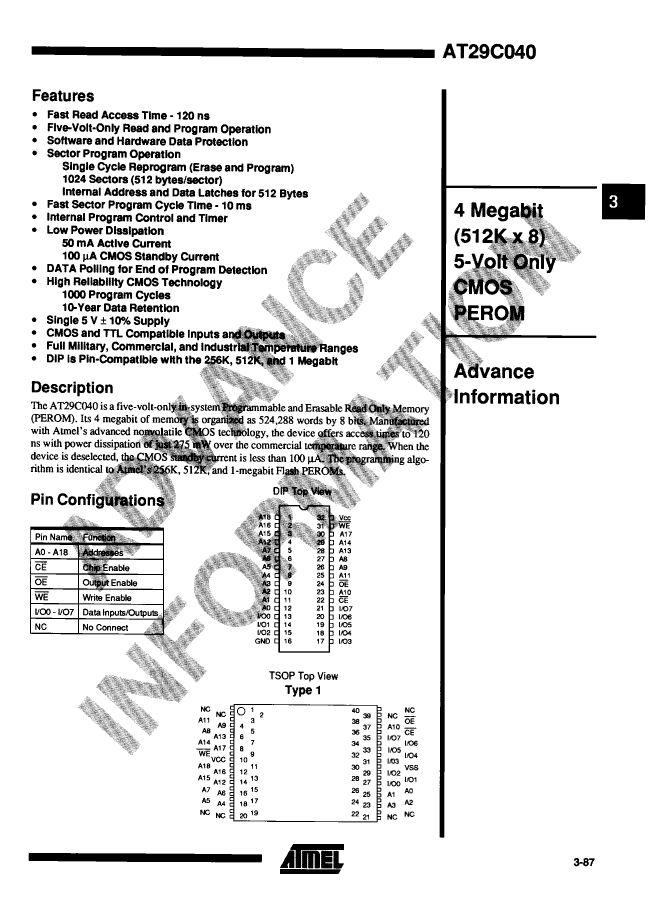

Preview

Download Datasheet

View All

AT29C040-120TI Related Products

	AT29C040-120TI	AT29C040-120PC	AT29C040-120PM/883	AT29C040-120TC	AT29C040-120PI	AT29C040-120TM/883
Description	Flash, 512KX8, 120ns, PDSO40, PLASTIC, TSOP1-40	Flash, 512KX8, 120ns, PDIP32, 0.600 INCH, PLASTIC, DIP-32	Flash, 512KX8, 120ns, PDIP32, 0.600 INCH, PLASTIC, DIP-32	Flash, 512KX8, 120ns, PDSO40, PLASTIC, TSOP1-40	Flash, 512KX8, 120ns, PDIP32, 0.600 INCH, PLASTIC, DIP-32	Flash, 512KX8, 120ns, PDSO40, PLASTIC, TSOP1-40
Parts packaging code	TSOP1	DIP	DIP	TSOP1	DIP	TSOP1
package instruction	TSOP1,	DIP,	DIP,	TSOP1,	DIP,	TSOP1,
Contacts	40	32	32	40	32	40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	3A001.A.2.C	EAR99	EAR99	3A001.A.2.C
Maximum access time	120 ns	120 ns	120 ns	120 ns	120 ns	120 ns
Other features	HARDWARE & SOFTWARE DATA PROTECTION; AUTOMATIC WRITE; 10 YEARS DATA RETENTION; 1000 PROGRAM CYCLES	HARDWARE & SOFTWARE DATA PROTECTION; AUTOMATIC WRITE; 10 YEARS DATA RETENTION; 1000 PROGRAM CYCLES	HARDWARE & SOFTWARE DATA PROTECTION; AUTOMATIC WRITE; 10 YEARS DATA RETENTION; 1000 PROGRAM CYCLES	HARDWARE & SOFTWARE DATA PROTECTION; AUTOMATIC WRITE; 10 YEARS DATA RETENTION; 1000 PROGRAM CYCLES	HARDWARE & SOFTWARE DATA PROTECTION; AUTOMATIC WRITE; 10 YEARS DATA RETENTION; 1000 PROGRAM CYCLES	HARDWARE & SOFTWARE DATA PROTECTION; AUTOMATIC WRITE; 10 YEARS DATA RETENTION; 1000 PROGRAM CYCLES
Data retention time - minimum	10	10	10	10	10	10
JESD-30 code	R-PDSO-G40	R-PDIP-T32	R-PDIP-T32	R-PDSO-G40	R-PDIP-T32	R-PDSO-G40
length	18.4 mm	42.05 mm	42.05 mm	18.4 mm	42.05 mm	18.4 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	40	32	32	40	32	40
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	70 °C	125 °C	70 °C	85 °C	125 °C
Minimum operating temperature	-40 °C	-	-55 °C	-	-40 °C	-55 °C
organize	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1	DIP	DIP	TSOP1	DIP	TSOP1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	IN-LINE	IN-LINE	SMALL OUTLINE, THIN PROFILE	IN-LINE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Programming voltage	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	5.59 mm	5.59 mm	1.2 mm	5.59 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	MILITARY	COMMERCIAL	INDUSTRIAL	MILITARY
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	0.5 mm	2.54 mm	2.54 mm	0.5 mm	2.54 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
width	10 mm	15.24 mm	15.24 mm	10 mm	15.24 mm	10 mm
Maker	Atmel (Microchip)	Atmel (Microchip)	-	-	Atmel (Microchip)	Atmel (Microchip)
