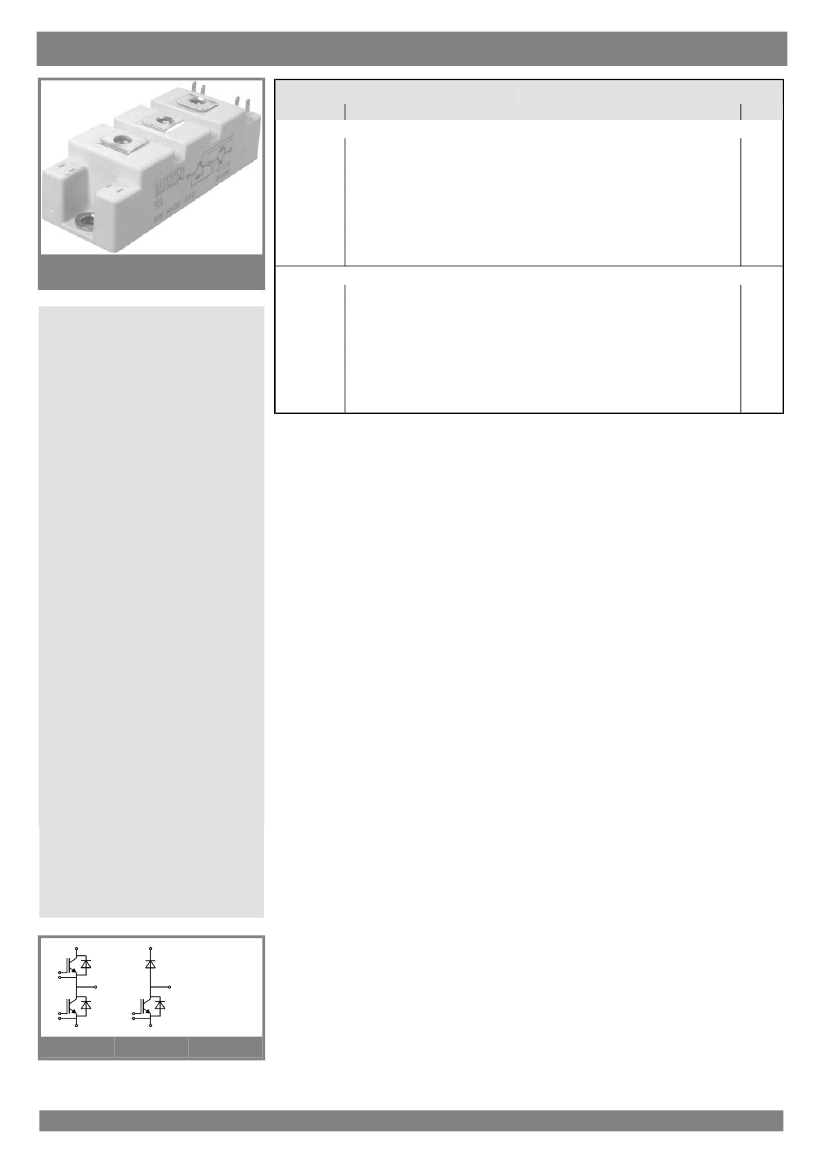

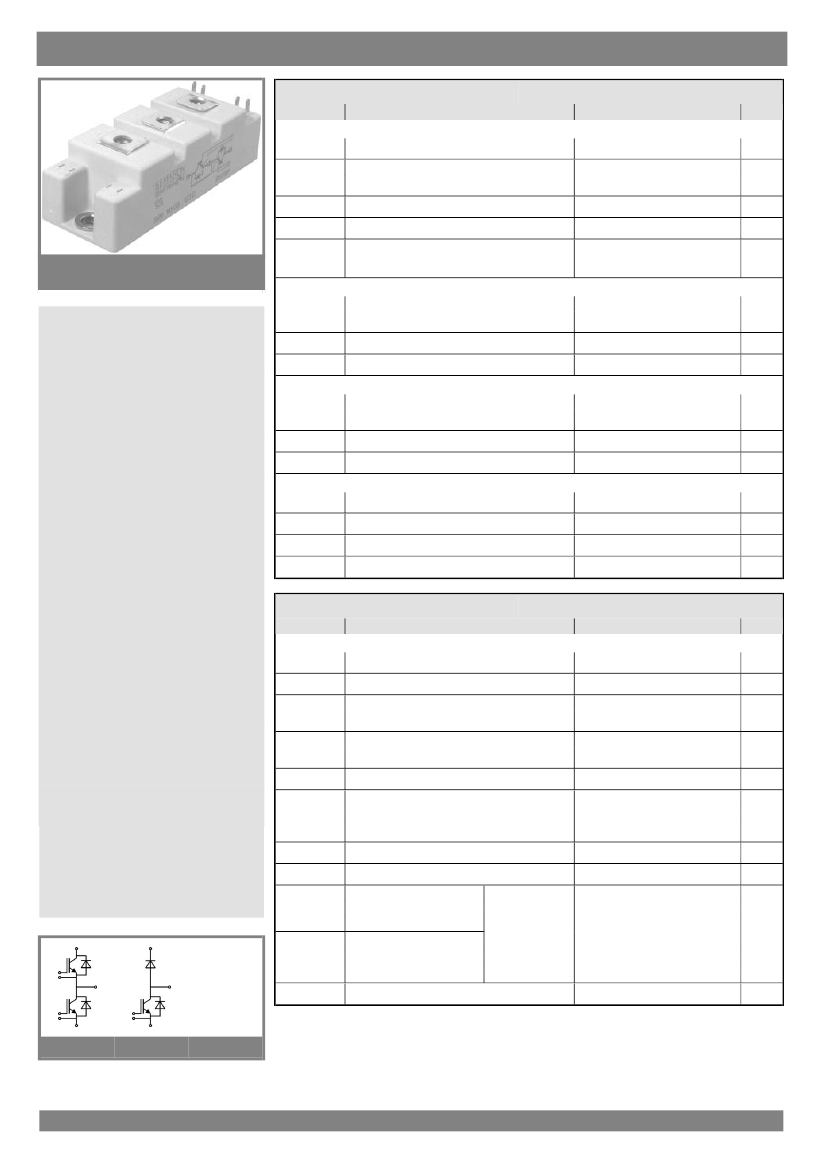

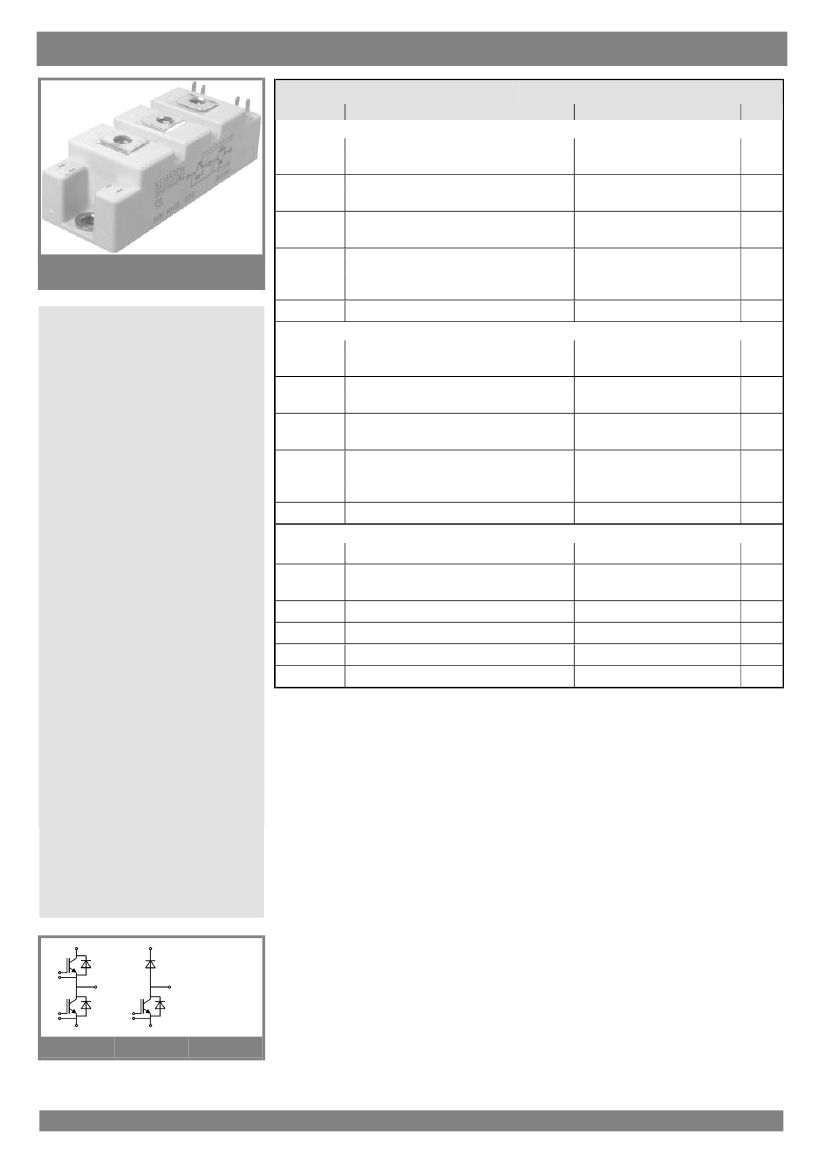

IGBT Modules

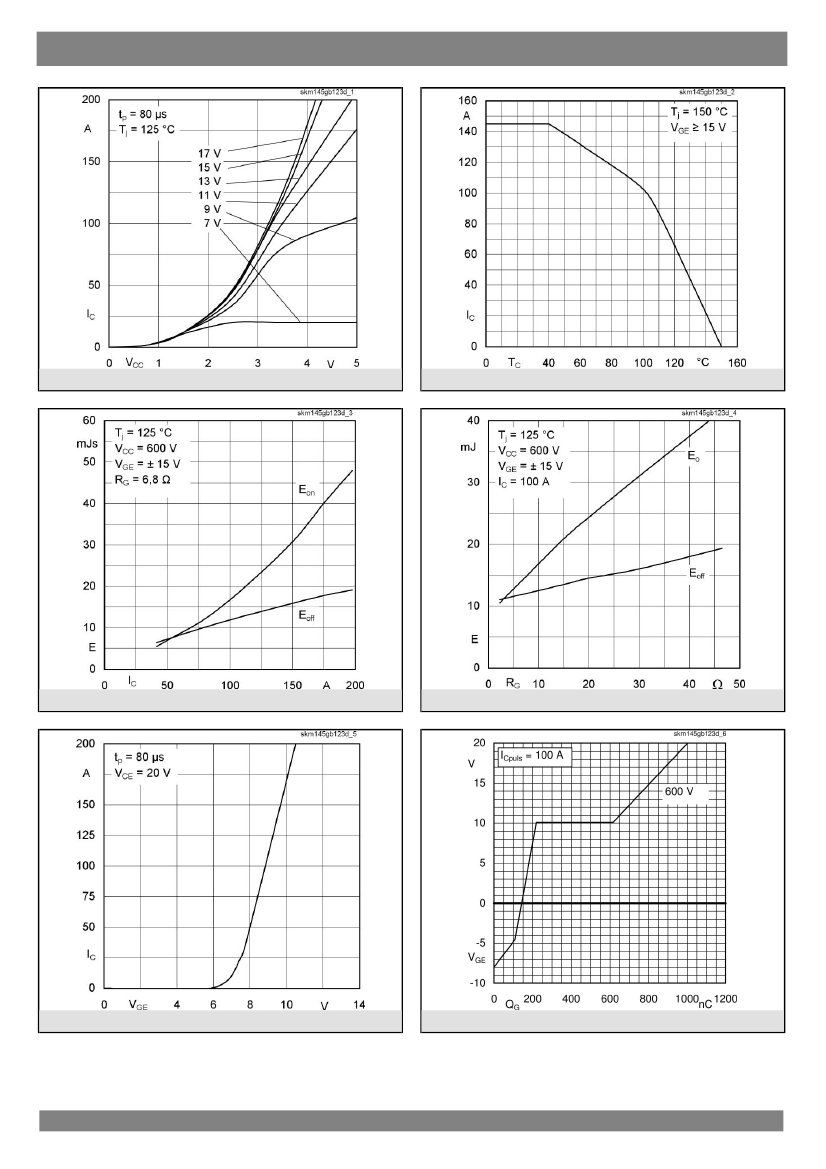

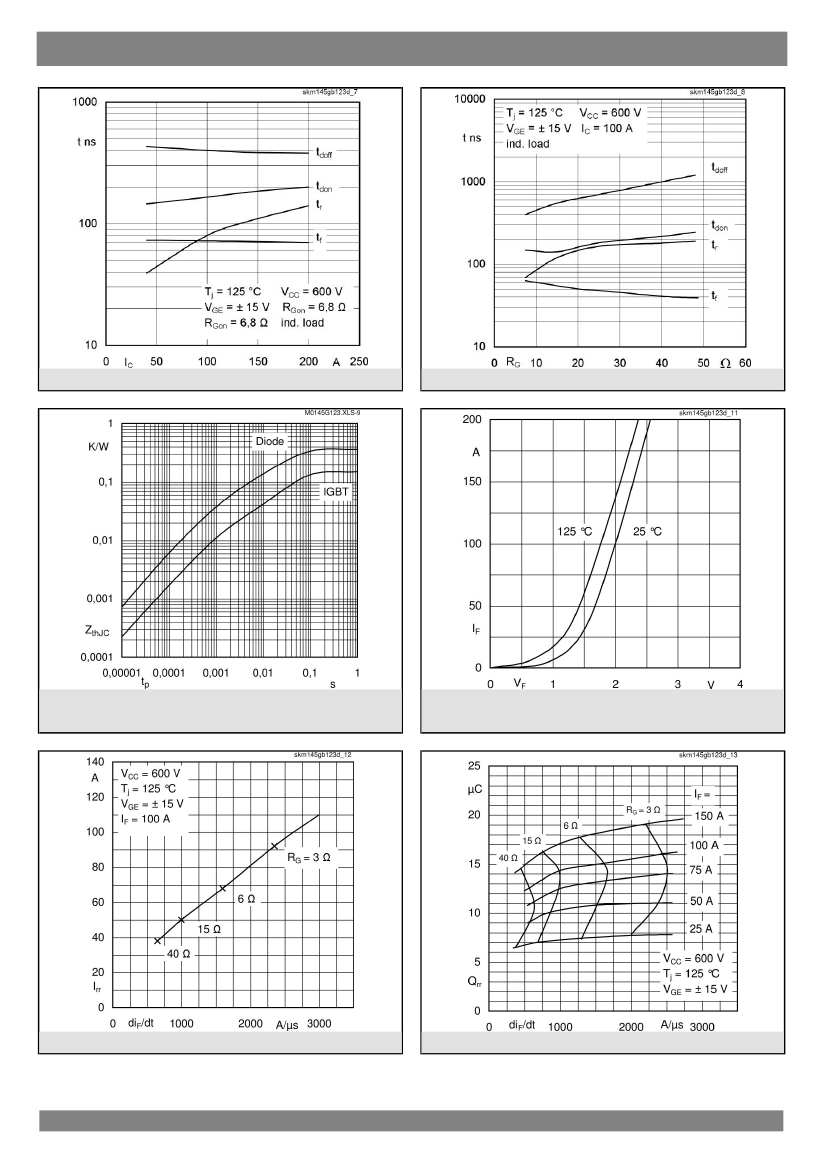

| SKM145GB123D_07 | SKM145GAL123D | SKM145GB123D | |
|---|---|---|---|
| Description | IGBT Modules | IGBT Modules | IGBT Modules |
| Is it lead-free? | - | Lead free | Lead free |
| Is it Rohs certified? | - | conform to | conform to |
| Parts packaging code | - | DO-204 | DO-204 |
| package instruction | - | FLANGE MOUNT, R-XUFM-X5 | FLANGE MOUNT, R-XUFM-X7 |
| Contacts | - | 2 | 2 |
| Manufacturer packaging code | - | CASE D62 | CASE D61 |
| Reach Compliance Code | - | compli | compli |
| Other features | - | UL RECOGNIZED | UL RECOGNIZED |
| Shell connection | - | ISOLATED | ISOLATED |
| Maximum collector current (IC) | - | 145 A | 145 A |
| Collector-emitter maximum voltage | - | 1200 V | 1200 V |
| Configuration | - | SINGLE WITH BUILT-IN DIODE | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE |
| Gate-emitter maximum voltage | - | 20 V | 20 V |
| JESD-30 code | - | R-XUFM-X5 | R-XUFM-X7 |
| JESD-609 code | - | e2 | e2 |
| Number of components | - | 1 | 2 |
| Number of terminals | - | 5 | 7 |
| Maximum operating temperature | - | 150 °C | 150 °C |
| Package body material | - | UNSPECIFIED | UNSPECIFIED |
| Package shape | - | RECTANGULAR | RECTANGULAR |
| Package form | - | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | NOT SPECIFIED |
| Polarity/channel type | - | N-CHANNEL | N-CHANNEL |
| Maximum power dissipation(Abs) | - | 700 W | 700 W |
| Certification status | - | Not Qualified | Not Qualified |
| surface mount | - | NO | NO |
| Terminal surface | - | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) |
| Terminal form | - | UNSPECIFIED | UNSPECIFIED |
| Terminal location | - | UPPER | UPPER |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | NOT SPECIFIED |
| transistor applications | - | POWER CONTROL | POWER CONTROL |
| Transistor component materials | - | SILICON | SILICON |
| Nominal off time (toff) | - | 470 ns | 470 ns |
| Nominal on time (ton) | - | 240 ns | 240 ns |
| VCEsat-Max | - | 3 V | 3 V |
