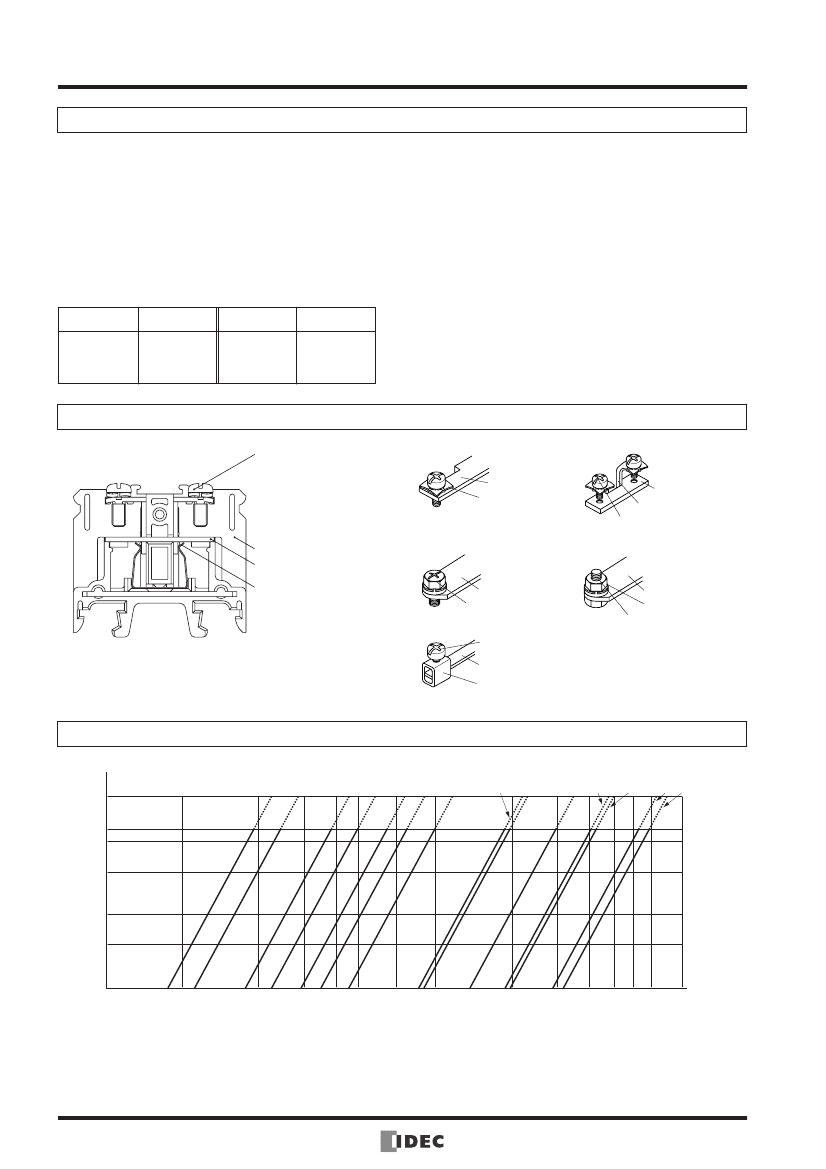

Terminal Blocks
Safety Precautions
•
Remove power to the terminal blocks before starting
installation, removal, wiring, maintenance, and inspection
of the products. Failure to remove power may cause elec-
trical shocks.
•
For wiring, use wires of proper size to meet voltage and
current requirements. Tighten the terminal screws to the
recommended tightening torque. Failure to tighten the ter-
minal screws may cause overheating and fire. Also, the
screws may become loose due to vibrations. Tighten regu-
larly.
•
The recommended tightening torque is shown below:
Screw Size
M3
M3.5
M4
M5
Tightening
Torque (N·m)
0.6 to 1.0
1.0 to 1.3
1.4 to 2.0
2.6 to 3.7
Screw Size
M6
M8
M10
M12
M116
Tightening
Torque (N·m)
3.9 to 5.4
10 to 13.5
21 to 28
38 to 49
83 to 116
•
For large capacity types, take into consideration the ten-
sion of the wires and tightening torque and make sure that
the crimping terminals are not twisted.
•
Grooves on the head of the hex bolt, for large capacity
types are for temporary tightening. For proper tightening,
use an applicable socket wrench and tighten within the
range of the recommended tightening torque.
•
Use an insulated crimping terminal.
•
Install a dust cover after wiring.
Terminal Block Structure
Self-lifting
Terminal Screw (Steel)
Bus bar
Bus bar
Sems plate
L-shaped washer
Screw
Touch-down
Housing
Bus Bar (Brass)
Spring (Stainless Steel)
Screw
(Large capacity type)
Stud
(Large capacity type)
Bus bar
Screw
Bus bar
Nut
Stud
Cage Screw
Screw
Color:
Black
Material: Modified PPE
Bus bar
Cage
BNH10W (Example)
Terminal Types
Selecting Terminal Blocks by Current According to JIS Standards
Current vs. Temperature Rise at Bus Bars
1.25 mm
2
2 mm
2
3.5 mm
2
5.5 mm
2
8 mm
2
14 mm
2
22 mm
2
38 mm
2
60 mm
2
100 mm
2
150 mm
2
200 mm
2
250 mm
2
325 mm
2
60
Temperature rise of bus bars (°C)
45
40
30
20
15
10
5
10
20
30
40
50
70
100
200
300
400
500 600 700
Current (A)
How to read the graph
When using IDEC terminal blocks, make sure that the operating temperature and the temperature of the bus bars do not exceed 100°C. How-
ever, the upper limit of the temperature rise is limited to 45°C by JIS C 2811.
Operating temperature + Temperature rise at bus bars
≤
100°C
Note: Select wires according to the allowable temperature, operating temperature, and temperature rise of bus bars.
4
(07/03/08)

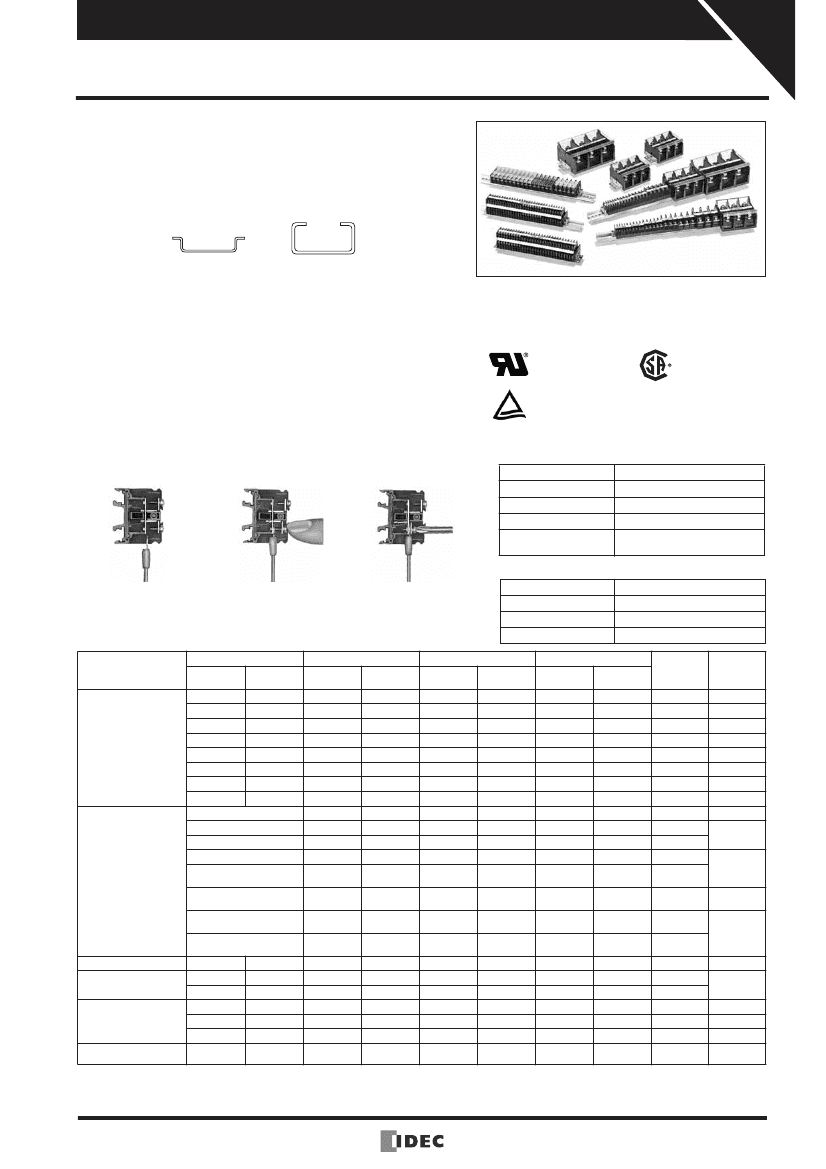

BN-W / BNH-W Series Terminal Blocks
UL recognized, CSA certified, and TÜV compliant.
Touch-down terminals reduce wiring time.
•
Molded from UL94V-0 material with excellent flame and shock
resistance.
•
Terminal blocks can be mounted on a 35-mm-wide DIN rail and
30-mm-wide IEC type C rail.
DIN Rail
IEC Type C Rail
•
9.5-mm-wide marking strips can be used on all models.
17-mm-wide sliding type marking strips also available.
(BN10W to BN30W)
•
Terminal blocks of different shapes and capacities can be installed
without using an end plate. (BN 10W to BN 150W)
•
Screw and stud terminal types available for large capacity terminal
blocks.
•
Additional mounting and removal of terminals is easy.
(BN 10W to BN 150W)
•
Complies with JIS C 2811.
•
UL recognized, CSA certified, and EN compliant
(TÜV approved).
(Except common terminal types)
UL1059
File No. E78117
CSA C 22.2 No.158
File No. LR64803
Touch-down terminal blocks reduce wiring time.
(BNH-W/BNDH-W Series)
1. Insert the Crimping Terminal
2. Push the Screw Down
3. Tighten the Screw
EN60947-1, EN60947-7-1
License No.
Standard Types: R9551701
Large Capacity Types: J9551516
J9650886 (BN500 , BN600
Double-Deck Types: R9650688
only)
Material
Parts Name
Housing
Bus Bars
Terminal Screw
Spring
Material
Modified PPE
Brass (Nickel-plated)
Steel (Zinc chrome-plated)
Stainless steel
(touch-down type only)
➡
Terminal screw is always in
the open position. No need to
loosen the screw.
Push the screw down to
hold the wire in place.
➡
The screws can be tightened
easily with a pneumatic
screwdriver.
General Ratings
Dielectric Strength
Insulation Resistance
Operating Temperature
Operating Humidity
EN Ratings (∗1)
Voltage/
Current
660V/16A
660V/22A
660V/22A
660V/22A
660V/22A
660V/38A
660V/50A
660V/67A
660V/94A
660V/132A
660V/175A
660V/240A
660V/310A
660V/370A
660V/430A
660V/520A
—
—
—
660V/22A
660V/22A
660V/22A
—
2/(22-14)
2/(22-14)
2/(22-14)
—
Wire Size
[mm
2
/(AWG)]
1.25/(22-16)
2/(22-14)
2/(22-14)
2/(22-14)
3.5/(22-14)
5.5/(18-10)
8/(16-8)
14/(16-6)
22/(8-4)
38/(2)
60/(1/0)
100/(4/0)
150/
(300MCM)
200/
(400MCM)
240/
(500MCM)
300/
(600MCM)
—
—
JIS Ratings
Voltage/
Current
600V/16A
600V/16A
600V/21A
600V/21A
600V/30A
600V/40A
600V/50A
600V/70A
600V/94A
600V/132A
600V/175A
600V/240A
600V/310A
600V/370A
600V/430A
600V/520A
600V/20A
600V/10A
600V/10A
600V/16A
600V/21A
600V/21A
600V/16A
Common Current
2500V AC, 1 minute
100 MΩ minimum
–25 to +55°C (no freezing)
45 to 85% RH (no condensation)
Terminal
Screw
M3
M3
M3.5
M3.5
M4
M4
M5
M5
M6
M8
M8
M10
M10
M12
M16
83 to 116
325
5.5
5.5
5.5
1.25 (2)
∗2
2
2
1.25 (2)
∗2
M16
M4
M4
M4
M3
M3.5
M3.5
M3
1.4 to 2.0
1.4 to 2.0
0.6 to 1.0
1.0 to 1.3
1.0 to 1.3
0.6 to 1.0
21 to 28
Tightening
Torque
(N·m)
0.6 to 1.0
0.6 to 1.0
1.0 to 1.3
1.0 to 1.3
1.4 to 2.0
1.4 to 2.0
2.6 to 3.7
2.6 to 3.7
3.9 to 5.4
10 to 13.5
Ratings/Terminal Screw Tightening Torque
Type No.
Types
Self-Lifting
BN10W
BN15MW
BN15LW
Standard Types
BN15MWT
BN15LWT
BN30W
BN40W
BN50W
BN75W
BN100W
BN150W
BN200BW , BN200NW
Large Capacity Types
BN300BW , BN300NW
BN400BW , BN400NW
BN500BW , BN500NW
BN600NW
With Disconnecting Switch
UL/CSA Ratings
Voltage/
Current
600V/10A
600V/10A
600V/15A
600V/15A
600V/15A
600V/30A
600V/40A
600V/50A
600V/75A
600V/100A
600V/150A
600V/200A
600V/310A
600V/350A
600V/500A
600V/600A
—
—
—
—
—
—
600V/10A
600V/15A
600V/15A
—
Wire Size
(AWG)
22-16
22-14
22-14
22-14
22-14
18-10
16-8
16-6
16-4
16-2
16-1/0
4/0
300MCM
400MCM
500MCM
600MCM
—
—
—
22-14
22-14
22-14
—
Touch-Down
BNH10W
BNH15MW
BNH15LW
BNH15MWT
BNH15LWT
BNH30W
BNH40W
BNH50W
Wire Size
(mm
2
)
1.25
1.25 (2)
∗2
2
2
3.5
5.5
8
14
22
38
60
100
150
200
250
38 to 49
BNT20
BNF10S
BNF10N
BND15W
With Fuse
BNDH15W
BNDH15LW
BNDH15WT
—
Double-Deck Types
BND15LW
BND15WT
Common Terminal Types
BN15MC
∗1:
Ratings approved by TÜV based on EN60947-7-1.
∗2:
The rated applicable wire size is 1.25 mm
2
, but 2 mm
2
wires can also be connected. The wire size in ( ) does not comply with JIS standards.
(07/03/08)
5

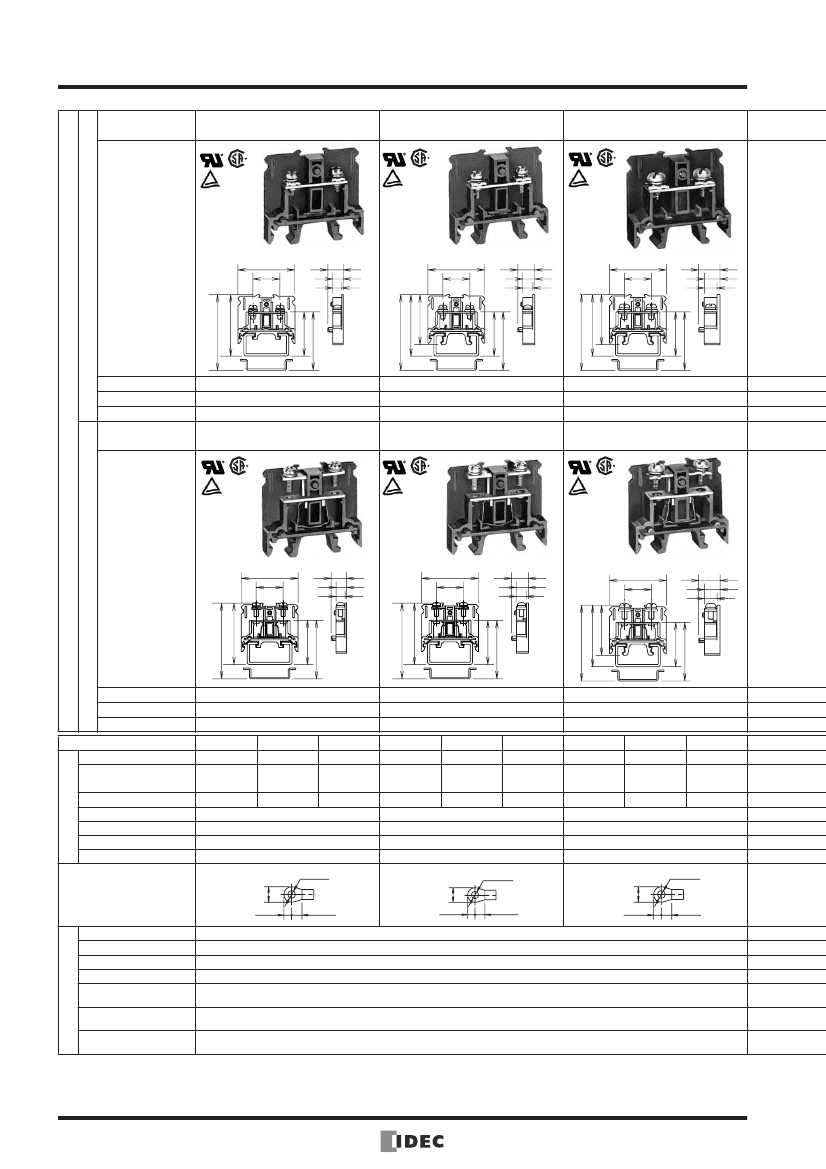

BN-W/BNH-W
Series
Terminal Blocks
Types of Terminal Blocks
Terminal Type
Type No.
Ordering Type No.
Terminal Screw
Width (mm)
Package
Quantity
50
50
50
50
50
50
20
20
50
50
50
50
50
50
20
20
10
5
5
1
Page
•
Standard Types
BN10W
BN15MW
BN15LW
BN15MWT
BN15LWT
BN30W
BN40W
BN50W
BNH10W
BNH15MW
BNH15LW
BNH15MWT
BNH15LWT
BNH30W
BNH40W
BNH50W
BN75W
BN100W
BN150W
BN200BW2
BN200BW3
BN200BW4
BN300BW2
BN300BW3
BN300BW4
BN400BW2
BN400BW3
BN400BW4
BN200NW2
BN200NW3
BN200NW4
BN300NW2
BN300NW3
BN300NW4
BN400NW2
BN400NW3
BN400NW4
BN200BW2K
BN200BW3K
BN200BW4K
BN300BW2K
BN300BW3K
BN300BW4K
BN400BW2K
BN400BW3K
BN400BW4K
BN500BW2K
BN500BW3K
BN500BW4K
BN200NW2K
BN200NW3K
BN200NW4K
BN300NW2K
BN300NW3K
BN300NW4K
BN400NW2K
BN400NW3K
BN400NW4K
BN500NW2K
BN500NW3K
BN500NW4K
BN600NW2K
BN600NW3K
BN600NW4K
BN10WPN50
BN15MWPN50
BN15LWPN50
BN15MWTPN50
BN15LWTPN50
BN30WPN50
BN40WPN20
BN50WPN20
BNH10WPN50
BNH15MWPN50
BNH15LWPN50
BNH15MWTPN50
BNH15LWTPN50
BNH30WPN50
BNH40WPN20
BNH50WPN20
BN75WPN10
BN100WPN05
BN150WPN05
BN200BW2
BN200BW3
BN200BW4
BN300BW2
BN300BW3
BN300BW4
BN400BW2
BN400BW3
BN400BW4
BN200NW2
BN200NW3
BN200NW4
BN300NW2
BN300NW3
BN300NW4
BN400NW2
BN400NW3
BN400NW4
BN200BW2K
BN200BW3K
BN200BW4K
BN300BW2K
BN300BW3K
BN300BW4K
BN400BW2K
BN400BW3K
BN400BW4K
BN500BW2K
BN500BW3K
BN500BW4K
BN200NW2K
BN200NW3K
BN200NW4K
BN300NW2K
BN300NW3K
BN300NW4K
BN400NW2K
BN400NW3K
BN400NW4K
BN500NW2K
BN500NW3K
BN500NW4K
BN600NW2K
BN600NW3K
BN600NW4K
M3
M3
M3.5
M3.5
M4
M4
M5
M5
M3
M3
M3.5
M3.5
M4
M4
M5
M5
M6
M8
M8
M10
7
8
10.5
8
10.5
12
14
15.5
7
8
10.5
8
10.5
12
14
15.5
20
26
26
37
8
Self-Lifting
1-pole
9
8
Touch-Down
1-pole
9
•
Large Capacity Types (Rail Mount Type)
1-pole
2-pole
3-pole
4-pole
2-pole
3-pole
4-pole
2-pole
3-pole
4-pole
2-pole
3-pole
4-pole
2-pole
3-pole
4-pole
2-pole
3-pole
4-pole
2-pole
3-pole
4-pole
2-pole
3-pole
4-pole
2-pole
3-pole
4-pole
2-pole
3-pole
4-pole
2-pole
3-pole
4-pole
2-pole
3-pole
4-pole
2-pole
3-pole
4-pole
2-pole
3-pole
4-pole
2-pole
3-pole
4-pole
11
11
12
13
Screw
M10
44
1
13
M12
57
1
15
M10
37
1
13
Stud
M10
44
1
14
M12
57
1
15
•
Large Capacity Type (Surface Mount Type)
M10
37
1
13
M10
44
1
14
Screw
M12
57
1
15
M16
57
1
16
M10
37
1
13
M10
44
1
14
Stud
M12
57
1
15
M16
57
1
16
M16
57
1
16
∗
The rated applicable wire size is 1.25 mm
2
, but 2 mm
2
wires can also be connected.
The wire size in ( ) does not comply with JIS standards.
6
(07/03/08)
BN-W/BNH-W
Series
Terminal Blocks
Types of Terminal Blocks
Terminal Type
Type No.
Ordering Type No.
Terminal Screw
Width (mm)
Package
Quantity
20
20
17
Page
•
With Disconnecting Switch, Fuse
Disconnecting Switch
With Fuse
1-pole
1-pole
BNT20
BNF10S-
BNF10N-
BND15W
BNDH15W
BND15LW
BNDH15LW
BND15WT
BNDH15WT
BN15MC4
BN15MC8
BN15MC10
BNT20PN20
BNF10S- APN20
BNF10N- APN20
BND15WPN25
BNDH15WPN25
BND15LWPN25
BNDH15LWPN25
BND15WTPN25
BNDH15WTPN25
BN15MC4PN10
BN15MC8PN10
BN15MC10PN10
M4
M4
15
15
•
Double-Deck Terminal Block
Self-Lifiting Type
Touch-Down Type
Self-Lifting Type
Touch-Down Type
Self-Lifting Type
Touch-Down Type
1-pole
1-pole
1-pole
M3
M3.5
M3.5
8
10.5
12
25
25
25
18
•
Common Terminal
Self-Lifting Type 16A
(Common Current)
4-pole
8-pole
10-pole
M3
8
10
19
∗
The wire size in ( ) does not comply with JIS standards.
The rated applicable wire size is 1.25 mm
2
, but 2 mm
2
wires can also be connected.
Specify the fuse rating in place of . 1A: 1, 3A: 3, 5A: 5.
Accessories (
×
: Necessary)
Marking Strip Fastener
Sliding Marking Strip
Surface Mount Clip
Accessories
Rail Mounting Clip
Mounting Clip
Connecting Rod
—
—
—
—
—
—
—
—
×
—
Terminal Types
16A to 40A
Self-Lifting
Touch-Down
50A to 70A
Self-Lifting
Touch-Down
Rail Mount 1-Pole
94A to 175A
Rail Mount
240A to 370A
Surface Mount
240A to 520A
Type No.
BN10W, BN15MW, BN15LW, BN15MWT, BN15LWT,
BN30W
BNH10W, BNH15MW, BNH15LW, BNH15MWT,
BNH15LWT, BNH30W
BN40W, BN50W, BNH40W, BNH50W
×
×
×
×
—
×
×
×
×
×
×
×
×
×
×
—
—
—
—
—
—
—
Standard
—
—
—
—
—
Large Capacity
BN75W, BN100W, BN150W
BN200BW , BN300BW , BN400BW
BN200NW , BN300NW , BN400NW
BN200BW K, BN300BW K, BN400BW K
BN200NW K, BN300NW K, BN400NW K
BN500BW K, BN500NW K, BN600NW K
BNT20
BNF10S, BNF10N
BND15W, BND15LW, BNDH15W, BNDH15LW,
BND15WT, BNDH15WT
BN15MC
—
—
—
—
—
—
—
—
—
—
Supplied
—
×
×
×
—
20
—
×
×
∗1
—
×
×
∗1
—
Supplied
—
—
—
—
—
—
×
—
—
—
—
—
—
—
—
—
∗2
—
—
—
×
—
With Disconnecting Switch
With Fuse
Double-Deck
Common Terminal
—
—
—
×
×
×
×
×
—
21
22
Page
—
23, 24
∗1:
Accessory not necessary for surface mounting.
∗2:
Accessory not necessary for rail mounting.
Specify the number of poles in place of
.
(07/03/08)
Connecting Nut
Removal Tool
Marking Strip
Dust Cover
End Plate
Jumper
When ordering accessories, check if the accessories are necessary by
referring to the table.
×
: Necessary
: Optional
Rail
7
BN-W/BNH-W
Series
Terminal Blocks
Type No.
BN10W
BN15MW
BN15LW
Self-Lifting Terminal
Dimensions
38
18
5.9
When using C Rail: 41
10.3
7
When using C Rail: 41
38
18
6.7
When using DIN Rail: 35
11.3
8
When using C Rail: 41
38
18
14.3
10.5
8.5
When using DIN Rail: 35
When using DIN Rail: 35
33.5
29.5
23.5
33.5
Standard Type
Ordering Type No.
Package Quantity
Weight (Approx.)
Type No.
BN10WPN50
50
6.5g
BN15MWPN50
50
7.3g
BN15LWPN50
50
10g
BNH10W
BNH15MW
BNH15LW
Touch-Down Terminal
Dimensions
38
18
5.9
When using C Rail: 41
10.3
7
When using C Rail: 41
38
18
6.7
When using DIN Rail: 35
11.3
8
38
18
When using C Rail: 41
29.5
23.5
29.5
23.5
14.3
10.5
8.5
When using DIN Rail: 35
When using DIN Rail: 35
29.5
23.5
29.5
23.5
33.5
Ordering Type No.
Package Quantity
Weight (Approx.)
Standards
Insulation Voltage
Specification / Ratings
Wire Size
∗1
Rated Current
∗2
Terminal screw
Crimping Terminal
Max. No. of Crimping Terminals
BNH10WPN50
50
7.5g
UL/CSA
600V
EN
660V
JIS
600V
1.25 mm
2
16A
UL/CSA
600V
BNH15MWPN50
50
8.2g
EN
660V
JIS
600V
UL/CSA
600V
BNH15LWPN50
50
11.2g
EN
660V
JIS
600V
2 mm
2
21A
1.25 mm
2
22-16 AWG (22-16 AWG)
10A
16A
M3
1.25-3
2
0.6 to 1.0 N·m
2 mm
2
2 mm
2
1.25 mm
2
22-14 AWG (22-14 AWG) (2mm
2
max) 22-14 AWG (22-14 AWG)
10A
22A
M3
1.25-3 (2-3)
2
0.6 to 1.0 N·m
ø3.2 min.
6.6 max.
8.5 max.
3.3 min.
5 max.
4 min.
16A
15A
22A
M3.5
2-3.5
2
1.0 to 1.3 N·m
ø3.6 min.
Tightening Torque
ø3.2 min.
Crimping Terminal
Dimensions (mm)
∗3
End Plate
Dust Cover
Marking Strip
Marking Strip Fastner
DIN Rail/Mounting Cip
C Rail/Mounting Clip
DIN + C Rail/Mounting Clip
5.8 max.
5 max.
3.3 min.
5 max.
Accessories
BNE15W (see page 20)
BNC230 (see page 21)
PVC 1m/BNM7, Fiber glass 1m/BNM9, PVC 25m/BNM725 (see page 22)
BNM3 (see page 22)
Aluminum: BAA1000, Steel: BAP1000 (see page 20)/BNL6 (see page 21)
Aluminum: BNCA1000, Steel: BNCP1000 (see page 20)/BNL7 (see page 21)
Aluminum: BNJA1000 (see page 20)/BNL6, BNL7 (see page 21)
∗1:
The wire size in ( ) does not comply with JIS standards.
∗2:
The rated current differs according to operating conditions. See “Selecting Terminal Blocks by Current According to JIS Standards” on page 4.
∗3:
Use a CSA certified crimping terminal when using the terminal block as a CSA certified product.
29.5
23.5
8
(07/03/08)
京公网安备 11010802033920号
EEWORLD
