HM2P08PDS171N9LF: DescriptionBoard Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size109KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P08PDS171N9LF Overview

Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

HM2P08PDS171N9LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	175
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

1 e

P

O

S

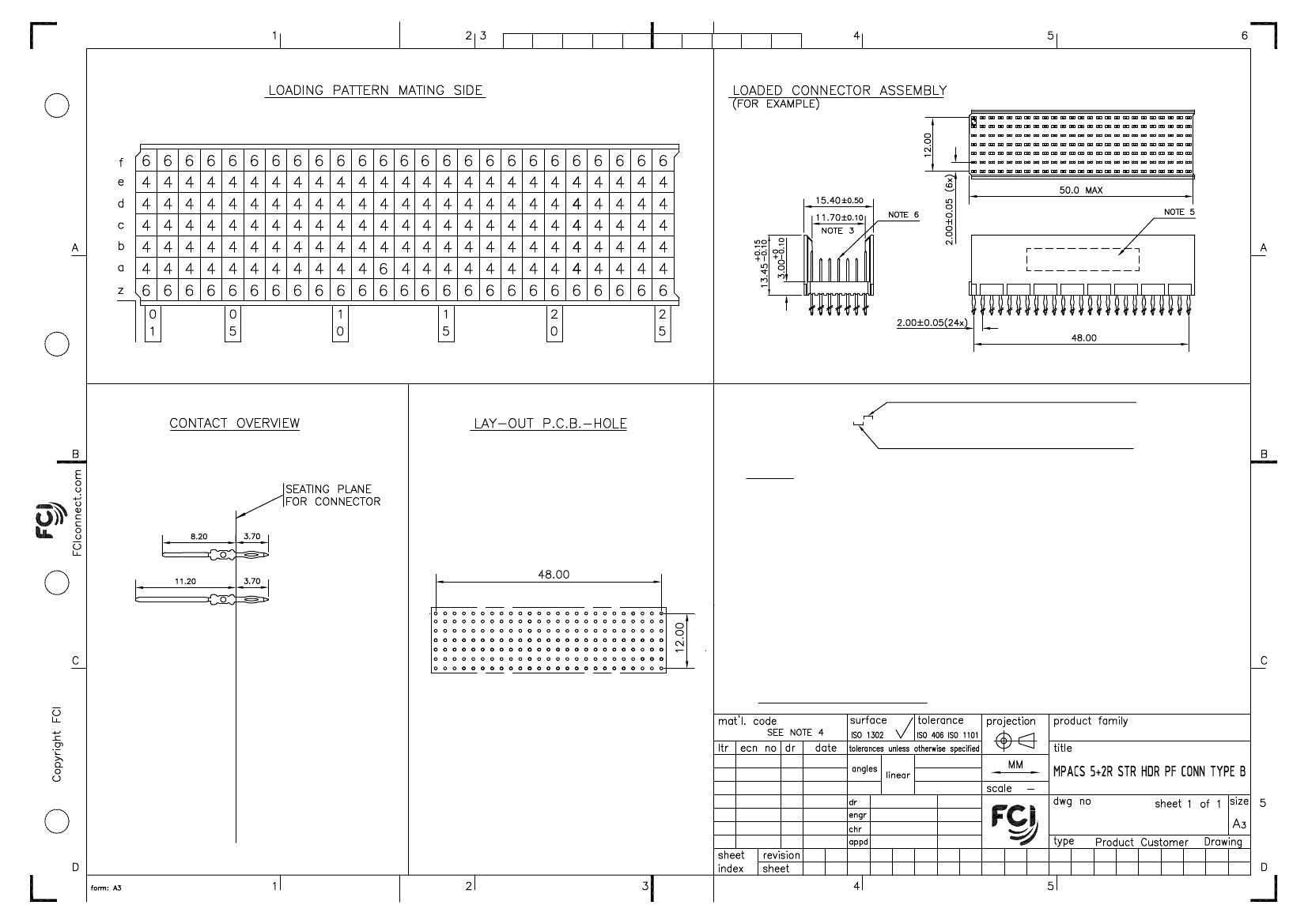

HM2P08PDS171----

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

4

6

CATALOG NO: HM2P08PDS171----

a

MILLIPACS

A

B

I05-0253

I06-0132

MINI

2005-11-24

2006-08-01

0°±1°

MINI K VANDANATH 2005-11-24

BIJU K PAUL

B

1

2005-11-24

2006-08-01

.0±0.2

.00±0.1

BS, C ,203028,564

6

PDM: Rev:B

STATUS:

Released

Printed: Dec 04, 2007

.

2 5

HM2P08PDS171N9LF Related Products

	HM2P08PDS171N9LF	HM2P08PDS171E9LF	HM2P08PDS171E9	HM2P08PDS171N9	HM2P08PDS171Z1LF	1476-1
Description	Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Medium Power, N or SMK Connectors
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	-
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	-
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Contact completed and terminated	MATTE TIN	MATTE TIN	TIN LEAD	TIN LEAD	MATTE TIN	-
Contact point gender	MALE	MALE	MALE	MALE	MALE	-
DIN compliance	NO	NO	NO	NO	NO	-
Filter function	NO	NO	NO	NO	NO	-
IEC compliance	NO	NO	NO	NO	NO	-
JESD-609 code	e3	e3	e0	e0	e3	-
MIL compliance	NO	NO	NO	NO	NO	-
Manufacturer's serial number	HM2	HM2	HM2	HM2	HM2	-
Mixed contacts	NO	NO	NO	NO	NO	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	-
Number of rows loaded	7	7	7	7	7	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	-
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	-
Total number of contacts	175	175	175	175	175	-
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	-
