SKM300GB063D_08 datasheet, PDF

Datasheet> All Categories > semiconductor> Discrete semiconductor> SKM300GB063D_08

SKM300GB063D_08: Description400 A, 600 V, N-CHANNEL IGBT; Categorysemiconductor Discrete semiconductor; File Size673KB，6 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com

Download Datasheet Parametric Compare View All

SKM300GB063D_08 Overview

400 A, 600 V, N-CHANNEL IGBT

SKM300GB063D_08 Parametric

Parameter Name	Attribute value
Number of terminals	5
Rated off time	600 ns
Maximum collector current	400 A
Maximum Collector-Emitter Voltage	600 V
Processing package description	CASE D57, SEMITRANS3-7
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	RECTANGULAR
Package Size	FLANGE MOUNT
Terminal form	UNSPECIFIED
terminal coating	TIN/SILVER
Terminal location	UPPER
Packaging Materials	UNSPECIFIED
structure	SINGLE WITH BUILT-IN DIODE
Shell connection	ISOLATED
Number of components	1
transistor applications	POWER CONTROL
Transistor component materials	SILICON
Channel type	N-CHANNEL
Transistor type	INSULATED GATE BIPOLAR
Rated on time	240 ns

Preview

Download Datasheet

View All

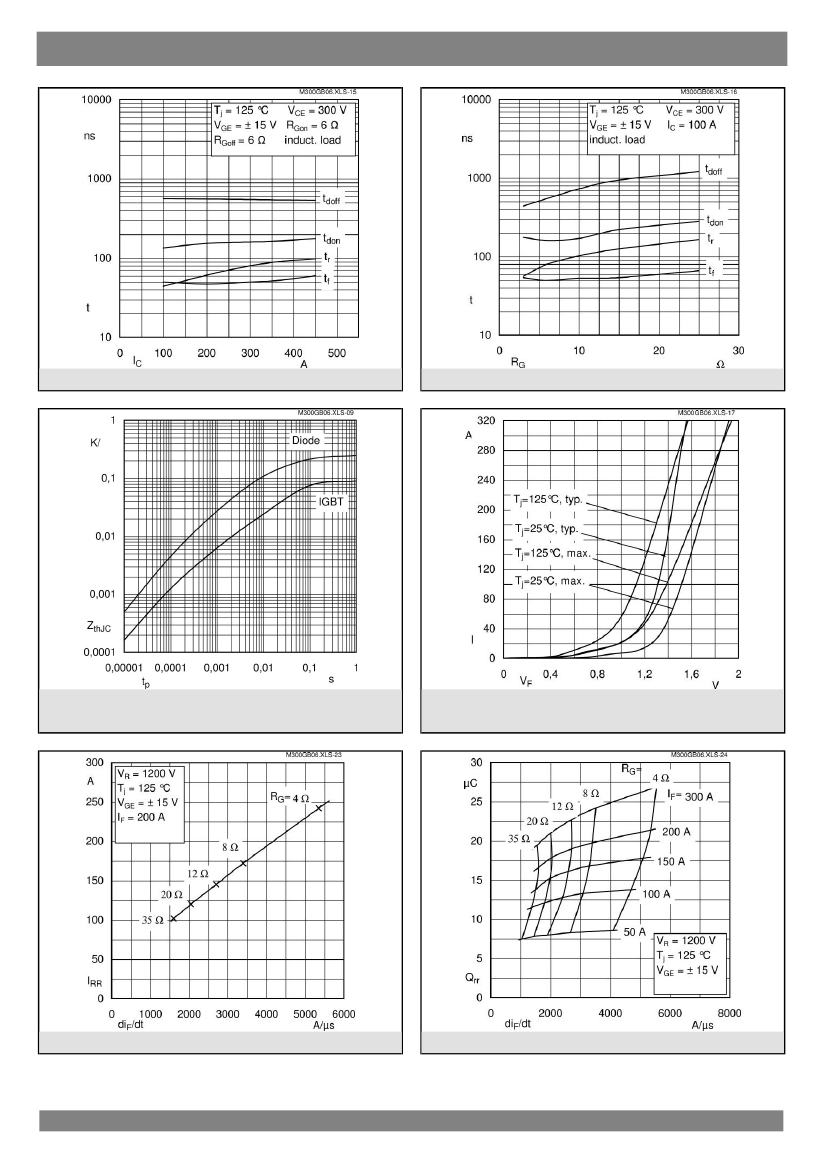

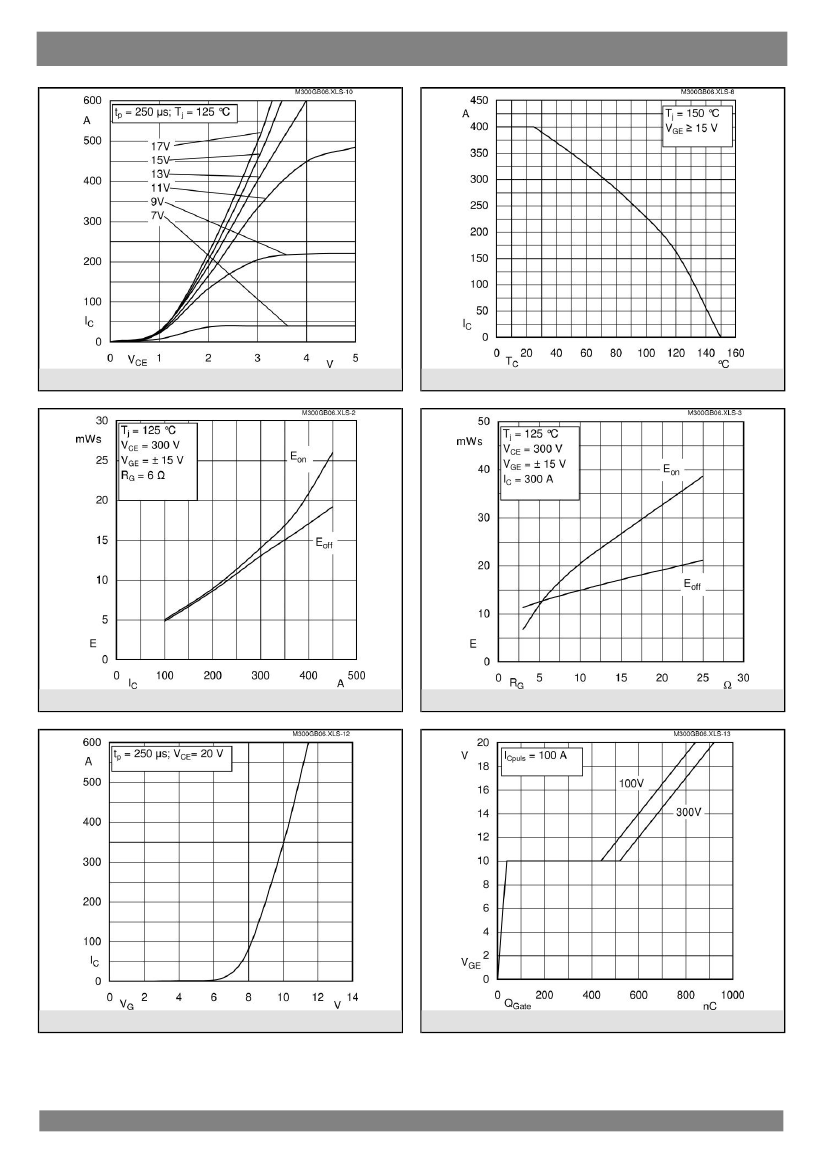

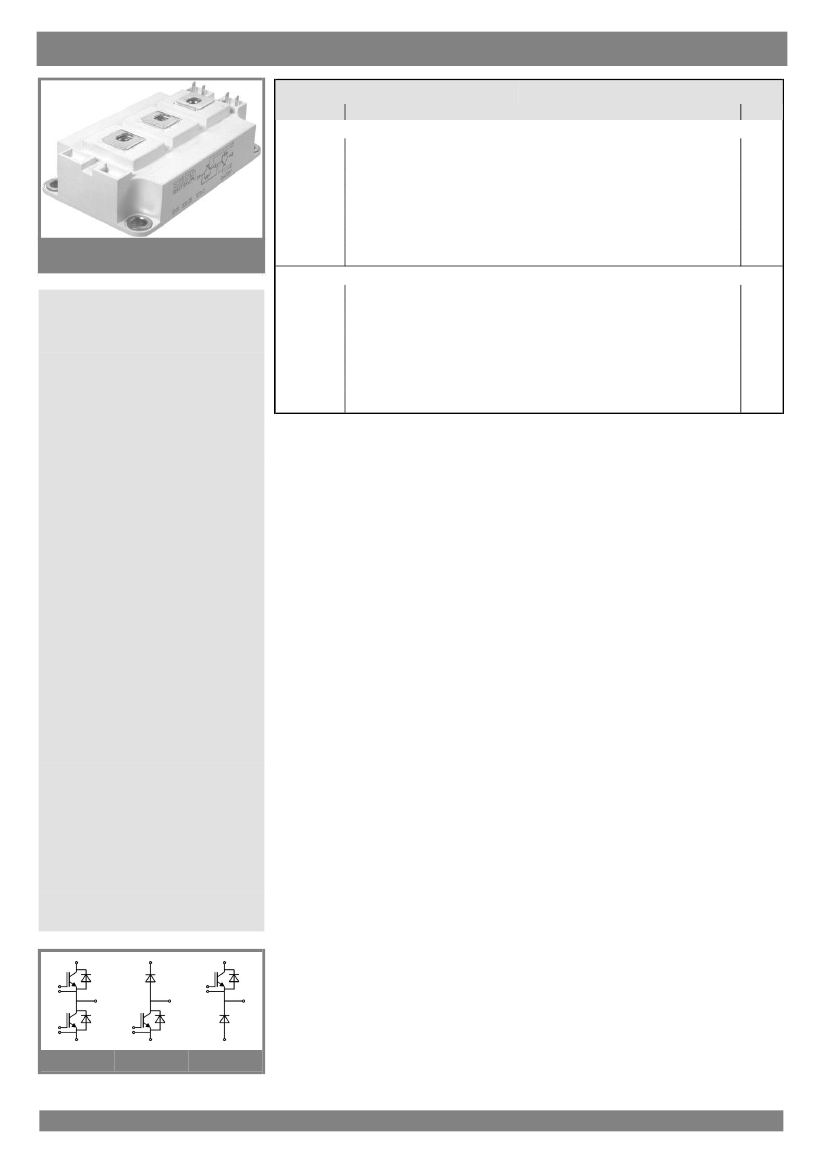

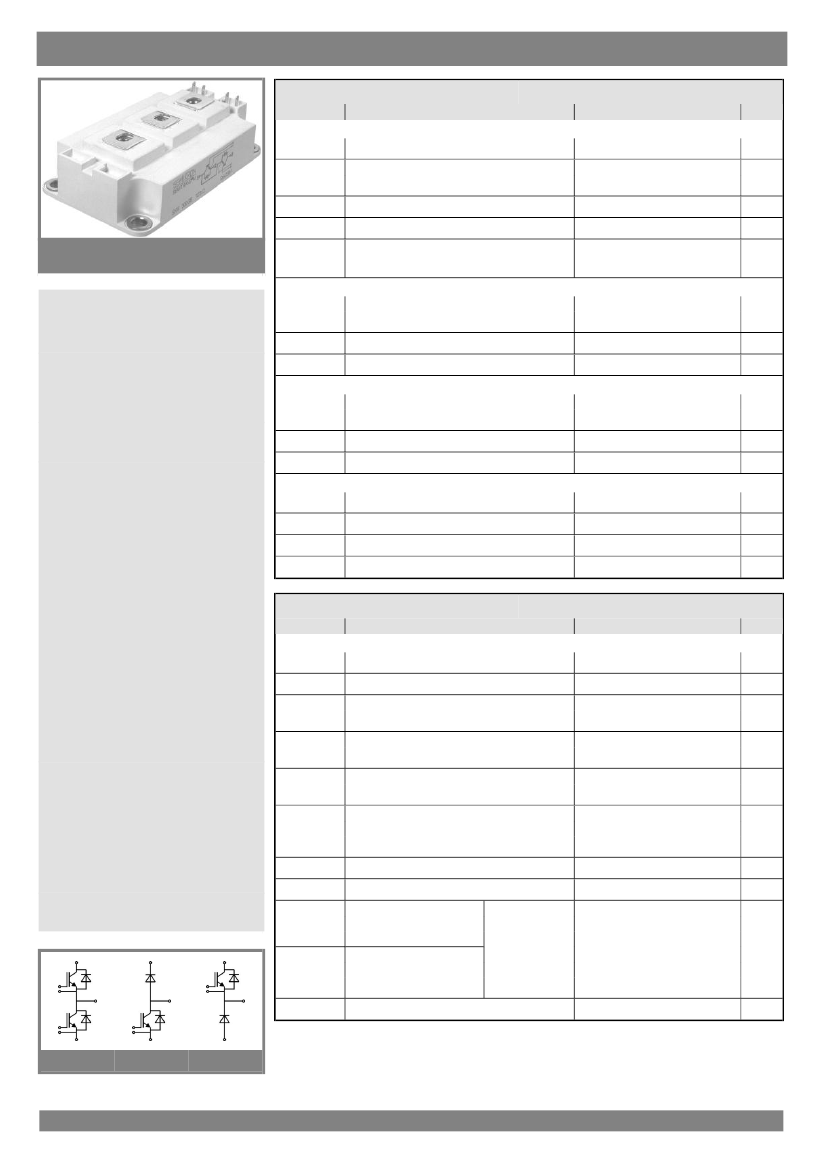

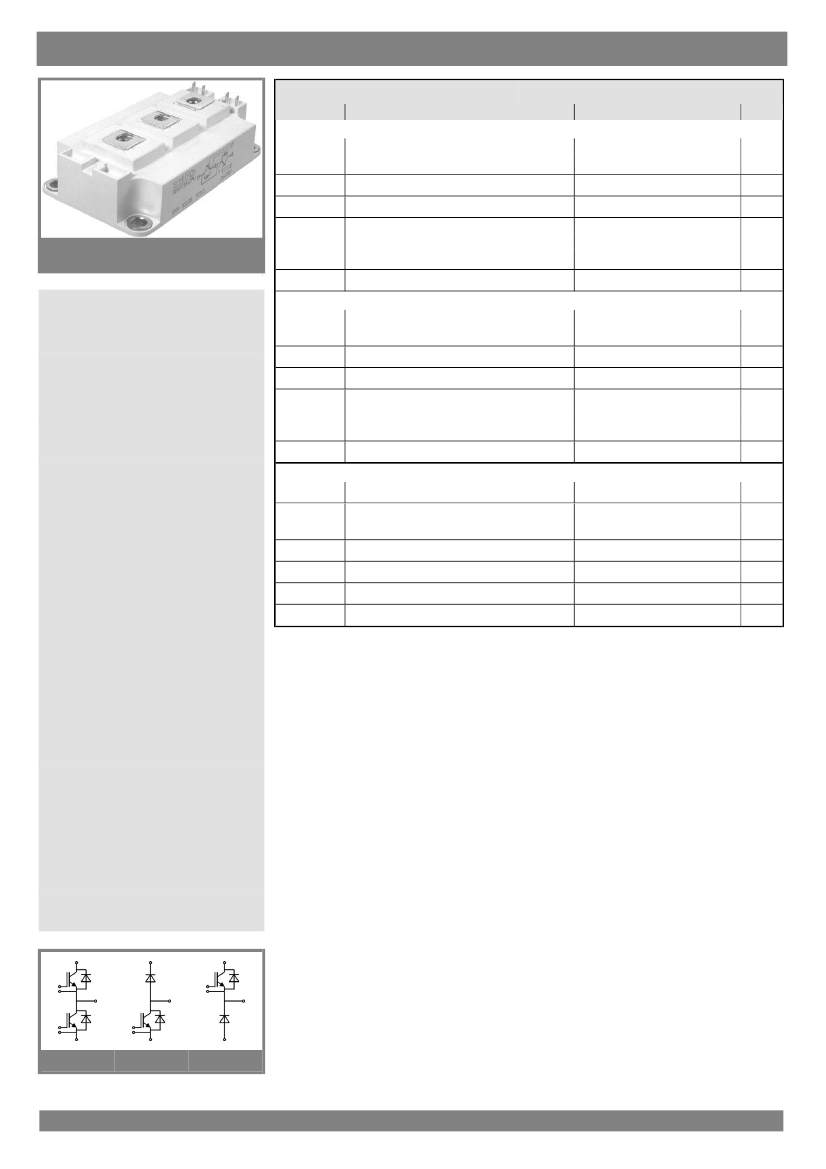

SKM 300GB063D

Absolute Maximum Ratings

Symbol Conditions

IGBT

Values

Units

SEMITRANS

Superfast IGBT Modules

SKM 300GB063D

SKM 300GAR063D

SKM 300GAL063D

Freewheeling Diode

Inverse Diode

Features

Module

Characteristics

Symbol Conditions

IGBT

min.

typ.

max.

Units

Typical Applications

GAL

GAR

03-12-2008 NOS

SKM300GB063D_08 Related Products

	SKM300GB063D_08	SKM300GAL063D	SKM300GB063D	SKM300GAR063D
Description	400 A, 600 V, N-CHANNEL IGBT	400 A, 600 V, N-CHANNEL IGBT	400 A, 600 V, N-CHANNEL IGBT	400 A, 600 V, N-CHANNEL IGBT
Number of terminals	5	5	7	5
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Number of components	1	1	2	1
transistor applications	POWER CONTROL	POWER CONTROL	POWER CONTROL	POWER CONTROL
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Is it lead-free?	-	Lead free	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	conform to
Maker	-	SEMIKRON	SEMIKRON	SEMIKRON
Parts packaging code	-	DO-204	DO-204	DO-204
package instruction	-	CASE D57, SEMITRANS3-7	CASE D56, SEMITRANS3-7	FLANGE MOUNT, R-XUFM-X5
Contacts	-	2	2	2
Manufacturer packaging code	-	CASE D57	CASE D56	CASE D58
Reach Compliance Code	-	compli	compli	compli
ECCN code	-	EAR99	EAR99	EAR99
Other features	-	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Maximum collector current (IC)	-	400 A	400 A	400 A
Collector-emitter maximum voltage	-	600 V	600 V	600 V
Configuration	-	SINGLE WITH BUILT-IN DIODE	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Gate-emitter maximum voltage	-	20 V	20 V	20 V
JESD-30 code	-	R-XUFM-X5	R-XUFM-X7	R-XUFM-X5
JESD-609 code	-	e2	e2	e2
Maximum operating temperature	-	150 °C	150 °C	150 °C
Package body material	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	-	N-CHANNEL	N-CHANNEL	N-CHANNEL
Maximum power dissipation(Abs)	-	1350 W	1350 W	1350 W
Certification status	-	Not Qualified	Not Qualified	Not Qualified
surface mount	-	NO	NO	NO
Terminal surface	-	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal off time (toff)	-	600 ns	600 ns	600 ns
Nominal on time (ton)	-	240 ns	240 ns	240 ns
