5487BP15B675 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 5487BP15B675

5487BP15B675: Description5487.5 MHz, BAND PASS FILTER; CategoryAnalog mixed-signal IC filter; File Size114KB，2 Pages; ManufacturerJohanson Dielectrics

Download Datasheet Parametric View All

5487BP15B675 Overview

5487.5 MHz, BAND PASS FILTER

5487BP15B675 Parametric

Parameter Name	Attribute value
Maker	Johanson Dielectrics
Reach Compliance Code	unknown
ECCN code	EAR99
average input power	3 W
Center frequency or cutoff frequency (fo/fc)	5487.5 MHz
filter type	BAND PASS FILTER
high	0.85 mm
input resistance	50 OHM
Maximum insertion loss	1.8 dB
length	2 mm
Installation type	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output impedance	50 OHM Ω
method of packing	TAPE AND REEL
physical size	L2XB1.25XH0.85 (mm)/L0.079XB0.049XH0.034 (inch)
width	1.25 mm

Preview

Download Datasheet

View All

“High Frequency Ceramic Solutions”

5.5 GHz Band Pass Filter

Detail Specification

P/N 5487BP15B675

Rev. 01/29/2002 Page 1 of 2

Part

Number

5487BP15B675_

Frequency

(MHz)

5150 - 5825

Insertion

Loss

1.8 dB max

Attenuation (min.)

35 dB @ 2.57-2.90 GHz

22 dB @ 10.3-11.65 GHz

30 dB @ 15.45-17.47 GHz

Return

Loss

9.5 dB min.

Ripple

0.7 dB max.

Input Power

3 Watts max

Group Delay

5.0 nS max.

Impedance

Ω

Operating Temperature Range

-40 to +85°C

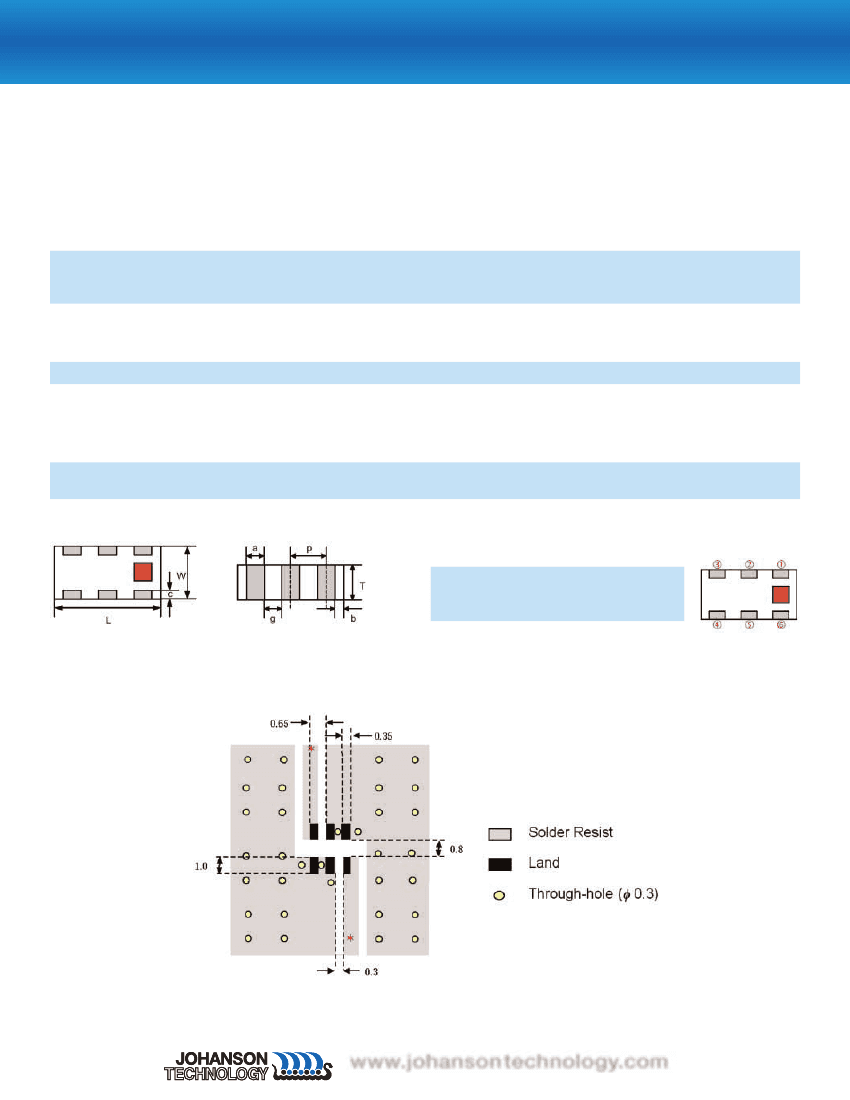

Mechanical Dimensions

Inches

0.079 ± .004

2.0 ± 0.1

0.049± .004

1.25 ± 0.1

0.034 ± .004

0.85 ± 0.1

0.012 ± .004

0.30 ± 0.1

0.008 ± .004

0.20 ± 0.1

0.012 + .004/-.008

0.30+0.1/-0.2

0.014 ± .004

0.35 ± 0.1

0.026 ±.002

0.65 ± 0.05

Terminal Configuration

GND

I/O

GND

I/O

Mounting Considerations

Mount these devices with brown colored side facing up.

Line width should be designed to provide 50Ω impedance matching characteristics.

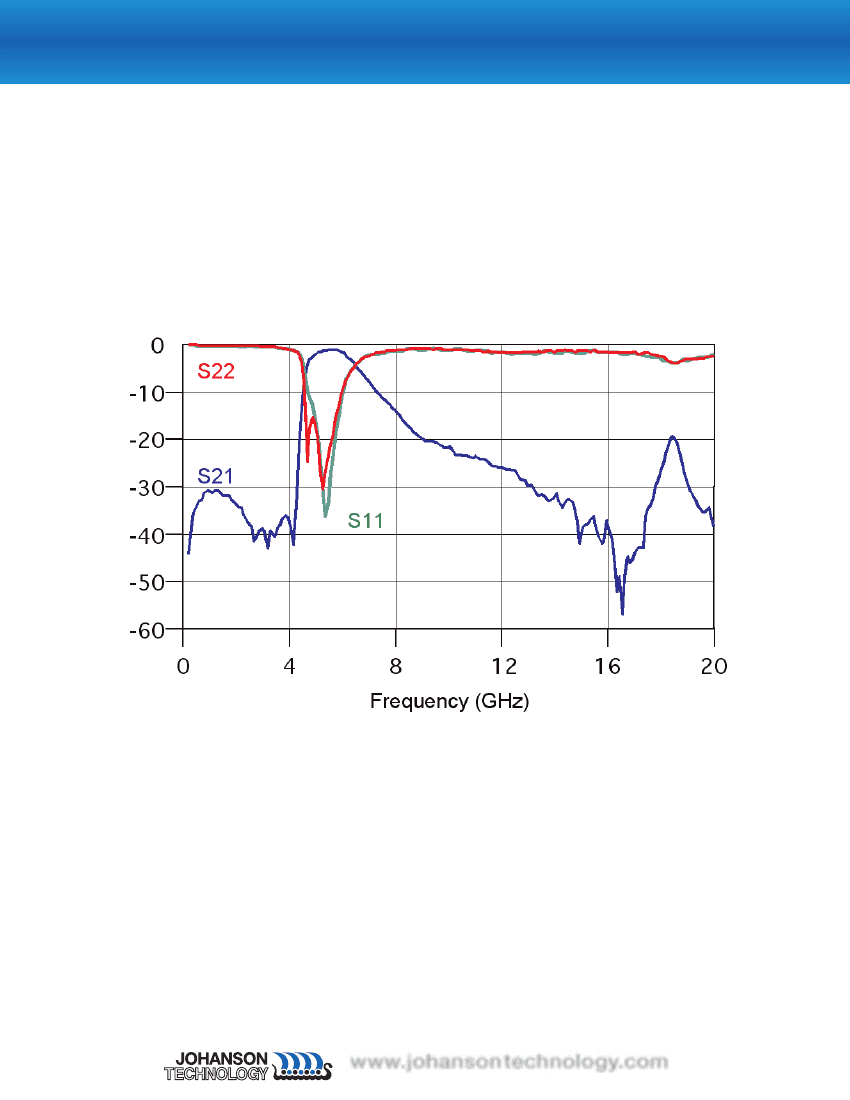

Johanson Technology, Inc. reserves the right to make design changes without notice.

All sales are subject to Johanson Technology, Inc. terms and conditions.

www.johanson technology.com

931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
