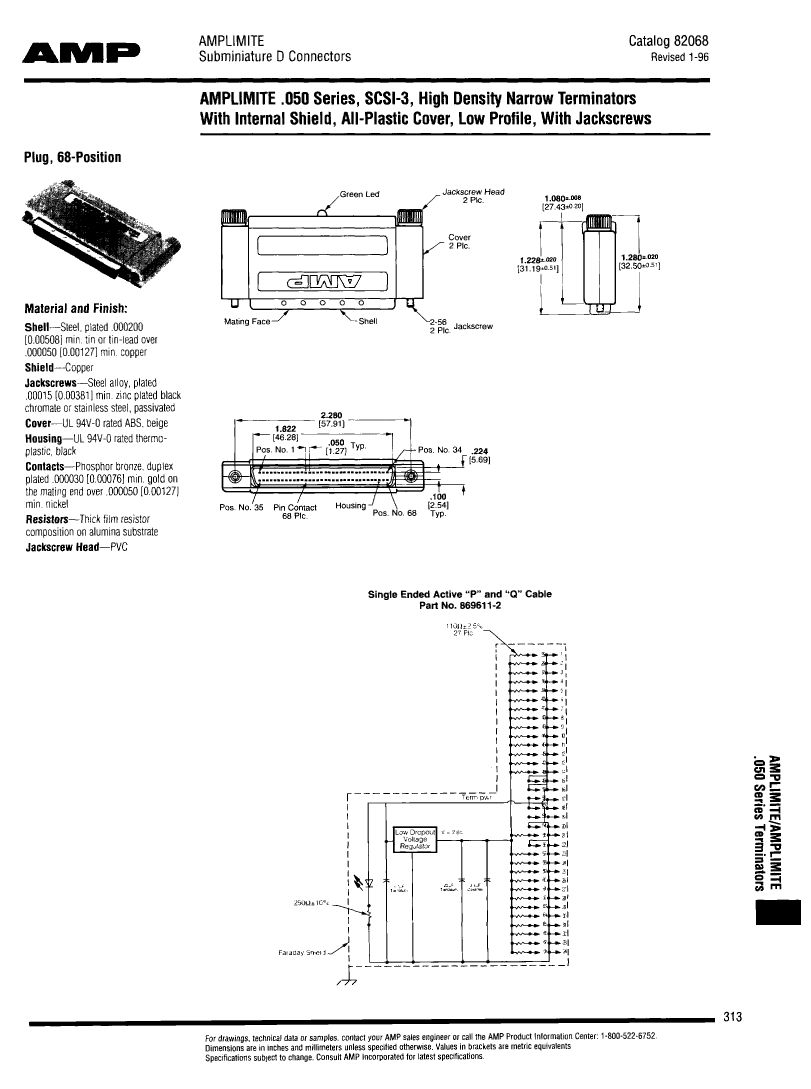

869611-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 869611-2

869611-2: DescriptionSCSI BUS TERMINATOR,RECEPT,68 CONTACTS,PIN,0.05 PITCH,#2-56; CategoryThe connector The connector; File Size241KB，6 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

869611-2 Overview

SCSI BUS TERMINATOR,RECEPT,68 CONTACTS,PIN,0.05 PITCH,#2-56

869611-2 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	COPPER INTERNAL SHIELD
subject depth	1.08 inch
Body/casing type	RECEPTACLE
circuit terminal	SINGLE ENDED ACTIVE
Connector type	SCSI CONNECTOR TERMINATOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Filter function	YES
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	.050
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation option 1	#2-56
Installation option 2	JACKSCREW
Number of rows loaded	2
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN/LEAD OVER COPPER
Shell material	STEEL
Total number of contacts	68

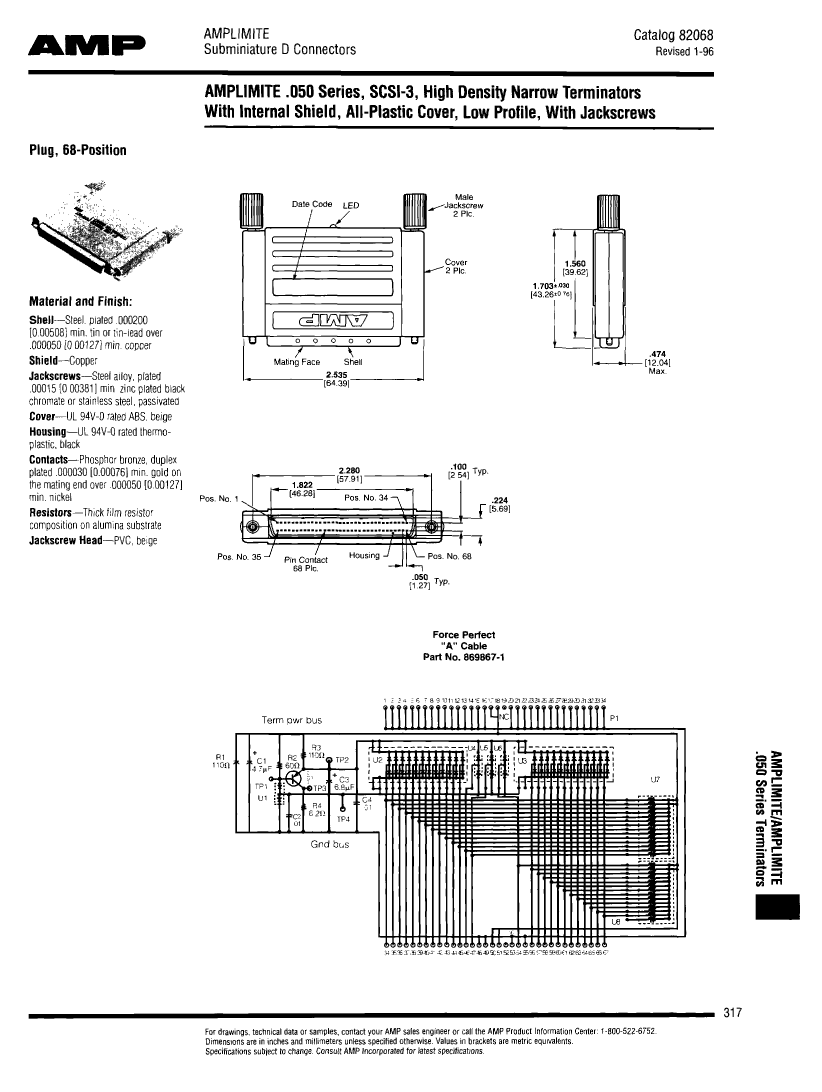

Preview

Download Datasheet

View All

869611-2 Related Products

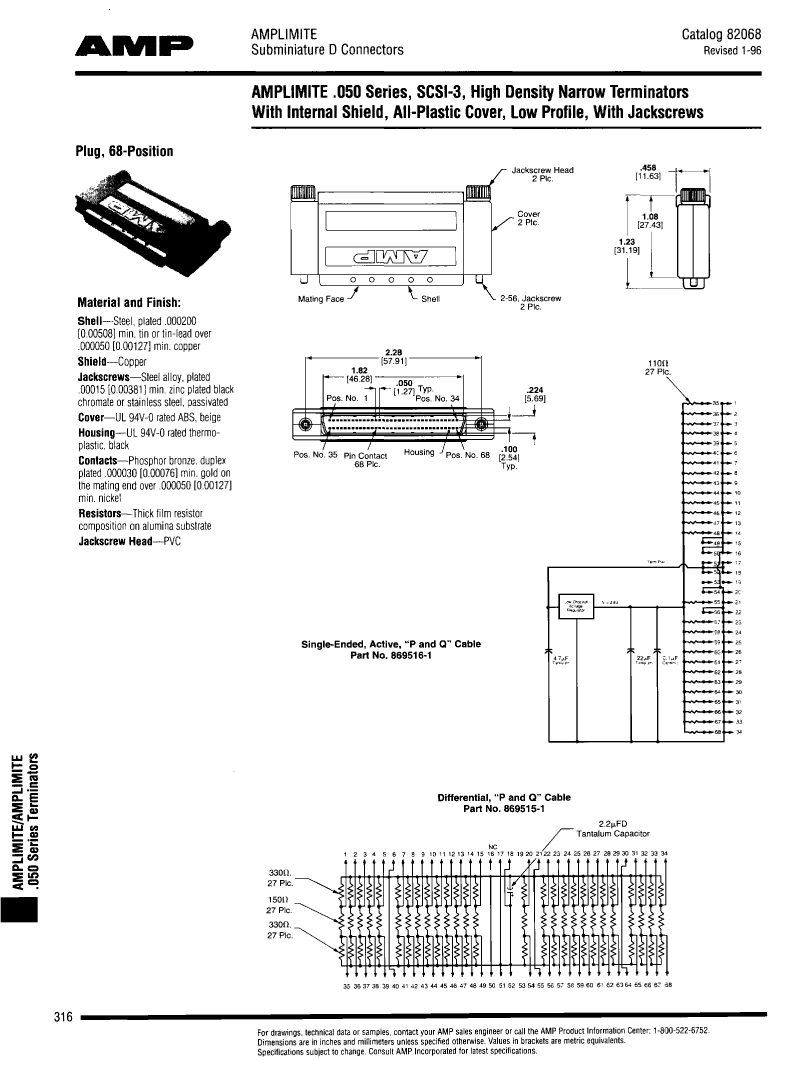

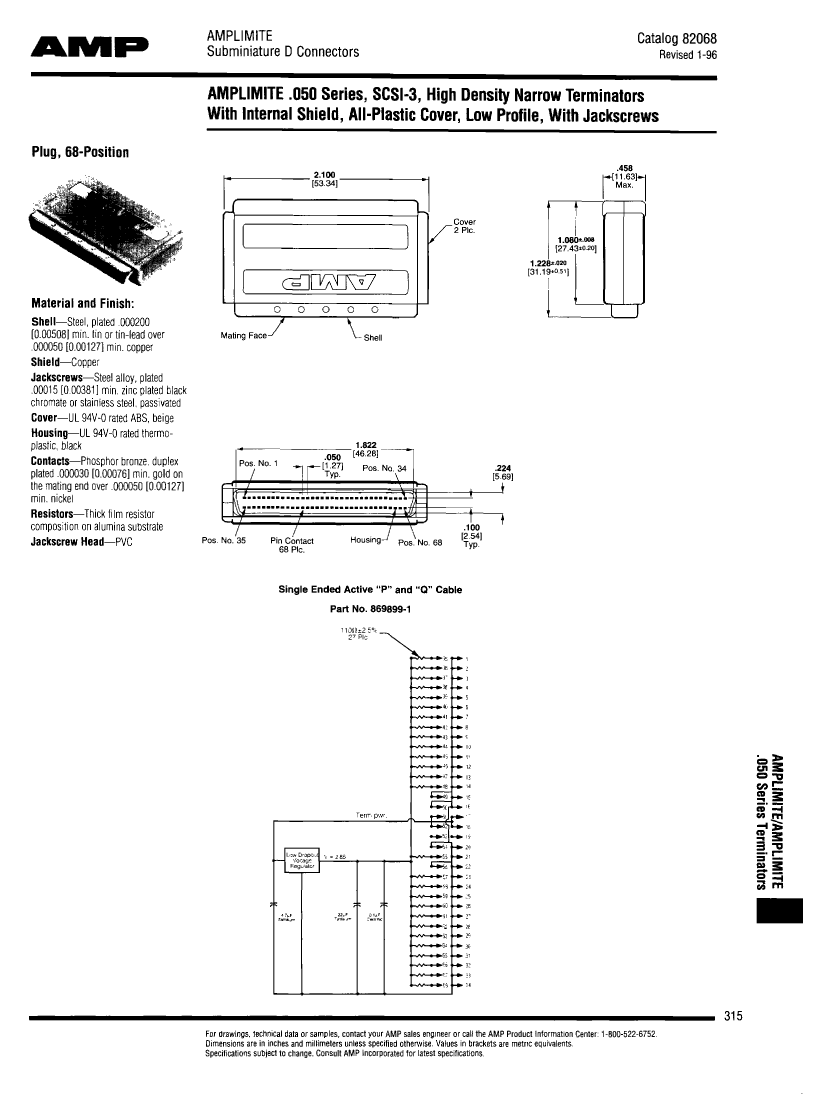

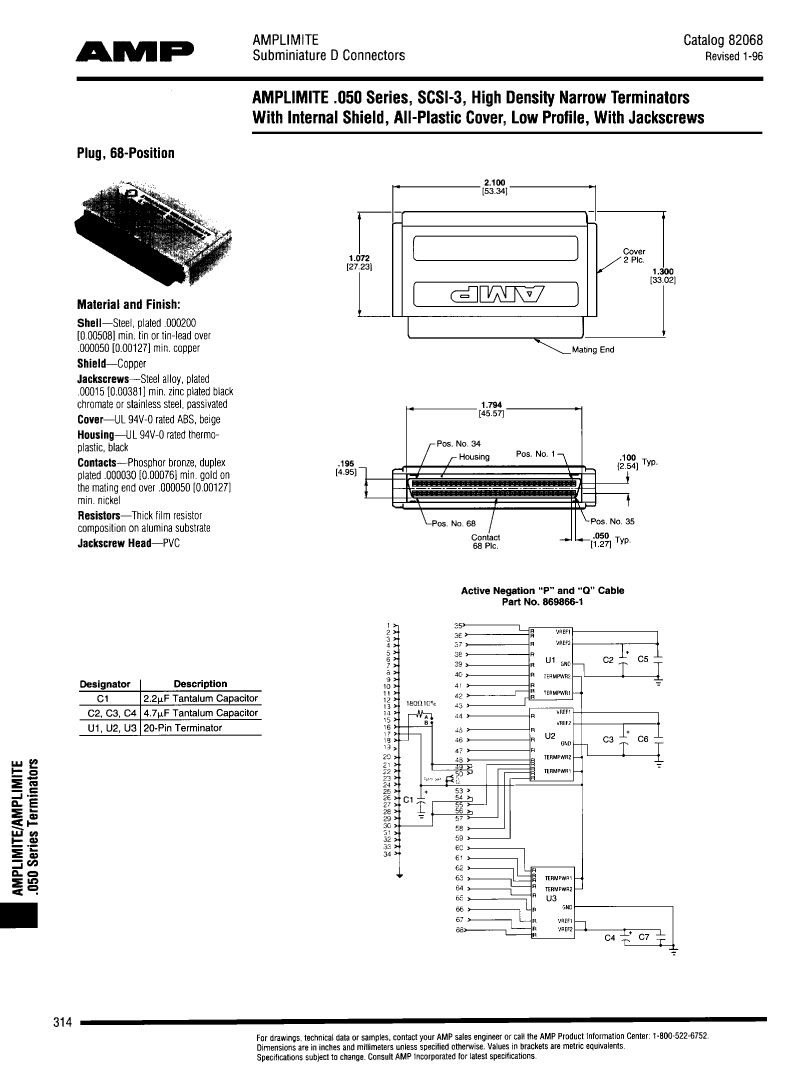

	869611-2	869516-1	869866-1	869725-1	869899-1
Description	SCSI BUS TERMINATOR,RECEPT,68 CONTACTS,PIN,0.05 PITCH,#2-56	SCSI BUS TERMINATOR,RECEPT,68 CONTACTS,PIN,0.05 PITCH,#2-56	SCSI BUS TERMINATOR,PLUG,68 CONTACTS,SKT,0.05 PITCH	SCSI BUS TERMINATOR,RECEPT,68 CONTACTS,PIN,0.05 PITCH,#2-56	SCSI BUS TERMINATOR,RECEPT,68 CONTACTS,PIN,0.05 PITCH,DETENT
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	compliant	unknown	compliant	unknown
Other features	COPPER INTERNAL SHIELD	SCSI-3	UNSHIELDED	SCSI-3	UNSHIELDED
subject depth	1.08 inch	1.08 inch	1.072 inch	1.08 inch	1.08 inch
Body/casing type	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE
circuit terminal	SINGLE ENDED ACTIVE	SINGLE ENDED ACTIVE	ACTIVE NEGATION	ACTIVE NEGATION	SINGLE ENDED ACTIVE
Connector type	SCSI CONNECTOR TERMINATOR	SCSI CONNECTOR TERMINATOR	SCSI CONNECTOR TERMINATOR	SCSI CONNECTOR TERMINATOR	SCSI CONNECTOR TERMINATOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	FEMALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Number of rows loaded	2	2	2	2	2
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN/LEAD OVER COPPER	TIN	TIN/LEAD OVER COPPER	TIN	TIN/LEAD OVER COPPER
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL
Total number of contacts	68	68	68	68	68
Contact style	SQ PIN-SKT	-	SQ PIN-SKT	-	SQ PIN-SKT
Filter function	YES	YES	-	YES	YES
Insulator color	BLACK	-	BLACK	-	BLACK
insulator material	THERMOPLASTIC	-	THERMOPLASTIC	-	THERMOPLASTIC
Manufacturer's serial number	.050	-	.050	-	.050
Installation option 1	#2-56	#2-56	-	#2-56	DETENT
Installation option 2	JACKSCREW	JACKSCREW	-	JACKSCREW	-
body width	-	0.458 inch	-	0.458 inch	0.458 inch
