HM1S49TSRB26H9LF datasheet, PDF

HM1S49TSRB26H9LF: DescriptionBoard Connector, 120 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size106KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM1S49TSRB26H9LF Overview

Board Connector, 120 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HM1
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	120
UL Flammability Code	94V-0

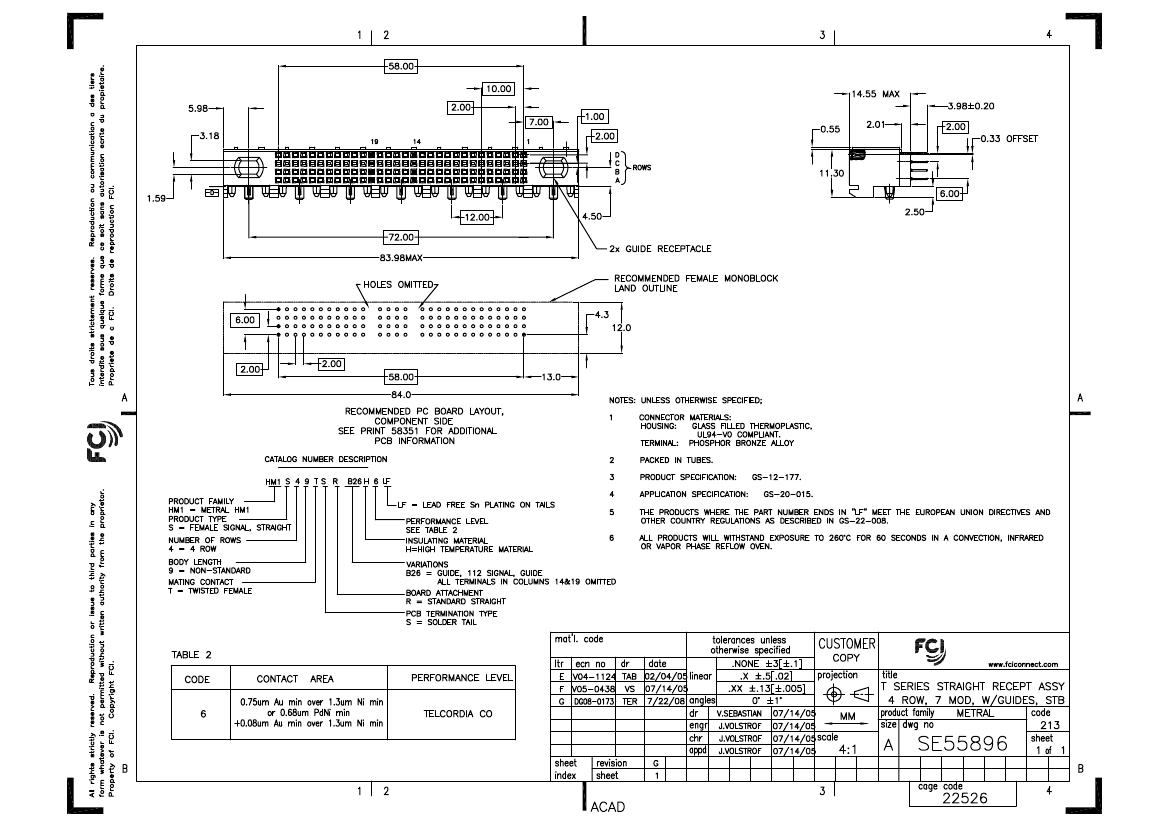

PDM: Rev:G

STATUS:

Released

Printed: Aug 15, 2008

.

	HM1S49TSRB26H9LF	HM1S49TSRB26H9
Description	Board Connector, 120 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE	Board Connector, 120 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Receptacle
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN	TIN LEAD
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e3	e0
MIL compliance	NO	NO
Manufacturer's serial number	HM1	HM1
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm
Termination type	SOLDER	SOLDER
Total number of contacts	120	120
UL Flammability Code	94V-0	94V-0
