D5BT-1000/2000-5-N/N-GRI: DescriptionTunable BPF, 5 Section(s) Min, 5 Section(s) Max, 1000MHz Min, 2000MHz Max,; CategoryAnalog mixed-signal IC filter; File Size170KB，2 Pages; ManufacturerK&L Microwave Inc

Download Datasheet Parametric View All

D5BT-1000/2000-5-N/N-GRI Overview

Tunable BPF, 5 Section(s) Min, 5 Section(s) Max, 1000MHz Min, 2000MHz Max,

D5BT-1000/2000-5-N/N-GRI Parametric

Parameter Name	Attribute value
Maker	K&L Microwave Inc
Reach Compliance Code	compliant
3dB bandwidth	5%
average input power	50 W
filter type	TUNABLE BPF
high	71.2 mm
input connector	N FEMALE
Input/output impedance	50 OHM
Maximum insertion loss	1 dB
length	365.3 mm
Installation type	PANEL MOUNT
Number of partitions-max	5
Number of partitions - minimum	5
Output connector	N FEMALE

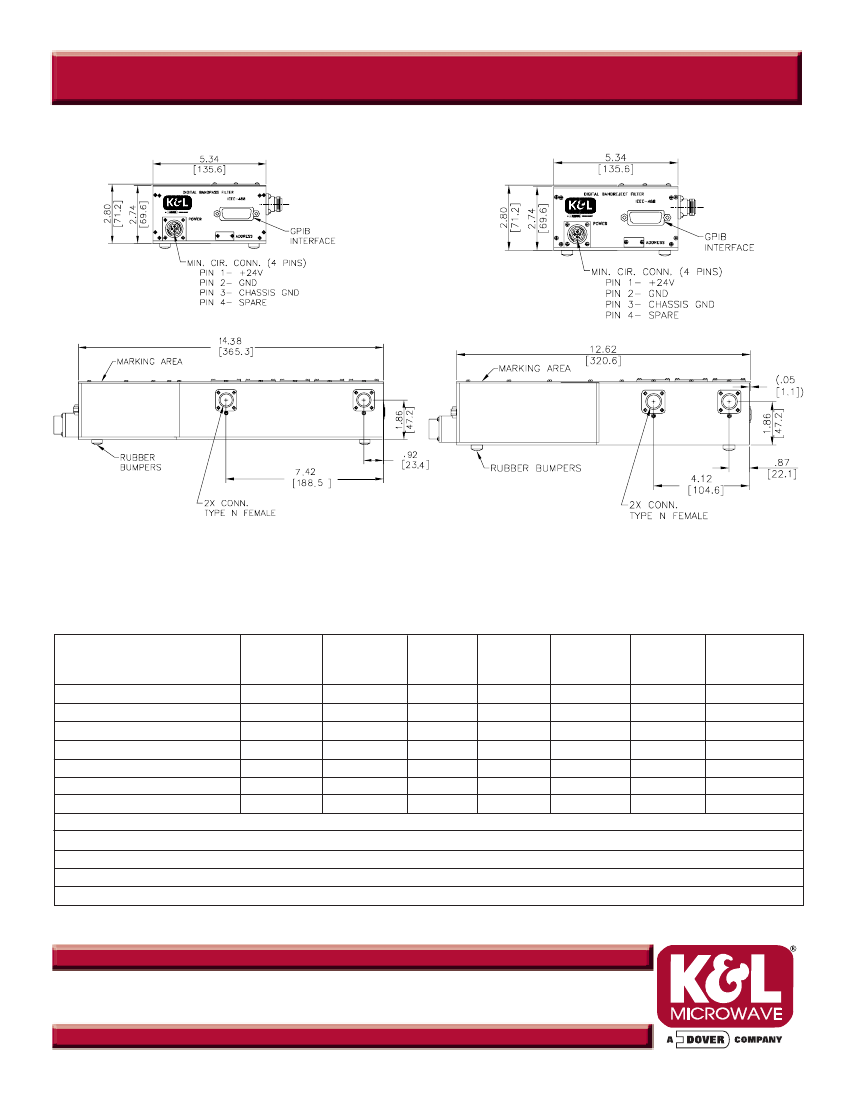

physical size	L365.3XB135.6XH71.2 (mm)/L14.382XB5.339XH2.803 (inch)
tuning control	GPIB CONTROL
maximum tuning frequency	2000 MHz
minimum tuning frequency	1000 MHz
voltage standing wave ratio	1.5
width	135.6 mm

Preview

Download Datasheet

View All

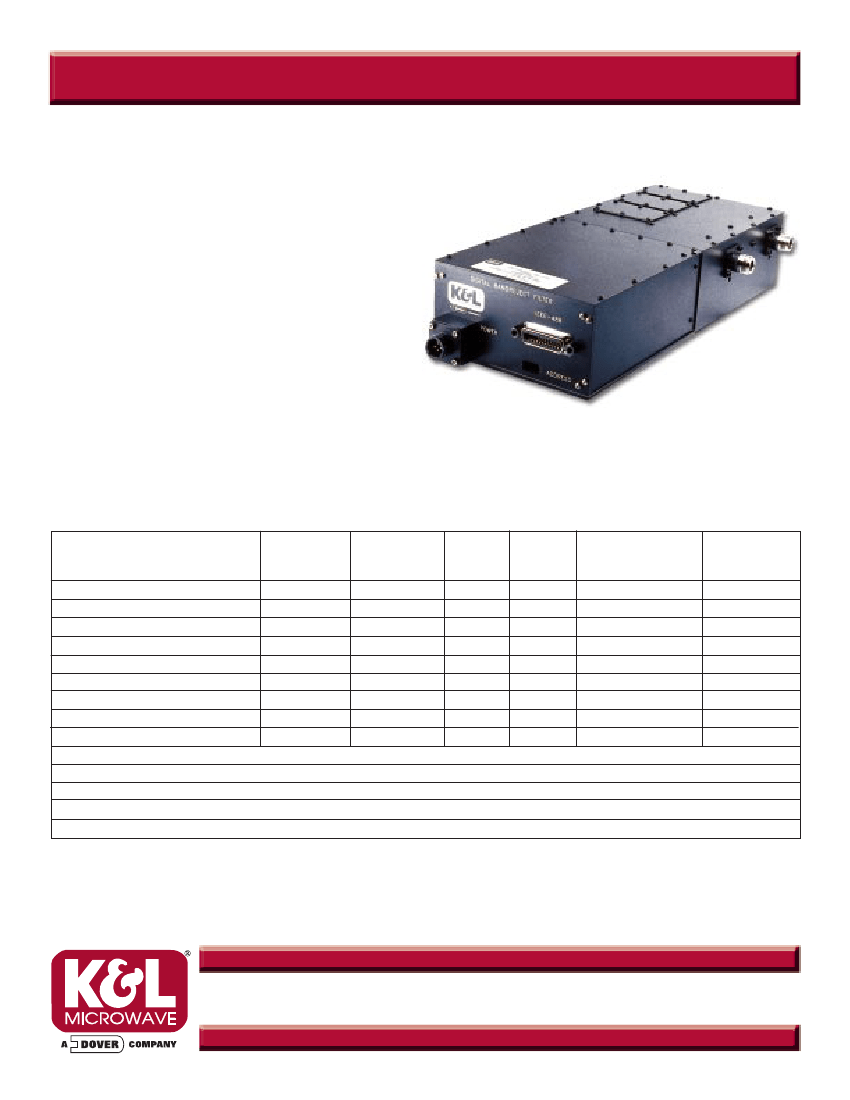

Test & Measurement — Digitally Controlled Tunable Filters

x

Features:

•

Digital Control Allows Complete Automated

Operation Via Remote Interfaces.

•

GPIB (IEE-488) Standard Remote Interface, RS-232,

RS-422, and BCD also Available.

•

24 VDC Standard Drive Voltage, 12 VDC, and 110

VAC also Available

•

Contact Factory for Custom Tuning Ranges and

Configurations.

x

Applications:

•

ATE Labs

•

Wireless Communications

•

Military Communications

x

Specifications:

Frequency

Passband

Range

Insertion

3 dB BW

(MHz)

Loss

D5BT-30/76-5-N/N-GRI

1.3 dB Max

5%

30-76

D5BT-63/125-5-N/N-GRI

1.3 dB Max

5%

63-125

D5BT-125/250-5-N/N-GRI

1.3 dB Max

5%

125-250

D5BT-250/500-5-N/N-GRI

1.0 dB Max

5%

250-500

D5BT-375/750-5-N/N-GRI

1.0 dB Max

5%

375-750

D5BT-500/1000-5-N/N-GRI

1.0 dB Max

5%

500-1000

D5BT-750/1500-5-N/N-GRI

1.0 dB Max

5%

750-1500

D5BT-1000/2000-5-N/N-GRI

1.0 dB Max

5%

1000-2000

D5BT-1200/2600-5-N/N-GRI

1.0 dB Max

5%

1200-2600

Filter Type:

5 Section Bandpass

Impedance:

50 Ohms

RF Connectors:

Type N Standard, SMA/TNC/BNC Optional

Digital Interface:

GPIB Standard, RS-232 / RS-422 / BCD Optional

Control Power:

24 VDC Standard, 12 VDC / 110 VAC Optional

K&L Model

Bandpass

VSWR

1.5:1

Shape Factor

30 dB to 3 dB /

50 dB to 3 dB

2.2:1 / 3.5:1

Power

Handling

50

Watts

CW

Custom configurations and ruggedized versions also available. Contact the factory for custom requirements.

Filtering Solutions for Your Global Market

Phone: 410-749-2424

FAX:

443-260-2268

Email: sales@klmicrowave.com

TM

USA

EUROPE

Phone: +44-(0)-1904-567355

FAX:

+44-(0)-1904-675521

Email: sales@kleurope.com

www.klfilterwizard.com & www.klmicrowave.com
