GVXO-46F/SAFREQ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> GVXO-46F/SAFREQ

GVXO-46F/SAFREQ: DescriptionHCMOS/LSTTL Output Clock Oscillator, 33MHz Min, 50MHz Max; CategoryPassive components oscillator; File Size62KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

GVXO-46F/SAFREQ Overview

HCMOS/LSTTL Output Clock Oscillator, 33MHz Min, 50MHz Max

GVXO-46F/SAFREQ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Golledge Electronics
Reach Compliance Code	unknown
Maximum control voltage	3.3 V
Minimum control voltage
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	100%
linearity	10%
Manufacturer's serial number	GVXO-46F
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	50 MHz
Minimum operating frequency	33 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS/LSTTL
Output load	5 LS TTL, 30 pF
physical size	20.8mm x 13.08mm x 7.4mm
longest rise time	5 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

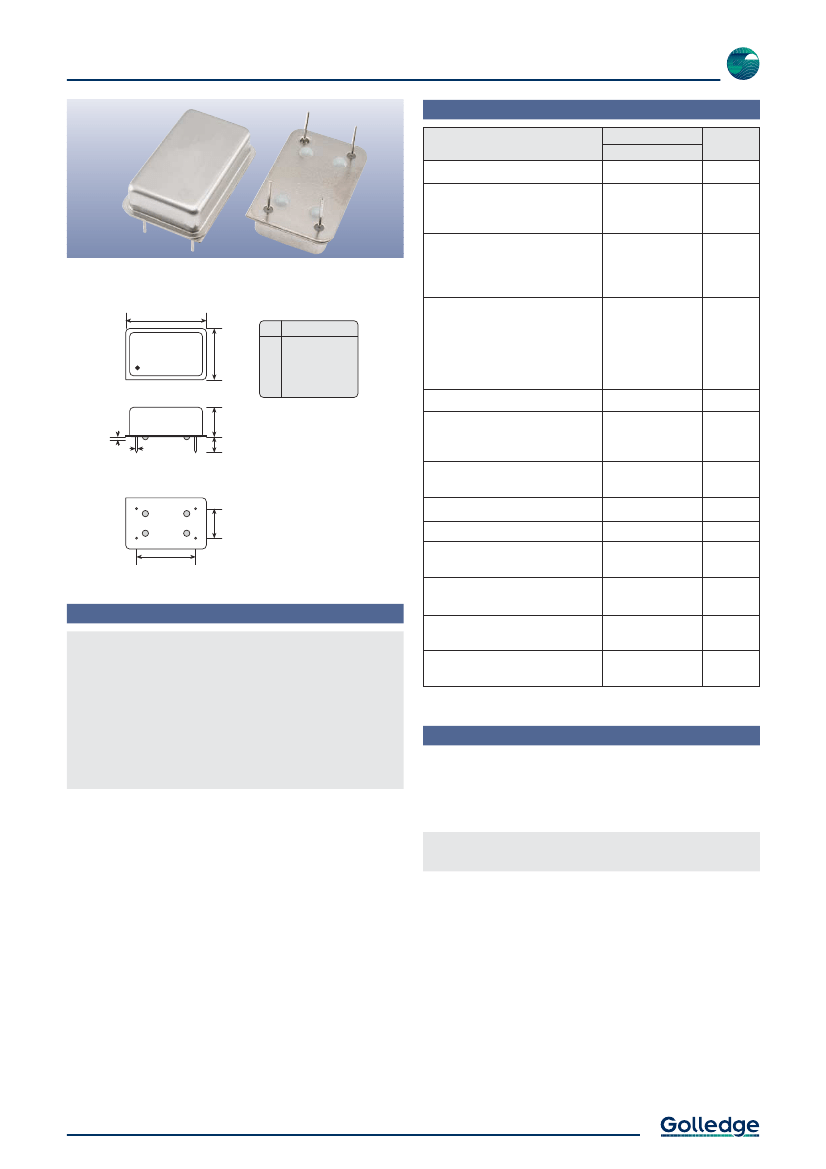

3.3V VCXO - High Frequency Fundamental

Specifications

GVXO-46F

Product

GVXO-46F

Option

Codes

Parameters

Frequency range:

33.0 ~ 50.0MHz

Voltage control:

+1.65V ±1.65V, 10% linearity

>100k input impedance

Frequency pullability (min):

±50ppm

±100ppm

±150ppm

20.80

(max)

13.08

(max)

7.40

(max)

0.46Ø

4.00

(min)

CONNECTION

Control voltage

Ground

Output

Supply

Frequency stability (max):

±100ppm

±50ppm

±25ppm

±20ppm

±15ppm

Ageing:

±5.0ppm max per year

0.80

Operating temperature range:

-10 to +70°C

-40 to +85°C

Storage temperature range:

-55 to +125°C

15.24

Supply voltage (V

+3.3V (±5%)

7.62

Supply current:

Driving ability:

Scale 1:1

15mA max

30pF HCMOS

5 LSTTL

Features

Logic levels:

‘0’ level = +0.4V max

‘1’ level = 90%V

min

Waveform symmetry @ 50%V

40:60 max

Rise / fall time:

5ns max (0.4V ~ 90%V

min)

Standard.

Optional - Please specify required code(s) when ordering

3.3V supply

Low cost for volume applications

Choice of pullability & stability

Express deliveries for non-standard items

Industrial temperature range option

Ordering Information

Product + option codes + frequency

eg:

GVXO-46F/SC 49.1520MHz

±150ppm pullability, ±25ppm stability

Option codes must be included to specify a model

completely.

Option code X (eg GVXO-46F/X) denotes a custom spec.

±15ppm and ±20ppm stability may not be available over -40+85°C,

depending on frequency. Check with our sales office.

Tel:

+44 1460 256 100

12 Jul 2001

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
