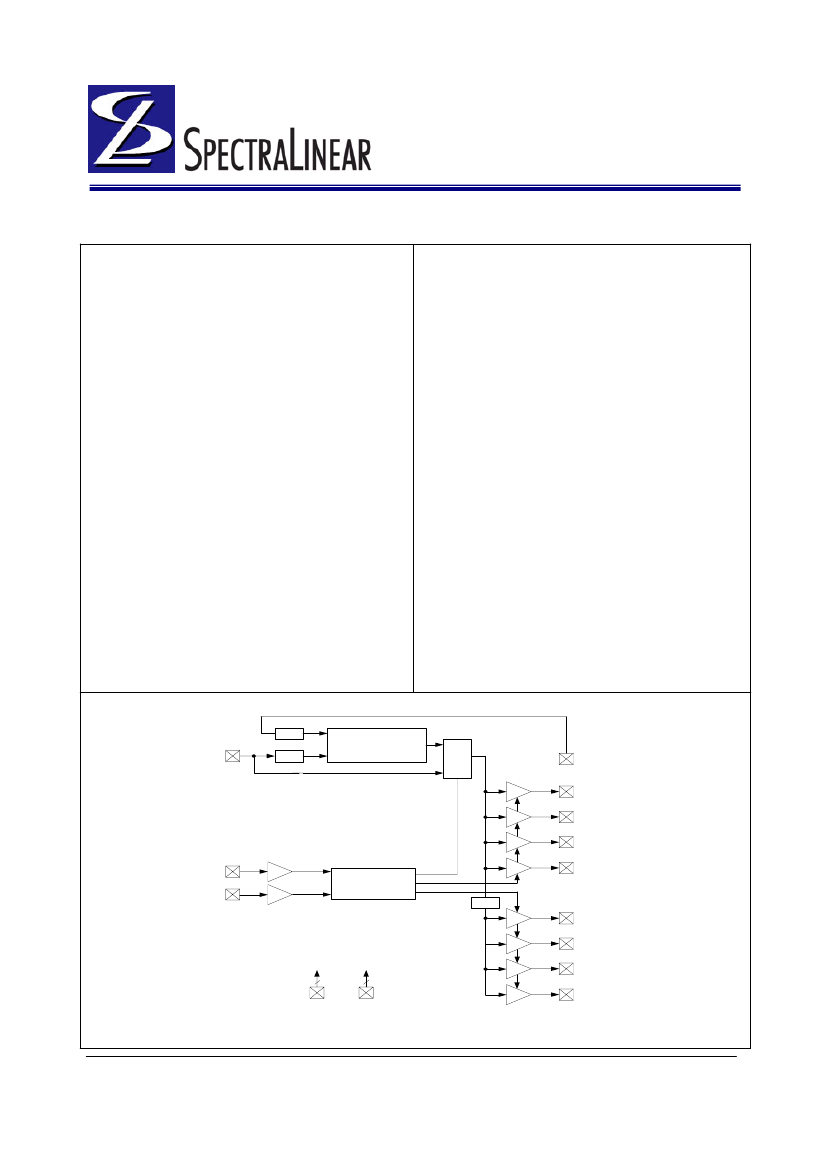

SL23EP08ZI-1HT: DescriptionLow Jitter and Skew 10 to 220MHz Zero Delay Buffer (ZDB); File Size175KB，18 Pages; ManufacturerSpectraLinear; Websitehttp://www.spectralinear.com/

Download Datasheet View All

SL23EP08ZI-1HT Overview

Low Jitter and Skew 10 to 220MHz Zero Delay Buffer (ZDB)

Preview

Download Datasheet

View All

Preliminary

SL23EP08

Low Jitter and Skew 10 to 220 MHz Zero Delay Buffer (ZDB)

Key Features

10 to 220 MHz operating frequency range

Low output clock skew: 70ps-typ

Low output clock Jitter: 50 ps-typ

- 50 ps-typ at 166MHz, CL=15pF and VDD=3.3V

- 75 ps-typ at 166MHz, CL=15pF and VDD=2.5V

Low part-to-part output skew: 150 ps-typ

3.3V to 2.5V power supply range

Low power dissipation:

- 22 mA-typ at 66MHz and VDD=3.3V

- 20 mA-typ at 66MHz and VDD=2.5V

One input drives 8 outputs

Multiple configurations and drive options

Select mode to bypass PLL or tri-state outputs

SpreadThru™ PLL that allows use of SSCG

Available in 16-pin SOIC and TSSOP packages

Available in Commercial and Industrial grades

Description

The SL23EP08 is a low skew, low jitter and low power

Zero Delay Buffer (ZDB) designed to produce up to eight

(8) clock outputs from one (1) reference input clock, for

high speed clock distribution applications.

The product has an on-chip PLL and a feedback pin (FBK)

which can be used to obtain feedback from any one of the

output clocks. The SL23EP08 has two (2) clock driver

banks each with four (4) clock outputs. These outputs are

controlled by two (2) select input pins S1 and S2. When

only four (4) outputs are needed, bank-B output clock

buffers can be tri-stated to reduce power dissipation and

jitter. The select inputs can also be used to tri-state both

banks A and B or drive them directly from the input

bypassing the PLL and making the product behave like a

Non-Zero Delay Buffer (NZDB). The SL23EP08 offers

various X/2,1X, 2X and 4x frequency options at the output

clocks. Refer to the “Product Configuration Table” for the

details.

The SL23EP08-1H, -2H and 5H versions operates up to

220 MHz and SL23EP08-1, -2, -3 and -4 versions operate

up to 133 MHz with CL=15pF output load.

Applications

Printers, MFPs and Digital Copiers

PCs and Work Stations

Routers, Switchers and Servers

Datacom and Telecom

High-Speed Digital Embeded Systems

Benefits

Up to eight (8) distribution of input clock

Standard and High-Dirive levels to control

impedance level, frequency range and EMI

Low skew, jitter and power dissipation

Block Diagram

(Divider for -3 and -4)

Low Power and

Low Jitter

CLKIN

(Divider for -5H only)

PLL

MUX

FBK

CLKA1

CLKA2

CLKA3

Input Selection

Decoding Logic

(Divider for -2, -2H and -3)

CLKA4

CLKB1

CLKB2

CLKB3

CLKB4

VDD

GND

Rev 1.4, May 28, 2007

Page 1 of 18

2200 Laurelwood Road, Santa Clara, CA 95054 Tel: (408) 855-0555 Fax: (408) 855-0550 www.SpectraLinear.com
