KOA SPEER ELECTRONICS, INC.
SS-199 R18
AHA 5/01/08
Current Sensing Chip Resistors
Type SL/TSL Resistor
CERTIFIED
CERTIFIED
1. Scope
This specification applies to current sensing chip resistors (SL/TSL) produced by KOA Corporation.
Products with lead-free terminations meet EU-RoHS requirements. Pb located in glass material,
electrode and resistor element is exempt per Annex 1, exemption 5 of EU directive 2005/95/EC
2. Type Designation
The type designation shall be in the following form:
New Type
SL
Type
SL
SLN
TSL
1
Size
1 Watt
2 Watt
3 Watt
Termination
Material
T
Packaging
TE
Nominal
Resistance
±5%: 2 significant figures + 1 multiplier
“R” indicates decimal on value <10Ω
±1%: 3 significant figures + 1 multiplier
“R” indicates decimal on value <100Ω
All values less than 0.1Ω (100mΩ) are
expressed in mΩ with “L” as decimal
Example: 20mΩ, 1% = 20L0
20L0
Tolerance
F
SL1, TSL-
T: Sn
TE: 7" Embossed Plastic
(Other
SL2, SLN2, SL3, SLN2-
termination
TED: 10" Embossed Plastic
styles may be
(TSL - 3,000 pcs/reel)
available, please
(SL - 1,000 pcs/reel)
contact factory
for options)
D: ± 0.5%
F: ± 1%
G: ±2%
J: ± 5%
3. Standard Applications
Part
Designation
Power
Rating
T.C.R.
(ppm/°C)
Max.
±180: R=<13mΩ
±100: R=>15mΩ
±180: R=<10mΩ
±100: R=>11mΩ
Resistance
Range
10mΩ - 1MΩ
5mΩ - 1MΩ
3mΩ, 4mΩ
3mΩ ~ 22MΩ
10mΩ - 1MΩ
5mΩ ~ 1MΩ
3mΩ, 4mΩ
3mΩ - 22MΩ
5mΩ - 200mΩ
10mΩ - 100mΩ
SL3
3W
±180: R=<10mΩ
±100: R=>11mΩ
±180: R=<13mΩ
±100: R=>15mΩ
5mΩ - 100mΩ
10mΩ - 100mΩ
5mΩ - 100mΩ
Resistance
Tolerance
E-24*
(D: ±0.5%)
(F: ±1%)
(G: ±2%)
(J: ±5%)
(D: ±0.5%)
(F: ±1%)
(G: ±2%)
(J: ±5%)
(D: ±0.5%)
(F: ±1%)
(J: ±5%)
(D: ±0.5%)
(F: ±1%)
(J: ±5%)
(D: ±0.5%)
(F: ±1%)
(J: ±5%)
√
P
•
R
√
P
•
R
√
P
•
R
√
P
•
R
Absolute
Maximum
Working
Voltage
200V
Absolute
Maximum
Overload
Voltage
400V
Operating
Temperature
Range
SL1
1W
SL2
2W
500V
1000V
SLN2
2W
±110: R<10mΩ
±75: R=>10mΩ
––
––
-55°C to +180°C
TSL1
1W
* 3m, 4m, 5m, 6m, 7m, 8m, 9m resistance values also available
PAGE 1 OF 6
I
Bolivar Drive
I
P.O. Box 547
I
Bradford, PA 16701
USA
I
814-362-5536
I
Fax 814-362-8883
I
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-199 R18

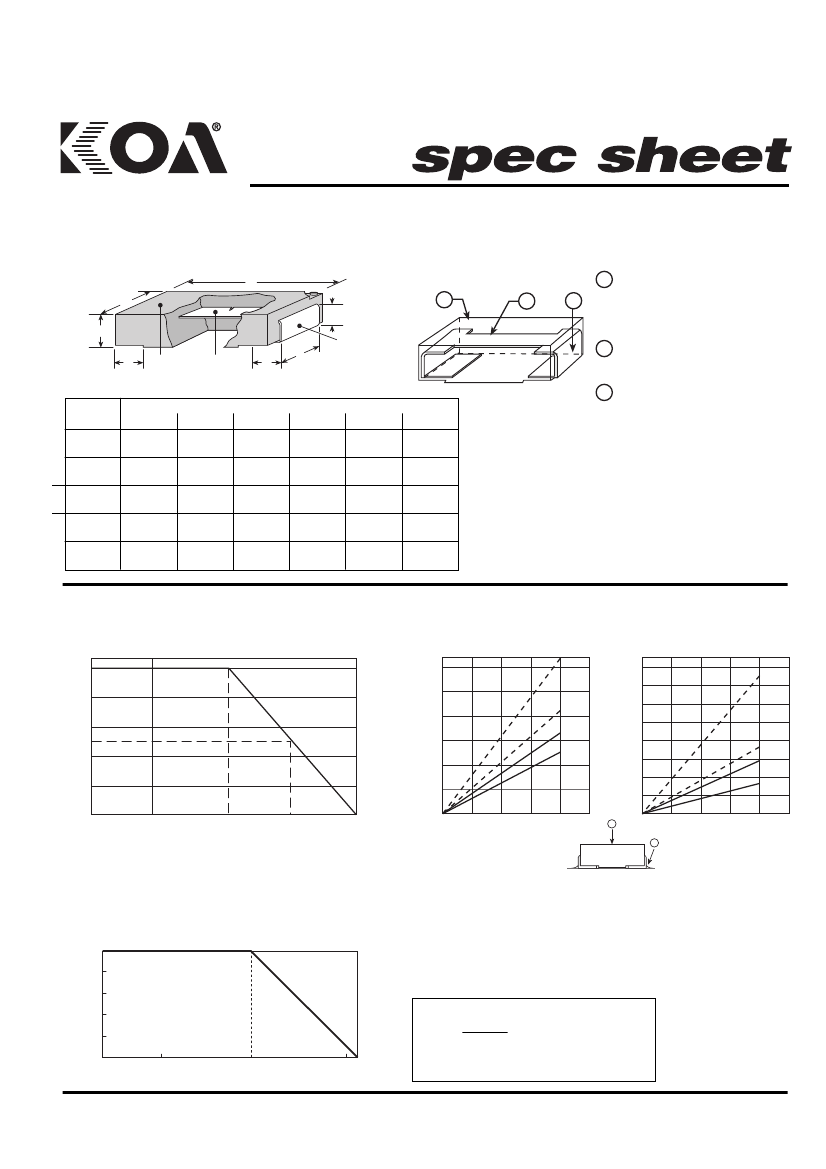

4. Dimensions and Structure
4-1 Dimensions
L
W
t
c
Molded Resistive
Resin
Element
c
a
b
Electrode
4-2 Structure
2
1
3
Size
Code
SL1
SL2
NEW
SLN2
SL3
TSL1
L
W
Dimensions
inches
(mm)
t
a
b
c
1 Resistive Element
Metal Plate: SL1
≤
100 mΩ,
SL2
≤
360 mΩ, SL3
Thick Film: SL1 > 100 mΩ,
SL2 > 360 mΩ
2 Flameproof Molded
Epoxy Case with UL94V-0
Flammability Rating
3 End Termination with
Tin/Lead Solder Plating
.248±.012 .122±.008 .075±.008 .094±.008 .047±.012 .047±.012
(6.3±0.3) (3.1±0.2) (1.9±0.2) (2.4±0.2) (1.2±0.3) (1.2±0.3)
.453±.012 .276±.008 .098±.008 .197±.008 .067±.02
(11.5±0.3) (7.0±0.2) (2.5±0.2) (5.0±0.2) (1.7±0.5)
.453±.012
(11.5±0.3)
.453±.012
(11.5±0.3)
.276±.008
(7.0±0.2)
.276±.008
(7.0±0.2)
.094±.008
(2.4±0.2)
.098±.008
(2.5±0.2)
.217±.008
(5.5±0.2)
.197±.008
(5.0±0.2)
.063±.008
(1.6±0.2)
.067±.02
(1.7±0.5)
.102±.02
(2.6±0.5)
.100±.016
(2.55±0.4)
.102±.02
(2.6±0.5)
.248±.012 .122±.008 .039±.008 .094±.008 .028±.008 .047±.012
(6.3±0.3) (3.1±0.2) (1.0±0.2) (2.4±0.2) (0.7±0.2) (1.2±0.3)
5. Rating
100
80
% Rated Power
60
50
40
20
0
-55
Derating Curve
Surface Temperature Rise
TSL1/SLN2
150
125
Temperature Rise
(°C)
100
75
50
25
TSL1 (2)
SLN2 (1)
TSL1 (1)
SLN2 (2)
SL1/SL2
200
175
Temperature Rise
(°C)
150
2
SL2 (2)
125
100
75
50
25
SL1 (2)
SL2 (1)
SL1 (1)
0
70
Ambient Temperature
(∞C)
125
180
0
0
25
50
75
100
0
2
0
1
25
50
75
100
% Rated Power
% Rated Power
5-1 Rating SL3
For temperature in excess of 110°C, the load shall
be derated in accordance with the following figure.
100
80
60
40
20
0
-55
0
110
125
Ambient Temperature (∞C)
I
Resistors shall have a rated direct-current (DC) continuous
working voltage or approximate sine-wave root-mean-
square (RMS) alternating-current (AC) continuous working
voltage at commercial-line frequency and waveform
corresponding to the power rating, as determined from
the following formula:
Where:
E = Rated voltage (V)
P = Rated power (W)
R = Nominal
resistance (Ω)
I
5-2 Voltage Rating
E=
√
PxR
180
PAGE 2 OF 6
I
Bolivar Drive
I
P.O. Box 547
Bradford, PA 16701
I
USA
I
814-362-5536
Fax 814-362-8883
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-199 R18

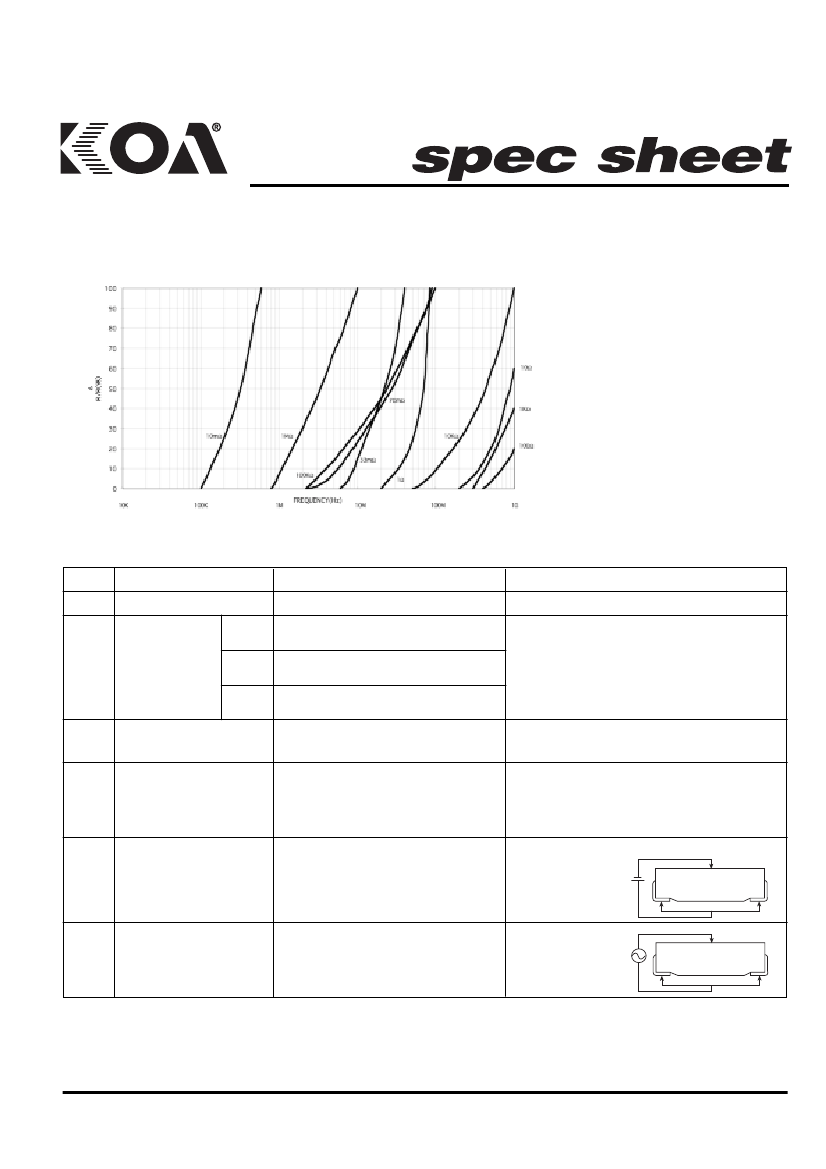

6. Characteristics
6-4 High Frequency Characteristics
6-1 Electrical Characteristics
No.
1
2
Item
Resistance
Temperature
coefficient
of resistance
1W
2W
3W
3
4
Short time overload
Intermittent overload
Requirement
Within specified tolerance
±180: R=<14.7 mΩ
±100: R=>15 mΩ
±180: R=<10.7 mΩ
±100: R=>11 mΩ
±180: R=<10.7 mΩ
±100: R=>11 mΩ
± 1.0% maximum
± 5.0% maximum
Test Method (JIS C 5202)
JIS C 5202 5.1 Measured at 25°C
JIS C 5202 5.2
+ 25°C / +125°C
5* times rated power for 5 seconds
10 Watts (SL3 only)
Rated voltage x 3.0*
1 sec. ON/25 seconds OFF 1,000 cycles
18 Watts 1 second ON/125 seconds OFF
1,000 cycles (SL3 only)
Surface center to terminations
D. C 500V
5
Insulation Resistance
10,000 MΩ minimum
6
Dielectric
Withstanding
Voltage
± 0.5% maximum
No short, burning or arcing
A. C 500V
60 sec.
* Since temperature rise of this product are affected by the circuit board size, materials, peripheral heat-producing components, etc.
check that the solder fillet part temperature after mounting is less than the solder melting point (180°C) in operating condition and that
the package surface is 200°C or less. Also, please install radiating patterns and carefully design the pattern width with respect to the
load current so that the above temperatures can be maintained.
PAGE 3 OF 6
Bolivar Drive
I
P.O. Box 547
I
Bradford, PA 16701
I
USA
I
814-362-5536
I
Fax 814-362-8883
I
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-199 R18
6-2 Mechanical Characteristics
No.
1
2
Item
Resistance to
Soldering Heat
Solderability
Requirement
± 1.0% maximum
95% of the terminal should
be covered with new solder
± 0.5% maximum
No visual and mechanical
damage
Test Method (JIS C 5202)
MIL-R55342
π
4.7.7,
260°C for 10 seconds
Immerse in solder at 230°C ± 5°C
for 3 ± 0.5 seconds
6.3
6.9
Condition A
Each direction/2 hours
3
4
Vibration
Resistance to
Solvents
6-3 Environmental Characteristics
No.
1
2
3
4
Item
Damp Heat
Moisture Resistance
Load Life
(Rated load)
Temperature
Cycling
Flammability
Requirement
± 2.0% maximum
No visual damage
± 2.0% maximum
No evidence of damage
± 2.0% maximum
No visual damage
± 1.0% maximum
No mechanical damage
Incombustible
Dimensions in inches (mm)
Test Method (JIS C 5202)
7.9
40°C ± 2°C; 90 ~ 95% RH; 1,000 hours
MIL-STD-202, Method 103, 40°C, 90-95% RH,
1000 hours
MIL-STD-202, Method 108, 70°C, 1000 hours
@ RCWV, 1.5 hr ON, 0.5 hr OFF
30 minutes @ -55°C, 15 minutes @ +25°C,
30 minutes @ +125°C, 15 minutes @ +25°C,
5 cycles
7.12 3.1
in flame/out flame
Outer
15 sec./15 sec.
flame
5 cycles
4.99
(127)
.374 (9.5)
5
45∞
Inner
flame
1.49
(38)
PAGE 4 OF 6
Bolivar Drive
I
P.O. Box 547
I
Bradford, PA 16701
I
USA
I
814-362-5536
I
Fax 814-362-8883
I
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-199 R18

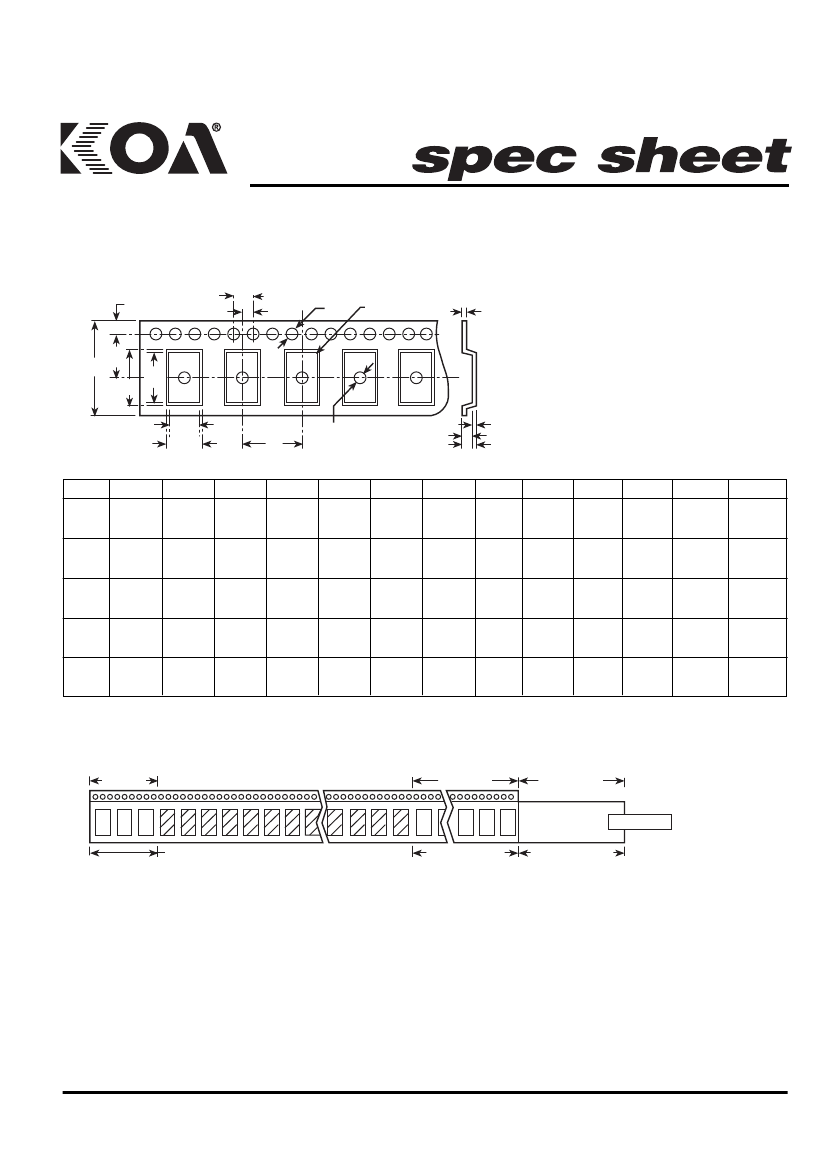

7. Taping
7-1 Dimensions of Carrier Tape
.069
(1.75)
D
B
1
B
2
A
2
A
1
A1
TSL
SL-1
SL-2
SL-3
SLN-2
.134
(3.4±0.1)
.142
(3.6±0.1)
.303
(7.7±0.1)
.303
(7.7±0.1)
.303
(7.7±0.1)
A2
B1
.157
(4.0)
.079
(2.0)
J
.012
(0.3 øMax.)
T
1
C
F
B2
Q
K
2
T
2
K
1
Dimensions in inches (mm)
J
K1
K2
Q
T1
T2
C
D
F
.125
.260
(3.2±0.1) (6.6±0.1)
.134
.267
(3.4±0.1) (6.8±0.1)
.244
.472
(6.2±0.1) (12.0±0.2)
.252
.472
(6.4±0.1) (12.0±0.2)
.216
.157
(5.5±0.1) (4.0±0.1)
.216
.315
(5.5±0.1) (8.0±0.1)
.059
.051
.043
.059
.010
.008
0.1
0.1
(1.5±
0.0
) (1.3±0.1) (1.1 ± 0.1) (1.5±
0.0
) (0.25±0.05) (0.20±0.05)
.059
.092
.085
.059
.010
.008
0.1
0.1
(1.5±
0.0
) (2.35±0.1) (2.15±0.1) (1.5±
0.0
) (0.25±0.05) (0.20±0.05)
.291
.480
.469
.945
.452
.472
.059
.134
.126
.081
.010
.008
0.5
0.5
(7.4±0.1) (12.2±0.1) (11.9±0.1) (24.0±0.2) (11.5±0.1) (12.0±0.1) (1.55±
0.5
) (3.4±0.1) (3.2±0.1) (2.05±
0.5
) (0.25±0.05) (0.20±0.05)
.291
.480
.469
.945
.452
.472
.059
.122
.110
.059
.016
.012
0.1
0.1
(7.4±0.1) (12.2±0.1) (11.9±0.1) (24.0±0.2) (11.5±0.1) (12.0±0.1) (1.5±
0.0
) (3.1±0.1) (2.8±0.1) (1.5±
0.0
) (0.40±0.05) (0.30±0.05)
––
.480
(12.2±0.1)
––
.472
(12.0±0.1)
––
.472
(12.0±0.2)
––
.122
(3.1±0.1)
––
––
––
––
7-2 Taped Configuration
End tape
(Empty)
Leader tape
(Top tape)
(Empty)
Dimensions in inches (mm)
1.57 (40) min.
3.15 (80) min.
5.90 (150) min.
PAGE 5 OF 6
Bolivar Drive
I
P.O. Box 547
I
Bradford, PA 16701
I
USA
I
814-362-5536
I
Fax 814-362-8883
I
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
