D09513F6GX00LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D09513F6GX00LF

D09513F6GX00LF: DescriptionD Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Socket, LEAD FREE; CategoryThe connector The connector; File Size90KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D09513F6GX00LF Overview

D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Socket, LEAD FREE

D09513F6GX00LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0

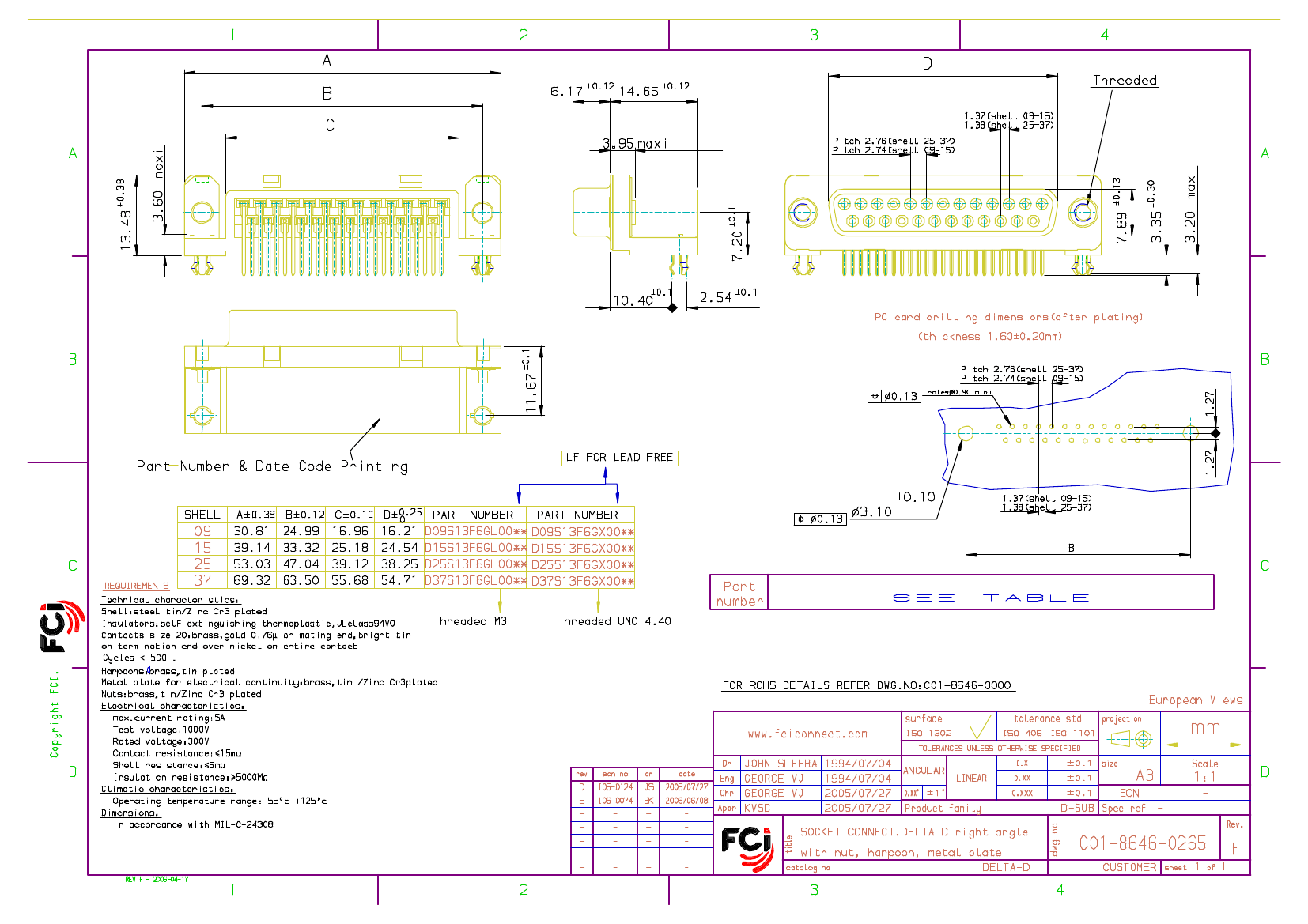

Preview

Download Datasheet

View All

PDM: Rev:E

STATUS:

Released

Printed: Feb 17, 2010

D09513F6GX00LF Related Products

	D09513F6GX00LF	D25S13F6GL00	D25S13F6GX00	D09S13F6GL00	D09S13F6GX00	D15S13F6GL00	D15S13F6GX00	D37513F6GX00LF	D37S13F6GX00
Description	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Socket, LEAD FREE	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, Socket, LEAD FREE	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, Socket
Reach Compliance Code	compliant	compliant	compliant	unknown	unknown	unknown	compliant	compliant	compliant
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN	TIN/ZINC CHROMIUM
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	1/E	3/B	3/B	1/E	1/E	2/A	2/A	4/C	4/C
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	9	25	25	9	9	15	15	37	37
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Amphenol	Amphenol	Amphenol	-	-	-	-	Amphenol	Amphenol
ECCN code	EAR99	EAR99	-	-	-	EAR99	EAR99	EAR99	-
Manufacturer's serial number	-	D25S13F6GL00	D25S13F6GX00	D09S13F6GL00	D09S13F6GX00	D15S13F6GL00	D15S13F6GX00	D37S13F6GX00	D37S13F6GX00
