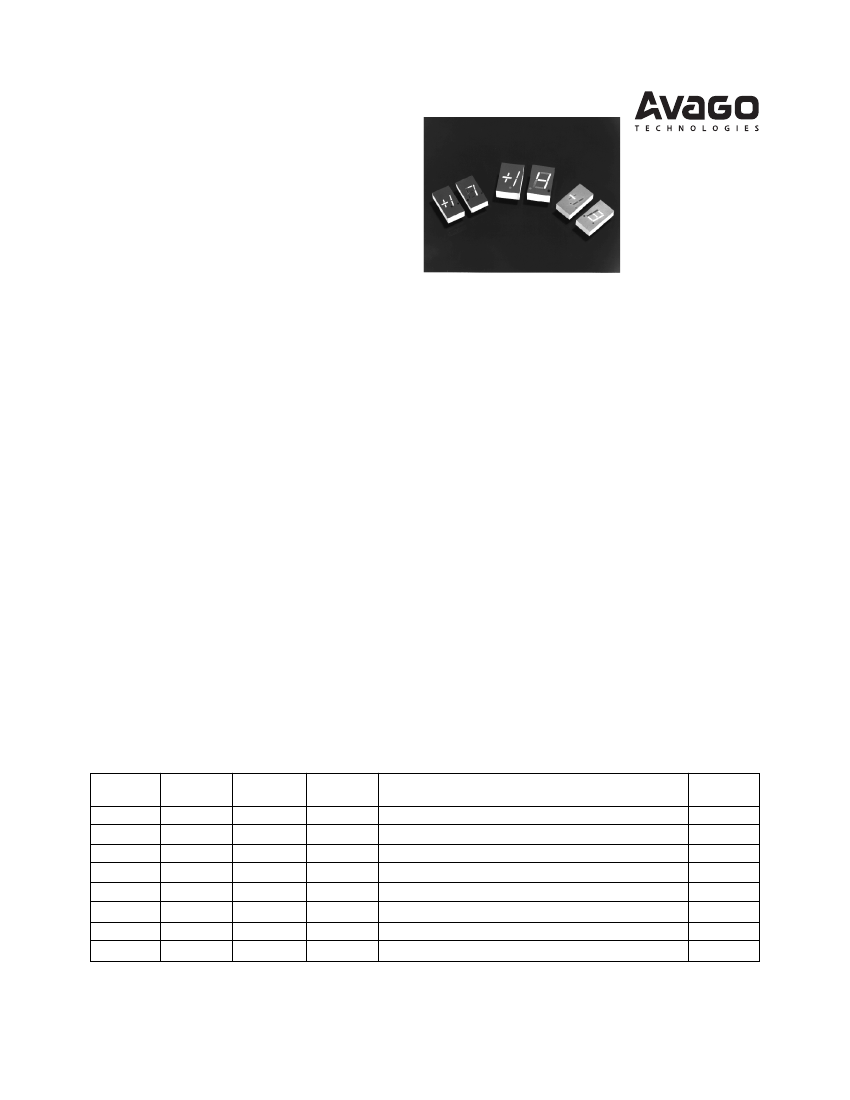

5082-761x Series
7.6 mm (0.3 inch)/10.9 mm (0.43 inch)
Seven Segment Displays
Data Sheet
5082-761x Series/-762x Series/-765x Series/-766x Series
HDSP-360x Series/-460x Series/-E15x Series
Description
The 7.6 mm (0.3 inch) and 10.9 mm (0.43 inch) LED
seven segment displays are designed for viewing
distances up to 3 metres (10 feet) and 5 metres (16
feet). These devices use an industry standard size
package and pinouts. All devices are available as either
common anode or common cathode.
Features, continued
•
Design flexibility
Common anode or common cathode
Single digits
Left or right hand decimal point
±1.
overflow character
• Categorized for luminous intensity
Yellow and Green categorized for color
Use of like categories yields a uniform display
Features
• High light output
• Industry standard size
• High peak current
• Industry standard pinout
7.62 mm (0.300 inch) DIP leads on 2.54 mm (0.100 inch) centers
• Excellent for long digit string multiplexing
• Intensity and color selection available
•
Choice of colors
See Intensity and Color Selected Displays Data Sheet
AlGaAs Red, High Efficiency Red, Yellow, Green
• Sunlight viewable AlGaAs
• Excellent appearance
Evenly lighted segments
±50°
viewing angle
Optimum contrast given by gray top surface for AlGaAs Red
and Green devices
Red top surface for HER devices
Yellow top surface for yellow devices
Devices
AlGaAs
[1]
Red HDSP-
HER
[1]
5082-
7610
7611
7613
7616
E150
E151
E153
E156
7650
7651
7653
7656
Yellow
5082-
7620
7621
7623
7626
7660
7661
7663
7666
Green
HDSP-
3600
3601
3603
3606
4600
4601
4603
4606
Description
7.6 mm Common Anode Left Hand Decimal
7.6 mm Common Anode Right Hand Decimal
7.6 mm Common Cathode Right Hand Decimal
7.6 mm Universal
±
1. Overflow Right Hand Decimal
[2]
10.9 mm Common Anode Left Hand Decimal
10.9 mm Common Anode Right Hand Decimal
10.9 mm Common Cathode Right Hand Decimal
10.9 mm Universal
±
1. Overflow Right Hand Decimal
[2]
Package
Drawing
A
B
C
D
E
F
G
H
Notes:
1. These displays are recommended for high ambient light operation. Please refer to the HDSP-E10X AlGaAs and HDSP-335X HER data
sheet for low current operation.
2. Universal pinout brings the anode and cathode of each segment’s LED out to separate pins. See internal diagram D.
3. Universal pinout brings the anode and cathode of each segment’s LED out to separate pins. See internal diagram H.
Part Numbering System
5082 -X X X X-X X X X X
HDSP-X X X X-X X X X X
Mechanical Options
[1]
00: No Mechanical Option
Color Bin Options
[1,2]
0: No Color Bin Limitation
4: Color Bin 4 Only (applicable for Green devices only)
B: Color Bins 2 and 3 (applicable for Yellow devices only)
Maximum Intensity Bin
[1,2]
0: No Maximum Intensity Bin Limitation
Minimum Intensity Bin
[1,2]
0: No Minimum Intensity Bin Limitation
Device Configuration/Color
[1]
0: Common Anode
1: Common Anode
3: Common Cathode
Device Specific Configuration
[1]
Refer to Respective Datasheet
Package
[1]
E: 10.9 mm (0.43 inch) Single Digit Seven Segment Display
Notes:
1. For codes not listed in the figure above, please refer to the respective datasheet or contact your nearest
Avago representative for details.
2. Bin options refer to shippable bins for a part number. Color and Intensity Bins are typically restricted to 1
bin per tube (exceptions may apply). Please refer to respective datasheet for specific bin limit information.
2
These displays are ideal for most
applications. Pin for pin equiva-
lent displays are also available in
a low current or high light
ambient design. The low current

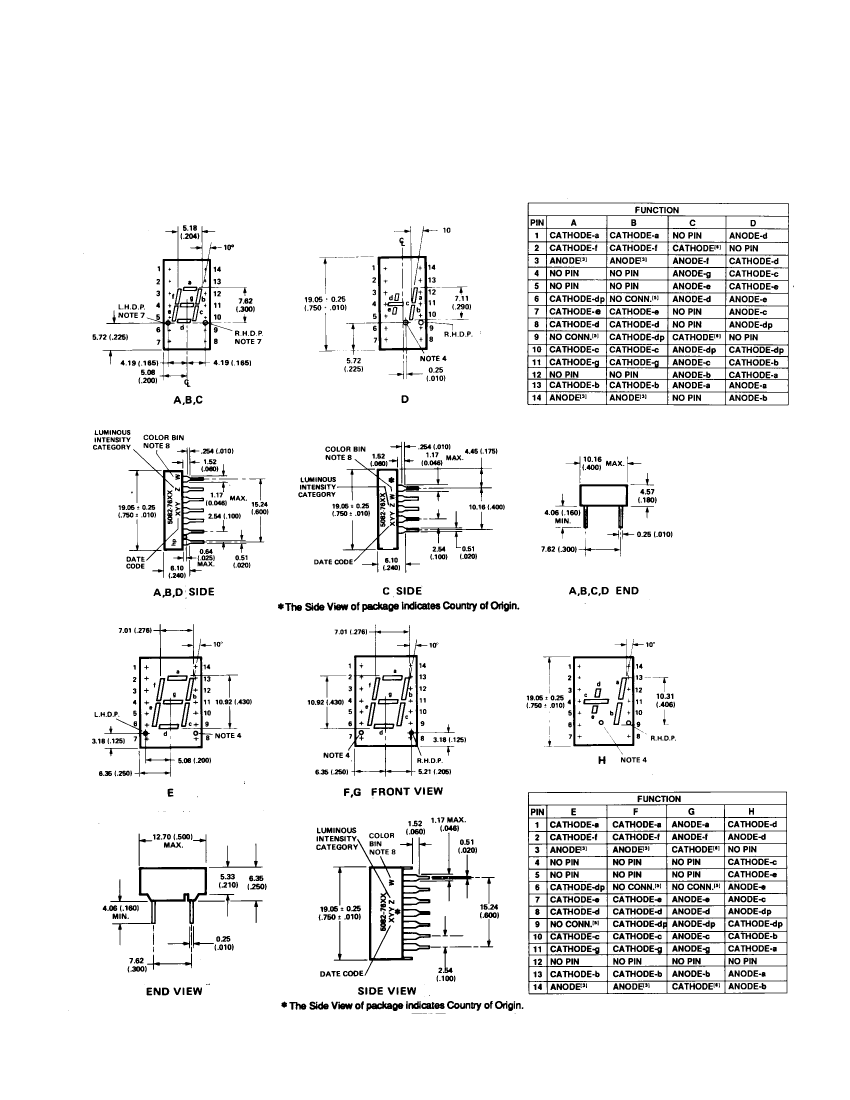

Package Dimensions
displays are ideal for portable
applications. The high light
ambient displays are ideal for
high light ambients or long string
lengths. For additional informa-
tion see the Low Current Seven
Segment Displays, or High Light
Ambient Seven Segment Displays
data sheets.
NOTES;
1. DIMENSIONS IN
MILLIMETRES AND
(INCHES).
2. ALL UNTOLERANCED
DIMENSIONS ARE
FOR REFERENCE
ONLY.
3. REDUNDANT
ANODES.
4. UNUSED DP
POSITION.
5. SEE INTERNAL
CIRCUIT DIAGRAM.
6. REDUNDANT
CATHODE.
7. SEE PART NUMBER
TABLE FOR L.H.D.P.
AND R.H.D.P.
DESIGNATION.
8. FOR YELLOW AND
GREEN DEVICES
ONLY.
3

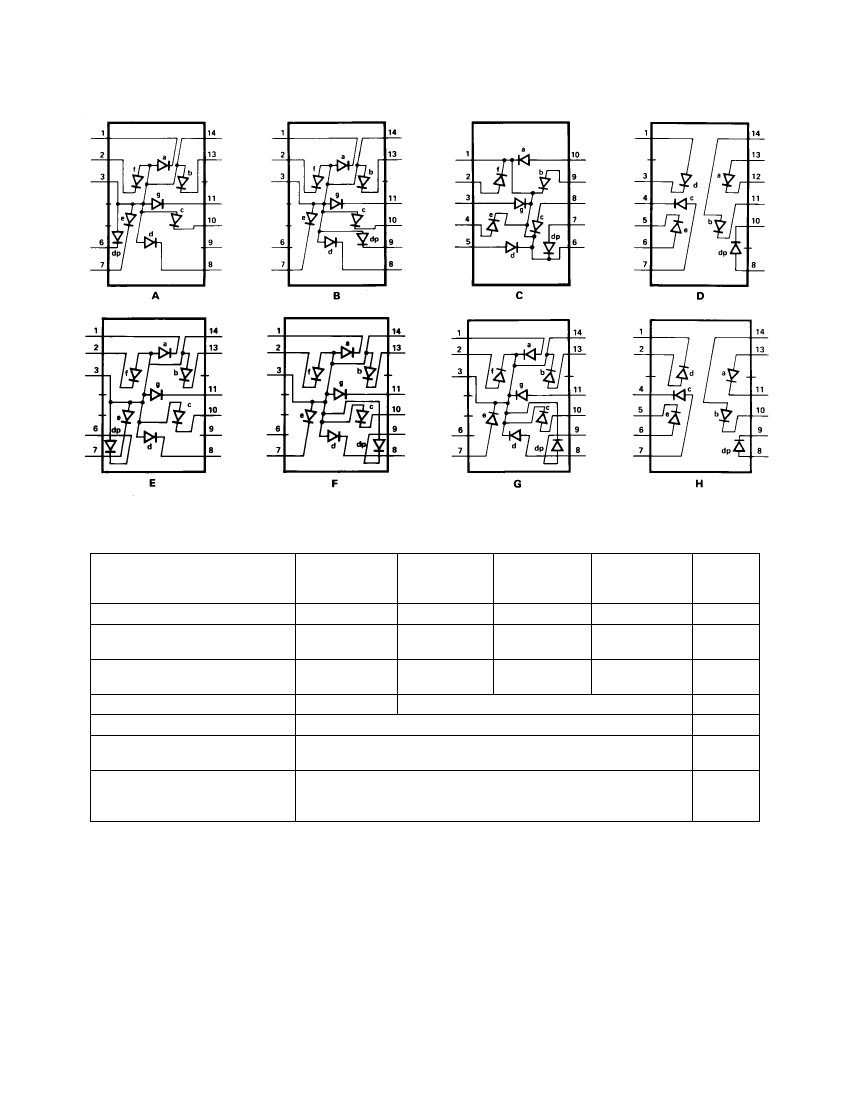

Internal Circuit Diagram
Absolute Maximum Ratings
AlGaAs Red
HDSP-E150
Series
96
160
[1]
40
[2]
-20 to +100
[9]
HER
5082-7610/
7650 Series
105
90
[3]
30
[4]
Yellow
5082-7620/
7660 Series
80
60
[5]
20
[6]
-40 to +100
-55 to +100
3.0
Green
HDSP-3600/
4600 Series
105
90
[7]
30
[8]
Description
Average Power per Segment or DP
Peak Forward Current per
Segment or DP
DC Forward Current per
Segment or DP
Operating Temperature Range
Storage Temperature Range
Reverse Voltage per
Segment or DP
Wave Soldering Temperature for
3 Seconds (1.59 mm [0.063 in.]
below Body)
Units
mW
mA
mA
°C
°C
V
250
°C
Notes:
1. See Figure 1 to establish pulsed conditions.
2. Derate above 46°C at 0.54 mA/°C.
3. See Figure 6 to establish pulsed conditions.
4. Derate above 53°C at 0.45 mA/°C.
5. See Figure 7 to establish pulsed conditions.
6. Derate above 81°C at 0.52 mA/°C.
7. See Figure 8 to establish pulsed conditions.
8. Derate above 39°C at 0.37 mA/°C.
9. For operation below -20°C, contact your local Avago components sales office or an authorized distributor.
4
Electrical/Optical Characteristics at T
A
= 25
°
C
AlGaAs Red
Device
Series
Parameter
Luminous Intensity/Segment
[1, 2, 5]
(Digit Average)
Forward Voltage/Segment or DP
HDSP-
E15x
Peak Wavelength
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of
V
F
/Segment or DP
Thermal Resistance LED Junction-
to-Pin
Symbol
I
V
Min.
8.5
Typ.
15.0
1.8
V
F
2.0
λ
PEAK
λ
d
V
R
∆V
F
/°C
Rθ
J-PIN
3.0
645
637
15
-2
340
3.0
V
nm
nm
V
mV/°C
°C/W/Seg
I
R
= 100
µA
I
F
= 100 mA
Max.
Units
mcd
V
Test Conditions
I
F
= 20 mA
I
F
= 20 mA
High Efficiency Red
Device
Series
5082-761x
5082-765x
Forward Voltage/Segment or DP
Peak Wavelength
All
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of
V
F
/Segment or DP
Thermal Resistance LED
Junction-to-Pin
V
F
λ
PEAK
λ
d
V
R
∆V
F
/°C
Rθ
J-PIN
3.0
Parameter
Luminous Intensity/Segment
[1,2,6]
(Digit Average)
Symbol
I
V
340
1115
2.1
635
626
30
-2
280
2.5
Min.
340
Typ.
800
Max.
Units
µcd
µcd
V
nm
nm
V
mV/°C
°C/W
I
R
= 100
µA
Test Conditions
I
F
= 5 mA
I
F
= 5 mA
I
F
= 20 mA
5
