IV0509D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> IV0509D

IV0509D: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, DIP-6; CategoryPower/power management The power supply circuit; File Size103KB，1 Pages; ManufacturerXP Power; Websitehttps://www.xppower.com/; Environmental Compliance

Download Datasheet Parametric View All

IV0509D Overview

DC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, DIP-6

IV0509D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	XP Power
Parts packaging code	DIP
package instruction	,
Contacts	6
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ADDITIONAL -9V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-XDMA-T6
length	20.3 mm
Maximum load regulation	10%
Number of functions	1
Output times	2
Number of terminals	6
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	9.27 V
Minimum output voltage	8.73 V
Nominal output voltage	9 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum seat height	7.4 mm
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	1 W
Fine-tuning/adjustable output	NO
width	10.2 mm

Preview

Download Datasheet

View All

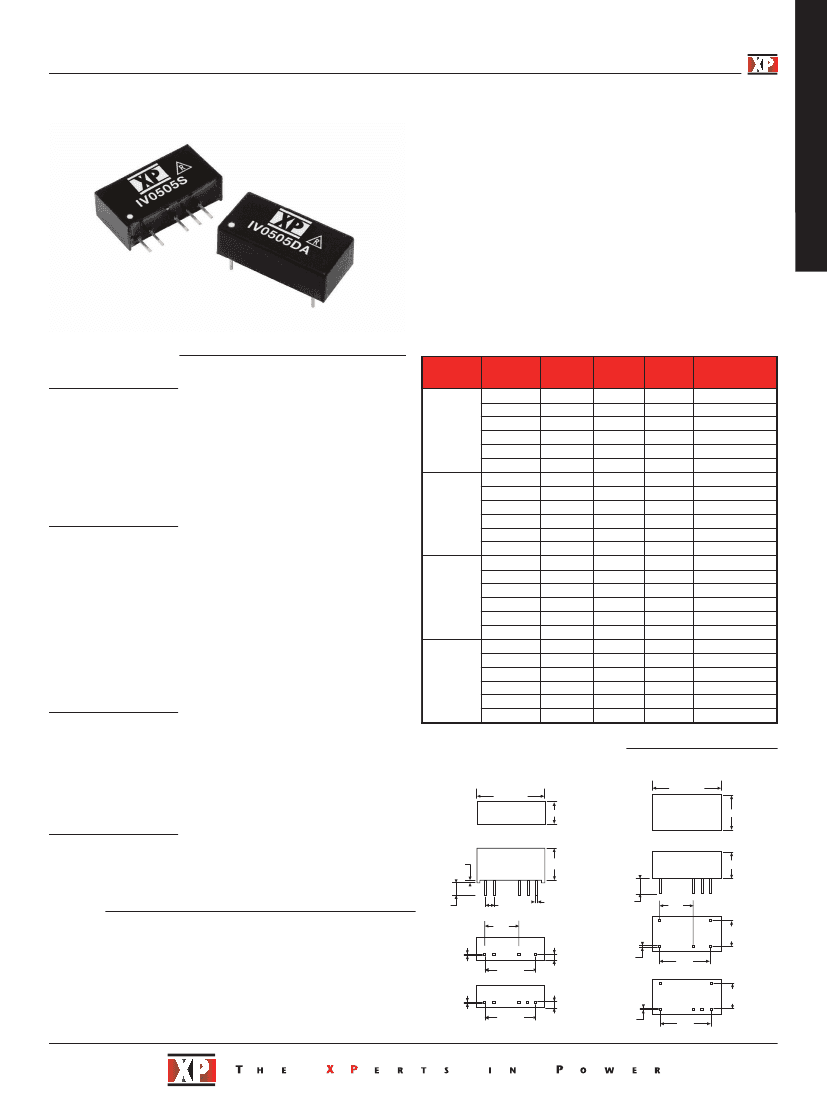

1 Watt

IV Series

•

Single & Dual Output

SIP or DIP Package

3000 VDC Isolation

DC DC

xppower.com

Optional 4000 & 6000 VDC Isolation

40 °C to +85 °C Operation

MTBF >1.1 MHrs

3 Year Warranty

Specification

Input

Input Voltage Range

Input Reflected

Ripple Current

Input Reverse Voltage

Protection

Input Filter

• Nominal ±10%

(3)

• 20 mA pk-pk through 12 µH,

5 Hz to 20 MHz

• None

• Capacitor

Input

Voltage

(3)

No Load

Input Current

30 mA

20 mA

10 mA

6 mA

Output

Voltage

3.3 V

5.0 V

9.0 V

12.0 V

15.0 V

24.0 V

3.3 V

5.0 V

9.0 V

12.0 V

15.0 V

24.0 V

3.3 V

5.0 V

9.0 V

12.0 V

15.0 V

24.0 V

3.3 V

5.0 V

9.0 V

12.0 V

15.0 V

24.0 V

Output

Current

300 mA

200 mA

112 mA

84 mA

66 mA

42 mA

300 mA

200 mA

112 mA

84 mA

66 mA

42 mA

300 mA

200 mA

112 mA

84 mA

66 mA

42 mA

300 mA

200 mA

112 mA

84 mA

66 mA

42 mA

Efficiency

75%

78%

75%

76%

72%

74%

75%

77%

78%

75%

77%

75%

78%

72%

74%

75%

70%

Model Number

(1,2)

IV0503SA

IV0505SA

IV0509SA

IV0512SA

IV0515SA

IV0524SA

IV1203SA

IV1205SA

IV1209SA

IV1212SA

IV1215SA

IV1224SA

IV2403SA

IV2405SA

IV2409SA

IV2412SA

IV2415SA

IV2424SA

IV4803SA

IV4805SA

IV4809SA

IV4812SA

IV4815SA

IV4824SA

5 VDC

Output

Output Voltage

Minimum Load

Line Regulation

Load Regulation

•

See table

None

(4)

1.2%/1%

∆

Vin

±10% 20-100% load change

(3.3 V models ±20%)

±3%

75 mV pk-pk max, 20 MHz bandwidth

0.02%/°C

Dual: ±100 µF, Single: 220 µF

12 VDC

24 VDC

Setpoint Accuracy

•

Ripple & Noise

•

Temperature Coefficient

•

Maximum Capacitive

•

Load

48 VDC

General

Efficiency

Isolation Voltage

Isolation Resistance

Isolation Capacitance

Switching Frequency

MTBF

•

See table

3000 VDC

(6)

60 pF typical

Variable, 80 KHz typical

>1.1 MHrs to MIL-HDBK-217F at 25 °C, GB

Mechanical Details

SIP Package

0.76 (19.50)

0.24 (6.0)

(5)

DIP Package

0.80 (20.3)

Environmental

Operating Temperature

Storage Temperature

Case Temperature

Cooling

Notes

10.

For dual output, delete suffix ‘A’, and split current equally between rails.

For DIP package, replace ‘S’ in part number with ‘D’.

For 48 V nominal input, a 4.7-47 µF capacitor is required across the input.

Operation at no load will not damage unit but it may not meet all specifications.

48 V model dimension is 0.28 (7.20).

For 4000 VDC Isolation, add suffix '-H4'. For 6000 VDC Isolation, add suffix '-H6'.

All dimensions in inches (mm).

Pin pitch tolerance: ±0.014 (±0.35)

Case tolerance: ±0.02 (±0.5)

Weight: SIP 0.006 lbs (2.6 g), DIP 0.005 lbs (2.3 g)

0.40 (10.2)

•

-40 °C to +85 °C

-40 °C to +125 °C

100 °C max

Convection-cooled

0.02

(0.5)

0.37 (9.5)

0.27 (6.9)

0.12

(3.0)

0.10

(2.5)

0.40

(10.16)

0.02

(0.5)

0.12

(3.0)

0.40

(10.16)

-Vin

+Vin

-Vout

+Vout

Single Output

-Vout

+Vout

0.01 (0.2)

0.30

(7.6)

+Vin -Vin

0.60

(15.24)

0.01 (0.2)

+Vin -Vin

-Vout 0V +Vout

0.05

(1.2)

0.01

(0.2)

-Vin

+Vin

0.60

(15.24)

-Vout 0V +Vout

Dual Output

0.05

(1.2)

0.01

(0.2)

0.30

(7.6)

0.60

(15.24)

0.60

(15.24)

13-Dec-11
