SM1316-42L: Description1300-1600 MHz 16 Watt Ultra Linear Power Amplifier; File Size121KB，3 Pages; ManufacturerSTEALTH_MICROWAVE; Websitehttp://www.stealthmicrowave.com/

Download Datasheet View All

SM1316-42L Overview

1300-1600 MHz 16 Watt Ultra Linear Power Amplifier

Preview

Download Datasheet

View All

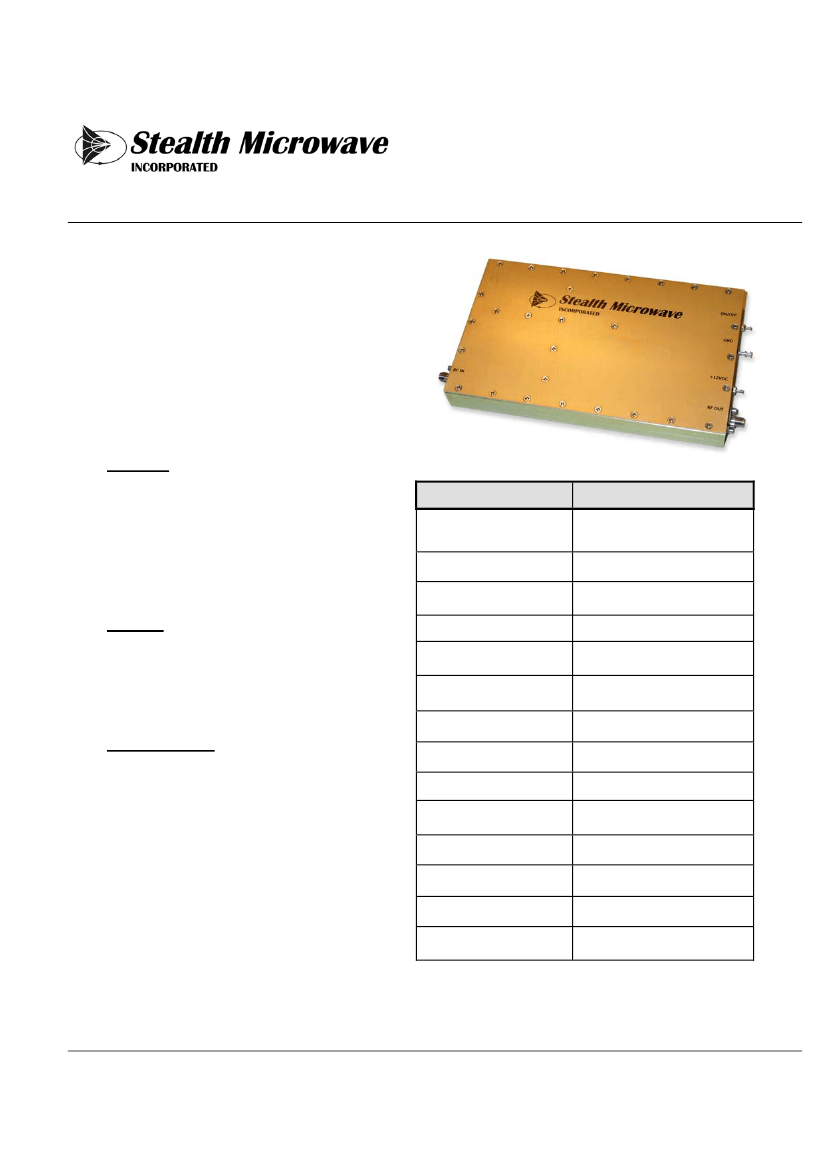

Model SM1316-42L

1300-1600 MHz

16 Watt Ultra Linear Power Amplifier

Model

SM1316-42L

is a 1300 to 1600

MHz solid state GaAs amplifier,

featuring

Stealth’s

proprietary

linearization circuitry. This amplifier

can be used in a variety of wireless

applications, and is well suited for

signals requiring high linearity such as

COFDM. It comes standard in modular

form with six (6) thru-holes.

Features

•

Mis-Match Protected

Single Power Supply

Over/Reverse Voltage Protection

Thermal Protection with Auto

Reset

Parameter

Frequency Range

Pout (P1dB)

OFDM Performance

(typ.)

Linear Gain

Gain Slope over

Full Band

Gain Change over

Temperature

Input/Output VSWR

DC Supply, Operating

DC Supply, Quiescent

Mechanical Dimensions

RF Connectors

Operating Temperature

Operating Humidity

Operating Altitude

Specification

1300 – 1600 MHz

(tuned in 100MHz bands)

+ 42 dBm (typ.)

+ 34 dBm @ 50dBc ACP

+ 35 dBm @ 45dBc ACP

49 dB ± 1 dB

± .75 dB

± .5 dB

1.3:1/1.8:1

+ 12 Volts @ 5.5 Amperes

+ 12 Volts @ 6.5 Amperes

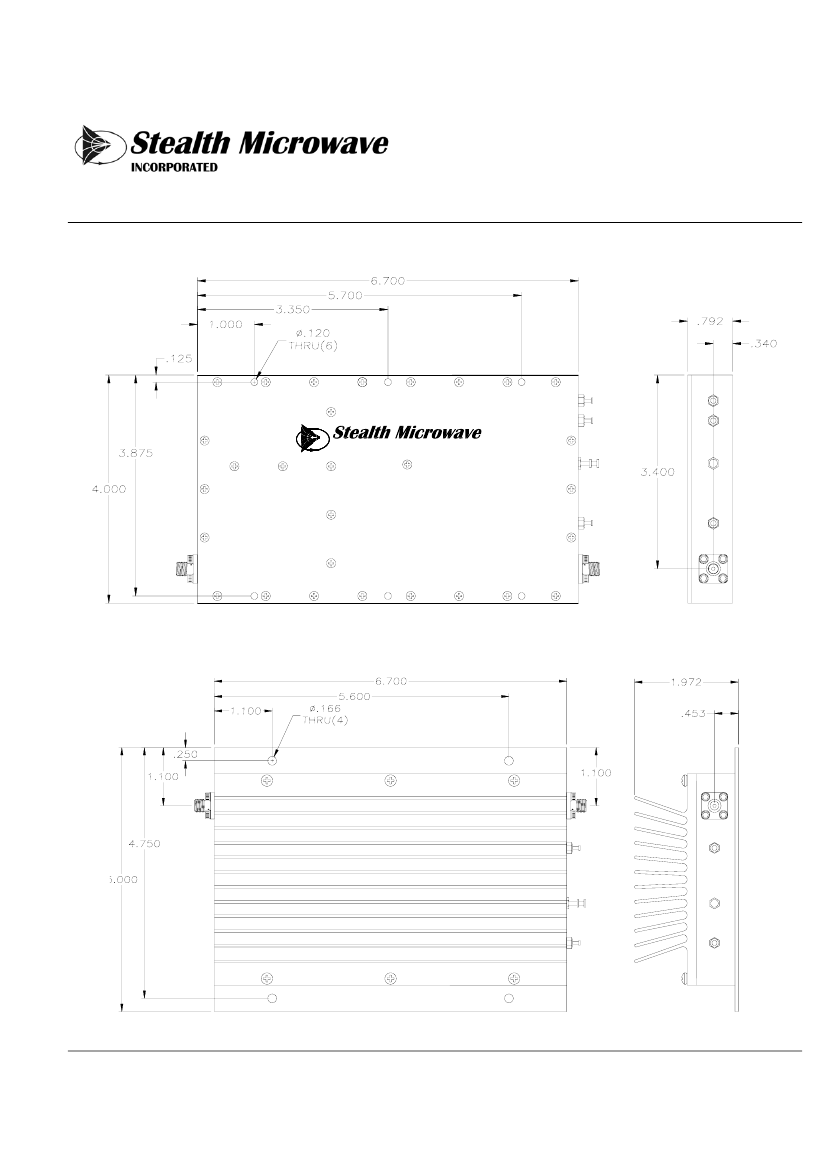

w/heatsink 6.7 x 4.0 x 2.0 in.

w/o heatsink 6.7 x 4.0 x .8 in.

SMA Female

0ºC to +55ºC baseplate

95% Non-condensing

Up to 10,000 feet above

Sea Level

Options

•

Forward Power Detection

Logic On/Off Control

Integral Heatsink

Configurations

•

Module

Laboratory Unit

19” Rack

1007 Whitehead Road Ext., Trenton, NJ 08638

Tel: (609) 538-8586

♦

Fax: (609) 538-8587

Email: sales@stealthmicrowave.com

♦

Web site: www.stealthmicrowave.com
